AudioControl ACX Series Monoblock All Weather Amplifier
We are a AudioControl authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • ACX-600.1 Amplifier
- • Owner's Manual
All-Weather Amplifiers

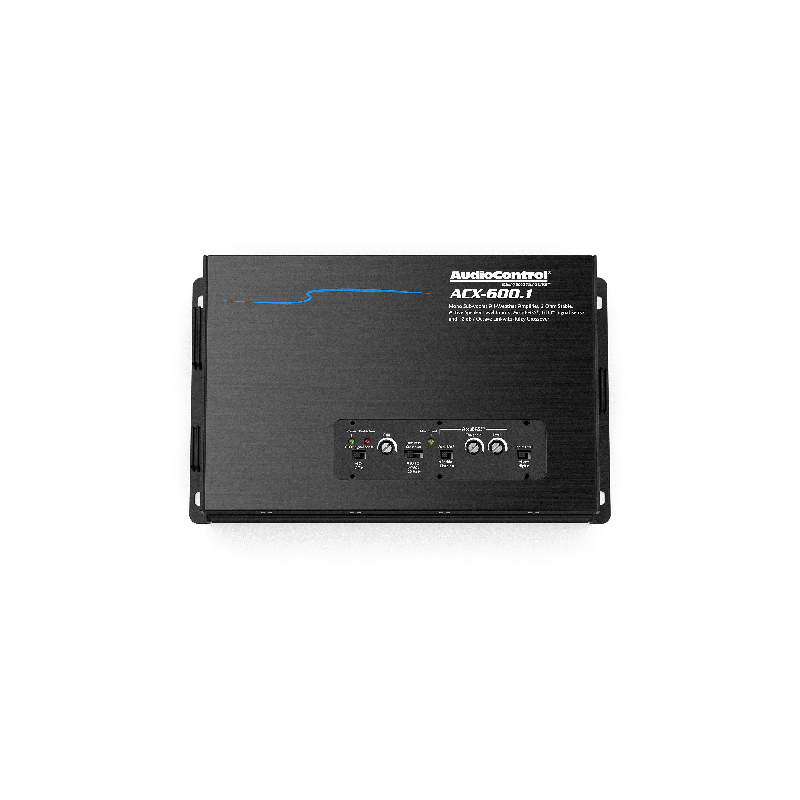

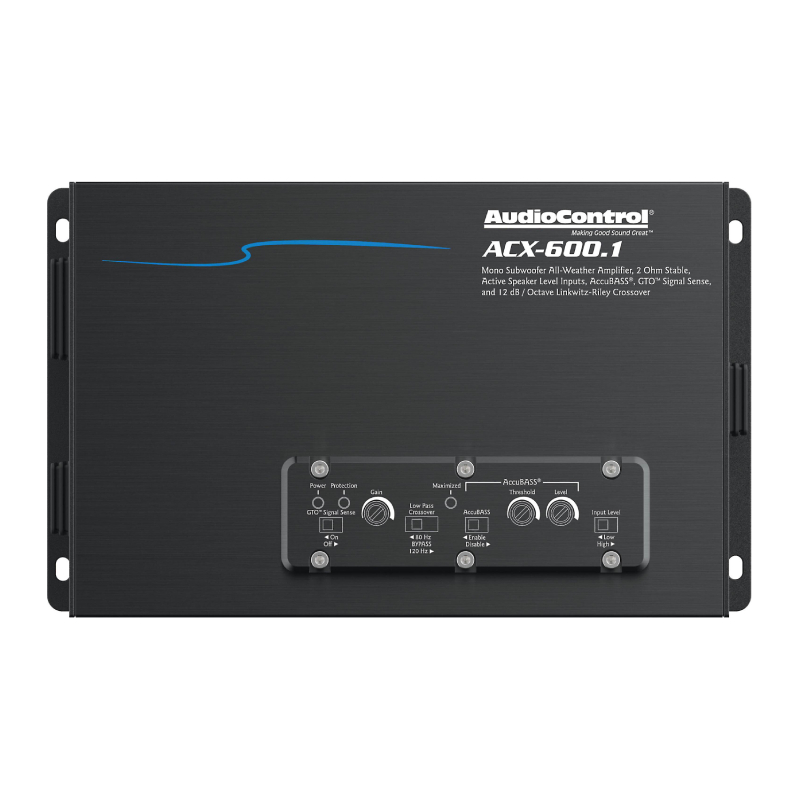

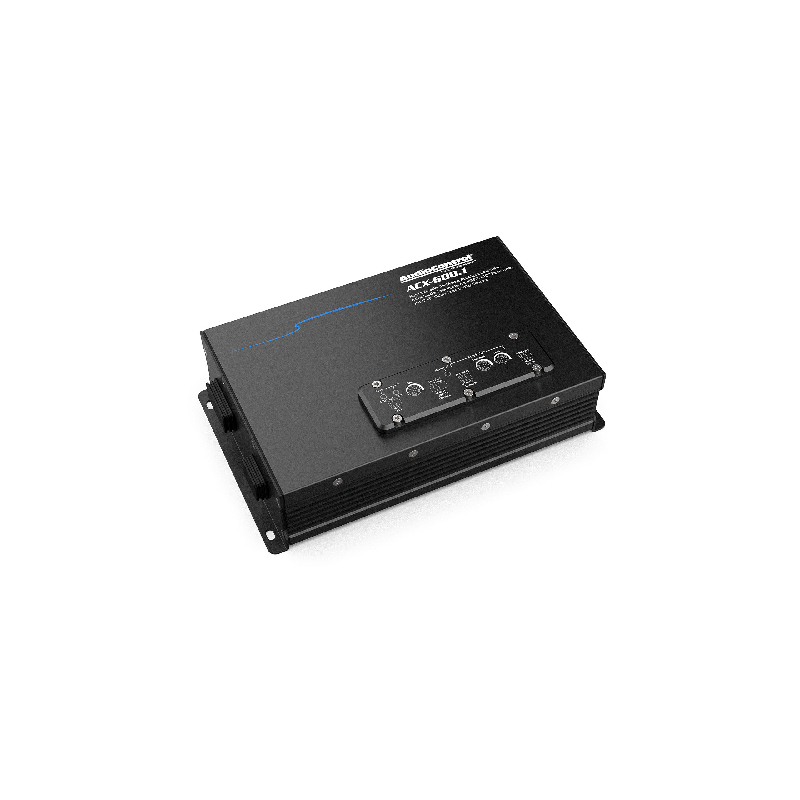

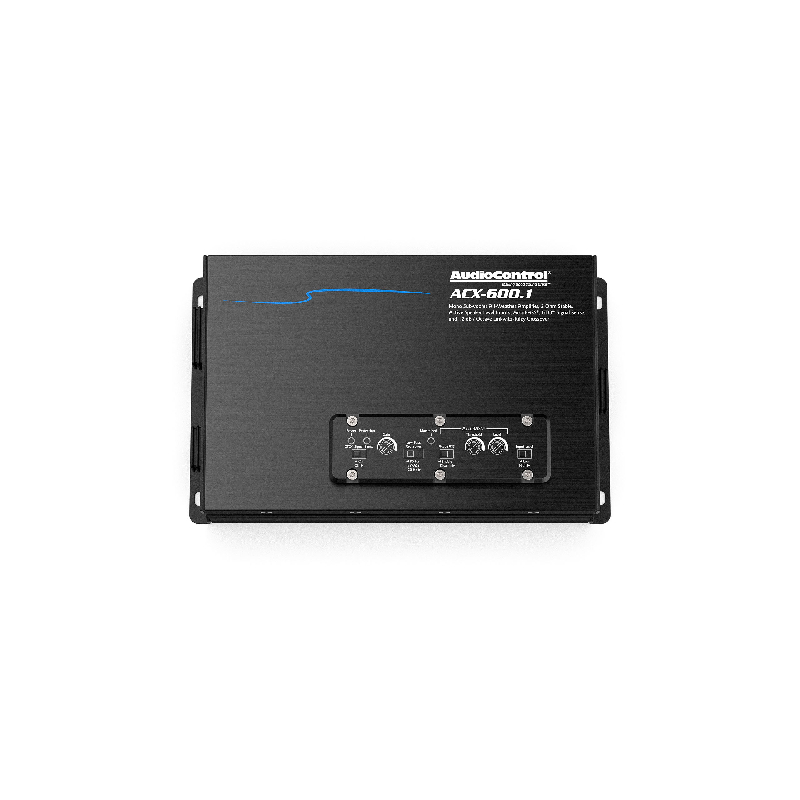

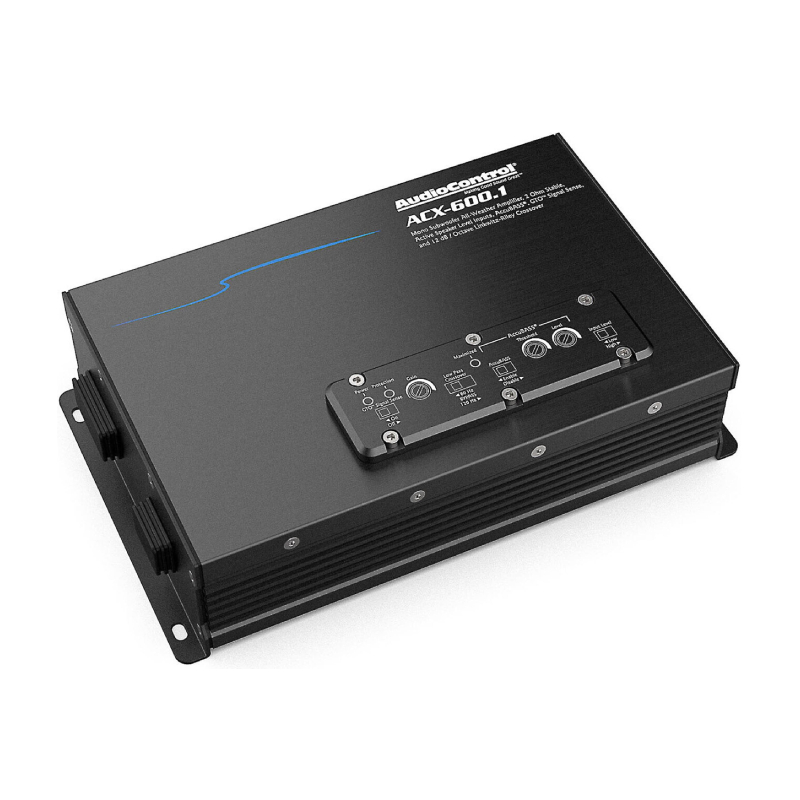

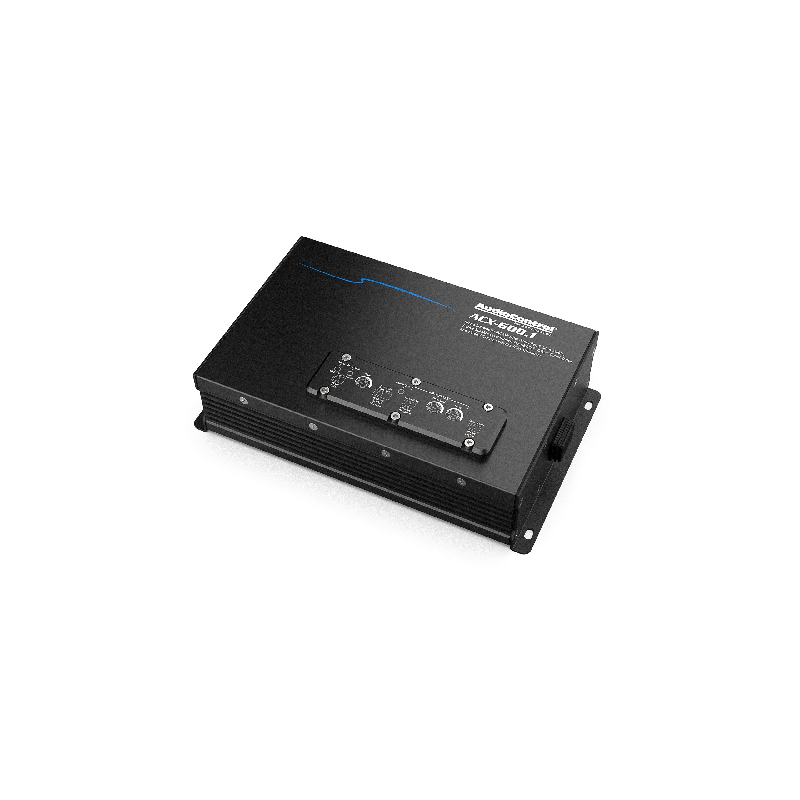

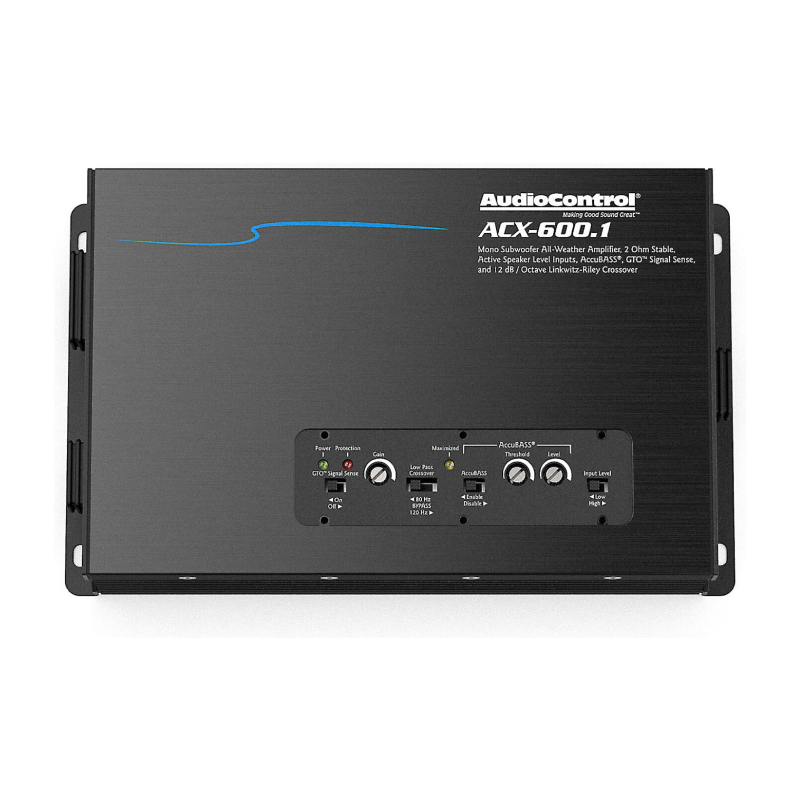

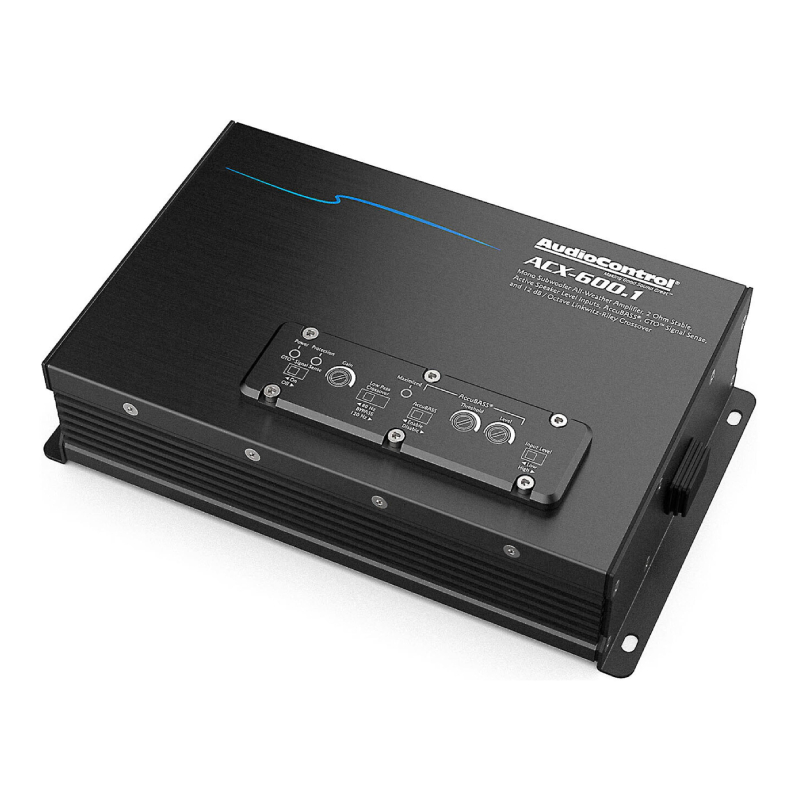

AudioControl’s ACX-600.1 all-weather monoblock amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. The ACX-600.1 will ensure your open-air speakers and subwoofers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-600.1 all-weather monoblock amplifier the perfect solution for your next adventure.
- Maximum Power : 600 Watts
- Low Frequency Response : 26 Hz
- High Frequency Response : 20,000 Hz
- Number of Channels : 1
- Frequency Response : 26-20,000 Hz
- Fuse Rating : 30 A
Features:
- High Power Output from a Compact Chassis
- IPX6 Rated
- Bridgeable (Select Models)
- AccuBASS® Bass Restoration (Select Models)
- Optional Remote Level Control (Select Models)
- High/Low Input Modes
- GTO™ Signal Sense
- Linkwitz-Riley Crossovers
- lnstaller Friendly Quick Connect Wiring
Specifications:
Inputs:
- Preamp/Speaker Level Inputs: 2
- Input Voltage Low: 500 mV – 6 Vrms
- Input Voltage Range High: 1 Vrms – 12 Vrms
Outputs:
- Rated Continuous (RMS) Power at 14.4V:
- 4 Ω – 350 W x 1
- 2 Ω – 600 W x 1
Performance:
- Frequency Response: 26 Hz – 22 kHz
- Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
- THD+N: < 0.05%
- Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
- IP Rating: IPX6
General:
- Recommended Fuse Rating: 30A
Dimensions:
- Dimensions: 8.89″W x 5.31″D x 2.36″H
- UPC: 850038647209
- Weight: 5
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
