Kicker 46KMC5 KMC Series 2-DIN 3.5" Full-Color LCD Display Marine Receiver with Built-In Bluetooth, SiriusXM Ready, and AM/FM Tuner
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

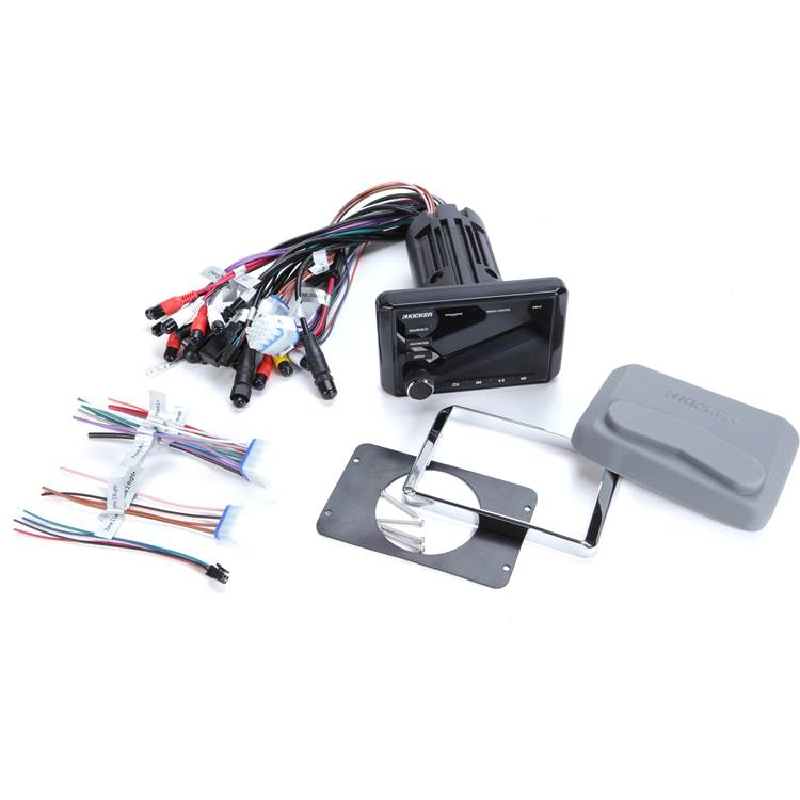

What's Inside?
- • 3.5" KMC Series Full-Color LCD Display Marine Receiver
- • Marine digital media receiver (20A fuse)

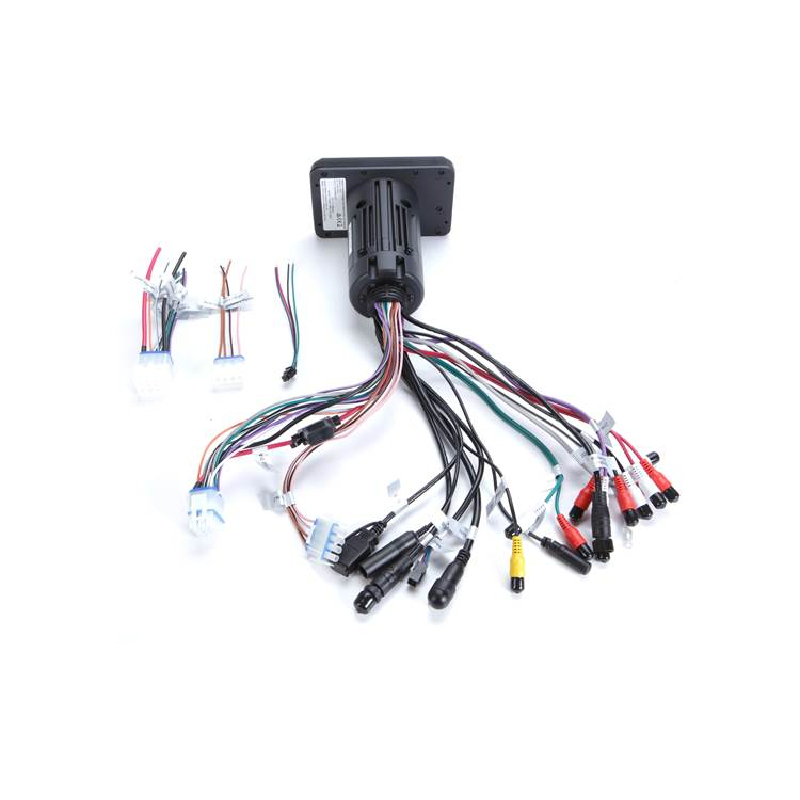

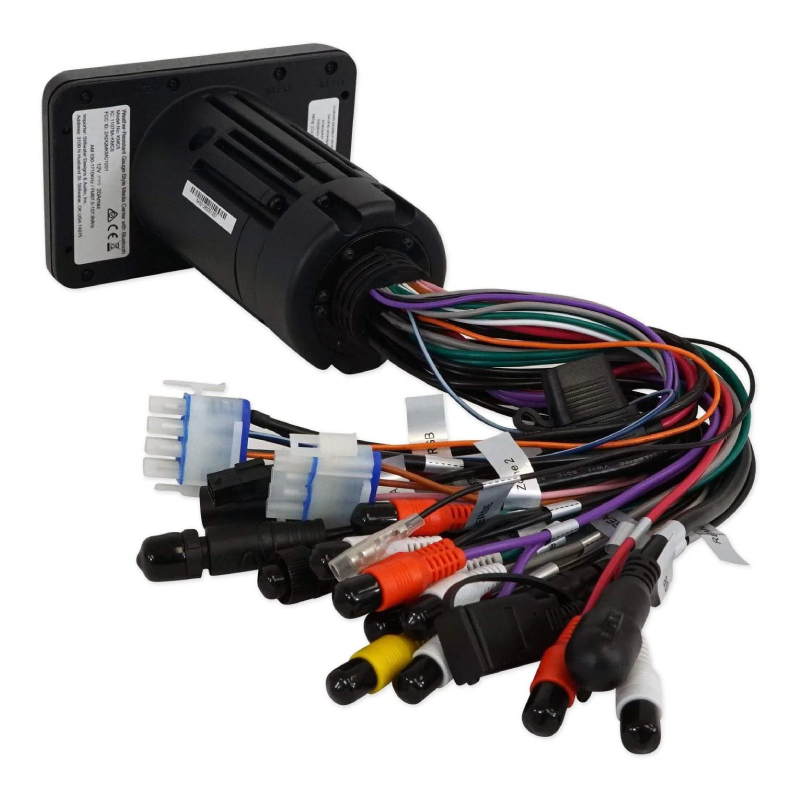

- • Main harness
- • Zone 2 harness
- • RGB harness

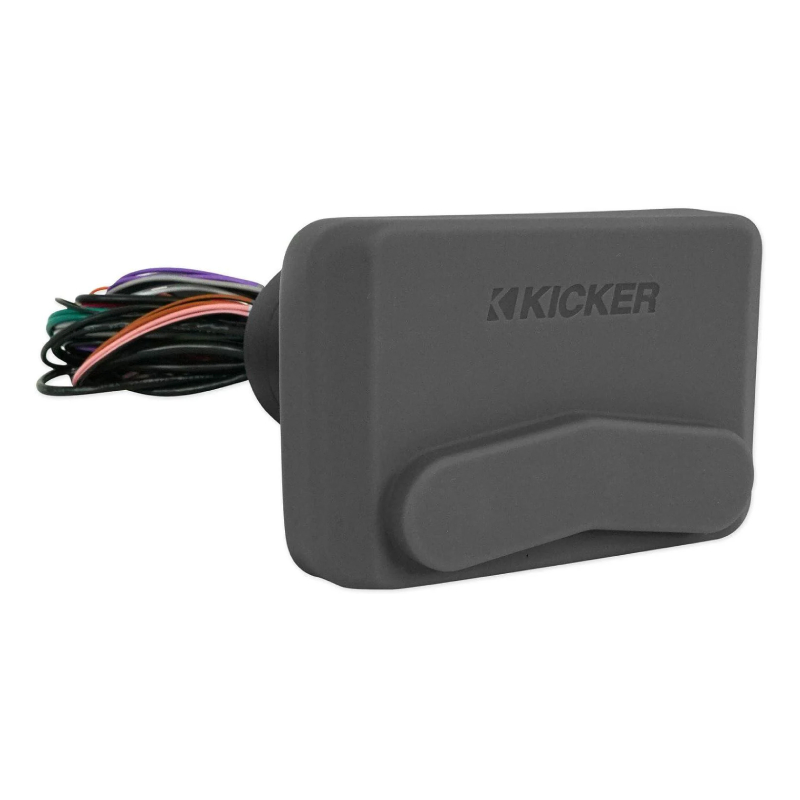

- • Rubber face-cover
- • (2) Trim-rings (black/silver)
- • (4) Screws
- • Gasket
- • Owner's Manual
Why Choose Kicker 46KMC5 Marine Receiver?
Feature-Packed Entertainment Hub
Enjoy seamless audio control with USB charging and playback, built-in Bluetooth streaming, and a vibrant full-color LCD display. Manage sound in two separate zones with multi-zone control, and unlock endless listening with SiriusXM compatibility.
Compact Control with Full-System Flexibility
Easily install in tight spaces with a 3” cutout design, while enjoying full marine-grade connectivity via NMEA 2000 integration. Features include RCA video input with trigger, built-in AM/FM and weather-band radio, 16 customizable presets, and comprehensive RCA outputs for front, rear, subwoofer, and Zone 2 control.
Smart Features for Total Audio Control
Plug in and play with a convenient AUX input, while day/night mode ensures clear screen visibility in any light. Stay informed with real-time voltage display and low battery alerts, fine-tune your sound with loudness control and a 5-preset EQ, and enjoy a system tailored to your preferences.
Frequently Asked Questions (FAQ)
- • Why won't the marine receiver turn on?
A blown fuse, poor ground connection, or incorrect power wiring is the most common cause. Verify the battery voltage and inspect the power and ground connections before troubleshooting the receiver.
- • Why won't my phone connect through Bluetooth?
Make sure Bluetooth is enabled on your phone and remove any old pairings that may interfere with the connection. Restart both devices and pair them again if the connection continues to fail.
- • Is this suitable for saltwater environments?
Yes. It is designed with marine-grade materials that help resist moisture, corrosion, UV exposure, and harsh outdoor conditions when properly installed.
- • Why is there power but no sound from the speakers?
This is often caused by disconnected speaker wiring, incorrect audio settings, or an external amplifier that is not turning on. Check the speaker connections and verify the output settings on the receiver.
- • Can I connect an external amplifier to this receiver?
Yes. It supports connection to compatible external amplifiers, allowing you to expand and improve your marine audio system.
- • Why does the Bluetooth audio skip or cut out?
Signal interruptions can occur if your phone is too far away or there is wireless interference nearby. Keeping the phone within range and minimizing obstacles usually improves connection stability.
- • Can I control multiple audio zones on my boat?
Yes, if your installation and connected equipment support multi-zone audio. This allows different listening areas on the boat to have independent volume control.
- • Why can't it detect my USB drive?
The USB drive may be using an unsupported file system or contain unsupported audio file formats. Formatting the drive correctly and using compatible music files often resolves the issue.
- • Is the display easy to read in direct sunlight?
Yes. The display is designed for marine environments and provides improved visibility during daytime boating conditions.
- • Why does the receiver lose my saved settings after I turn the boat off?
This usually happens when the constant power wire is disconnected or incorrectly wired. Verify that the memory power connection has continuous battery voltage.
- Maximum Power : 240 Watts
- Satellite Radio Ready : Yes
- Frequency Response : 20-20000 Hz
- DIN : 2
- Preamp Voltage : 4 volts
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Preamp Outputs : 8
Features:
- USB Charging & Playback: Charge your device and enjoy music via thumb-drive
- Wireless Freedom: Stream music effortlessly with built-in Bluetooth connectivity
- Full-Color Display: Bright, easy-to-read LCD for clear visibility and control
- Multi-Zone Control: Manage audio in two separate zones, including Zone 2 speaker outputs
- SiriusXM Ready: Compatible with SiriusXM for endless entertainment options
- Compact Mounting: Designed for a 3” hole cutout for easy installation
- NMEA 2000 Integration: Equipped with an NMEA port for seamless marine connectivity
- Video Input with Trigger: RCA video input includes remote trigger wire for screens or cameras
- Built-In Radio Options: Enjoy AM/FM and weather-band radio wherever you go
- Custom Favorites: Save up to 16 station presets for AM, FM, and SiriusXM
- Comprehensive RCA Outputs: Front, rear, subwoofer, and Zone-2 RCA outputs for full system flexibility
- Convenient AUX Input: Plug in external devices with AUX RCA input
- Day/Night Mode: Adjustable screen brightness for optimal viewing in any lighting
- Battery Monitoring: Low battery alert keeps you informed
- Loudness Control: Enhance low-volume listening with loudness adjustment
- Tailored Sound: Customizable EQ with five preset sound profiles
- Real-Time Voltage Display: Monitor your system’s voltage directly on screen
Specifications:
- Power Output @ 14.4V, 4Ω stereo, <10% THD+N: 25x6
- Power Output @ 14.4V, 2Ω stereo, <10% THD+N: 40 x 6
- Frequency Response [Hz]: 20 - 20k
- Signal-to-Noise Ratio [dB]: 108
- RCA Outputs:
- Pre-amp Outputs:
- Front
- Rear
- Subwoofer
- Zone2
- Line-Out Level [V]: 4
- Outer Trim Ring Dimensions [in, cm]: 3.5 x 5.5, 8.89 x 13.97
- Protrusion From Mounting Surface [in, cm]: 1-5/16, 3.33
- Mounting Depth [in, cm]: 5, 12.7
- Mounting Hole Diameter [in, cm]: 3, 7.62
- Mounting Panel Thickness Range [in, cm]: Any
- IP Rating: IP66
- AUX Input Sensitivity" Adjustable from 500mV-1.5V
- USB:Playback, Charging, Compatible File System:
- MP2, MP3, WMA, WAV16, FLAC16
- DC 5V, 1 Amp
- FAT32
- BT Range (feet):30
- UPC: 713034014317
- Weight: 3.2
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
