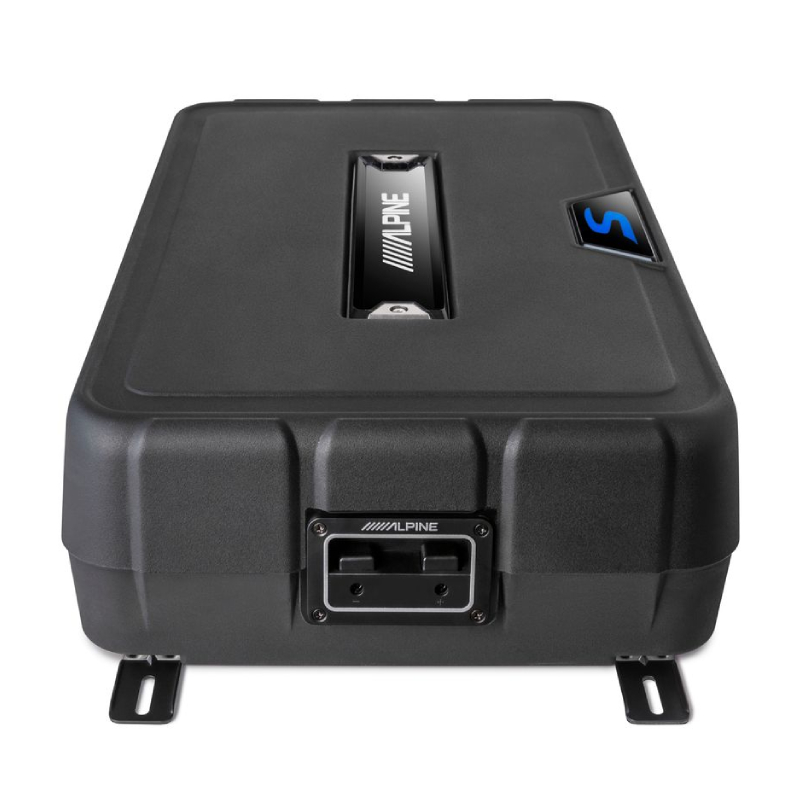

Alpine SS-SB12 S-Series 12" 300W RMS (600W Peak Power Handling) 2 Ohms, Shallow Sealed Downward-Firing Preloaded Subwoofer Enclosure
We are a Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Subwoofer enclosure loaded with one 12" S-Series subwoofer
- • (4) Mounting brackets
- • (4) Foam pads with adhesive backing
- • (8) 3/4" screws
- • (4) M5x12mm machine screws
- • (4) Lock-washers
- • Product registration information
- • Safety notice
- • Installation manual (Eng/Fren)
- • Warranty information
- • Owner's Manual
Why Choose Alpine SS-SB12 Enclosed Car Subwoofer?

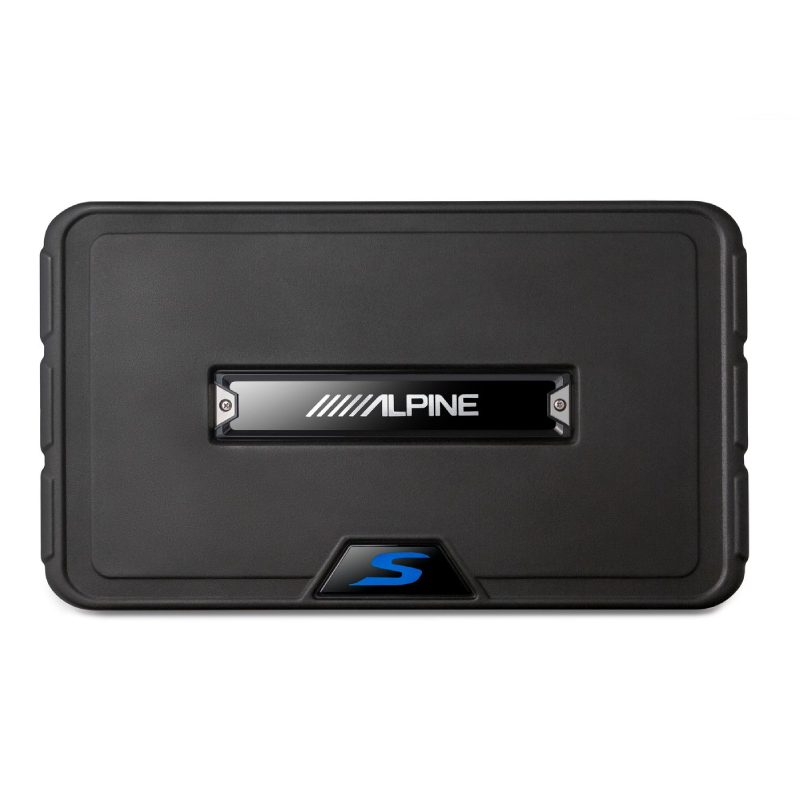

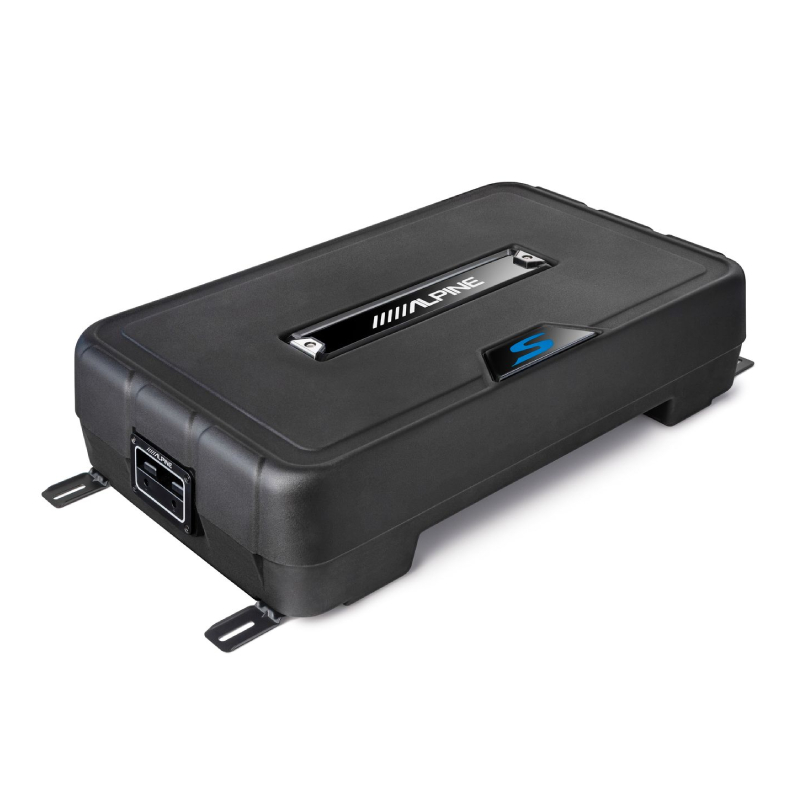

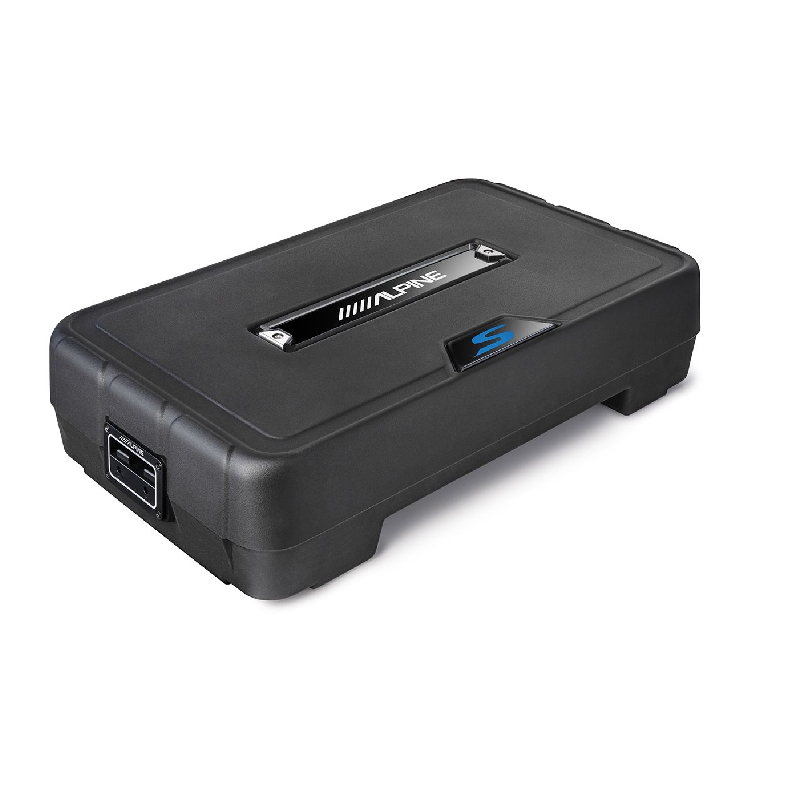

Alpine 12" S-Series Shallow Preloaded Subwoofer

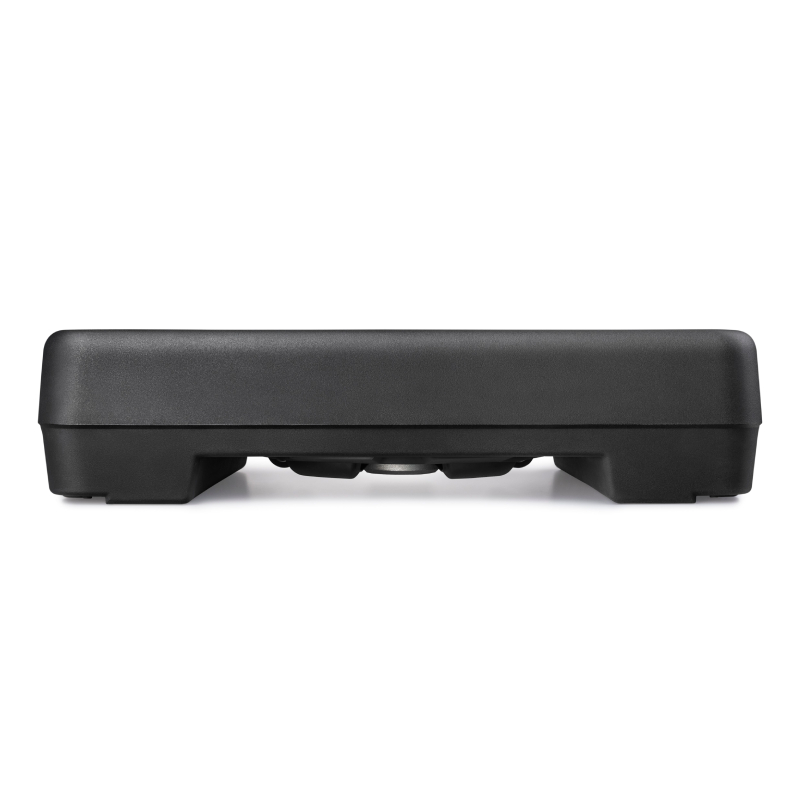

Now you don’t have to choose between bass and space! This 12” S-Series Shallow Preloaded Subwoofer Enclosure measures just 5.25” deep, delivering clean, powerful, and reliable bass while fitting seamlessly into most vehicle applications.
Powerful and Compact Performance

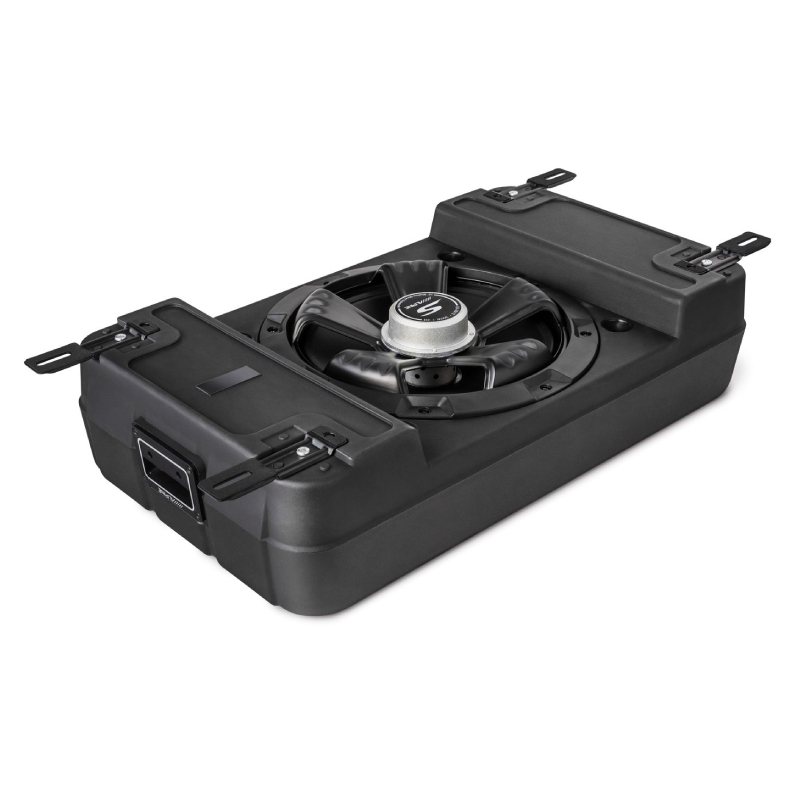

The SS-SB12 packs a 2” voice coil and a lightweight neodymium magnet, delivering up to 300W RMS of clean, punchy bass. Its front-mounted magnet motor allows for an extremely shallow enclosure, giving you big bass in a compact footprint.
Next-Level Bass Control
Alpine’s Gen2 DD-Linear Magnetic Circuit uses a compact dual-gap voice coil for superior motor control, delivering 22mm peak-to-peak linear excursion for powerful, distortion-free output. With dual voice coils wired in parallel (2 Ohm load), the S-Series 12" Shallow Subwoofer Enclosure is optimized to perform perfectly with Alpine S2-A55V, KTA-200M, or KTA-30MW amplifiers.
Frequently Asked Questions (FAQ)
- • Can I connect this enclosed subwoofer to my factory stereo?
Yes, it can be integrated with most factory audio systems when paired with a compatible amplifier and the appropriate signal converter if required. This allows you to enjoy significantly deeper bass while keeping your original radio.
- • Why does the bass seem weak even though everything is connected correctly?
Weak bass is often caused by incorrect crossover settings, amplifier gain adjustments, or the enclosure's position inside the vehicle. Fine-tuning the system and trying different enclosure orientations usually improves bass performance noticeably.
- • What size amplifier should I use with this subwoofer?
An amplifier with an RMS output that closely matches the subwoofer's continuous power rating provides the best balance of performance and reliability. Using the proper amplifier also helps prevent distortion and unnecessary speaker damage.
- • What gauge speaker wire does the terminal accept?

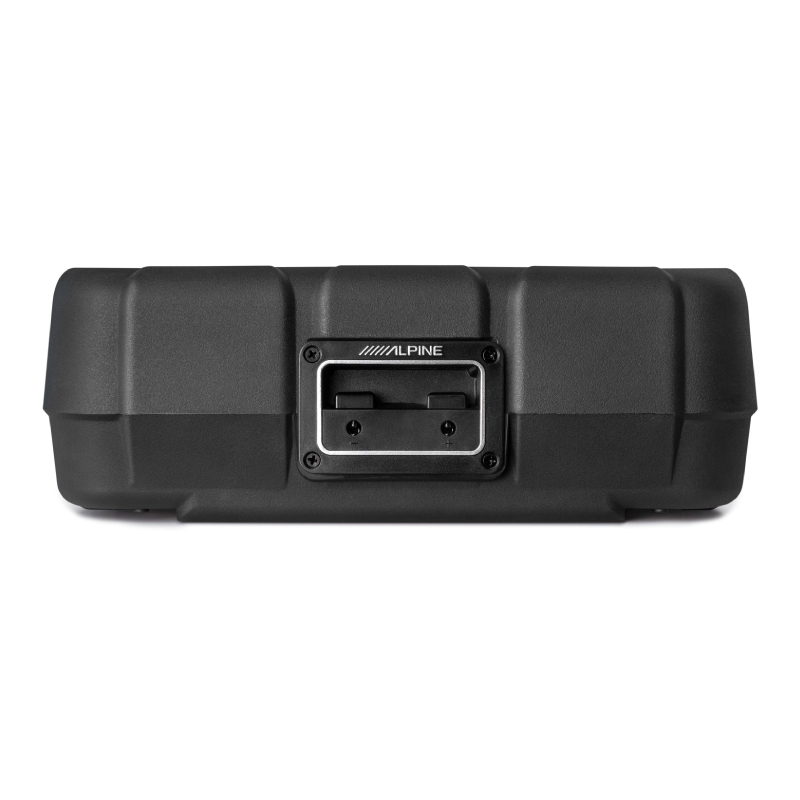

The recessed spring-post terminal cup accepts wire up to 12-gauge. Using anything thicker won't fit properly into the posts, so 12-gauge or thinner is recommended for a secure connection.
- • Does the direction the enclosure faces inside the trunk make a difference?
Yes, enclosure orientation can have a noticeable effect on bass response depending on your vehicle's cabin design. Many owners experiment with different positions to find the strongest and smoothest low-frequency performance.
- • Why does the bass distort when I turn the volume up?
Distortion is usually caused by amplifier clipping, excessive bass boost, or gain settings that are too high. Proper amplifier tuning and crossover adjustment help maintain clean, powerful bass at higher listening levels.
- • Can the mounting brackets be repositioned for different trunk shapes?

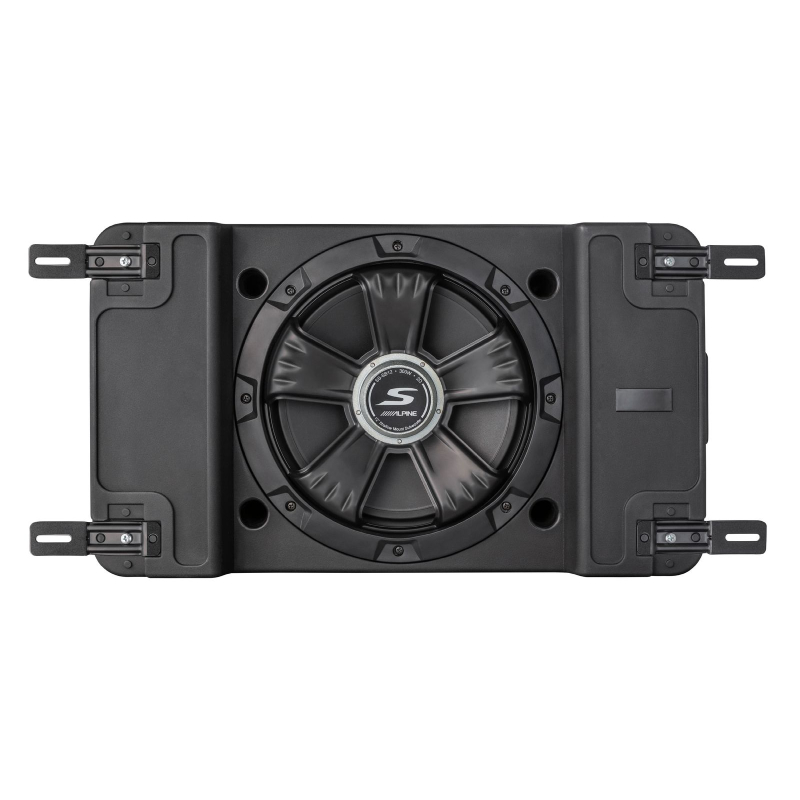

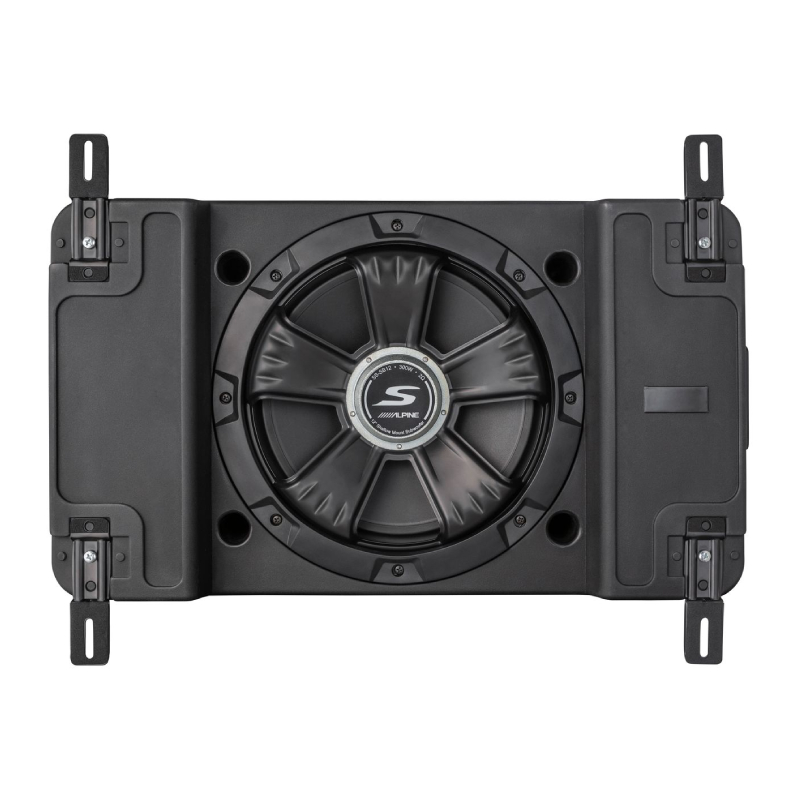

Yes, all four brackets can be adjusted to face out the sides or the ends of the enclosure. This flexibility helps it conform to irregular spaces like wheel wells or angled trunk walls.
- • Why does my trunk or rear hatch rattle after installing the enclosure?
The increased low-frequency output can cause loose trim panels, license plates, and interior parts to vibrate. Installing sound-deadening material and tightening loose components usually minimizes unwanted rattles.
- • Is an enclosed subwoofer easier to install than building a custom enclosure?
Yes, a preloaded enclosure is designed specifically for the included subwoofer, eliminating the need to build or tune a custom box. This provides reliable performance while reducing installation time and complexity.
- • Is it actually water-resistant enough for a boat or truck bed?
The polymer enclosure carries an IPX water-resistance rating, so it can handle splashes or damp conditions better than a standard MDF box. It's still not meant for full submersion or constant direct exposure to the elements.
- Diameter : 12 Inch
- Sensitivity : 85 dB
- Impedance : 2 Ohm
- Frequency Response : 30–200 Hz
- Peak Power Handling : 600 Watts
- Number Of Subwoofers : 1
- RMS Power Handling : 300 Watts
Features:
- Optimal Sealed Cabinet Quality: Designed with a precision-engineered sealed enclosure to maximize bass response, reduce distortion, and provide tight, accurate low-frequency performance.
- Preloaded 12” S-Shallow Subwoofer: Comes installed for quick and hassle-free setup, featuring a shallow-depth design to fit under seats or in tight spaces without sacrificing bass output.
- Neodymium Magnet: Lightweight yet powerful magnet provides higher efficiency and increased magnetic flux for stronger, cleaner bass reproduction.
- Front-Mounted Neodymium Motor: Improves heat dissipation and delivers more precise cone control, enhancing overall performance and longevity.
- Alpine Gen2 DD Linear Magnetic Circuit: Advanced motor technology ensures consistent magnetic field distribution for accurate cone movement and superior sound quality.
- Rugged Polymer Enclosure Cabinet: Durable construction protects the subwoofer from impact and vibrations while maintaining a compact, lightweight footprint.
- Adjustable, Foam-Padded Mounting Brackets: Allow flexible installation in various locations, reduce unwanted vibrations, and ensure the subwoofer remains secure during use.
Specifications:
- Woofer Size: 12 inches
- Speakers Per Box: 1
- Woofer Material: Polypropylene
- Enclosure Type: Sealed
- Color: Black
- Pieces in System: 1
- Width: 22-3/4 inches
- Height: 5-1/4 inches
- Depth: 13-3/16 inches
- Connector Type: Spring post, 12 AWG
- Frequency Response: 30-195 Hz
- Power Handling (RMS): 300 watts
- Power Handling (Peak): 600 watts
- Impedance: 2 ohms
- UPC: 793276084460
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
