SSV Works KX-Q3A2 Kawasaki Teryx KRX 2020+ 3 speaker Plug and play kit with SSV Speakers/ Phase EQ 5ch amp/ MRB2R Controller
We are a SSV Works authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?

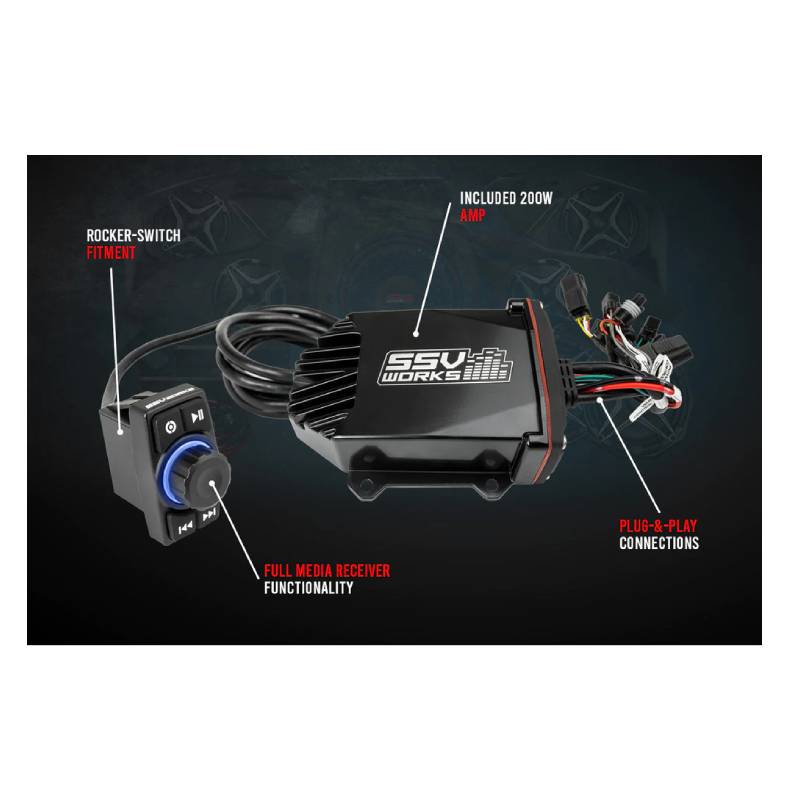

- • Bluetooth Rocker-Switch Receiver
- • (2) 6.5" SSV Works Speakers
- • 5-channel Amplifier
- • 10" Subwoofer
- • Owner's Manual
Offer Incredible Sound Clarity
The KX-Q3A2 is a powerful and versatile audio system that seamlessly integrates into your off-road vehicle, delivering an immersive audio experience like no other. With its rugged and weather-resistant construction, this system is built to withstand the toughest terrains and harshest elements, ensuring reliable performance wherever your adventures take you.
Equipped With Bluetooth Connectivity
The SSV Works KX-Q3A2 is not just an audio system; it's a complete audio solution designed specifically for off-road enthusiasts. Get ready to elevate your outdoor experience with the unmatched performance, durability, and convenience of the KX-Q3A2. Whether you're tackling rough terrains
Frequently Asked Questions (FAQ)
- • Why does the Rock ’N Ride controller connect but produce no audio?
Check the amplifier power, weatherproof main connector, and controller connections first, since a secure-looking plug can still prevent the system from operating if it is not fully seated.
- • Why does the sound change noticeably when switching from ROCK to RIDE mode?
This is intentional—the two DSP profiles are tuned differently, with ROCK prioritizing fuller sound while parked and RIDE compensating for wind, engine, and helmet noise during driving.
- • Why does the 10-inch subwoofer seem quieter than expected while riding?
Off-road engine and wind noise can mask low frequencies, particularly at higher speeds. The built-in subwoofer-level control can be used to increase bass output for riding conditions.
- • What should I check if one 6.5-inch speaker suddenly stops playing?
Inspect the speaker's positive-lock connector and the associated plug-and-play harness for a loose connection, damaged wiring, or debris around the connection point.
- • Why won't the audio system turn on with the vehicle?
A problem with the power or turn-on connection can keep the amplifier from activating. Check the vehicle-specific wiring and amplifier connections before assuming the amplifier has failed.
- • Can muddy trail conditions cause problems with the amplifier?
The included Phase EQ amplifier carries an IP66 waterproof rating, but the connectors and wiring should still be properly secured and protected from direct damage, mud buildup, or improper installation.
- • Why is there distortion when the volume is turned up high?
Excessive volume can push the speakers beyond clean output, while incorrect wiring or a poor connection can also introduce distortion. Try the appropriate DSP profile and inspect the speaker connections before increasing the gain further.
- • Why does the system have several unused-looking connections during installation?
The kit uses a vehicle-specific plug-and-play harness and a single weatherproof Camlock connection at the amplifier, so some connectors may belong to optional or different sections of the system rather than indicate missing components.
- • What if my KRX model does not match the listed fitment?
Verify the exact model year and KRX configuration before installation. The KX-Q3A2 is listed for select 2020–2023 Kawasaki KRX1000 applications, so similar-looking Kawasaki models should not automatically be assumed compatible.
- • Why is troubleshooting difficult after everything has been installed?
Access to the amplifier and its settings may be necessary when diagnosing issues. SSV Works recommends having access to the amplifier when contacting technical support so the system can be checked and adjusted during troubleshooting.
Features:

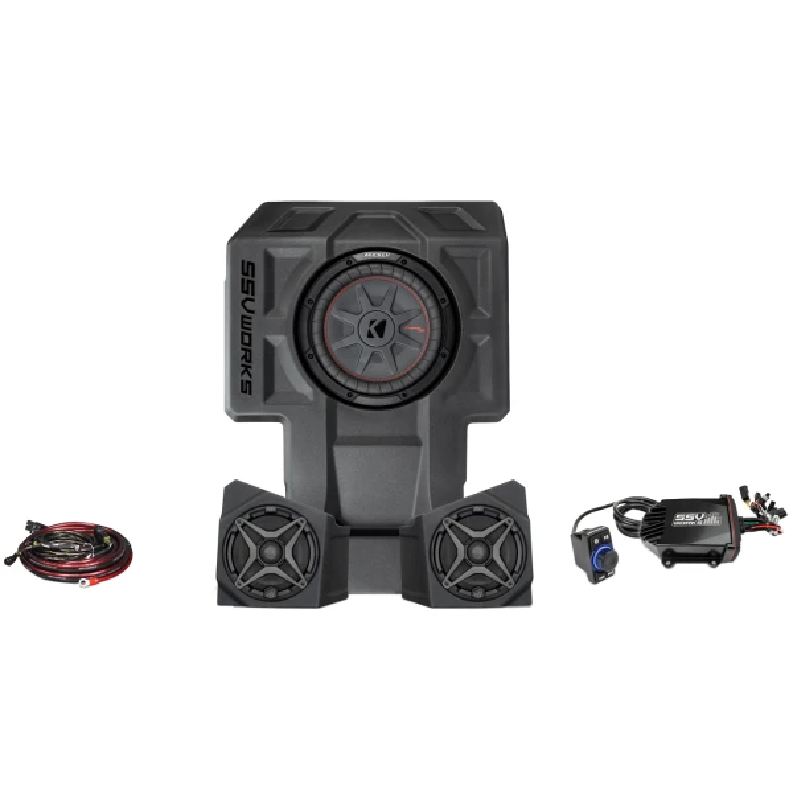

- Includes a Bluetooth rocker-switch media center, two 6.5" speakers preloaded in custom-fit enclosures, a 5-channel amp, and a 10" subwoofer with custom-fit enclosure
- Designed and engineered to match and compliment the factory fit and finish of your vehicle
- Plug-&-Play: No Soldering, cutting or crimping
- Phase EQ amp comes pre-tuned to your specific vehicle and audio kit

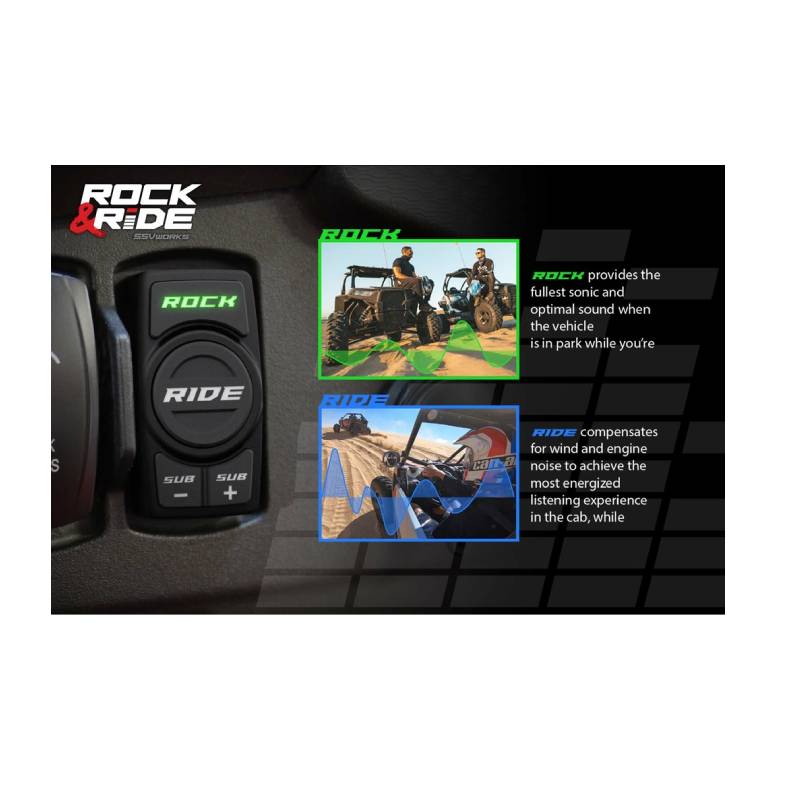

- Rock ‘N Ride rocker switch allows you to switch between pre-tuned audio profiles
- ROCK: Provides the fullest sonic and optimal sound while parked
- RIDE: Compensates for wind and engine noise, as well as boosts the frequencies you would lose from wearing your helmet, achieving the most energized listening experience in the cab, while riding
- Subwoofer level control: Adjust how much bass you want with the push of a button
- Comes with all necessary mounting and installation hardware
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
- Compatible with select 2020-2023 vehicles from Kawasaki

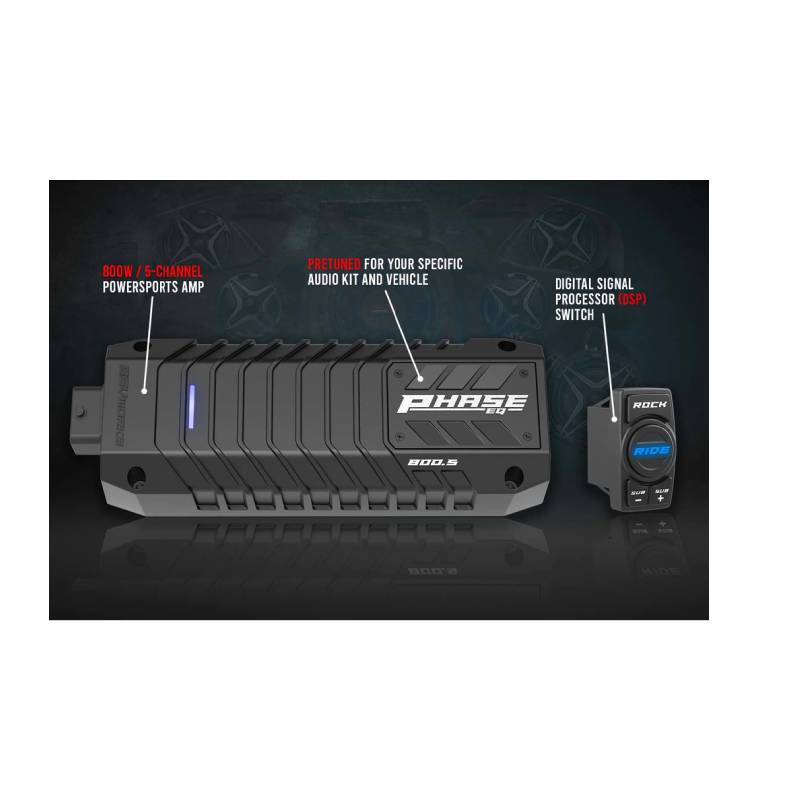

Phase EQ Amplifier Features:
- Rock & Ride vehicle specific pre-tuned DSP profiles

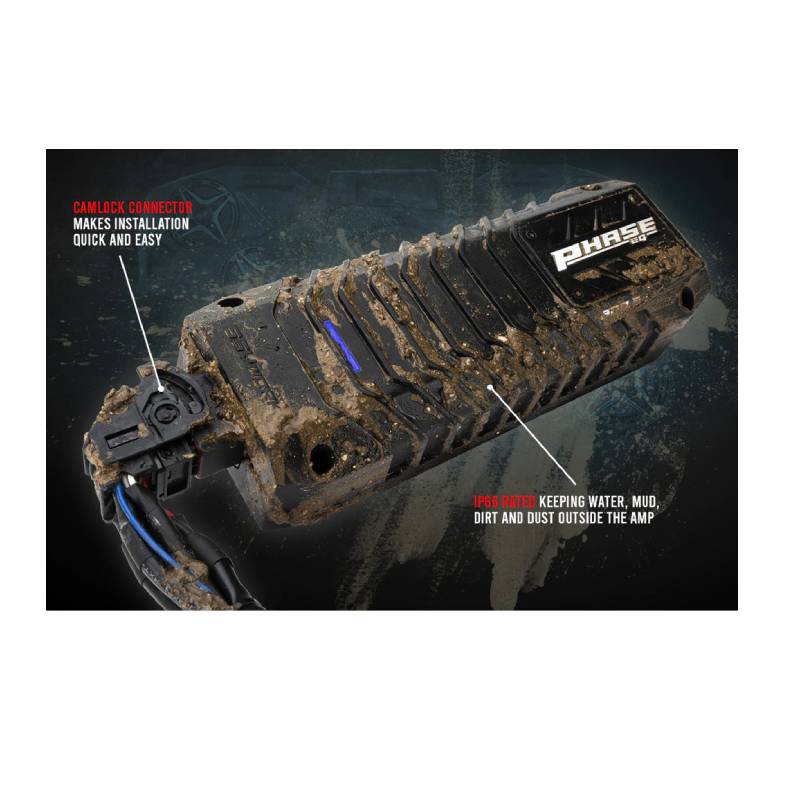

- IP66 waterproof rating
- High-caliber Powersports amplifier
- 800W Peak/ 5-Channel
- Power:
- 4ohm: 50 watts x 4 channels
- 2ohm: 100 watts x 4 channels
- 2 ohm subwoofer channel: 400 watts x 1 channel
- Channel 1/2 & 3/4 Bridgeable
- Low Current Draw (60A max)
- Rock n’ Ride Switch Included with Amp
- Single weatherproof Camlock Connection

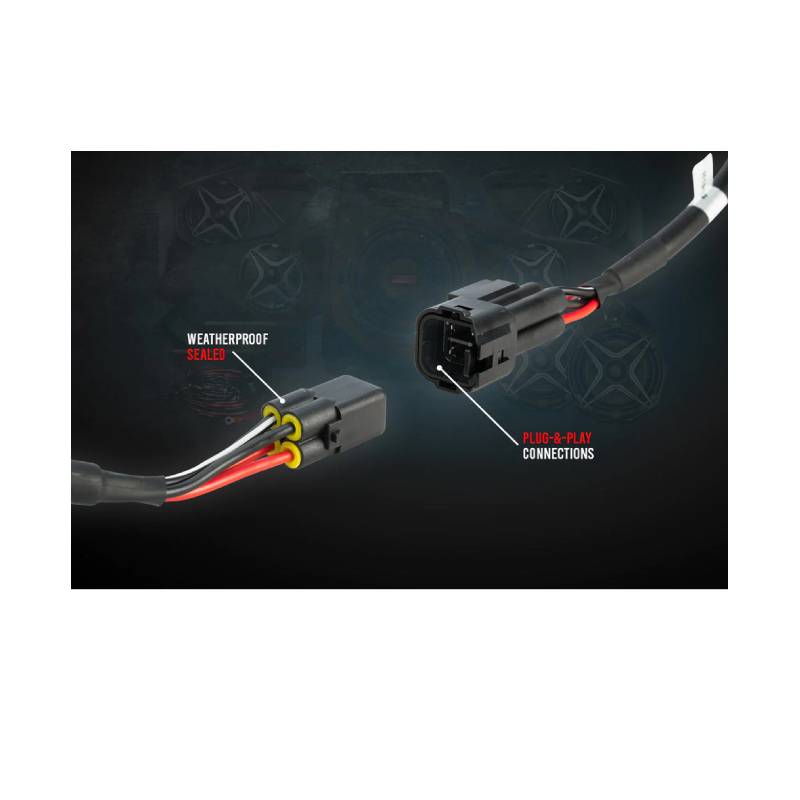

- Weatherproof plug-and-play wire harness kit
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty

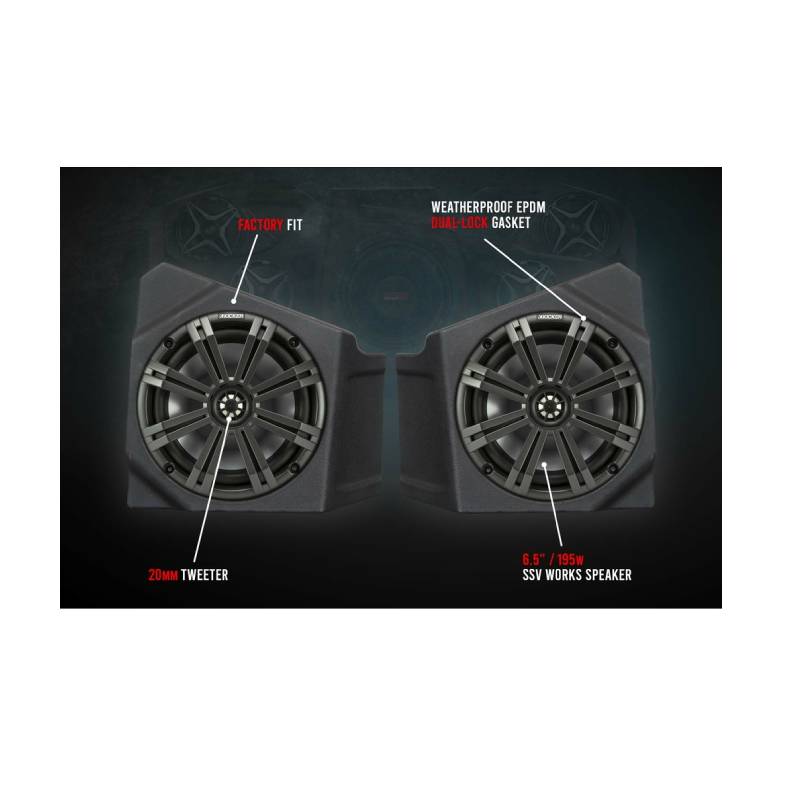

6.5" SSV Works Speaker Pods Details:
- Built for the off-road environment
- Injection-molded UV-Treated Polypropylene cone
- Santoprene surround
- 1" titanium hard dome tweeter
- Positive lock connectors keep speaker wires secure
- Peak: 240 watts per pair / 120 watts each
- RMS: 120 watts per pair / 60 watts each

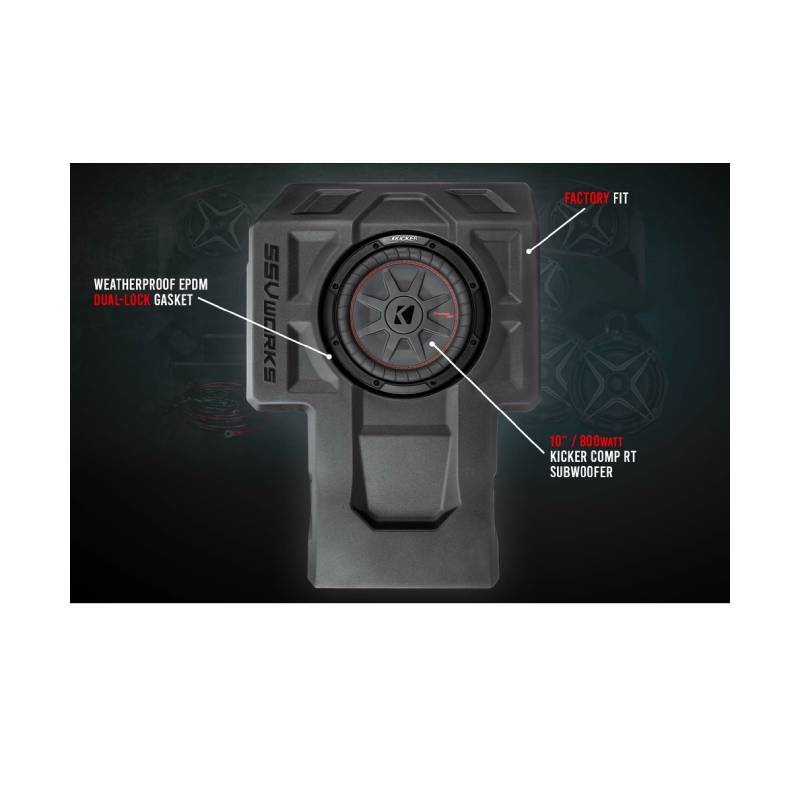

10" Kicker Subwoofer Details:
- Preloaded into a custom-fit enclosure
- Injection-molded UV-Treated Polypropylene cone
- Santoprene surround
- Peak Power: 800 watts
- RMS Power: 400 watts
- Sensitivity: 84.8 dB
- Frequency response: 25-500 Hz
- UPC: 815172018438
- Weight: 50
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
