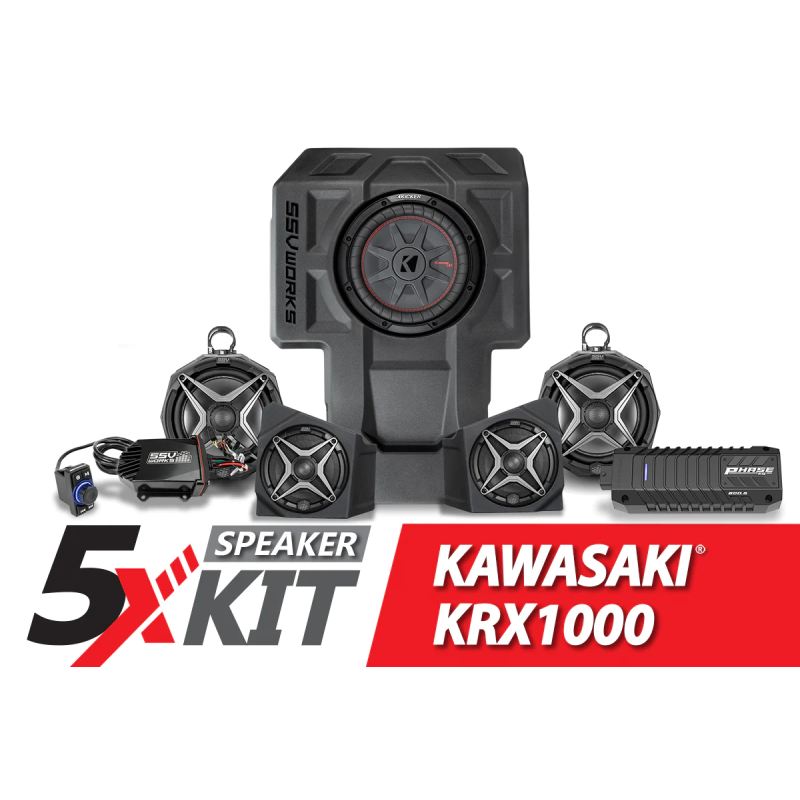

SSV Works KX-Q5xA2 Kawasaki Teryx KRX 2020+ 5 speaker Plug and play kit with SSV Speakers/ 8" speaker pods/ Phase EQ 5ch amp/ MRB2R Controller
We are a SSV Works authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

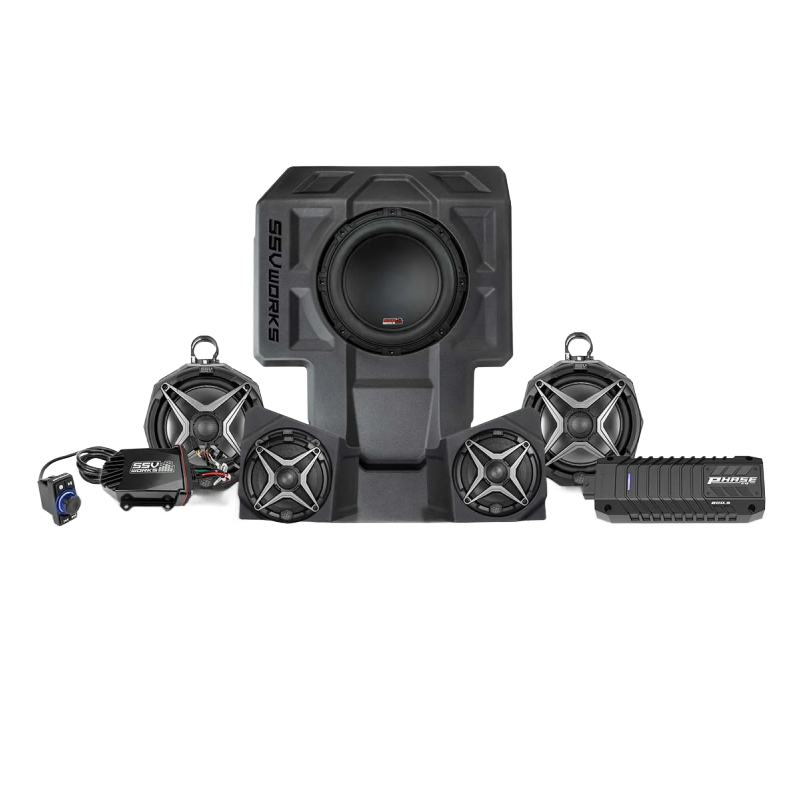

What's Inside?
- • Phase EQ Amplifier
- • 6.5" SSV Works Speaker Pods
- • 8" SSV Works Speaker Pods
- • 10" Kicker Subwoofer
- • Owner's Manual
Trail Ready - IP66 Rated
The KX-Q5xA2 is a high-performance audio system that seamlessly integrates into your off-road vehicle, providing an immersive audio experience like no other. With its robust amplifier and premium speakers, including four 6.5" speakers, this system delivers crystal-clear sound and impactful bass, ensuring every note and beat are heard with precision and depth. Durability is a top priority with the KX-Q5xA2. Its weather-resistant construction and rugged build make it ideal for off-road use, allowing you to enjoy your music regardless of the conditions. The speakers are designed to withstand dust, water, and vibrations, ensuring reliable performance even in the most challenging environments.
Frequently Asked Questions (FAQ)
- • Why does the KX-Q5xA2 have inconsistent output between channels?
Different channel levels can result from amplifier settings, source balance, wiring resistance, or unequal speaker loads. Check each channel's gain and connections before assuming the amplifier has a fault.
- • What should I do if the amplifier goes into protection mode?
Protection mode can be triggered by excessive heat, an incorrect speaker load, a shorted speaker wire, or a power problem. Turn the system off and inspect the speaker wiring and amplifier connections before restarting it.
- • Why does the amplifier become unusually hot?
Some heat is normal during operation, particularly when driving speakers at high output. Excessive temperature can indicate restricted airflow, an overly demanding load, or prolonged operation near the amplifier's limits.
- • Can vibration affect the KX-Q5xA2 connections?
Yes. UTVs generate significant vibration, which can gradually loosen poorly secured power, ground, or speaker connections. Mount the amplifier securely and provide strain relief for the wiring.
- • Why is there a high-pitched noise through the speakers?
A whining or high-frequency noise can be caused by electrical interference, poor grounding, or signal cables routed too close to power wiring. Recheck the grounding and cable routing before changing audio components.
- • What happens if the speaker impedance is lower than recommended?
An impedance that is too low can force the amplifier to deliver more current than it was designed for. This can cause overheating, distortion, or protection shutdown, so confirm the final speaker load before connecting the system.
- • Why does the system shut down only at high volume?
A shutdown at high output can indicate thermal protection, insufficient electrical supply, an impedance issue, or clipping. Reduce the gain and volume, then check the amplifier's power and speaker connections.
- • Can the KX-Q5xA2 be installed in a compact UTV location?
Installation space must provide enough room for secure mounting and adequate ventilation. Avoid placing the amplifier where it can be exposed to excessive heat, water accumulation, or physical impact from passengers or cargo.
- • Why does one speaker channel stop working intermittently?
Inspect the corresponding speaker cable, terminal, and amplifier output for a loose connection. Swapping the speaker connections between channels can help determine whether the fault follows the speaker or remains on the same amplifier channel.
- • Do I need to retune the amplifier after changing speakers?
Yes. Changing speakers can alter the system's impedance, sensitivity, and overall output. Recheck gain, crossover, and other available controls so the KX-Q5xA2 is operating cleanly with the new speaker configuration.
General Features:

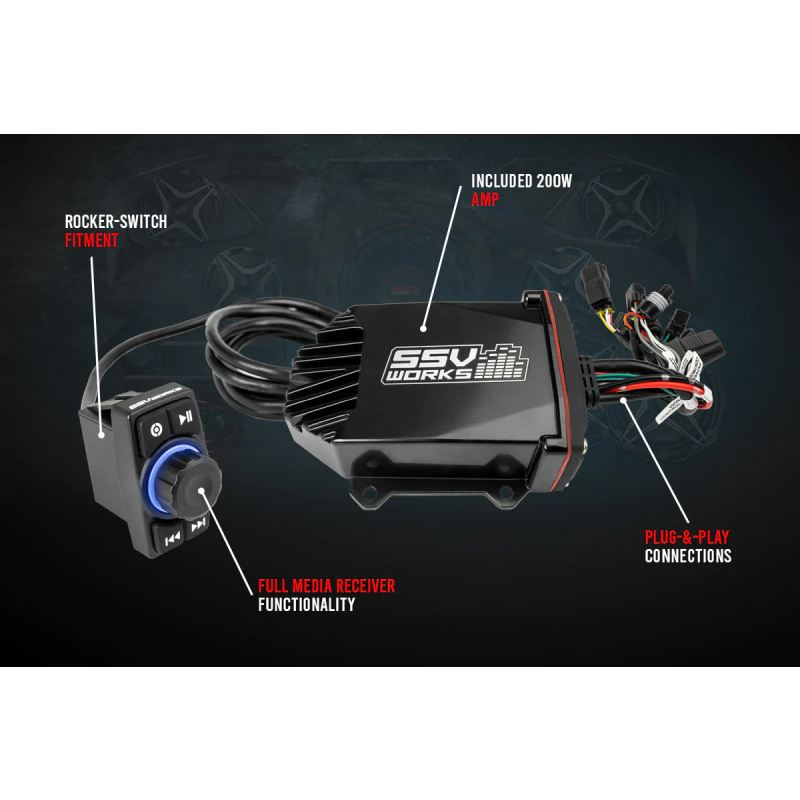

- Includes a Bluetooth rocker-switch media center, two 6.5" speakers preloaded in custom-fit enclosures, two 8" speakers preloaded in cage mount pods, a 5-channel amp, and a 10" subwoofer with custom-fit enclosure
- Designed and engineered to match and compliment the factory fit and finish of your vehicle
- Plug-&-Play: No Soldering, cutting or crimping
- Phase EQ amp comes pre-tuned to your specific vehicle and audio kit

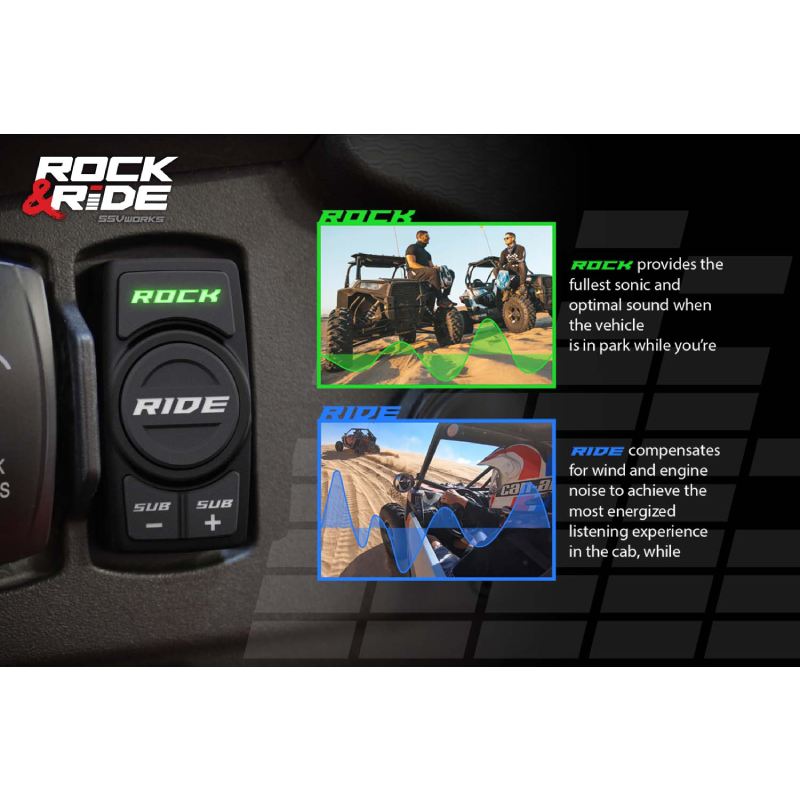

- Rock ‘N Ride rocker switch allows you to switch between pre-tuned audio profiles
- ROCK: Provides the fullest sonic and optimal sound while parked
- RIDE: Compensates for wind and engine noise, as well as boosts the frequencies you would lose from wearing your helmet, achieving the most energized listening experience in the cab, while riding
- Subwoofer level control: Adjust how much bass you want with the push of a button

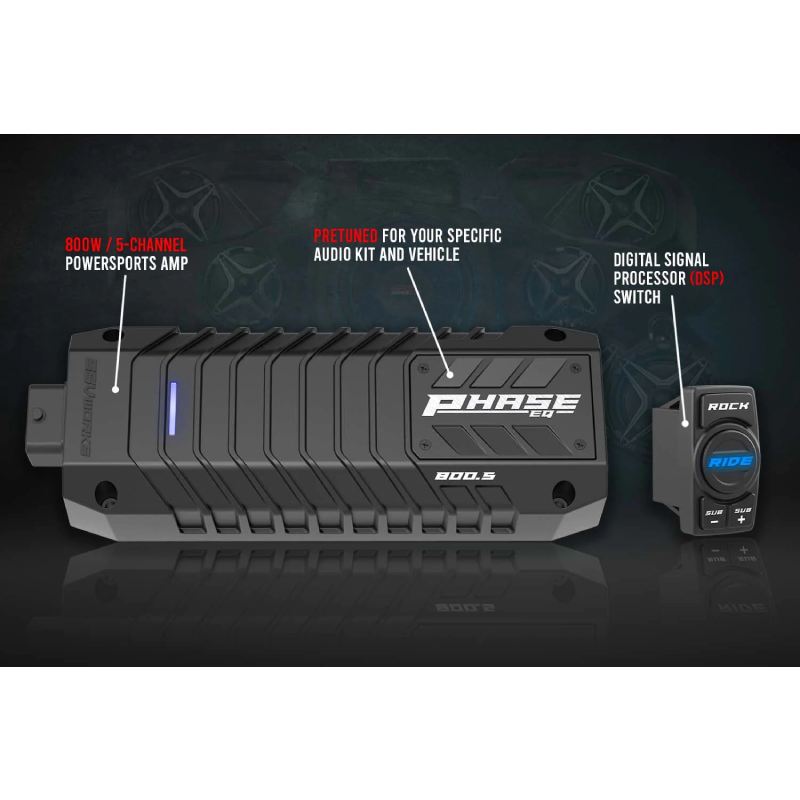

Phase EQ Amplifier:
- Rock & Ride vehicle specific pre-tuned DSP profiles
- IP66 waterproof rating
- High-caliber Powersports amplifier
- 800W Peak/ 5-Channel
- Power:
- 4ohm: 50 watts x 4 channels
- 2ohm: 100 watts x 4 channels
- 2 ohm subwoofer channel: 400 watts x 1 channel
- Channel 1/2 & 3/4 Bridgeable
- Low Current Draw (60A max)
- Rock n’ Ride Switch Included with Amp

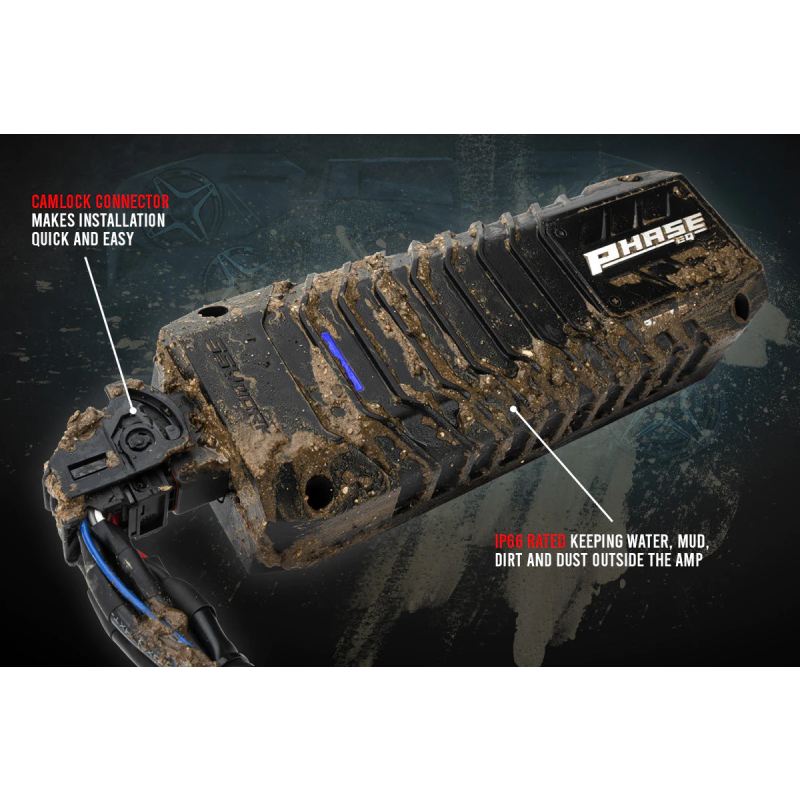

- Single weatherproof Camlock Connection

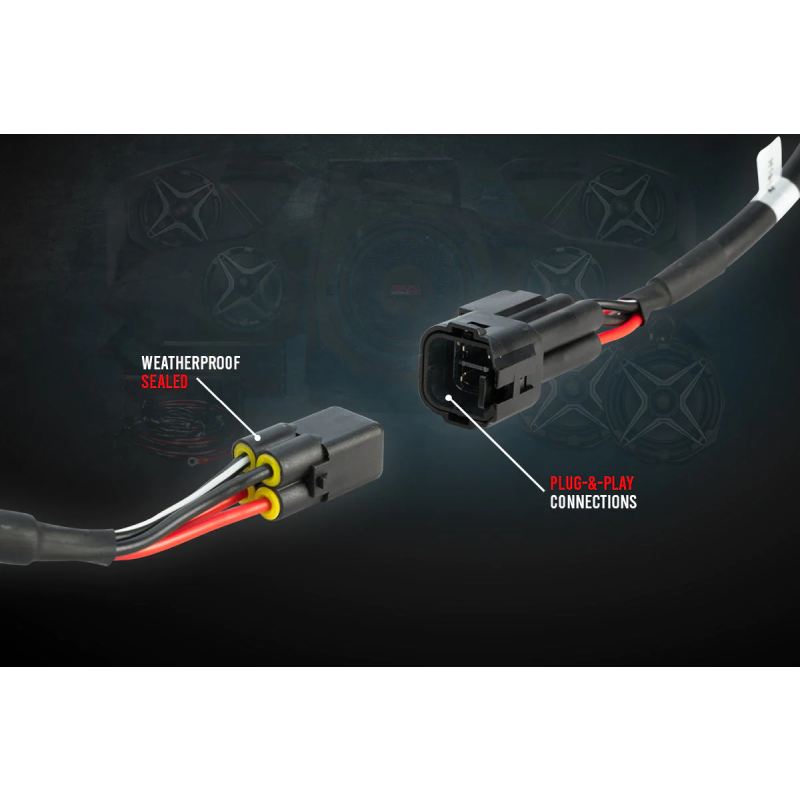

- Weatherproof plug-and-play wire harness kit

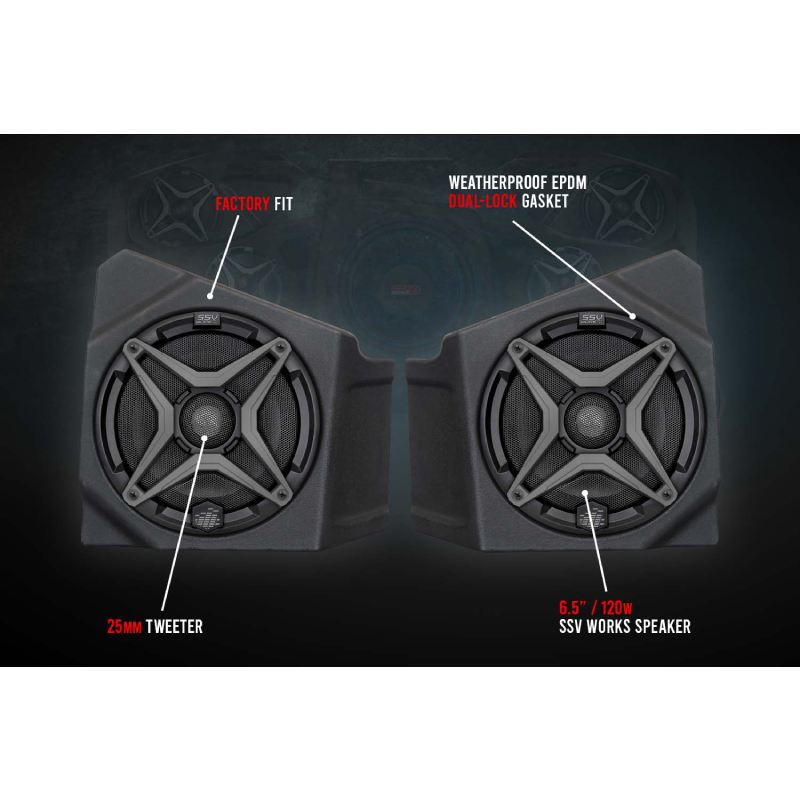

6.5" SSV Works Speaker Pods Details:
- Built for the off-road environment
- Injection-molded UV-Treated Polypropylene cone
- Santoprene surround
- 1" titanium hard dome tweeter
- Positive lock connectors keep speaker wires secure
- Peak: 240 watts per pair / 120 watts each
- RMS: 120 watts per pair / 60 watts each

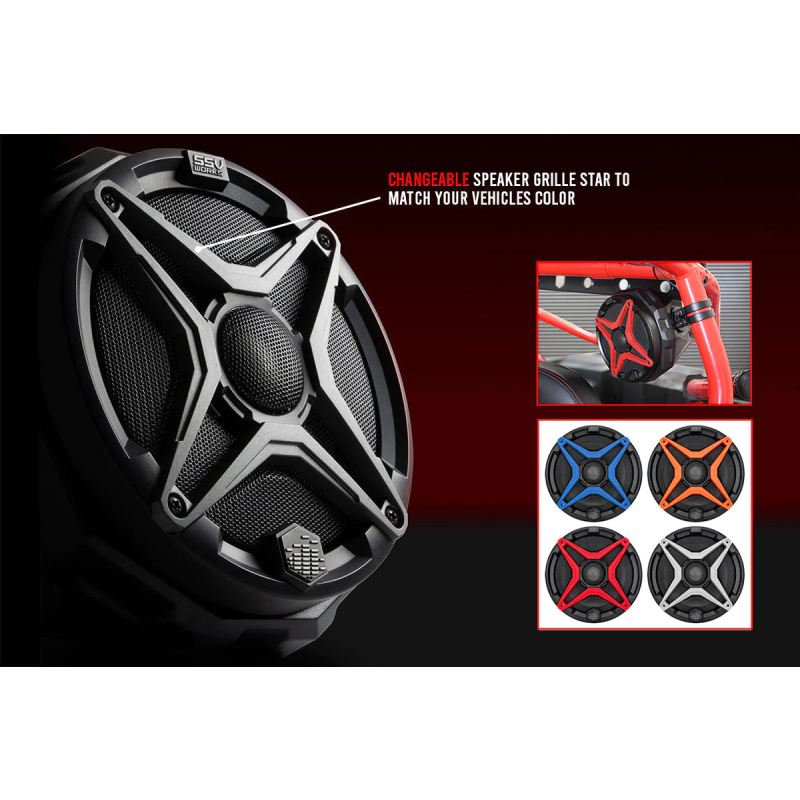

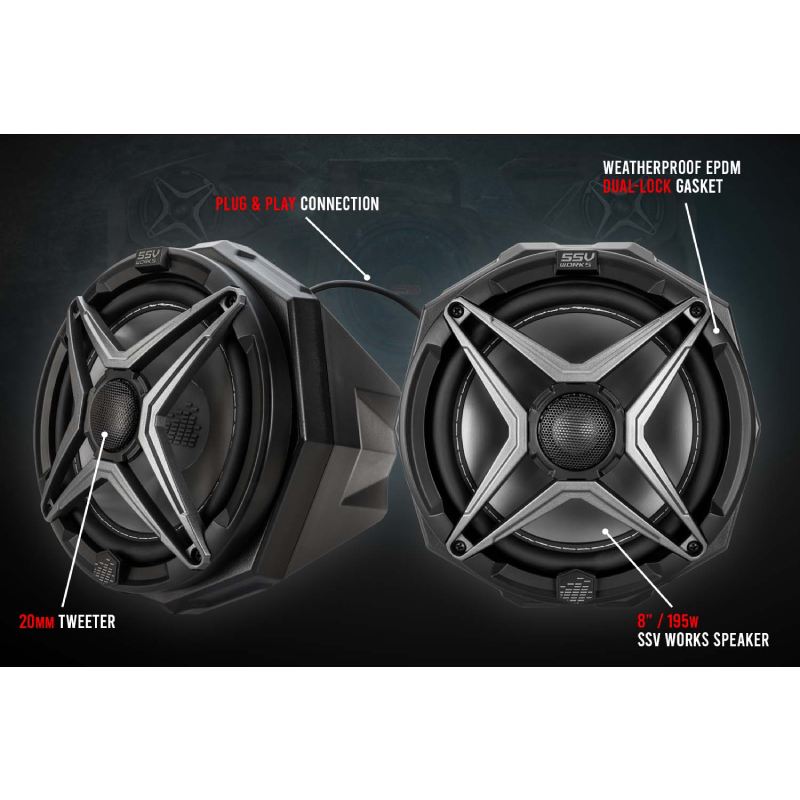

8" SSV Works Speaker Pods Details:
- Built for the off-road environment
- Injection-molded UV-Treated Polypropylene cone
- Santoprene surround
- 1" titanium hard dome tweeter
- Positive lock connectors keep speaker wires secure
- Peak: 300 watts per pair / 150 watts each
- RMS: 150 watts per pair / 75 watts each

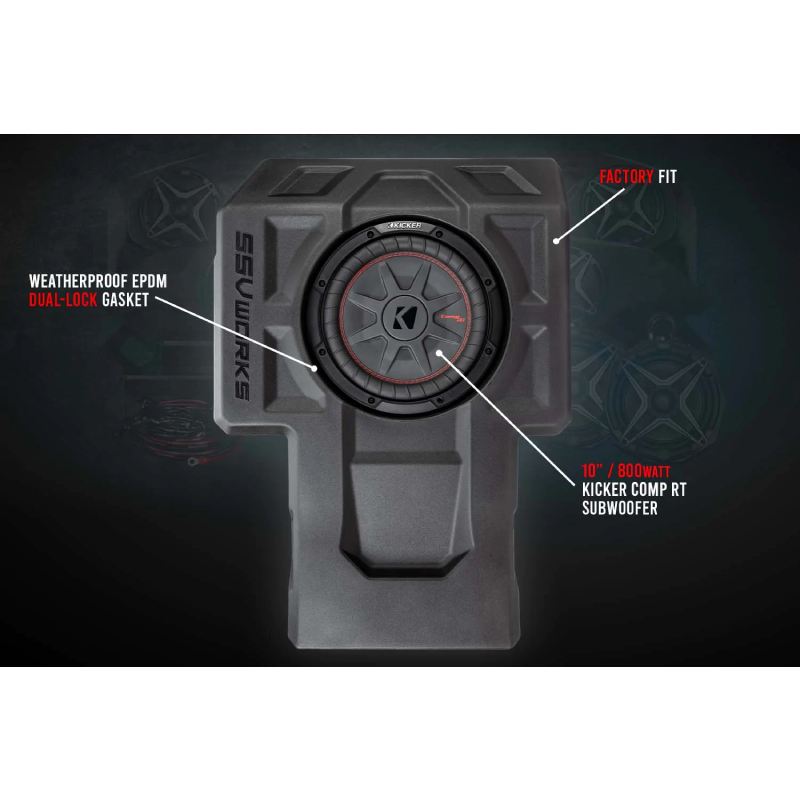

10" Kicker Subwoofer Details:
- Preloaded into a custom-fit enclosure
- Injection-molded UV-Treated Polypropylene cone
- Santoprene surround
- Peak Power: 800 watts
- RMS Power: 400 watts
- Sensitivity: 84.8 dB
- Frequency response: 25-500 Hz
- UPC: 815172018452
- Weight: 53
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
