Pioneer TS-A709 A-Series 2.75" 450W Peak Power Handling at 4-Ohms, 2-Way Single Voice Coil Coaxial Car Speaker
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?

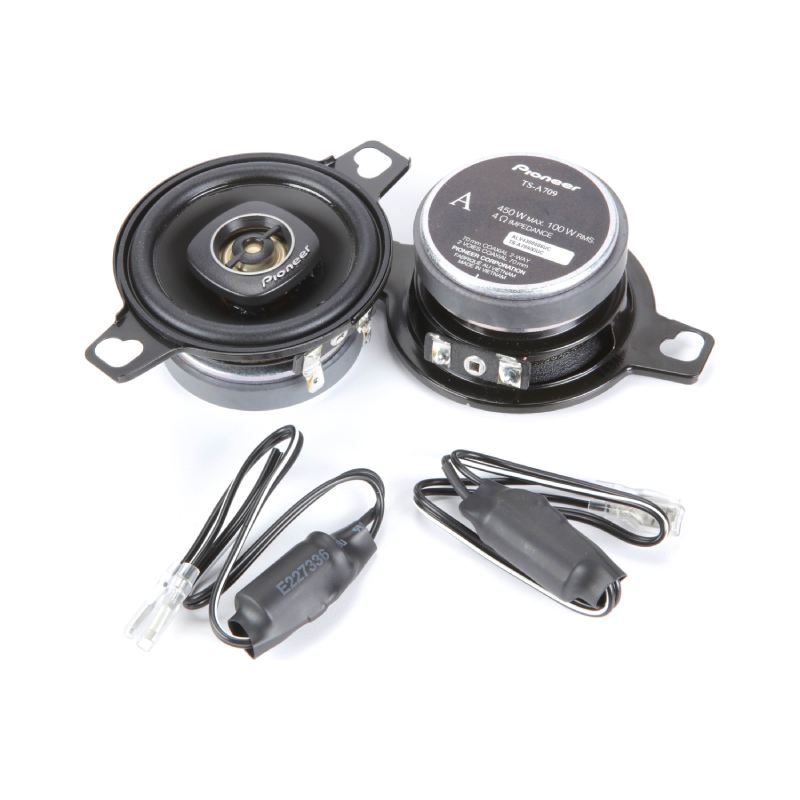

- • (2) 2.75 A-Series 2-Way Single Voice Coil Coaxial Car Speaker
- • (2) 10" lengths of speaker wire
- • Warranty information
- • Specs printed on box
- • Owner's Manual
Why Choose Pioneer TS-A709 Full Range Car Speakers?
Small Speaker Upgrade, Big Sound Difference
Designed to fit standard 2¾-inch factory locations, the Pioneer TS-A709 wide-range speaker offers a direct OEM upgrade over stock tweeters. It delivers clearer highs with sharper vocal and instrumental detail, elevating overall audio quality without harshness.
Clean Frequency Control for Smoother Performance
What helps this speaker stand out is the built-in in-line crossover system. The 6 dB/octave high-pass crossover is set at 850 Hz, which helps filter out unwanted low frequencies before they ever reach the driver. That means the speaker stays focused on what it does best, delivering clean, controlled high-frequency sound without strain. The result is smoother audio that stays consistent even when you turn things up.
Easy Installation with Smart Wiring Design
Installation is quick and straightforward with pre-attached 10-inch wires, direct quick-slide terminals, and a compact crossover module that tucks away easily. Requiring no extra parts or modifications, it provides a clean, factory-style upgrade designed for minimal setup time.
Extended Highs with Reliable Power Handling
Despite its compact size, the Pioneer TS-A709 frequency response reaches up to 34 kHz, adding open, natural detail and airiness to your sound. Combined with the included crossover module, it handles up to 100 watts RMS for distortion-free, reliable performance—making it an ideal choice for a high-value system upgrade.
Frequently Asked Questions (FAQ)
- • Will these fit my factory speaker openings?
Fitment depends on your vehicle's factory speaker size, mounting depth, and available clearance. Always verify your vehicle's specifications before installation.
- • Why do they sound harsh at higher volumes?
Harsh sound is often caused by excessive treble settings or amplifier clipping. Lowering the EQ settings and ensuring the amplifier is properly tuned can improve sound quality.
- • Can I install these speakers with my factory head unit?
Yes. They work with most factory stereos, although adding an external amplifier can provide greater clarity and output.
- • Why does one speaker cut in and out while driving?
This usually indicates a loose speaker connection or damaged wiring inside the door. Inspect the wiring harness and speaker terminals for secure connections.
- • Why is there almost no bass after replacing my factory speakers?
Incorrect speaker polarity or factory radio limitations can reduce bass response. Confirm the wiring polarity and adjust the equalizer to improve low-frequency performance.
- • Do I need speaker adapter brackets for installation?
Some vehicles require mounting brackets or adapter plates for a proper fit. Checking your vehicle's installation requirements beforehand can save time during installation.
- • Why do the door panels rattle after installing new speakers?
Loose trim clips, mounting screws, or vibrating door panels are common causes. Tightening the hardware and adding sound-deadening material can significantly reduce rattles.
- • Can these be used with an aftermarket amplifier?
Yes. Pairing them with a properly matched amplifier can improve dynamic range, clarity, and overall sound performance.
- • Why do the speakers make a buzzing noise when the engine is running?
This is often caused by a grounding issue or electrical interference in the audio system. Inspect the amplifier and head unit grounds, and ensure signal cables are routed away from power wires.
- • Should I replace both speakers even if only one has failed?
Replacing both speakers is recommended to maintain balanced sound quality between the left and right channels. Mixing an old speaker with a new one can result in uneven performance.
- Diameter : 2.75 Inch
- Sensitivity : 82 dB
- Impedance : 4 Ohm
- Peak Power Handling : 450 Watts
- Design : 2 Way
- RMS Power Handling : 100 Watts
Features:
- Wide-Range Compact Acoustic Design: Engineered as a specialized wide-range speaker to replace factory 2¾-inch tweeters, delivering clear and focused high-frequency reproduction with improved detail and spatial accuracy.
- Integrated In-Line Crossover Network: Includes a built-in 6 dB/octave high-pass crossover set at 850 Hz, ensuring smooth frequency transition and protecting the driver from low-frequency overload for cleaner output performance.
- Optimized Signal Delivery Wiring System: Comes with pre-attached 10-inch speaker wires featuring quick-slide terminals for direct connection, simplifying installation while maintaining secure and stable electrical contact.
- High-Frequency Clarity Performance Range: Capable of extended frequency reproduction up to 34 kHz, providing crisp highs and enhanced sonic airiness for improved vocal and instrumental definition.
- Engineered Power Handling Precision: Rated for up to 100 watts RMS when used with the included crossover, ensuring reliable performance consistency and controlled output under proper system configuration.
Specifications:
- CTA2031 Compliant: Yes
- Continuous Power Handling (RMS) - Watts: 100 Watts with packaged crossover network
- Frequency Response: 101 Hz to 34 kHz / 850 Hz to 33 kHz - with inline packaged crossover network
- Maximum Peak Power Handling - Watts: 450 Watts with packaged crossover network
- Nominal Load Impedance: 4-Ohm
- Sensitivity (1W/1m): 82 dB
- System-Type: Coaxial 2-way
- Cut Out dimensions: 2-1/2"
- Mounting Depth: 1-1/4"
- Tweeter: 16mm
- Unit Shape: Round
- Unit Size: 2-3/4" / 16mm - Tweeter
- Basket Material: Metal
- Cone Material: Carbon and Mica reinforced Injected Molded Polypropylene – IMPP
- Custom Fit Basket: Yes
- Damper: Aramid Fiber
- Magnet Material: Ferrite
- Magnet Weight: 2.5 oz
- Surround Material: Rubber
- Surround Type: Rolled
- Voice Coil Material: Glass Imide
- Voice Coil Type: Single Voice Coil
- Voice Coil wire: Copper
- Wire Terminals: Lug Type
- Diaphragm Material: Polyetherimide (PEI)
- Type: Dome
- UPC: 884938498135
- Weight: 3
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
