Rockford Fosgate R2-200X2 Prime Series 2-Channel 100W RMS x 2 at 2-Ohms, Class D Full Range Car Amplifier
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

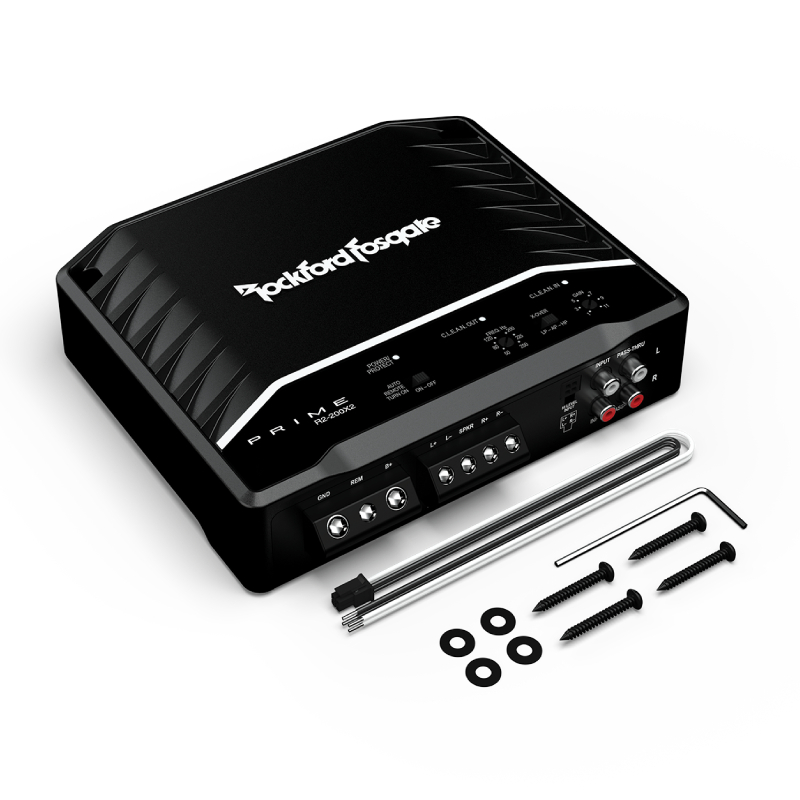

What's Inside?
- • 2-Channel Class-D Full Range Amplifier
- • 7" Speaker input harnesses
- • 3mm Hex key
- • (4) 3/4" Screws
- • (4) Flat washers
- • Certificate of Performance
- • Rockford Fosgate contact information
- • Owner's Manual
Why Choose Rockford Fosgate R2-200X2 2-Channel Amplifier?
Clean Integration with Precision Control
Achieve crystal-clear audio with Balanced Differential Inputs and RCA Pass-Through Outputs for a clean, noise-free signal path. Ready for OEM upgrades, the High-Level Input capability ensures seamless integration with factory systems. Dial in your ideal sound with Variable Input Gain adjustment, and enjoy smart compatibility with the Auto-Sense bypass switch—perfect for vehicles equipped with Retained Accessory Power (RAP).
Fast Setup with Full Audio Control
Get your system performance-ready in minutes with the C.L.E.A.N. setup feature for quick and accurate calibration. Take command of your sound with fully adjustable 12 dB/octave High and Low Pass Butterworth Crossovers, while the top-mounted control panel offers easy access for real-time tuning. Powered by Full Range Class-D technology, this system delivers efficient, high-output performance with minimal heat and maximum clarity.
Advanced Protection with Certified Durability
Keep your system safe with built-in Short Circuit and Over Current Protection designed to prevent damage under extreme conditions. CEA-2006 and CE compliance ensures your setup meets the highest industry standards for performance and reliability. Engineered with a rugged cast aluminum heat sink, this design offers superior heat dissipation for long-lasting durability in any environment.
Frequently Asked Questions (FAQ)
- • Why won't the amplifier turn on?
Check the fuse, battery power, ground connection, and remote turn-on wire. A missing 12V remote signal is the most common cause.
- • Why does it keep going into protect mode?
Inspect the speaker wiring, impedance, and ventilation. Overheating or a shorted wire can activate protection mode.
- • Why do my speakers sound distorted at higher volume?
Lower the gain and verify the crossover settings. Excessive input gain is a common cause of distortion.
- • Why do I hear alternator whine through my speakers?
Check the amplifier ground and keep RCA cables away from power wires to reduce electrical interference.
- • Can I bridge the amplifier to power a single subwoofer?
Yes, if the connected subwoofer meets the amplifier's bridged impedance requirements.
- • Why is one speaker louder than the other?
Check the balance setting, speaker wiring, and amplifier channel connections for loose or incorrect wiring.
- • Why does the amplifier get very hot during use?
Ensure it has adequate airflow and that the speaker load matches the recommended impedance.
- • Why is there power but no audio output?
Verify the RCA inputs, speaker wiring, and head unit output settings. A disconnected signal cable can prevent sound.
- • How do I set the gain correctly?
Start with the gain at minimum and gradually increase it until the audio is loud and clean without distortion.
- • Can I use this amplifier with factory speakers?
Yes, provided the speakers can handle the amplifier's output power and are wired correctly.
- Maximum Power : 200 Watts
- Number of Channels : 2
- Frequency Response : 20-20000 Hz
- Built In Crossovers : Yes
- RMS Power Output : 2x100 Watts
- Amplifier Class : D
- Fuse Rating : 30 A
Features:

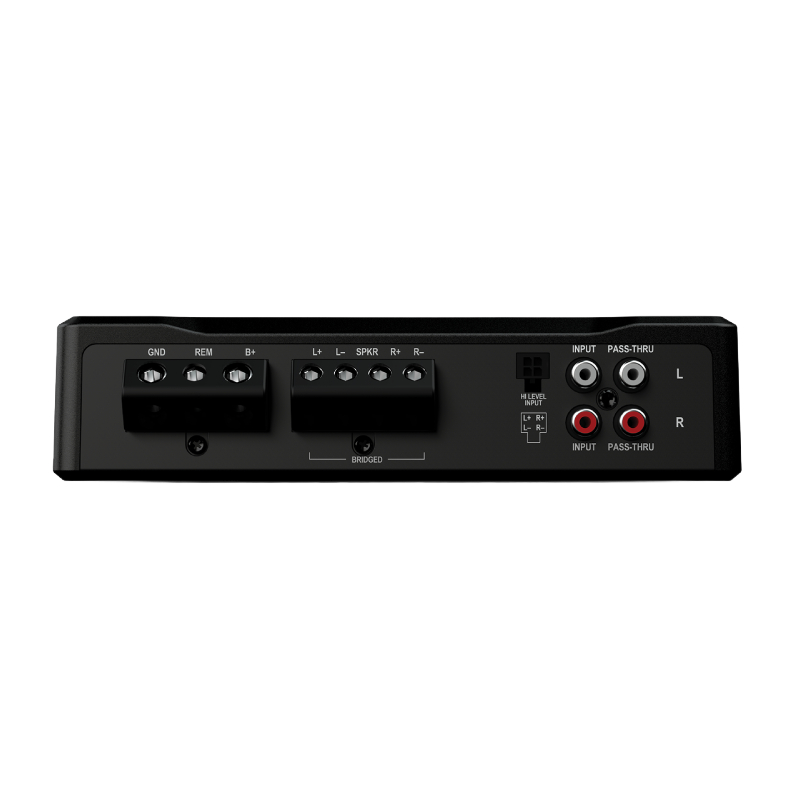

- Clean Signal Flow: Balanced Differential Inputs with RCA Pass Through Outputs
- OEM Integration Ready: High Level Input Capable
- Fine-Tuned Control: Variable Input Gain adjustment level
- Smart Power Detection: Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
- Quick & Accurate Setup: Features C.L.E.A.N. Set-up
- Complete Audio Control: Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers

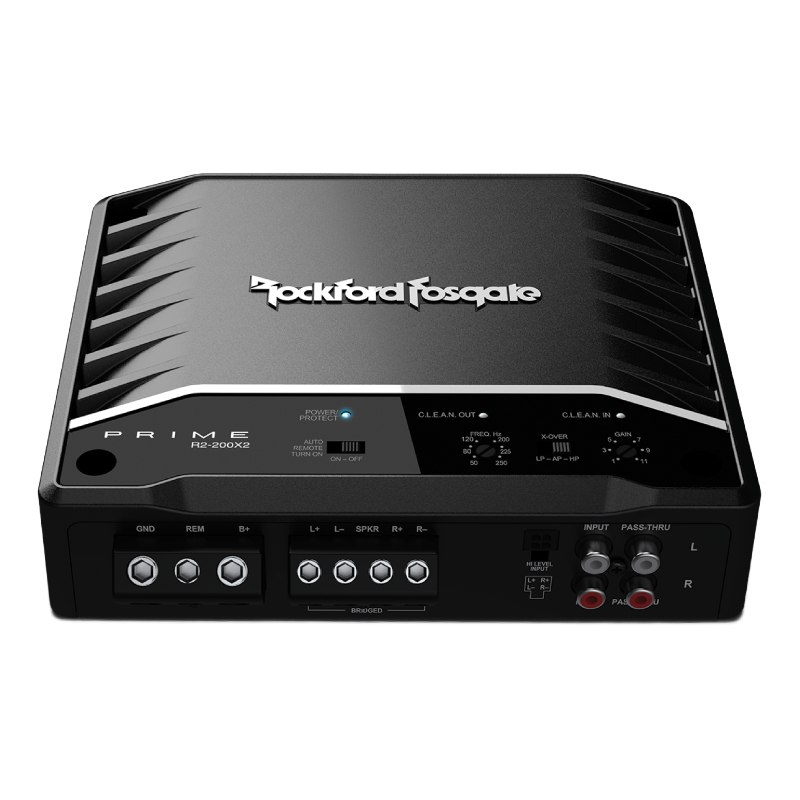

- Easy Access Tuning: Top Mounted Control Panel
- Efficient Power Output: Full Range Class-D
- Advanced Circuit Protection: Short Circuit & Over Current Protection
- Standards Compliant: CEA-2006 Compliant & CE Compliant
- Durable Heat Management: Cast aluminum heat sink
Specifications:
- RMS Power Output (Watts x Channels): 50 x 2
- Peak Power Output (Watts x Channels): N/A
- Power at 2 Ohms (Watts x Channels): 100 x 2
- Bridged Power (Watts x Channels): 200 x 1
- Minimum Impedance Bridged: 4
- Minimum Impedance Unbridged: 2
- Minimum Impedance: 2
- Best Frequency Response: 20-20k Hz
- THD at Rated RMS Power: 1%
- Signal to Noise Ratio: 80 dB
- Input Voltage: 14.4v
- Amplifier Class: D
- Low-Pass Crossover Frequency: 50-250 Hz
- Low-Pass Slope (dB/octave): 12 dB/octave
- High-Pass Crossover Frequency: 50-250 Hz
- High-Pass Slope (dB/octave): 12 dB/octave
- Bass Boost: No
- Bass Boost Frequency: N/A
- Fan Cooled: No
- Fuse Rating: 30
- Speaker Level Inputs: Yes
- Preamp Outputs: 2
- Width (inches): 8-1/8
- Height (inches): 2
- Depth (inches): 7-3/4
- Remote Controls: No
- UPC: 780687355814
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
I bought one of this a year ago to power up my 6.5s but now that I got a 150 watt sub, I bought one again and run it in a bridge mode at 4 ohms. The sound is more than I expected. Its really good. Set the amp at mid level and the volume is more than okay.
