iDatalink  ACC-HU-KEN1

Head Unit Adapter Connects Select Kenwood and JVC Stereos to Compatible iDataLink Maestro T-Harnesses

Item #90016

Condition:   Brand New

Product Highlights

  • Head Unit Adapter
  • Select Kenwood and JVC Stereos
  • Compatible iDataLink Maestro T-Harnesses

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$14.99

Reg. Price $17.99  Save 17%
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

iDatalink Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


iDatalink Banner

iDatalink ACC-HU-KEN1 Head Unit Adapter Connects Select Kenwood and JVC Stereos to Compatible iDataLink Maestro T-Harnesses


We are a iDatalink authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • iDatalink Maestro to Kenwood/JVC harness
  • • User's Manual

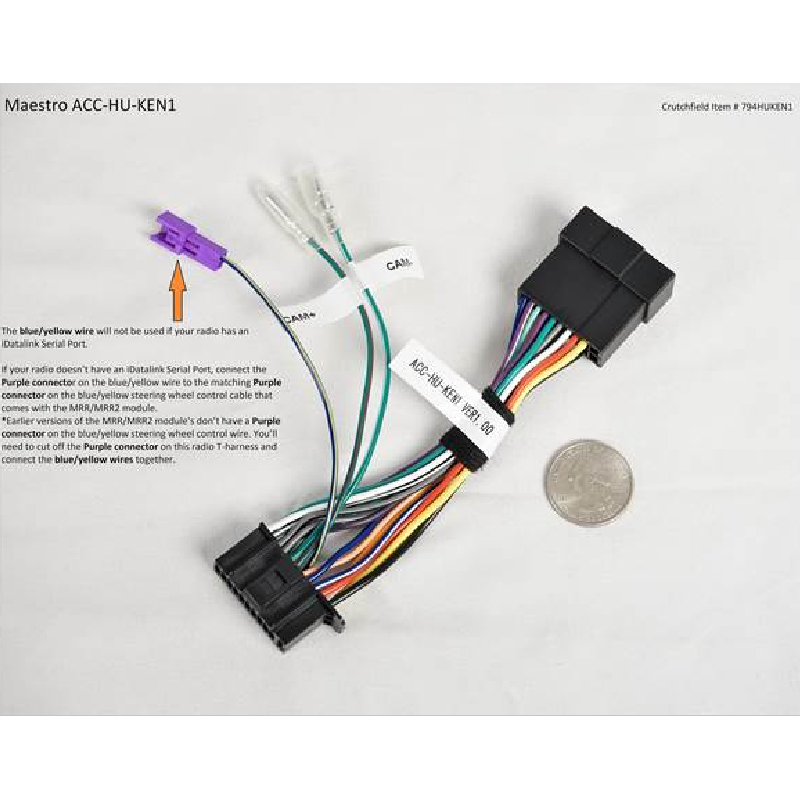

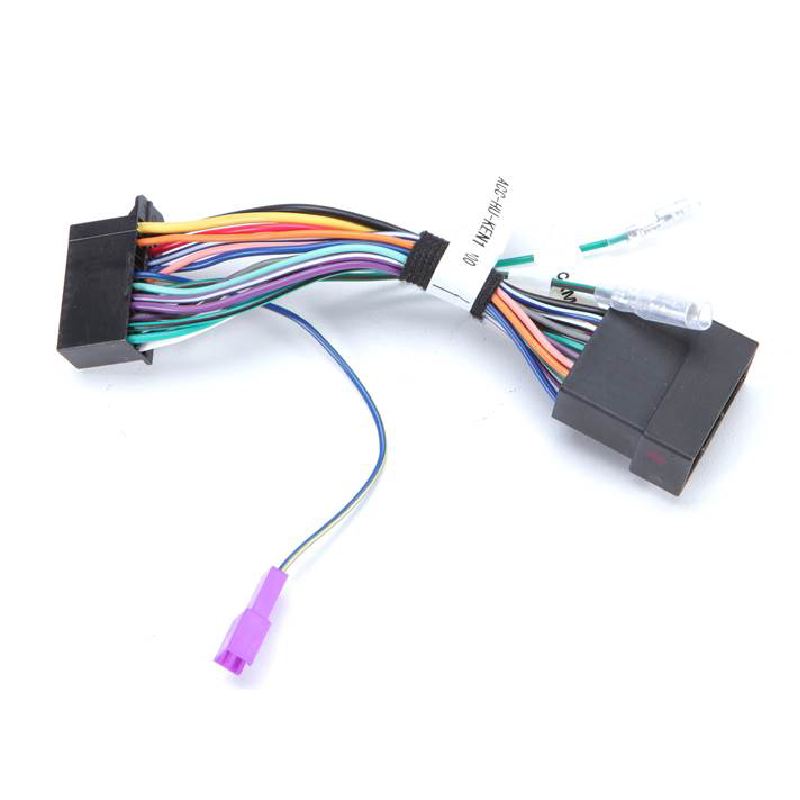

Head Unit Adapter Harness

This adapter allows you to connect select Kenwood and JVC radios to compatible iDatalink T-harnesses. This extra harness takes the place of the harness that comes with your new Kenwood or JVC stereo. It connects directly between select Kenwood and JVC radios and the latest Maestro "Head-unit ready" T-harnesses.


SPECIFICATIONS



FEATURES


Features:

  • Maestro-to-Head Unit Integration: Direct adapter designed to connect select Kenwood and JVC aftermarket radios with compatible iDatalink Maestro vehicle-specific harnesses
  • Module Compatibility: Works seamlessly with iDatalink Maestro ADS-MRR, ADS-MRR2, and ADS-MSR radio replacement interface modules
  • Harness Replacement Design: Replaces the factory wiring harness included with Kenwood or JVC head units for a streamlined installation
  • 22-Pin Radio Connector: Features a 22-pin Kenwood/JVC plug for secure connection to the back of the head unit
  • 20-Pin Maestro Connector: Equipped with a 20-pin connector that interfaces directly with compatible iDatalink Maestro harnesses
  • Primary Power Connections: Includes Ground (Black), +12V Accessory (Red), and 12V Constant (Yellow) wiring for reliable power delivery
  • Amplifier & Antenna Control: Supports system expansion with Blue/White (Amp Turn-On) and Blue (Power Antenna) leads
  • Vehicle Data Integration: Includes Vehicle Speed Sense (Pink) wire for enhanced functionality and data retention
  • Full Speaker Output Support: Provides front and rear speaker connections with clearly defined positive and negative wiring
  • Illumination Control: Orange/White wire allows integration with vehicle lighting for dimming and display adjustment
  • Safety & Camera Triggers: Includes Parking Brake (Light Green) and Reverse Gear (Violet/White) connections for safe operation and camera activation
  • Steering Wheel Control Lead: Blue/Yellow wire is routed through a dedicated 2-pin Molex connector for proper SWC integration
  • Camera Control Outputs: Green/Red and Green/White wires are terminated with bullet connectors for camera control functionality
  • Installer-Friendly Pinout: Clearly labeled wiring configuration helps ensure accurate and efficient installation



  • UPC: 627780003818
  • Weight: 2
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
