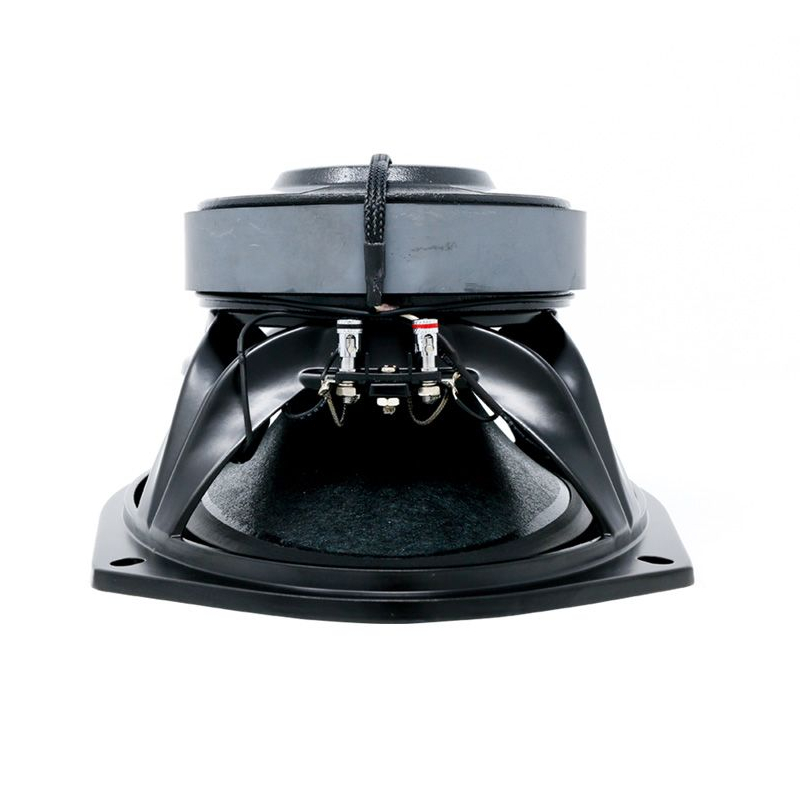

Diamond Audio  MS692CXP

Motorsport Series 6x9" 250W Peak Power Handling, 2-Ohms, 2-Way High Output Coaxial Speakers

Item #90507

Condition:   Brand New

Product Highlights

  • Motorsport Series
  • 6x9" Coaxial Speakers
  • 250W Peak Power
  • 2-Ohms Impedance
  • 2-Way High Output

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$519.99

Reg. Price $619.99  Save $100.00
Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for acima logoLearn More

Diamond Audio Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:



SPECIFICATIONS


  • Diameter : 6x9 Inch
  • Sensitivity : 90.5 dB
  • Impedance : 4 Ohm
  • Frequency Response : 45-23000 Hz
  • Peak Power Handling : 250 Watts
  • Design : 2 Way
  • RMS Power Handling : 125 Watts

FEATURES


Features:

  • Power Rating: 125W RMS
  • Nominal Impedance: 4 ohm
  • Sensitivity: 93.5 dB 1W/1M
  • Mounting Depth: 3.81” / 97mm
  • Mounting Diamterer: 5.98” x 8.85” / 152mm x 225mm
  • Manufactured to IPx65 Marine Grade Compliant Specifications
  • 1" High Output Titanium Dome Tweeter
  • UV-Treated Thermal Molded Waterproof Kevlar Cone with Rubber Surround
  • 12dB Bessel Crossover Network
  • Super High Energy Ferrite Motor System With Milled Aluminum Top Plate
  • T-Yoke Back Plate Drilled For 35% More Cooling,Increased Power Handling
  • High-Temperature Cast Aluminum Basket



Specifications:

  • Nominal Diameter: 6" X 9" (9.5”/241.3mm)
  • Description: 2 - Way Concentric
  • Nominal Impedance: 4 ohms
  • RMS Power Rating: 125W
  • Frequency Response: 45-23,000 Hz
  • Voice Coil Diameter: 1.4" (35.5mm)
  • Qts: 0.783
  • Fs-Free Air Resonance: 46Hz
  • Vas (Liter): 0.159 (4.5 Lt)
  • Xmax: 0.16" (4mm)
  • Sensitivity (1W/1M): 90.5dB
  • Sensitivity (2.83V/1M): 93.5dB
  • Mounting Diameter: 8.875″ (225.5mm) x 6.125″ (155.6mm)
  • Mounting Depth: 3.875″ (98.425mm)
  • Grille: Yes
  • UPC:
  • Weight: 8
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
