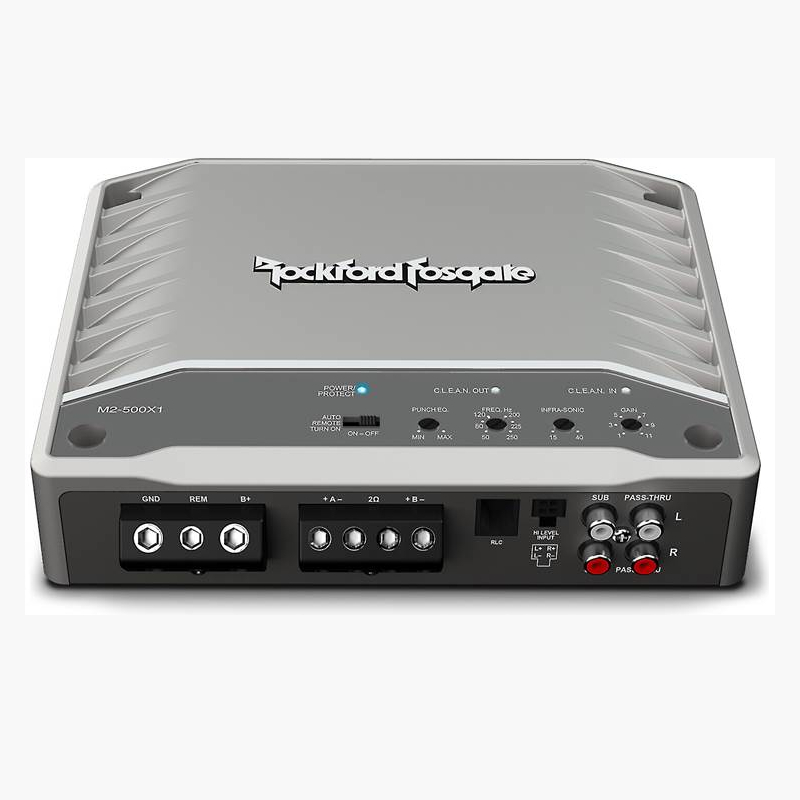

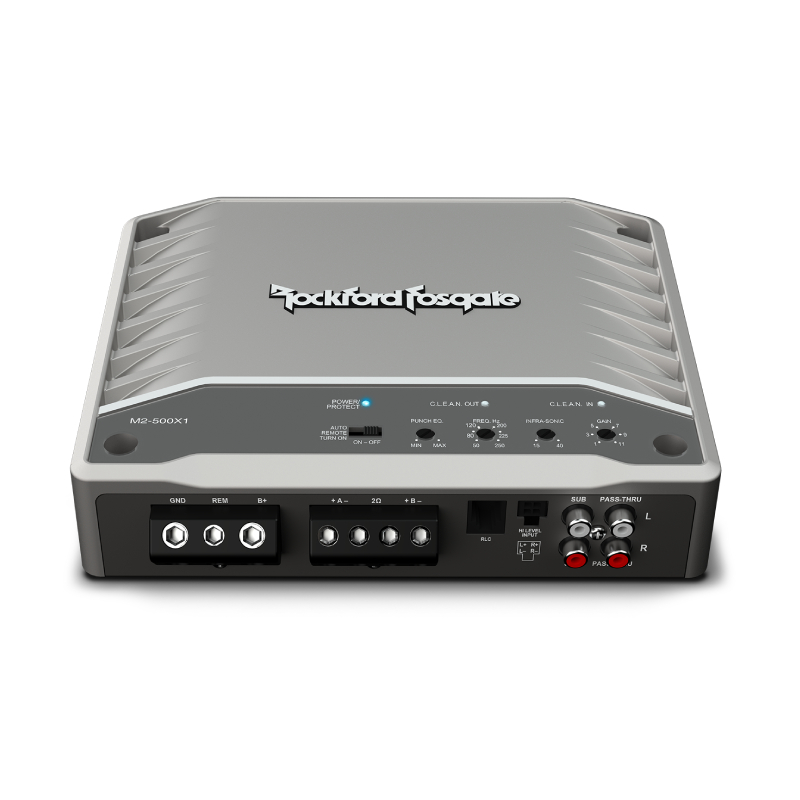

Rockford Fosgate  M2-500X1

M2 Series 500W Max Power 2 Ohms Class-D Monoblock Element Ready Marine Amplifier

Item #90984

Condition:   Brand New

Product Highlights

  • M2 Series
  • 500W Max Power
  • 2 Ohms
  • Class-D Monoblock
  • Element Ready Marine Amplifier

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$319.99

Reg. Price $419.99  Save $100.00
In Stock
In Stock

Only 3 left
Add Extended Warranty
Getting Delivery Estimate...
  Free 2-Years Warranty Included!

No Credit needed for Learn More


Rockford Fosgate Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Rockford Fosgate Banner

Rockford Fosgate M2-500X1 M2 Series 500W x 1 RMS @2Ohms, 500W Max Power Monoblock Element Ready Marine Amplifier


We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

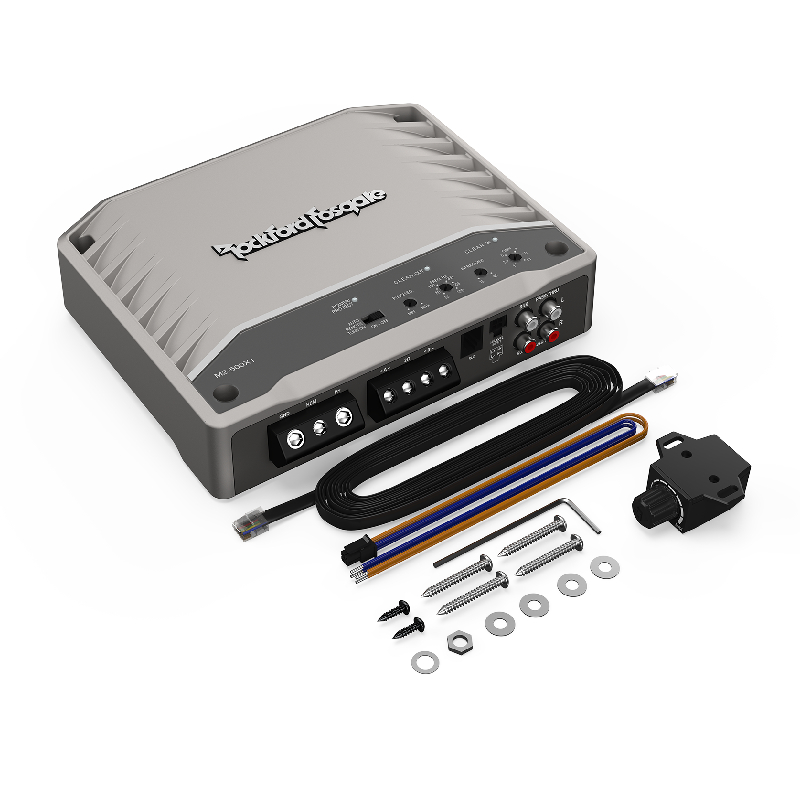

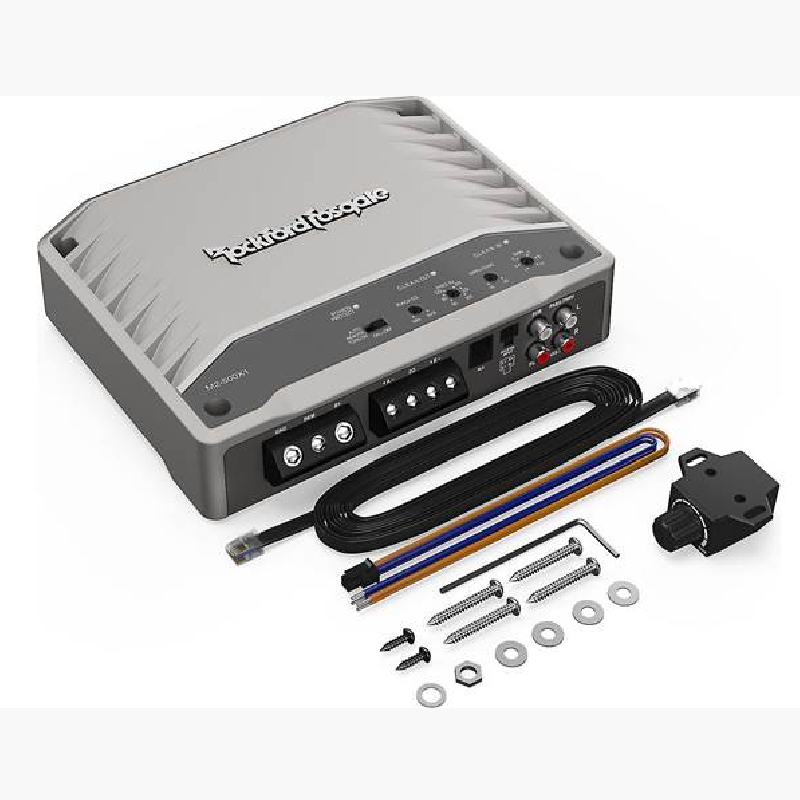

What's Inside?
  • • Mono marine amplifier
  • • Remote Punch Level Control module
  • • 16.5' Remote Punch Level Control cable (RJ-25 connector on both ends)
  • • 7" Speaker input harness
  • • 3mm Hex key
  • • (4) 3/4" Screws
  • • (2) 1/2" Screws
  • • (5) Flat washers
  • • (1) Nut
  • • Certificate of Performance Verification
  • • Rockford Fosgate contact information
  • • Installation and Operation instructions (English/ French/ Spanish/ German/ Italian)
  • • User's Manual
Rockford Fosgate M2 Series Amplifier

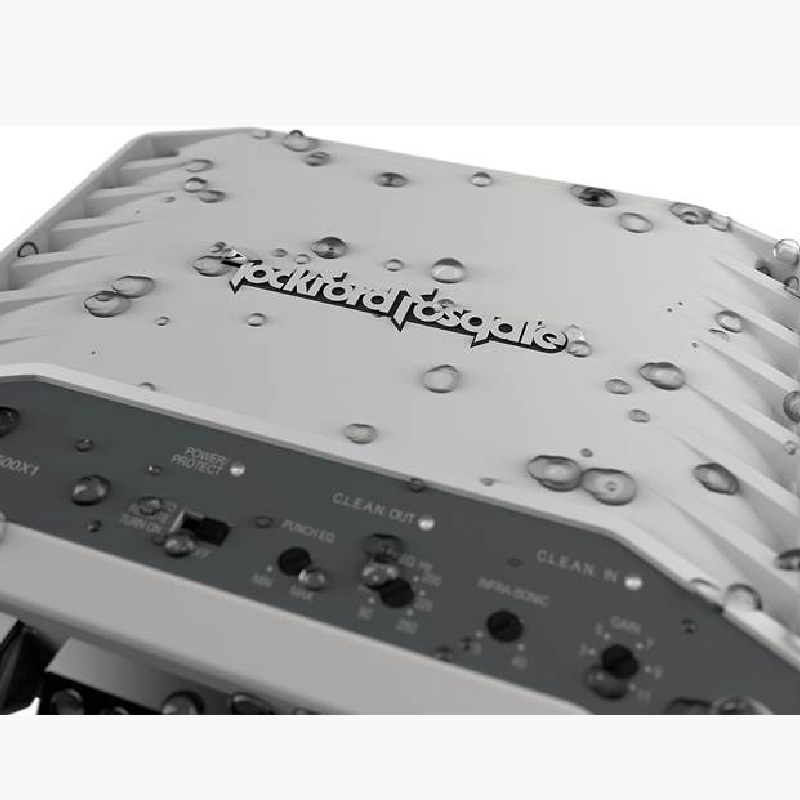

Rockford Fosgate designed this M2 Series amplifier for marine environments, using a special "Element Ready" chassis and conformal-coated PC boards to protect against dust and water. The amp also features a UV stable powder-coated cast-aluminum heatsink and zinc nickel-plated marine-grade brass connection terminals to help prevent corrosion.

Powerful Amplifier

The M2-500X1 amplifier can power your subwoofer with up to 500 watts RMS. You can adjust the low-pass filter, infrasonic filter, and Rockford Fosgate's famous Punch boost to get the best possible bass from your sub and enclosure.

C.L.E.A.N. Technology

This setup system ensures your music will sound as clean and powerful as possible. It's a simple system to use — turn it up until the light shows red, then turn it down until the red light goes out. Speaker-level inputs let you hook this amp up to almost any system, even a factory radio.

  • Maximum Power : 500 Watts
  • Number of Channels : 1
  • Frequency Response : 20-250 Hz
  • RMS Power Output : 1x500 Watts
  • Amplifier Class : D
  • Fuse Rating : 80 A

Features:

  • Element Ready™ design protects against outdoor exposure
  • Zinc Nickel-plated Marine grade brass connection terminals
  • UV stable powder coated cast aluminum heatsink
  • Conformal coated circuit board protects against dust and water
  • C.L.E.A.N. input/output clip detection and indicator LEDs
  • Optimized using AudioGraph PowerCube measurement tool

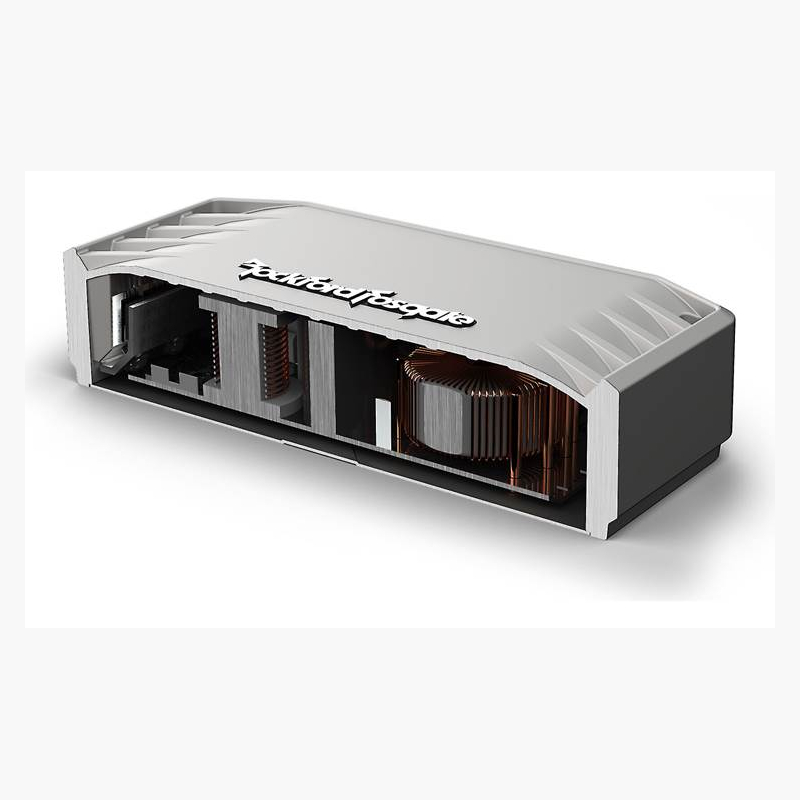

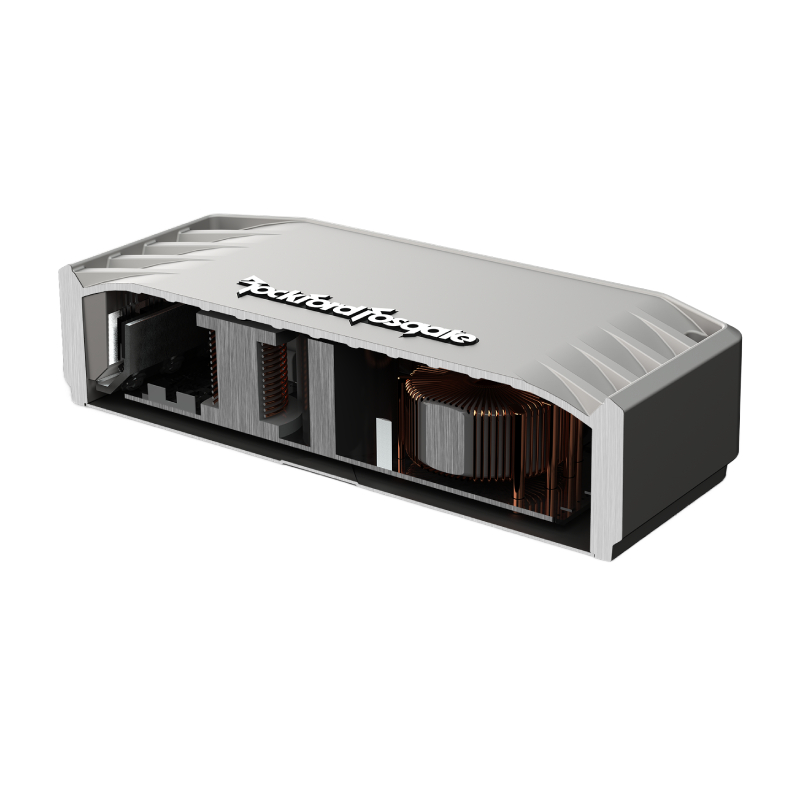

  • Focused mass heat sink allows critical aluminum material to be located around hottest internal devices
  • Continuously Variable On Board Punch EQ
  • Includes RLC Remote Level Control

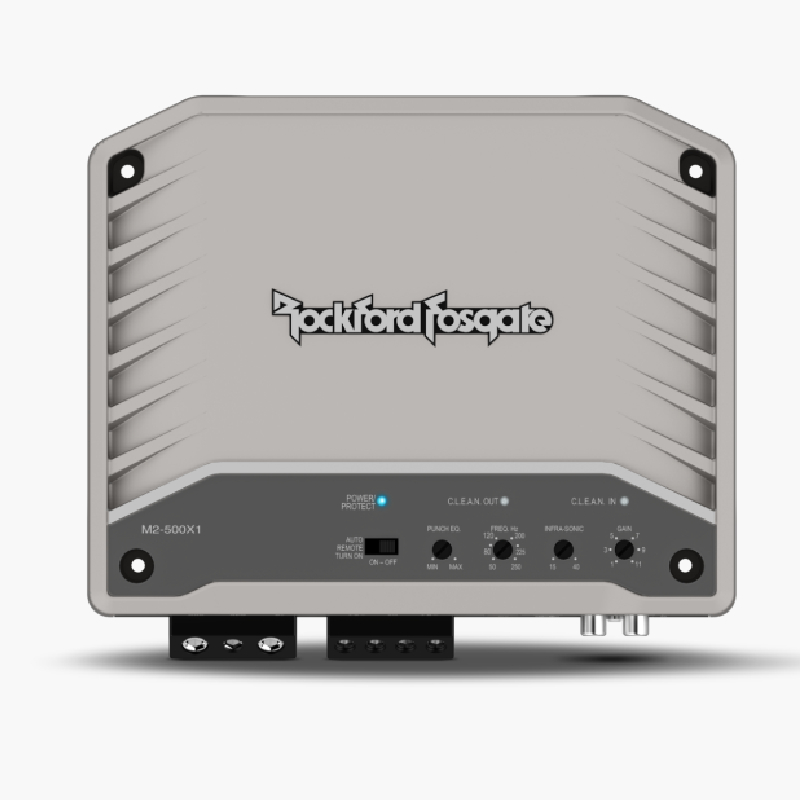

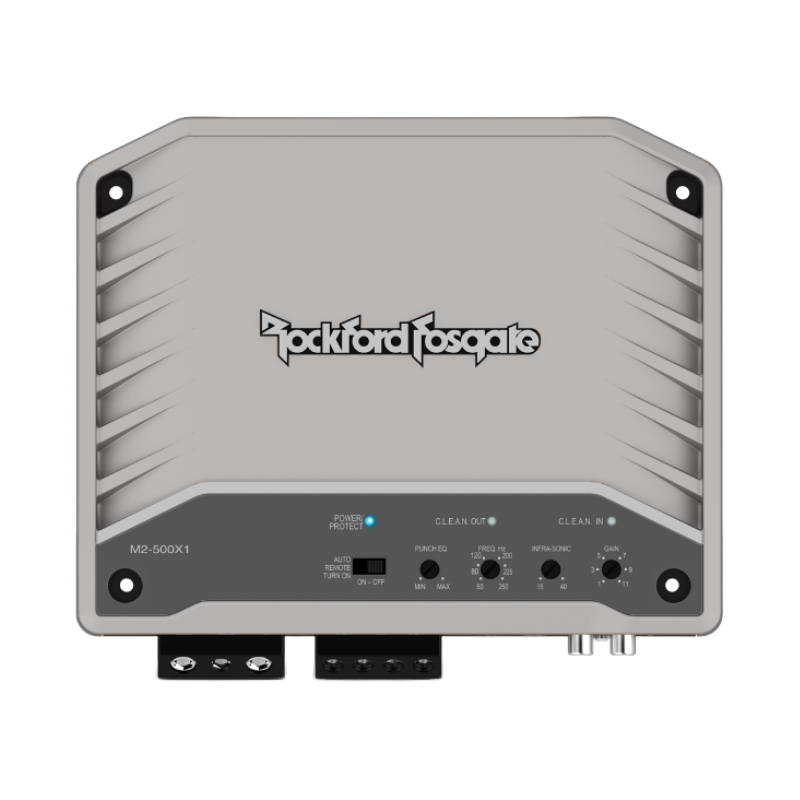

  • Top Mounted Control Panel
  • Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
  • Short Circuit & Over Current Protection
  • Variable Infrasonic Filter
  • Integrated Power and Speaker Terminals
  • Balanced Differential Inputs eliminates noise picked up by signal cables
  • RCA pass-thru outputs
  • Integration with OEM and Aftermarket Radios
  • "Auto-Sense" turn-on with remote out (high level in)
  • Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
  • Low Impedance Stability
  • Quality & Performance tested using proprietary RATS (Rockford Automated Testing System)
  • CEA-2006 Compliant & CE Compliant
  • 2-Year Warranty
  • Rollback Protection



Specifications:

  • Cta-2006 Compliant
  • Number of Channels: 1
  • Total Power (Sum of Rated Power): 500 Watts
  • Rated Power (RMS Continuous Power)
    • 300 Watts x 1 @ 4Ω
    • 500 Watts x 1 @ 2Ω
  • Dynamic Power (PVC/PowerCube®)
    • 350 Watts x 1 @ 4Ω
    • 590 Watts x 1 @ 2Ω
  • Bridgeable: No
  • Frequency Response: 20 Hz - 250 Hz
  • Input Sensitivity
    • Low-Level: 150 mV - 4 V
    • High-Level: 450 mV - 12 V
  • Circuit Topology Class: Class D
  • Total Harmonic Distortion (THD+Noise)
    • 4Ω: <1.0%
    • 2Ω: <1.0%

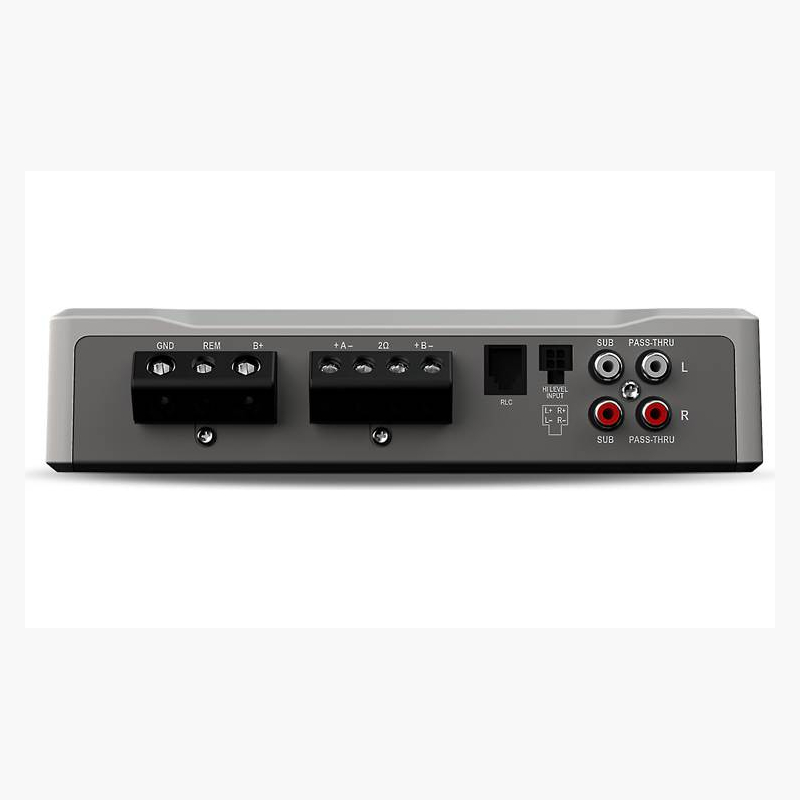

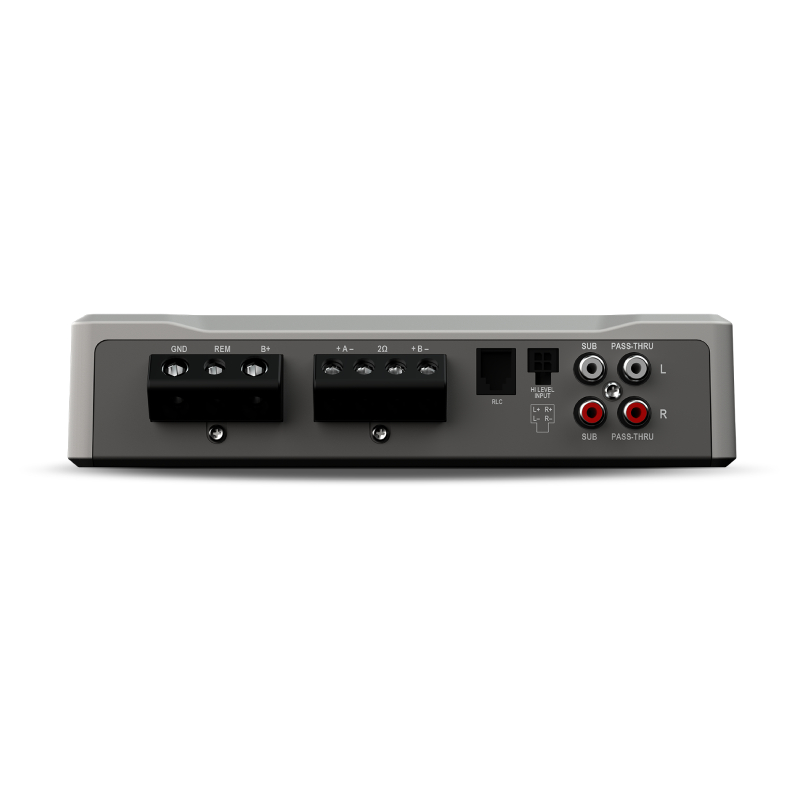

  • Signal Input
    • Low-Level: 2 RCA
    • High-Level: 4-Pin Molex
  • Signal Output
    • Low-Level: 2 RCA
    • (Pass-Thru active with RCA or Hi-Level input)
  • Tone Controls: 0 to +18 dB @ 45 Hz
  • Crossover Controls
    • Low-Pass:50 Hz - 250 Hz @ 12dB/Octave Butterworth
    • Infrasonic: 15 Hz - 40 Hz @ 12dB/Octave Butterworth
  • Remote Controls: Yes
  • Visual Indicators
    • Power/Protect
    • C.L.E.A.N. In
    • C.L.E.A.N. Out
  • Power Wire Gauge: 4 AWG
  • Power Input Connector: Compression Terminal Block
  • Speaker Wire Gauge: 8 AWG
  • Speaker Output Connector: Compression Terminal Block
  • Cooling: Convection
  • Operating Voltage: 9 - 16 VDC
  • Recommended Fuse (not included): 80 A
  • Max. Current Draw (13.8V Sinewave): 52 A
  • Dimensions (H x W x D)1.9" x 6.8" x 8.5"
    • (4.9 cm x 17.3 cm x 21.5 cm)
  • Shipping Weight: 4.8 Lbs. (2.18 Kg)
  • UPC: 780687358327
  • Weight: 5
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
