Rockford Fosgate X317-STG6 X3 Stage-6 Audio System for Can-Am 2017 and Up (Gen-3)
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

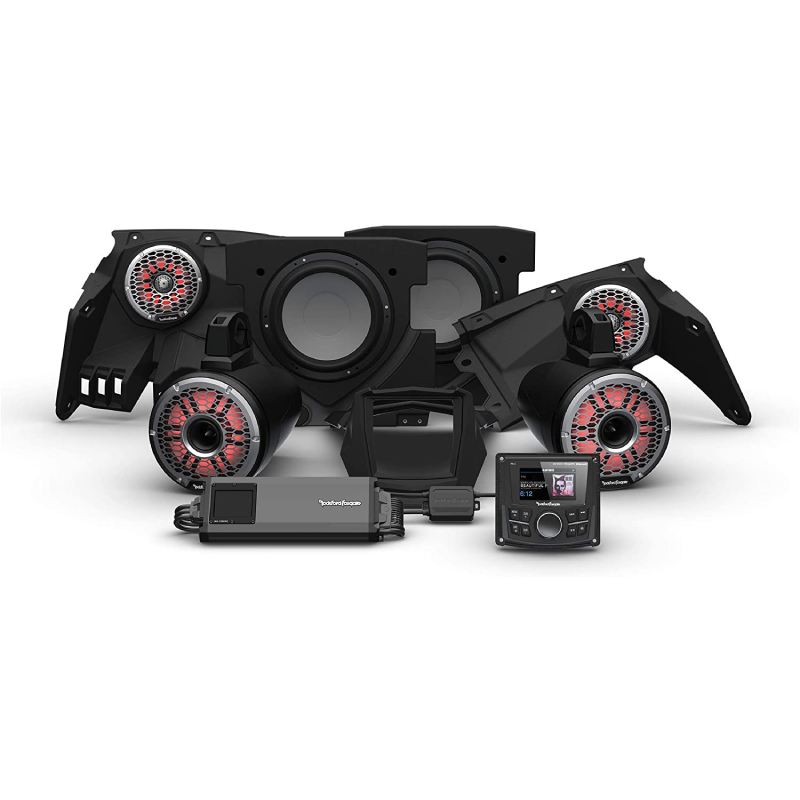

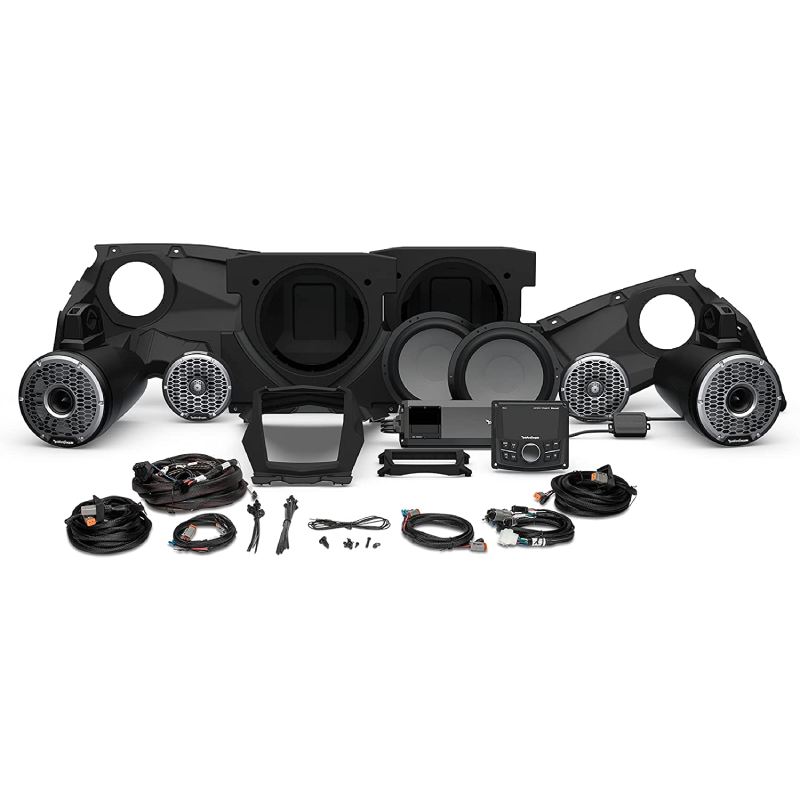

What's Inside?
- • PMX-3 Digital Media Receiver
- • X317-DK Dash Kit
- • (2) X317-FSE Front Color Optix™ Speaker Panels
- • (2) M2-65B 6.5” Marine 2-Way Speakers - Black
- • M5-1500X5 5-Channel Element Ready™ Amplifier
- • (2) X317-M2FWE Loaded Subwoofer Enclosure
- • X317-K4 4 AWG Amp Installation Kit
- • (2) M2WL-8HB 2-Way Horn Loaded Wake Tower Speakers - Black
- • MX-RSW16 Speaker Add-On Harness
- • PMX-RGB Light Controller
- • Owner's Manual
Built for the Ultimate Maverick X3 Sound Experience
If you’re running a Can-Am Maverick X3 from 2017 and up, the Rockford Fosgate X317-STG6 is basically the full audio transformation your ride has been waiting for. This isn’t just a speaker upgrade, it’s a complete Stage-6 system that brings front speakers, rear wake tower speakers, dual subwoofers, a powerful amplifier, and a full media receiver all working together as one. The result is loud, clean, and balanced sound that actually keeps up with off-road speed and open-air riding, so your music doesn’t get lost in the trail noise.
Factory-Fit Design with Serious Off-Road Durability

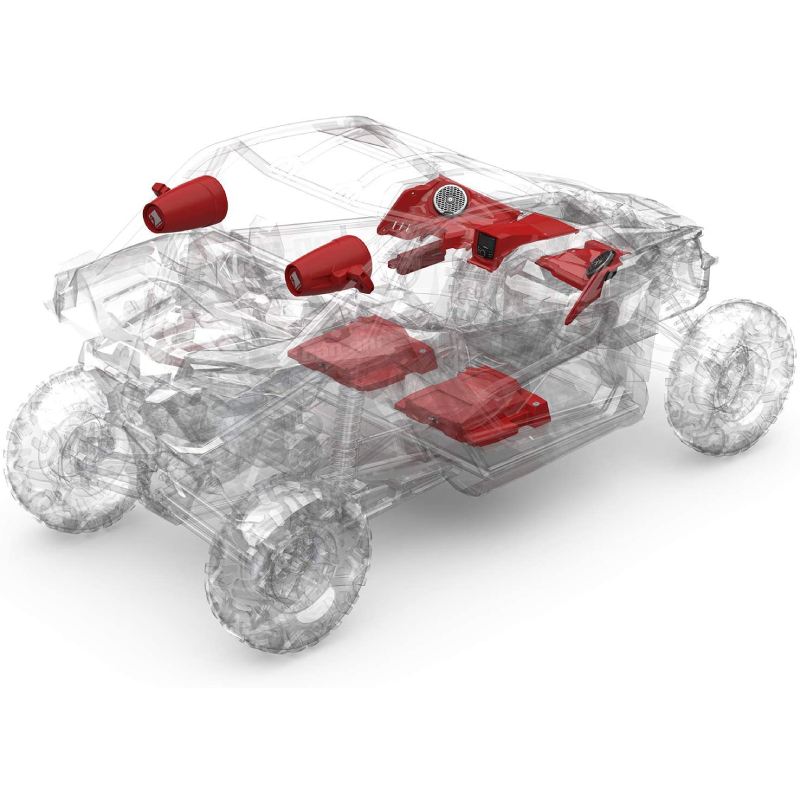

Everything in this system is built to fit your Maverick X3 like it belongs there from day one. The vehicle-specific dash kit and mounting hardware line up with factory points, so installation feels clean and solid without unnecessary modifications. On top of that, the entire system is engineered for real outdoor abuse, with marine-grade protection, UV resistance, vibration handling, and sealed components that are ready for mud, dust, heat, and water without backing down.
Big Power, Clean Control, and Full Media Flexibility
At the heart of the system is a high-output 5-channel amplifier paired with a smart PMX-3 media receiver that gives you full control over your sound. You get strong, clean amplification for every speaker and subwoofer, plus advanced tuning options to shape your audio exactly how you want it. Bluetooth streaming, USB playback, AM/FM, Weather Band, Pandora, and SiriusXM support all come together so your music options are wide open no matter where the trail takes you.
Bass, Lighting, and Full System Integration Done Right
This setup doesn’t just play loud, it feels alive. Dual under-seat subwoofers bring deep, controlled bass that hits hard without stealing space or affecting ride comfort. The Color Optix RGB lighting system lets you customize the glow across your speakers and enclosure using your phone, adding a visual edge to match the sound. Combine that with plug-and-play wiring, pre-built harnesses, and a complete installation kit, and you get a system that installs clean, performs hard, and looks just as impressive as it sounds.
Features:
- All-in-One Stage-6 Powersports Audio System: Built for Can-Am Maverick X3 platforms, this complete Rockford Fosgate X317-STG6 system delivers a fully integrated audio upgrade with front speakers, rear tower speakers, dual subwoofers, amplifier, media receiver, wiring kits, and RGB control for a premium off-road sound experience.
- Vehicle-Specific Precision Fitment Design: Engineered for a wide range of Maverick X3 models from 2017 to 2025, the system includes dedicated dash kit and mounting solutions that align with factory points for a secure and clean installation.
- Marine-Grade PMX-3 Media Receiver Performance: Features a rugged, IPX-rated digital media receiver with UV, temperature, vibration, and corrosion resistance, ensuring reliable operation in extreme off-road and marine environments.
- High-Output M5-1500X5 Amplification System: Powers the entire setup with a 5-channel Element Ready amplifier featuring Class-AD/BD technology, advanced thermal management, and integrated tuning tools for clean, efficient, and powerful audio delivery.
- Premium M2 Series Front Speaker System: Includes high-performance 6.5-inch speakers with balanced dome tweeters, integrated concealed crossovers, and UV-resistant construction designed for clear, durable sound reproduction in harsh conditions.
- High-Impact M2WL Rear Wake Tower Speakers: Delivers powerful rear audio projection with 8-inch two-way horn-loaded speakers, IPX6 waterproof rating, and rugged ASA enclosures designed for extreme outdoor environments.
- Dual Under-Seat Subwoofer Bass Expansion: Equipped with X317-M2FWE down-firing subwoofer enclosures featuring 10-inch drivers that deliver deep, controlled bass without compromising seating space or suspension travel.
- Color Optix RGB Lighting Integration: Includes full RGB speaker and system lighting control via PMX-RGB controller and RF Connect App, offering customizable colors, brightness, and effects across all compatible components.
- Advanced Connectivity and Media Options: Supports Bluetooth streaming, USB playback, AM/FM, Weather Band, Pandora, SiriusXM compatibility, AUX input, and iPod/iPhone integration with full media browsing and metadata display.
- Rugged Element Ready Construction: Built with UV-resistant materials, sealed components, corrosion-protected PCBs, and waterproof connectors across all system elements for maximum durability in off-road environments.
- Complete Plug-and-Play Installation Architecture: Includes pre-wired harnesses, amplifier mounting brackets, speaker enclosures, and vehicle-specific wiring kits designed to minimize cutting or drilling while ensuring a clean factory-style install.
Specifications:
PMX-3 Digital Media Receiver
- RMS Power (CTA-2006): 25 watts
- RMS Power (Manufacturer): 25 watts
- Peak Output: 50 watts
- AUX Input: RCA (rear)
- Audio/Video Input: Not available
- USB Input: Rear
- USB Port Power: 1A
- Backup Camera Input: No
- Second Camera Input: No
- Preamp Outputs: 4-channel
- Sub Preamp Outputs: No
- Switchable Rear Preamp Outputs: Yes
- Memory Card Slot: USB memory
- iPhone Compatibility: 3GS and newer
- CarPlay: No
- Siri Control: No
- Android Control: Yes
- Android Auto: No
- Alexa Voice Control: No
- FM Sensitivity: 8 dBf
- European Tuning: Yes
- Seek/Scan: Seek
- Radio Data System: No
- Music File Playback: MP3, WMA
- High-res Playback: No
- Navigation: Not available
- Navigation App Compatible (iOS): Not available
- Navigation App Compatible (Android): Not available
- Bluetooth Compatible: Built-in
- Bluetooth Version: 3.0+EDR
- Satellite Radio Ready: SiriusXM
- HD Radio: No
- Video Screen: No
- Preamp Voltage: 4
- Screen Size: Not available
- Screen Type: N/A
- Display Color: Full Color
- Key Button Color: White
- EQ Bands: 7
- Wireless Remote: No
- Steering Wheel Control Compatible: No
M2WL-8HB 2-Way Horn Loaded Wake Tower Speakers - Black
- Tweeter Composition: Not available
- Woofer Composition: IMPP
- Woofer Surround: Not available
- Sensitivity: 94 dB at 2.83 volts
- Style: Wakeboard tower
- Frequency Response: 35Hz-25kHz
- Max RMS Power Handling: 300 watts
- Peak Power Handling: 1200 watts
- Impedance: 4 ohms
M2-65B 6.5” Marine 2-Way Speakers - Black
- Speaker Size: 6 1/2 inches
- Design: 2-way
- Tweeter Design: 1" Dome
- Tweeter Composition: Proprietary Material
- Woofer Composition: Mineral Filled Polypropylene
- Woofer Surround: Thermo-Plastic Elastomer
- Sensitivity: 91.8 dB at 2.83 volts
- Frequency Response: 40Hz - 24kHz
- Max RMS Power Handling: 150 watts
- Peak Power Handling: 600 watts
- Impedance: 4 ohms
- Top-Mount Depth: 2 3/4 inches
- Bottom-Mount Depth: Not applicable
- Cutout Diameter or Length: 5 3/8 inches
- Bolt Circle: 6.1245 inches
M5-1500X5 5-Channel Element Ready™ Amplifier
- RMS Power Output (Watts x Channels): 100 x 4
- Frequency Response at Rated RMS Power: 10Hz-50kHz
- THD at Rated RMS Power: 1%
- Signal to Noise Ratio: 105 dB
- Input Voltage: Not applicable
- Peak Power Output (Watts x Channels): 125 x 4
- Power at 2 Ohms (Watts x Channels): 100 x 4
- Bridged Power (Watts x Channels): 200 x 2
- Minimum Impedance Bridged: 4 ohms
- Minimum Impedance Unbridged: 2 ohms
- Amplifier Class: A/D
- Low-Pass Crossover Frequency: 50-250Hz
- Low-Pass Slope: 12dB/octave
- High-Pass Crossover Frequency: 50-250Hz
- High-Pass Slope: 12dB/octave
- Bass Boost: 0-18dB
- Bass Boost Frequency: 45Hz
- Fan Cooled: No
- Fuse Rating: 200
- Speaker Level Inputs: Yes
- Preamp Outputs: No
- Height: 1-13/16 inches
- Width: 17 inches
- Depth: 4-1/4 inches
PMX-RGB Light Controller with Optional App Interface
- RGB Control Outputs: 8
- Maximum Amp Draw (Total): 2A
- Operating Voltage: 9-24VDC
- Waterproof Rating: IPX7
- Control Module Dimensions: Width = 2.411", Height = 0.913", Depth = 5.050"
- Overall Length: 38.5"
- UPC: 780687360085
- Weight: 103
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
