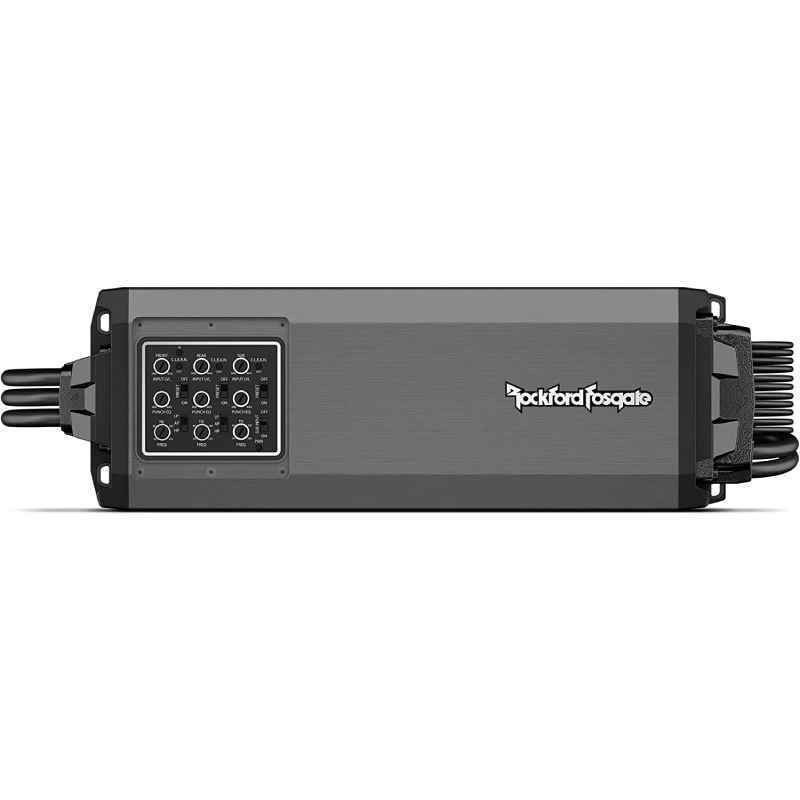

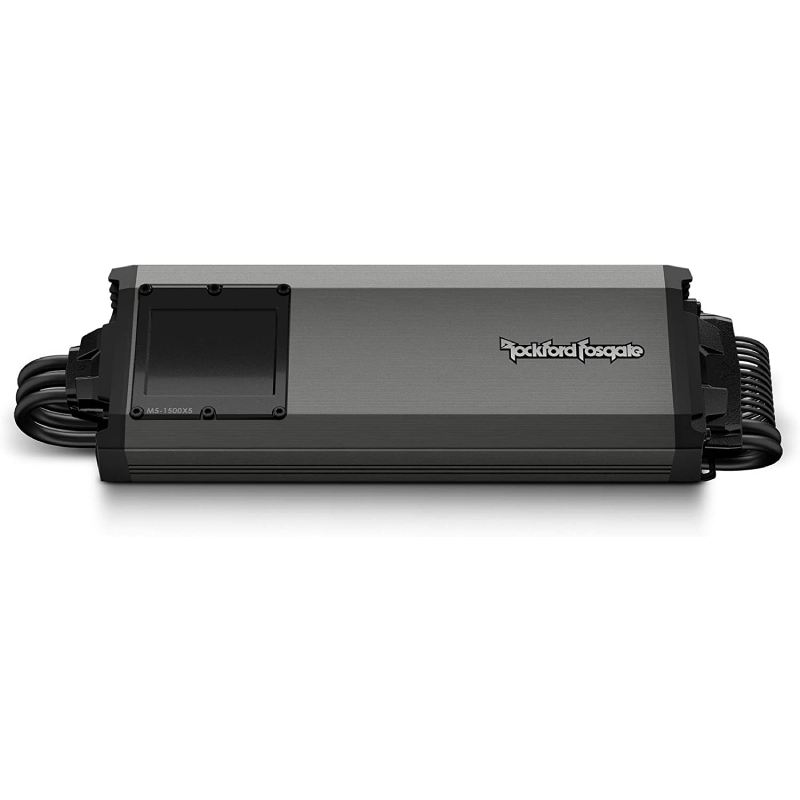

Rockford Fosgate M5-1500X5 M5 Series 5-Channel 100W RMS x 4 at 2-Ohms + 600W RMS x 1 at 2-Ohms, Class-AD Marine/Powersports Car Amplifier
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

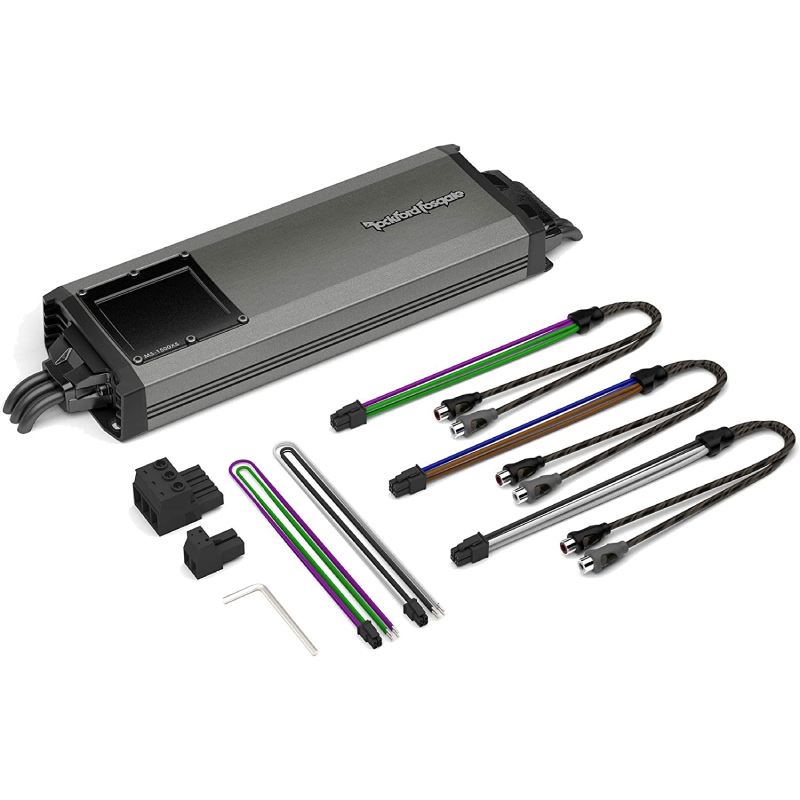

What's Inside?
- • 5-Channel Powersports Amplifier
- • 11" Power/ground/turn-on & speaker output harness (installed on amp)
- • 11" Input harness (installed on amp)
- • (3) 14" RCA-to-Molex input adapters
- • Power/ground/turn-on adapter plug
- • Subwoofer output adapter plug
- • (2) 7.5" speaker output harnesses
- • 3mm Allen key
- • Performance certificate
- • Contact information
- • Owner's Manual
All-In-One Power Hub That Runs Your Entire System
The Rockford Fosgate M5-1500X5 Class-AD amplifier is built for riders and drivers who want one clean solution to power everything. With 100W RMS x 4 channels for your full-range speakers and up to 600W RMS dedicated for the subwoofer channel, it delivers a perfectly balanced setup without needing multiple amps. It is designed to push strong, controlled output across your entire system, giving you loud, clear sound up front and deep bass where it counts in the low end.
Real-World Power You Can Trust Every Time You Turn It On
This amplifier is CEA-2006 certified, which means the power ratings you see are real, tested, and consistent under standardized conditions. No inflated numbers or guesswork, just honest performance that makes system planning easier and more reliable. Whether you are running a full marine setup or a powersports build, you know exactly what you are working with when it comes to output and headroom.
Built to Survive Water, Heat, Dust, and Anything Else
The M5-1500X5 is part of Rockford Fosgate’s Element Ready lineup, meaning it is designed for harsh environments where normal amps would fail. With IPX6-rated sealing, UV-resistant construction, stainless steel hardware, and epoxy-coated internal boards, it is made to handle water spray, dust, vibration, and constant exposure. This is the kind of amp you install once and trust for the long haul, no matter how rough the ride gets.
Smart Amplification Tech That Stays Cool and Clean
Inside, the advanced Class-AD and Class-BD hybrid design delivers high output while keeping current draw and heat under control. MEHSA 4 thermal management helps pull heat away from the MOSFETs, keeping performance stable even when you push it hard. DSM precision circuit construction ensures tight tolerances and clean signal flow, so your music stays detailed and distortion-free even at higher volume levels.
Easy Setup, Full Control, and Seamless System Integration
Tuning this amp is straightforward thanks to the CLEAN calibration system with built-in clip indicators that guide you through gain setup without special tools. You also get flexible crossover control from 50Hz to 250Hz with high-pass, low-pass, and full-range options for different zones in your system. Punch EQ lets you dial in up to +18dB of bass at 45Hz and up to +14dB of treble at 12.5kHz for tailored sound shaping, while auto turn-on support, RCA or speaker-level inputs, and heavy-duty 4 AWG power terminals make installation clean and flexible. It is built to integrate easily, perform consistently, and give you total control over your sound.
Frequently Asked Questions (FAQ)
- • Why does the M5-1500X5 run hotter than I expected?
Some owners specifically report that the amplifier runs very hot during use, even while continuing to operate normally. Its compact chassis concentrates a lot of power in a small space, so adequate airflow around the amplifier is important.
- • Why did my M5-1500X5 stop working after installation?
Rockford notes that many products returned for service are found with no actual product fault, often because of incorrect installation. Before assuming the amplifier is defective, verify power, ground, signal, speaker wiring, and the supplied harness connections.
- • Why does the amplifier have power but no sound from my speakers?
A powered amplifier can still have a signal-path problem. Check the source output, RCA or high-level connections, speaker wiring, input-mode selection, and whether the amplifier has entered protection. The M5-1500X5 supports both preamp and speaker-level inputs.
- • Why does my M5-1500X5 need a different input setting for some systems?
The amplifier can operate in different channel configurations, and Rockford's setup documentation shows that the input configuration must match the system being installed. An incorrect input mode can leave channels behaving unexpectedly even when the amplifier itself is functioning.
- • Why can't I add a normal bass knob directly to the amplifier?
The M5-1500X5 does not have a dedicated remote bass-control input. If remote level adjustment is needed, an inline RCA controller can be used instead, depending on the installation.
- • Why does my amplifier keep blowing the fuse?
The M5-1500X5 requires an 80-amp fuse, and Rockford specifies that the main power cable must be fused within 18 inches of the battery. Incorrect fuse sizing, wiring problems, shorts, or excessive current demand should be investigated before repeatedly replacing the fuse.
- • Why am I hearing static or electrical noise after installing the amplifier?
Poor cable routing or grounding can introduce unwanted noise. Rockford recommends keeping power wiring away from signal cables and sensitive vehicle harnesses, while the amplifier itself uses balanced differential inputs and chassis isolation to help reduce noise pickup.
- • Why does the M5-1500X5 sound great without much manual adjustment?
The amplifier includes preset settings intended for Rockford Stage systems, allowing certain compatible installations to use predetermined levels and crossover settings. Owners have also reported that the amplifier can sound excellent with minimal adjustment when matched with the appropriate system.
- • Why does my subwoofer not get as much power as I expected?
The fifth channel's output depends on the connected subwoofer impedance. The amplifier is rated for substantially different output at different loads, with up to 600 watts RMS at 2 ohms according to the published specifications. Using the wrong impedance can therefore change the available output.
- • Why did one M5-1500X5 reportedly smoke shortly after installation?
There is an isolated customer report describing an M5-1500X5 that reportedly smoked and failed shortly after installation, while other owners describe the amplifier as powerful and reliable. This should not be treated as a typical failure rate, but it highlights why correct fusing, grounding, impedance, and installation are important.
- Low Frequency Response : 50-250 Hz
- High Frequency Response : 50-250 Hz
- Number of Channels : 5
- Frequency Response : 10-50000 Hz
- Built In Crossovers : Yes
- Amplifier Class : AD
- Fuse Rating : 200 A
Features:
- High-Output 5-Channel Amplification Architecture: Provides 100W RMS x 4 channels for full-range speakers and up to 600W RMS for the dedicated subwoofer channel, supporting powerful and balanced system configurations.
- CEA-2006 Certified Power Performance Standards: Ensures accurate and comparable RMS power ratings under standardized testing conditions for reliable system matching and performance transparency.
- Element Ready Environmental Protection System: Built with IPX6-rated sealing, UV-resistant materials, stainless steel hardware, and epoxy-coated PCB construction for resistance against water, dust, corrosion, and vibration.
- Advanced Class-AD and Class-BD Amplifier Design: Utilizes efficient hybrid amplifier topology to deliver high power output with reduced current draw and improved thermal efficiency.
- MEHSA 4 Thermal Management Technology: Integrates advanced heat dissipation design to reduce MOSFET temperatures, minimize distortion, and extend amplifier lifespan under heavy load conditions.
- DSM Precision Circuit Construction: Employs robotic surface-mount assembly with tight-tolerance components and optimized signal pathways to enhance clarity, efficiency, and thermal stability.
- CLEAN Calibration Level Setup System: Features integrated clip indicators for input and output gain alignment, enabling precise tuning without external test equipment.
- Flexible Multi-Zone Crossover Configuration: Offers fully variable 50Hz–250Hz crossovers with selectable high-pass, low-pass, and full-range modes for front, rear, and subwoofer channels.
- Punch EQ Signal Enhancement Control: Provides adjustable bass boost up to +18dB at 45Hz and treble boost up to +14dB at 12.5kHz depending on crossover configuration for tailored sound shaping.
- PRESET System Integration Mode: Enables plug-and-play optimization with compatible Rockford Fosgate audio kits by automatically configuring gain, EQ, and crossover settings.
- Heavy-Duty Power and Signal Connectivity: Features high-gauge power input support up to 4 AWG with secure locking terminals and integrated multi-harness output architecture for stable system wiring.
- Advanced Input Flexibility with Auto Turn-On: Accepts both RCA and speaker-level inputs with automatic turn-on capability and configurable remote output functionality for expanded system control.
Specifications:
- RMS Power Output (Watts x Channels): 100 x 4
- Frequency Response at Rated RMS Power: 10Hz-50k Hz
- THD at Rated RMS Power: 1%
- Signal to Noise Ratio: 105 dB
- Input Voltage: N/A
- Peak Power Output (Watts x Channels): 125 x 4
- Power at 2 Ohms (Watts x Channels): 100 x 4
- Bridged Power (Watts x Channels): 200 x 2
- Minimum Impedance Bridged: 4
- Minimum Impedance Unbridged: 2
- Amplifier Class: A/D
- Low-Pass Crossover Frequency: 50-250Hz
- Low-Pass Slope (dB/octave): 12dB/octave
- High-Pass Crossover Frequency: 50-250Hz
- High-Pass Slope (dB/octave): 12dB/octave
- Bass Boost: 0-18dB
- Bass Boost Frequency: 45Hz
- Fan Cooled: No
- Fuse Rating: 200
- Speaker Level Inputs: Yes
- Preamp Outputs: No
- Height (inches): 1-13/16
- Width (inches): 17
- Depth (inches): 4-1/4
- UPC: 780687357979
- Weight: 6
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
