Rockford Fosgate X317MAX-RSS Can-Am X3 1000W MAX Rear Subwoofer Solution (Gen-3)
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

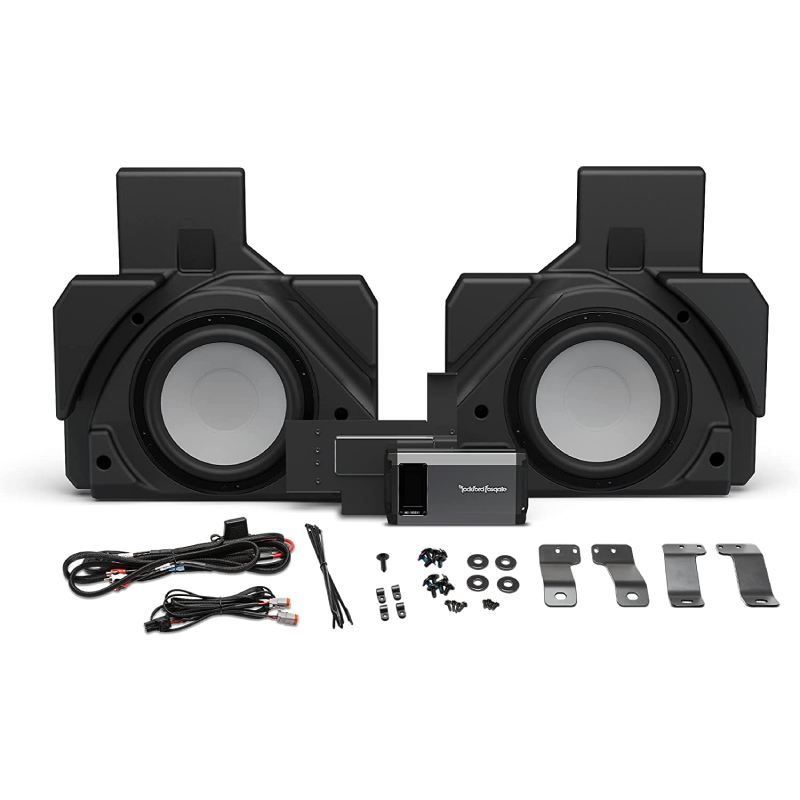

What's Inside?
- • (1) M5-1000X1 amplifier
- • (2) 10" pre-loaded subwoofer enclosures
- • (4) Enclosure mounting brackets
- • (4) Spacer washers
- • (12) Bracket and enclosure mounting screws
- • (4) Amp mounting screws
- • (1) Amp plate mounting push clip
- • (1) Amp Bracket
- • (6) Zip ties
- • (1) Enclosure speaker harness
- • (1) Amp power and input signal harness
- • Owner's Manual
Why Choose Rockford Fosgate X317MAX-RSS Stage System?
Provides Next Level Bass Performance

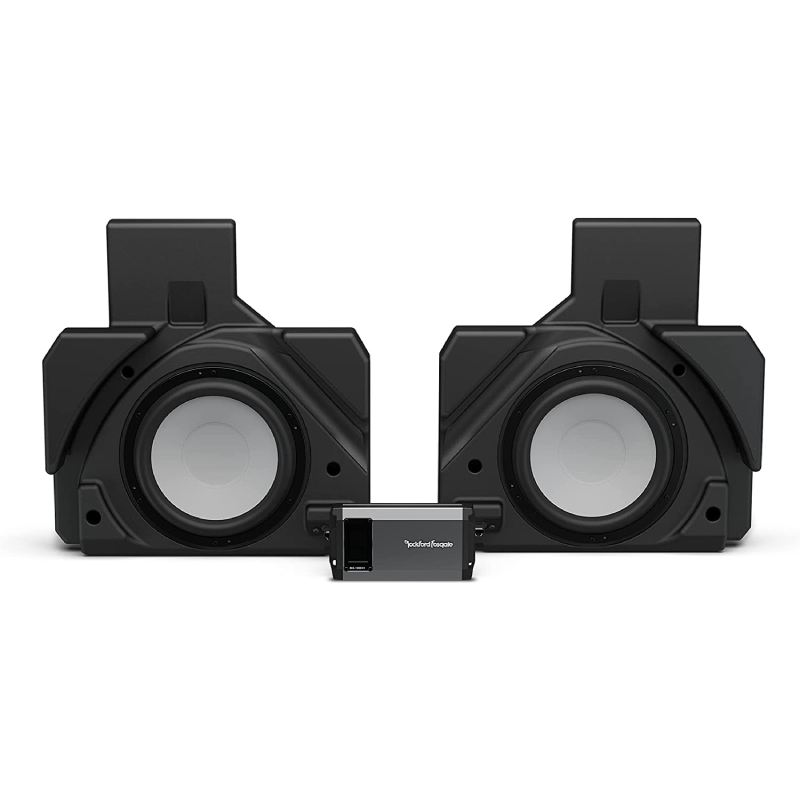

Purpose Built exclusively for select Can-Am® X3 MAX models, this dual rear subwoofer kit provides next-level bass performance, an Element Ready™ design, and simple installation. The kit is designed as an upgrade for select aftermarket Rockford Fosgate Can-Am Stage-3/4/5/6 systems. It features two Element Ready™ 10" loaded subwoofer enclosures and a 1,000-watt, next-generation IPX6 Element Ready™ amplifier. Includes all necessary wiring harnesses and hardware.
Deliver That Next Level of Off-road Bass Performance
Maximum Bass Performance: With 1,000 watts of output, the Element Ready™ amplifier and dual subwoofers deliver that next level of off-road bass performance Element Ready™: Purpose built for the off-road environment, Rockford’s Element ReadyTM products are built to stand up to water, dirt, mud, and UV rays, making sure your speakers stand the test of time.
Plug-and-Play Design
Plug-and-Play Design: No drilling, no cutting, and designed to work right out of the box. Simple installation ensures less time in the garage and more time out riding. RF3 (Rockford Factory Fit and Finish): Designed and engineered to match and complement the factory fit and finish of your vehicle. These components are purpose-built to the exact specifications to ensure the best-in-class fitment and look.
Frequently Asked Questions (FAQ)
- • Why is there no sound after installation?
Check the fuse, power connections, audio source, and speaker wiring. Make sure all connectors are fully seated and receiving a proper audio signal.
- • Why does the audio cut out while riding?
Vibration can loosen connectors or wiring. Check the plugs, terminals, grounds, and speaker connections, then secure the cables properly.
- • Why does the sound distort at high volume?
Excessive gain, clipping, or insufficient amplifier power can cause distortion. Lower the gain or volume and check the audio settings.
- • Why is one speaker louder than the other?
Check the balance setting, speaker wiring, and amplifier channels. Swapping connections can help identify whether the issue follows the speaker or channel.
- • Will this system fit my vehicle?
Fitment depends on the exact vehicle, year, and existing equipment. Verify compatibility and mounting requirements before installation.
- • Why do the speakers rattle on rough terrain?
Loose brackets, panels, or mounting hardware can cause rattling. Check and tighten all mounting points and surrounding trim.
- • Why is the bass weaker than expected?
Check speaker polarity, crossover settings, amplifier gain, and mounting. Incorrect wiring or settings can reduce bass response.
- • Why does the system shut off at high volume?
Overheating, low voltage, loose connections, or amplifier protection can cause shutdowns. Check the power supply and wiring carefully.
- • Why won't my phone connect properly?
Check Bluetooth settings, remove old pairings, and reconnect the device. Testing another phone can help determine the source of the issue.
- • What should I check if the system suddenly stops working?
Inspect the fuse, battery connection, ground, connectors, and speaker wiring. Look for loose or damaged cables before testing again.
Features:
- Bass upgrade for select Can-Am stage kits
- Uses factory mounting locations for easy install
- Roto-mold design for lightweight and durable seamless construction

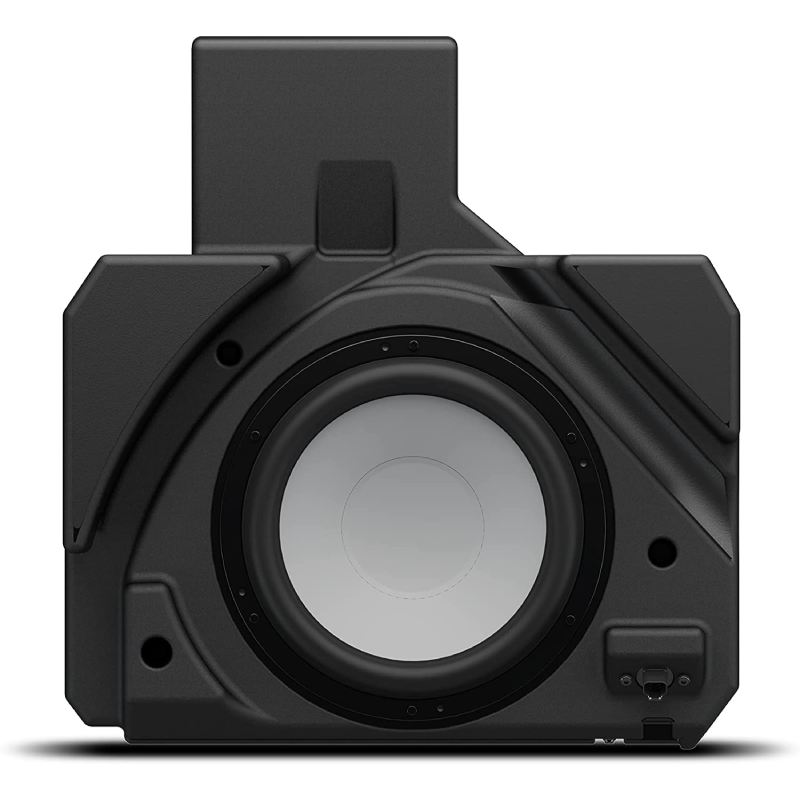

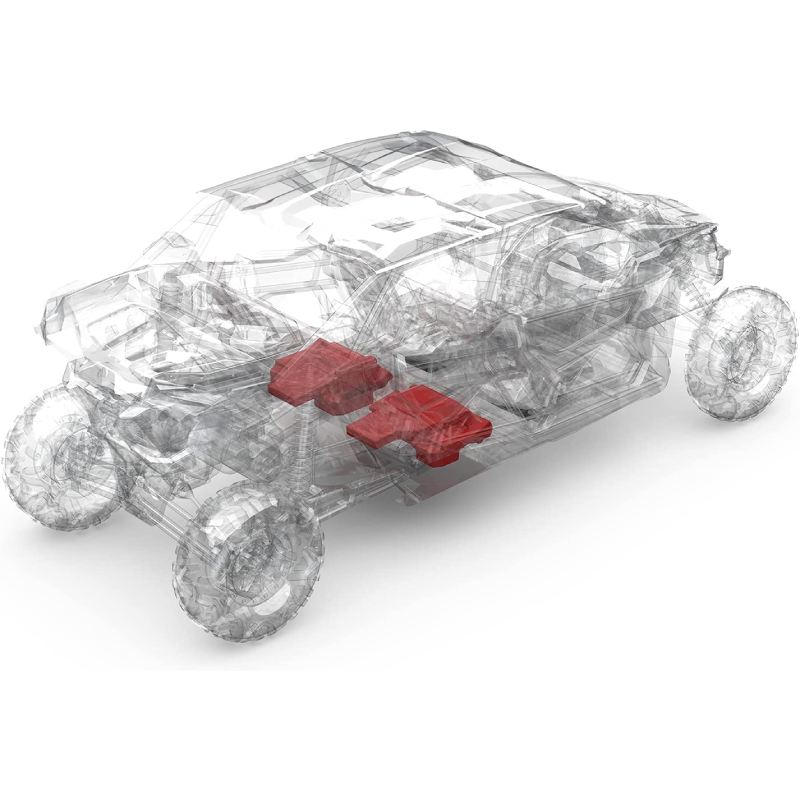

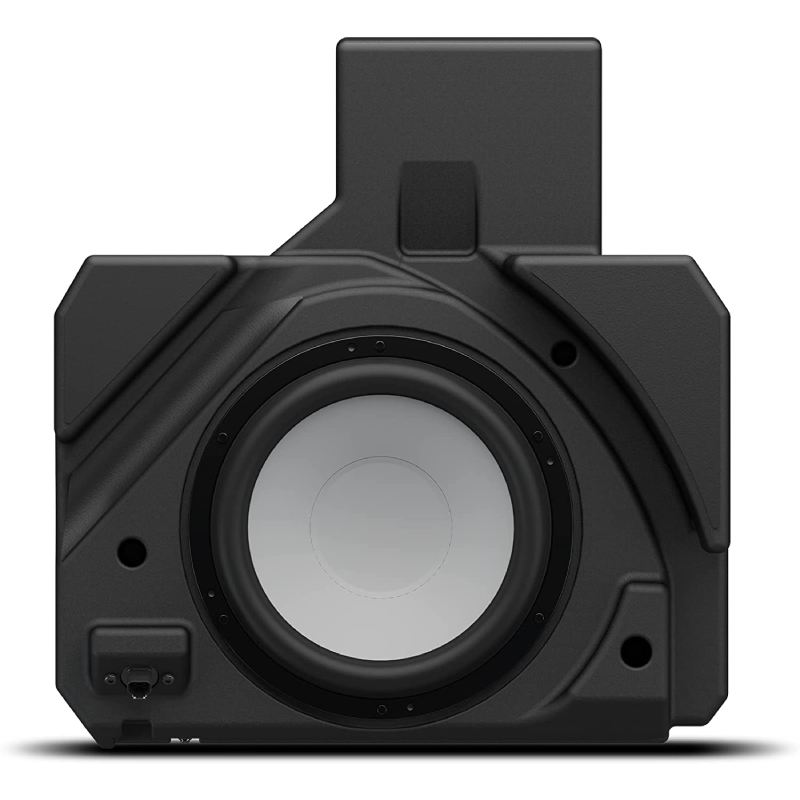

- M2 10” IPX6 Element Ready™ loaded subwoofers in enclosures under rear seats
- Down firing configuration for improved performance

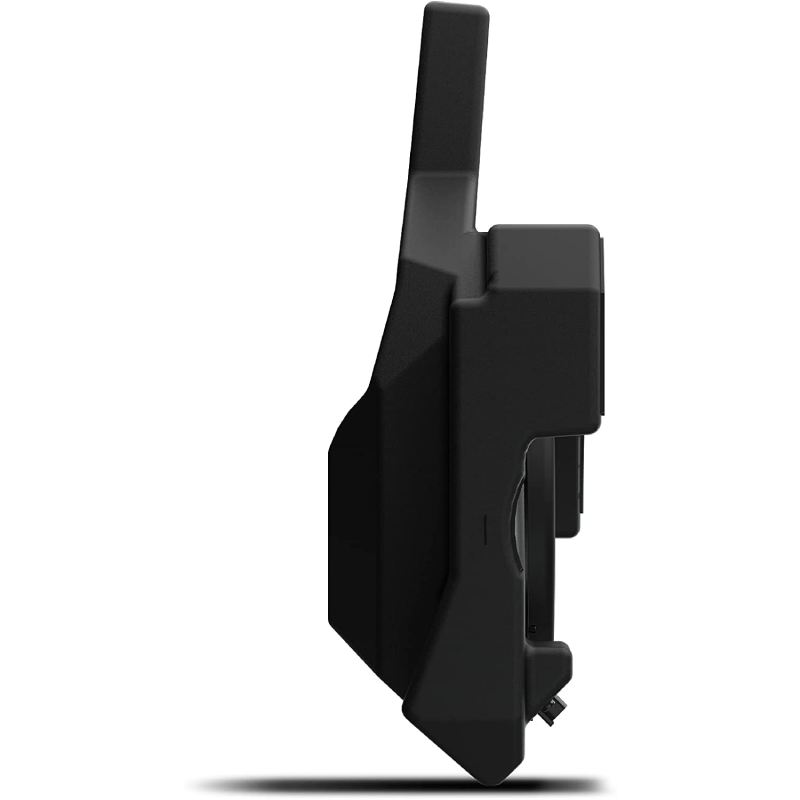

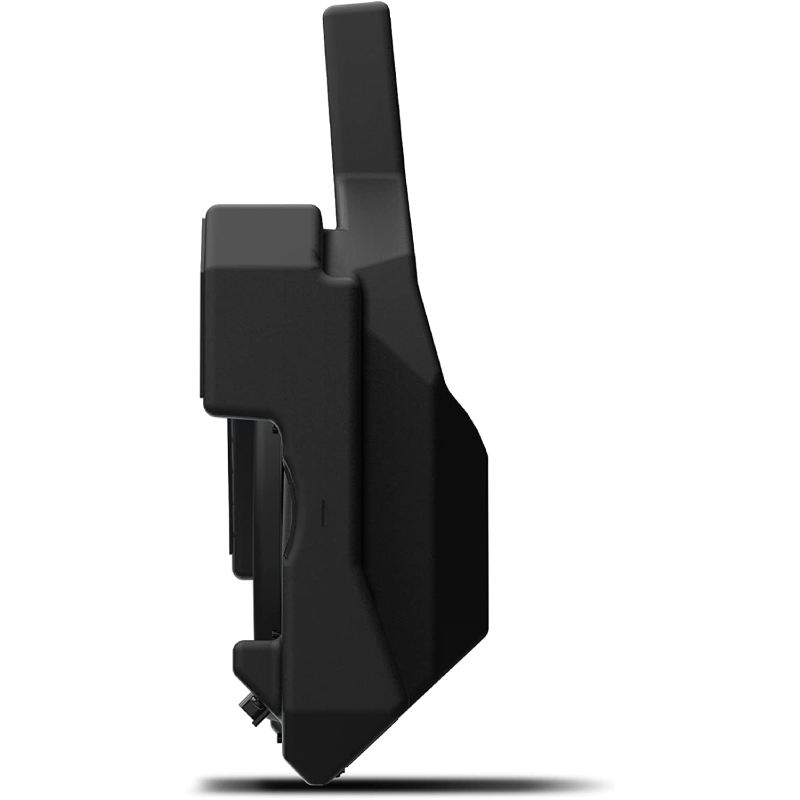

- Custom fit left and right sealed subwoofer enclosures
- Enclosure textured to match factory finish

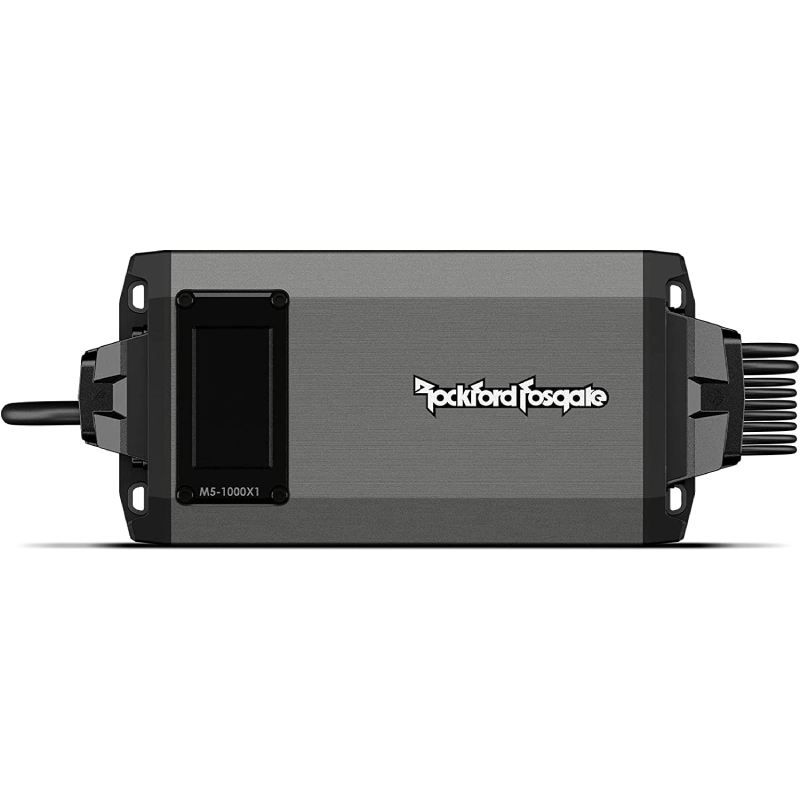

- M5-1000X1: 1,000-watt mono IPX6 Element Ready™ amplifier
- Vehicle specific wiring harness and mounting plate for amplifier
- PRESET removes the need to set-up and tune the amp when used with Rockford Fosgate UTV audio kits
Specifations:
- Woofer Quantity: 2
- Woofer Size: 10"
- Woofer Series: M2D2-10IB
- Nominal Impedance (ea): 2Ω (4Ω each enclosure wired in parallel to create a 2Ω amp load)
- Frequency Response: 20 Hz – 750 Hz
- Sensitivity: 90.3 dB
- Power Handling (Watts RMS): 500 Watts RMS/1,000 Watts Peak
- Crossover Type: Infrasonic: 30 Hz @ 12dB/Octave
- Enclosure Type: Sealed
- Enclosure Material: Roto-molded HDPE
- Speaker Connector: 2-pin Deutsch™/Amphenol™
- UPC: 780687361655
- Weight: 16
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
