Kenwood  XM160-2 On Sale

Excelon Series 80W RMS X 2 @2Ohms Class D 2-channel Amplifier for Select 2014-up Harley-Davidson® Motorcycles

Item #91669

Condition:   Brand New

Product Highlights

  • Excelon Compact Amplifier
  • 80W RMS Power
  • 2 Channel Class-D
  • Harley Davidson Audio
  • Motorcycle Sound Upgrade

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$419.00

Discount Already Applied!
Reg. Price $590.00  Save $171.00

Out of Stock Check out other products listed below
Kenwood Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Kenwood Excelon Banner

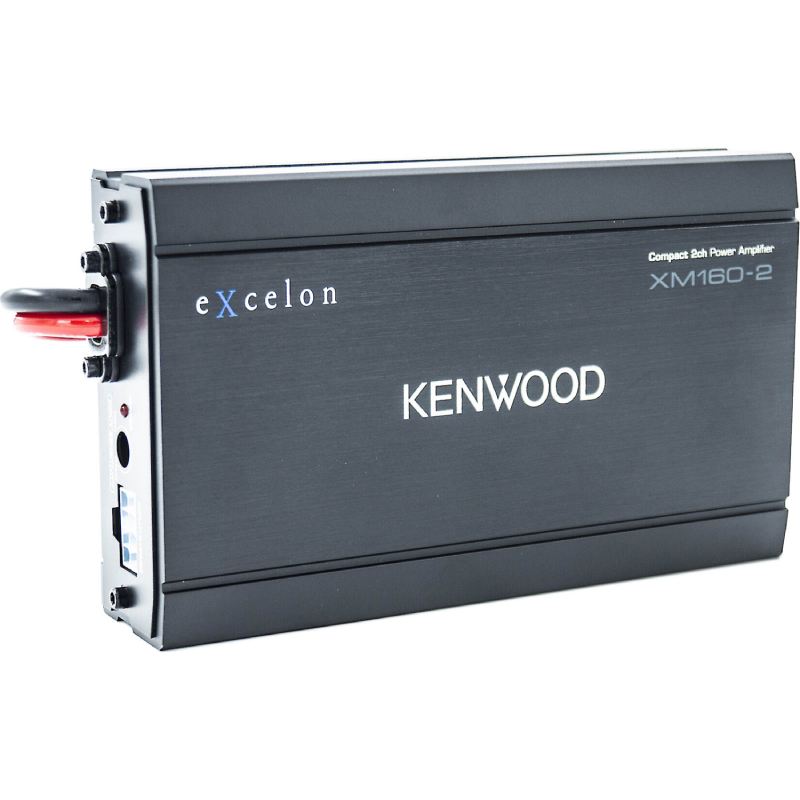

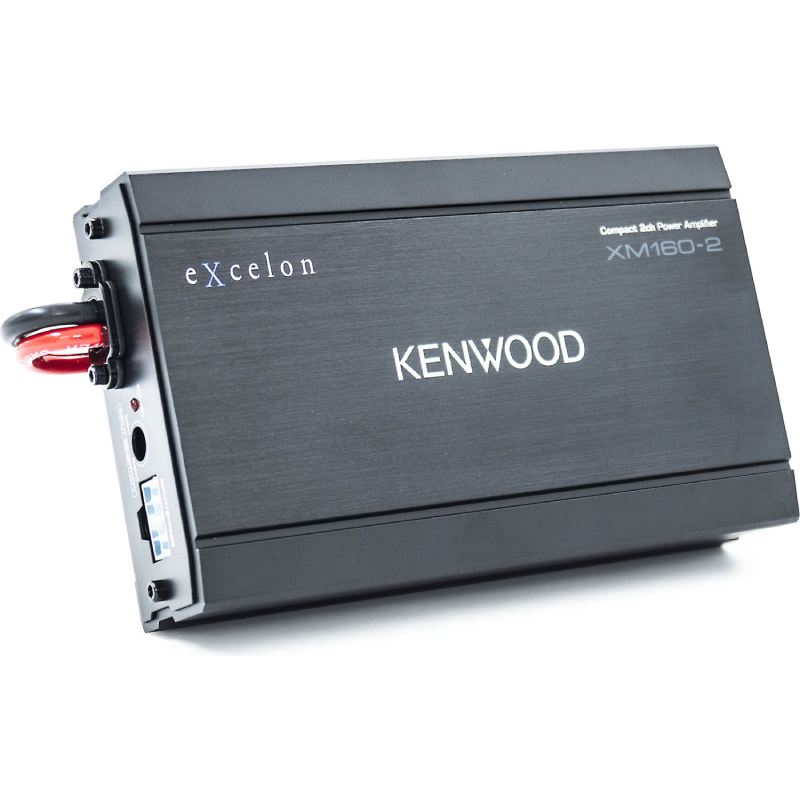

Kenwood XM160-2 Excelon Series 80W RMS X 2 @2Ohms Class D 2-channel Amplifier for Select 2014-up Harley-Davidson® Motorcycles


We are a Kenwood Excelon authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

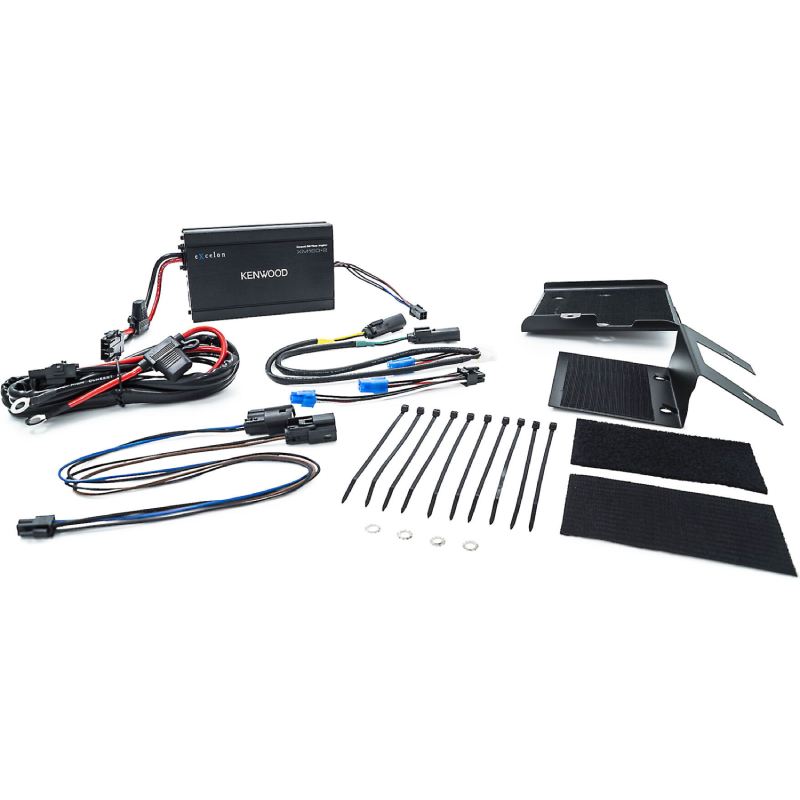

What's Inside?
  • • 2-Channel amplifier with attached 6" speaker and 8" power/ground harnesses (inline 15A ATO fuse)
  • • Street Glide mounting plate (attached to amplifier)
  • • Road Glide mounting plate

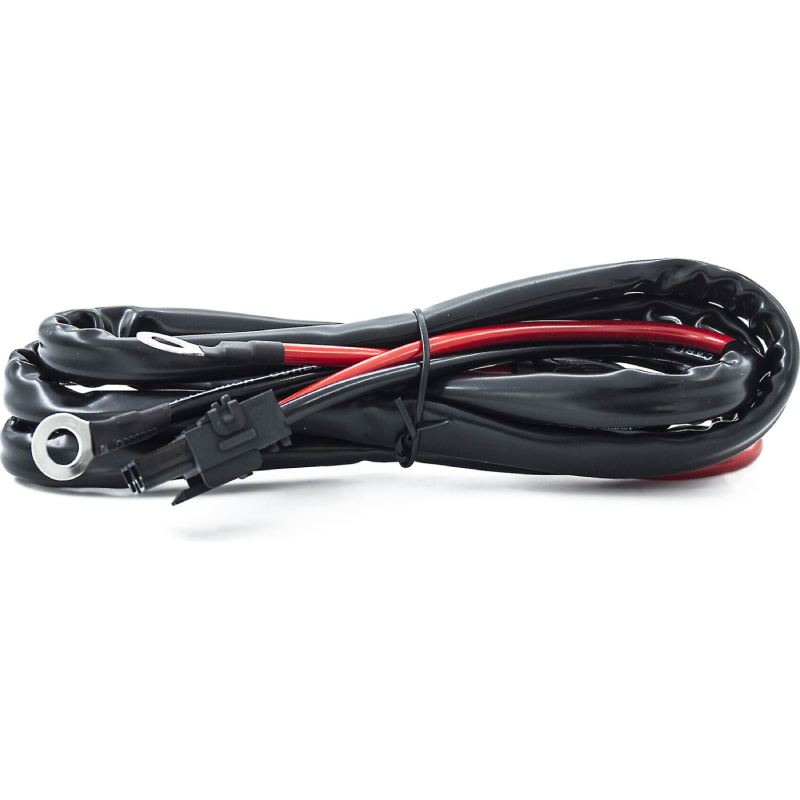

  • • 5' Power & ground harness with inline 15A ATO fuse
  • • 17" Input/Bypass harness
  • • 21" Front output harness
  • • 6" Input Link harness
  • • (10) 6" wire ties
  • • (4) Star washers
  • • Owner's Manual
Ultra Motorcycle and Power

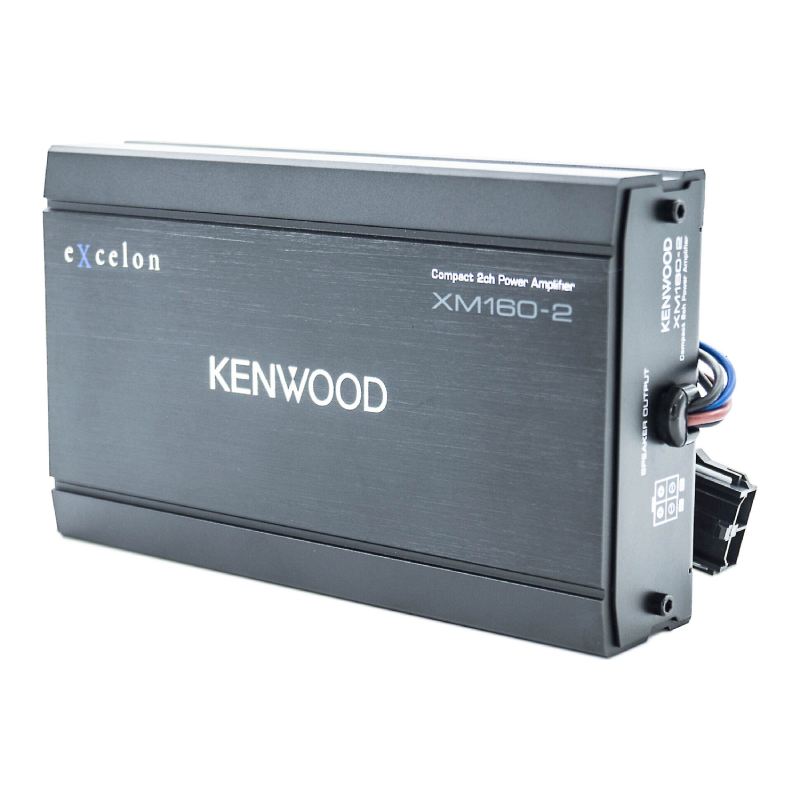

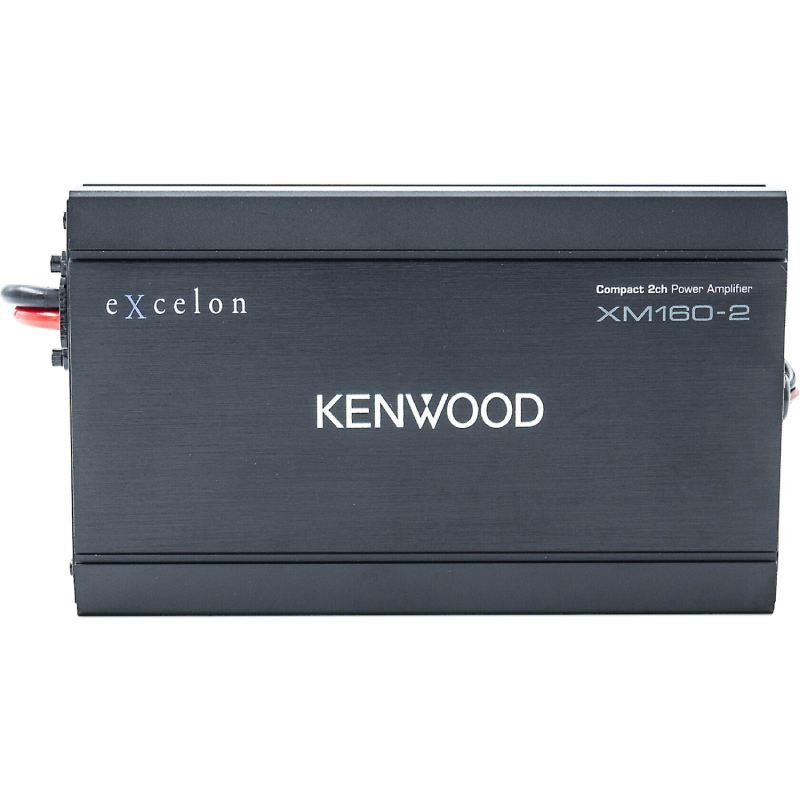

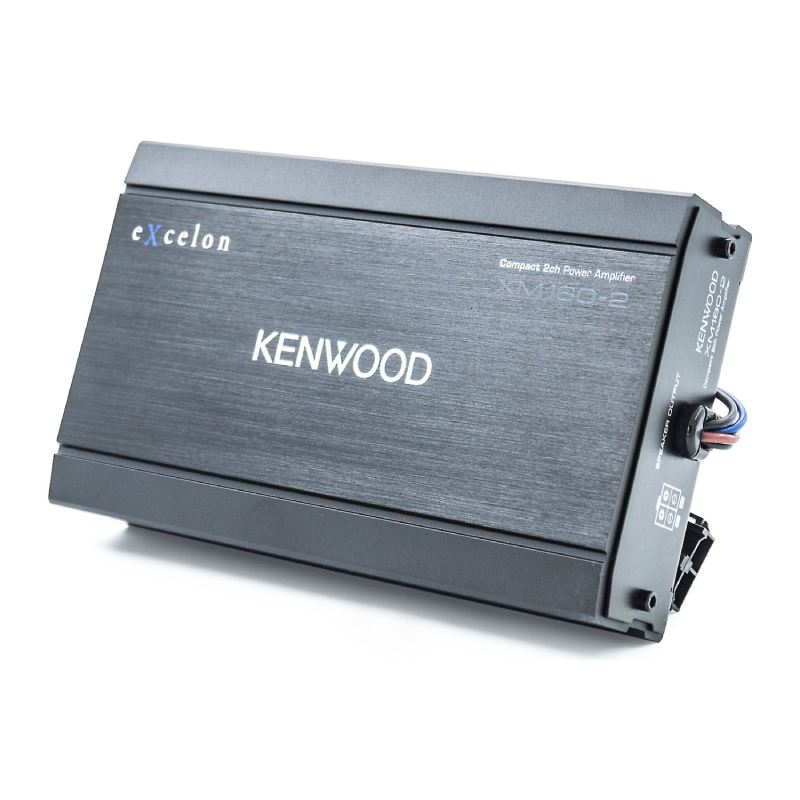

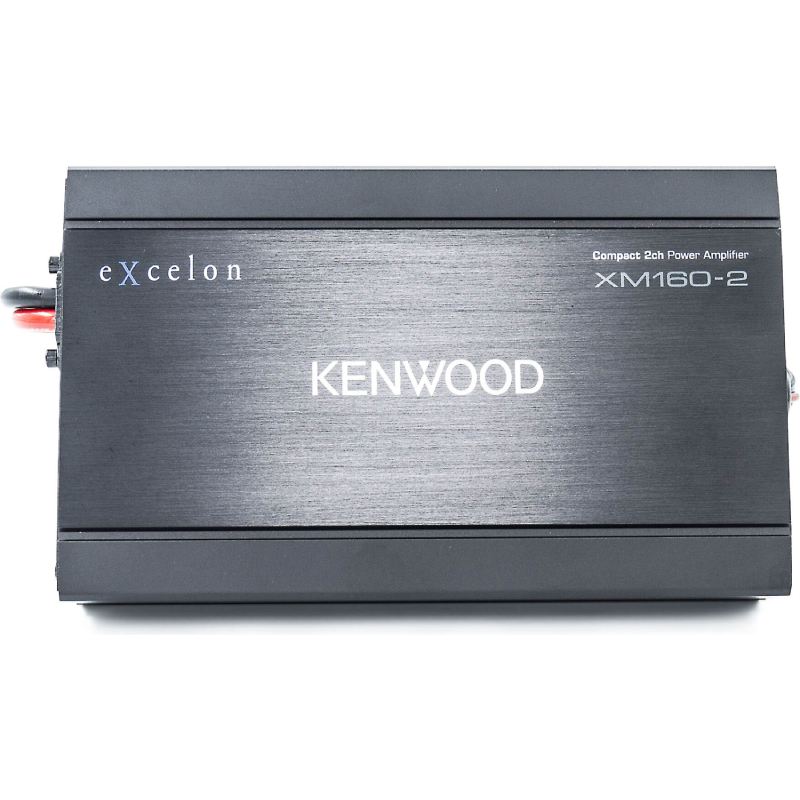

Kenwood's Excelon XM160-2 amplifier is designed to fit in a select 2014-up Harley-Davidson Road Glide®, Street Glide®, or Ultra motorcycle and power a couple of speakers with up to 80 watts RMS each. Kenwood optimized this 2-channel amp to match low-impedance, 2-ohm speakers like Harley-Davidson's factory speakers and Kenwood's Excelon XM motorsports aftermarket speakers.

Straight-forward and Pleasantly Uncomplicated

The XM160-2 comes with power, speaker, and input wiring harnesses, as well as mounting plates, all customized to fit in your particular Harley, making installation both straight-forward and pleasantly uncomplicated. The amp uses speaker-level inputs pre-matched and balanced for Harley-Davidson factory radios and almost any other aftermarket receiver or source unit. An input sensitivity control fine-tunes the level for minimum distortion.

Hear Your Music Playing Loud and Clear

There are no onboard tone, EQ, or crossover controls on this amp — your system's head unit will take care of that kind of signal processing. This amp's one job is to produce power — and you'll know it when you hear your music playing loud and clear as you roll down the road.


SPECIFICATIONS



FEATURES


Features:

  • Harley Davidson Integration: The Kenwood XM160-2 is a 2-channel motorsports amplifier designed specifically for installation and integration into select 2014-up Harley-Davidson Street Glide/Street Glide Ultra and Road Glide/Road Glide Ultra motorcycles. The XM160-2 amplifier includes Street Glide and Road Glide mounting brackets along with input and output wiring that's designed to plug directly into the factory Harley-Davidson wiring.
  • No Flashing Required: The Kenwood amplifier is tuned for the best performance with a stock Harley-Davidson headunit, letting you install the amp without the need for flashing the factory radio.
  • Power: The Kenwood XM160-2 amplifier can output 80W RMS (2Ω) x 2 channels.
  • Class D Design: The amplifier features a Class D design, which uses digital switching power supplies. The result is a more efficient amplifier, generating less heat than Class AB amps of equal power. The Class D design also allows the amplifier to be built on a small chassis, and installed where space is limited.
  • Signal Sensing: The amplifier has a signal-sensing turn-on circuit on the speaker level input. When a signal is detected on the speaker level inputs, the amplifier will automatically power on. When the signal is no longer detected, the amp will turn off. This allows you to install the amplifier without a remote turn-on lead.

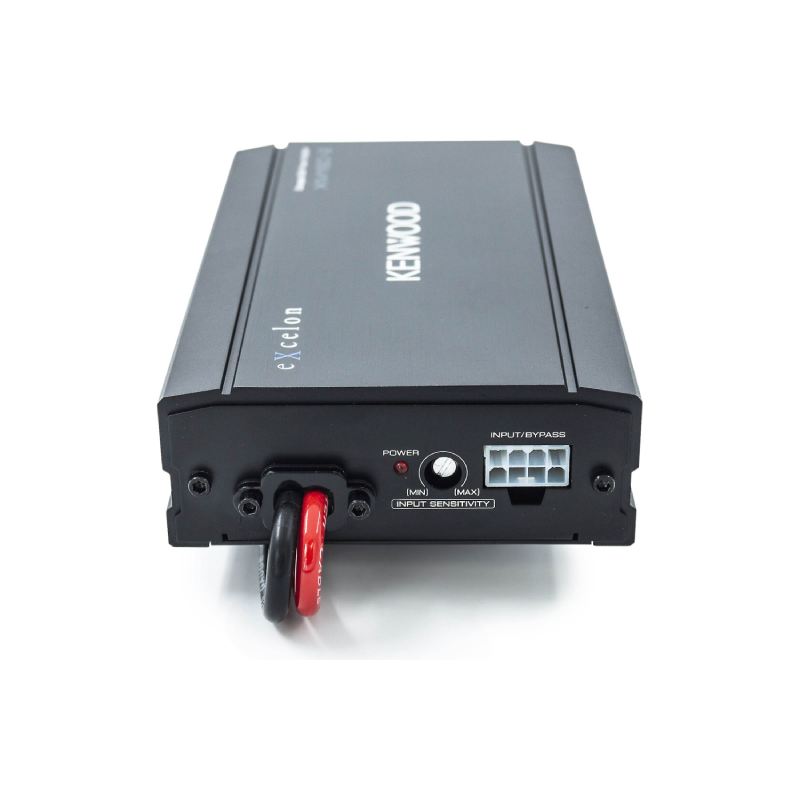

  • Input Sensitivity Control: The XM160-2 features an Input Sensitivity control, letting you dial in the maximum headunit signal while keeping it below the distortion point.

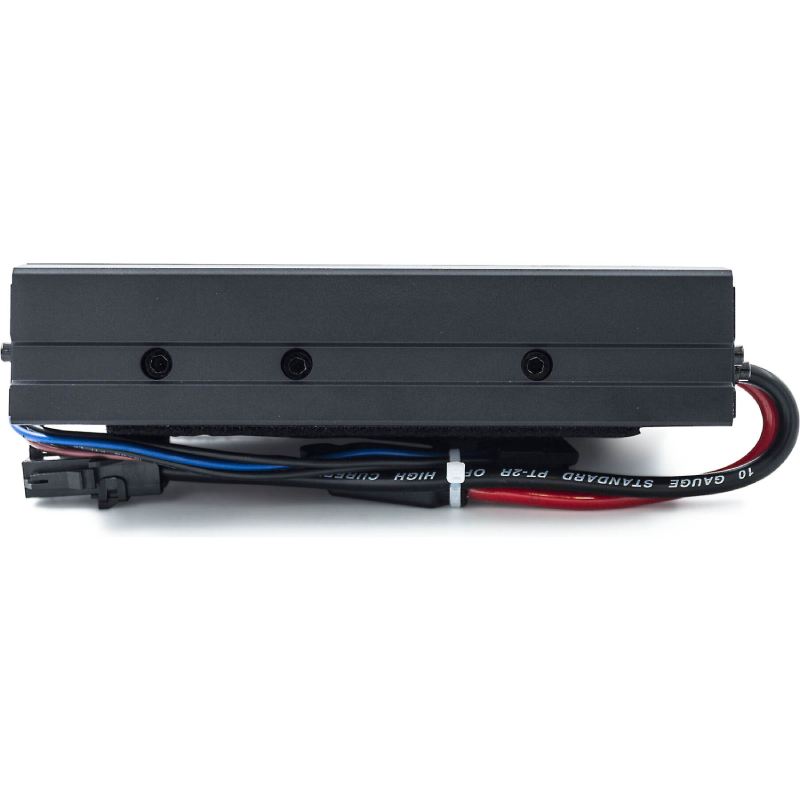

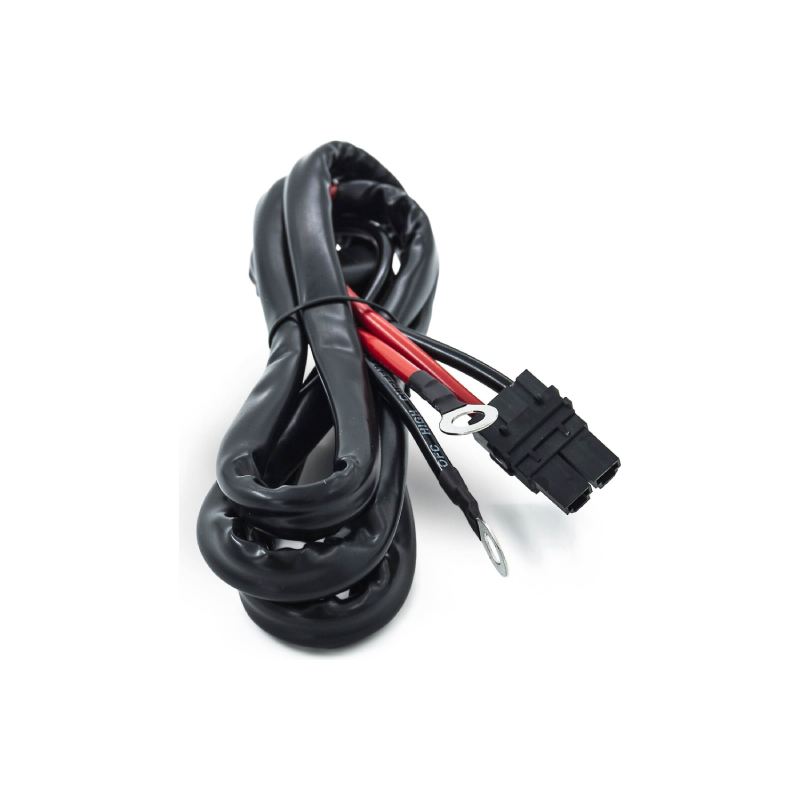

  • Power & Ground: The amplifier features an attached 8" power & ground input harness consisting of 10-gauge wire terminated in a Molex plug. An additional 5' power & ground harness attaches to this and gets run to the vehicle battery. The amp's 8" power wire includes an inline 15A ATO fuse, and the 5' extension includes an additional inline 15A fuse for protection at the battery. The power and ground wires are terminated in 0.32" ring terminals.

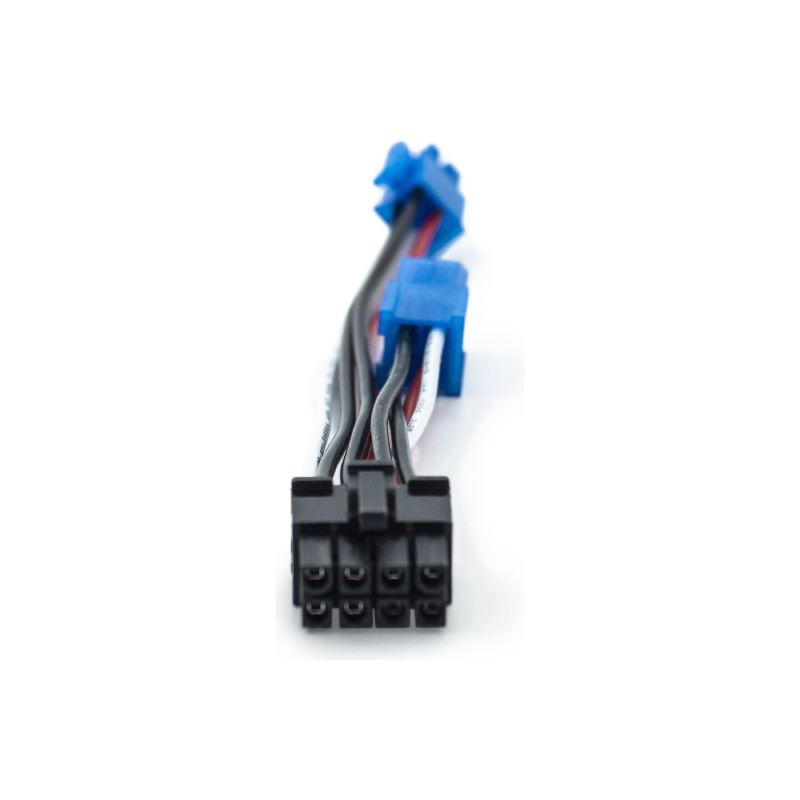

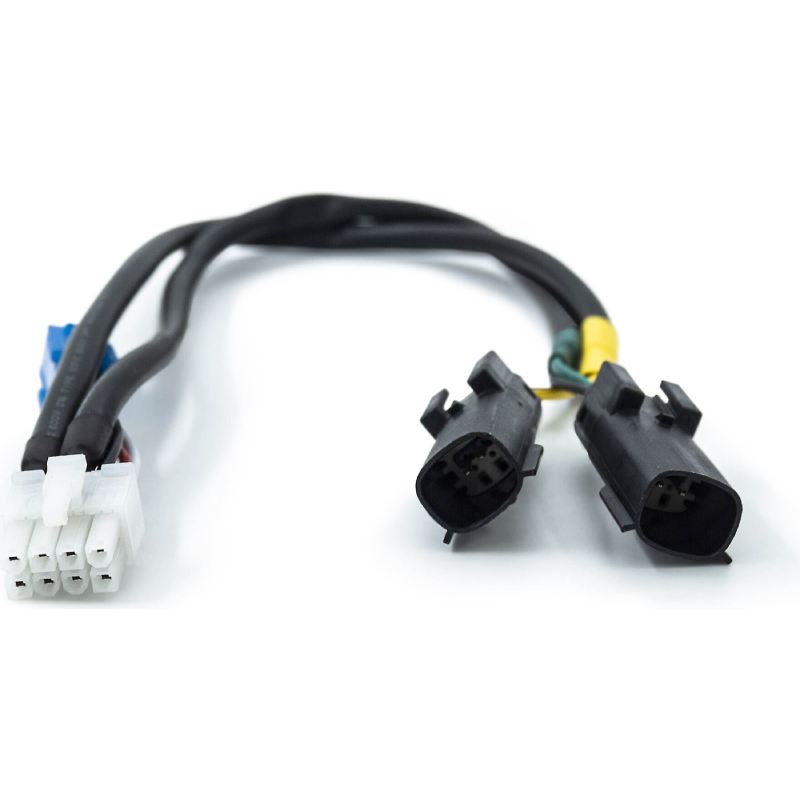

  • Speaker Level Input/Bypass: A 17" 8-pin harness provides the input channels, with connectors that plug directly into the factory radio output wiring. A 4-pin Bypass harness is attached, letting you jumper the input signal back out to additional amplifiers (sold separately) using the provided Input Link harness.

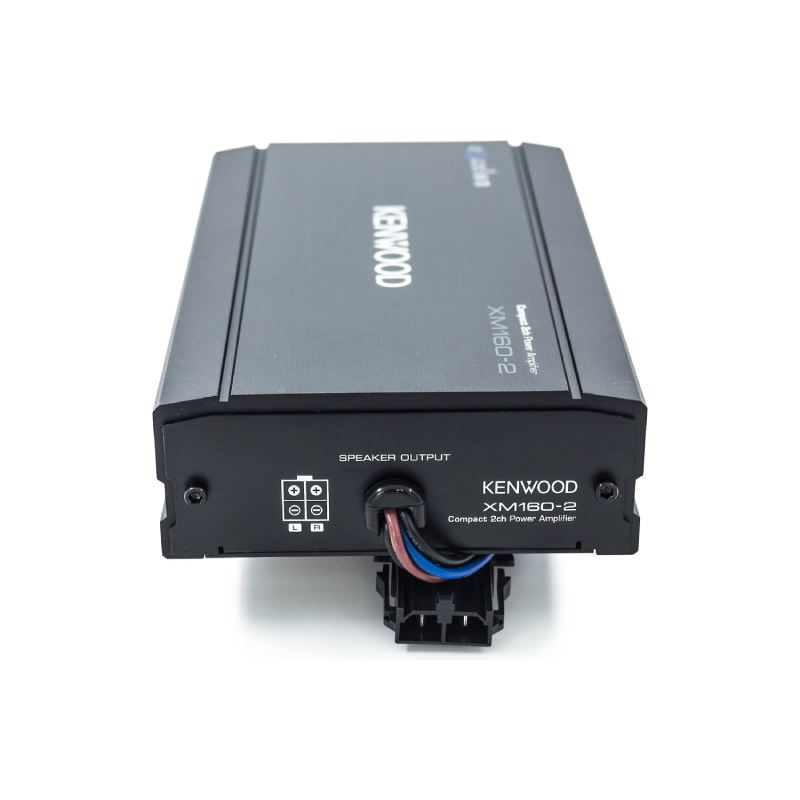

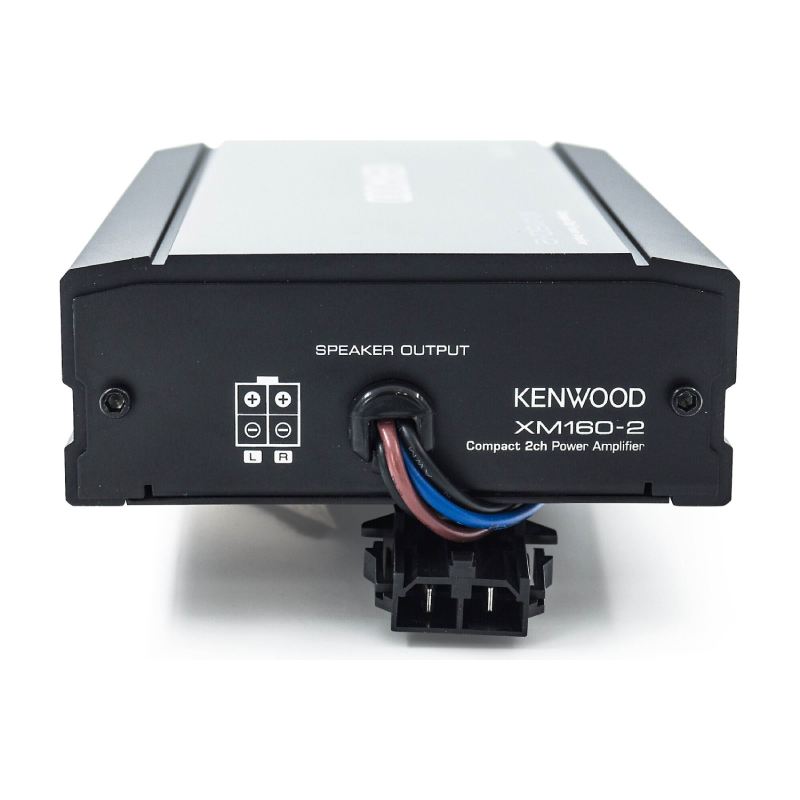

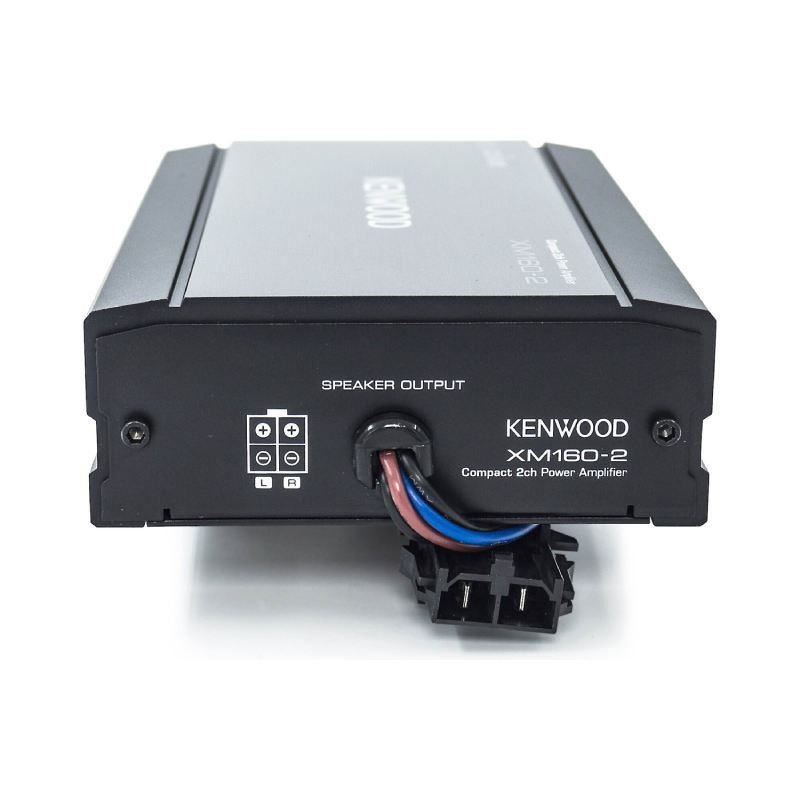

  • Speaker Output: A 21" 4-pin output harness provides the connection to the Harley-Davidson factory front speaker wires.

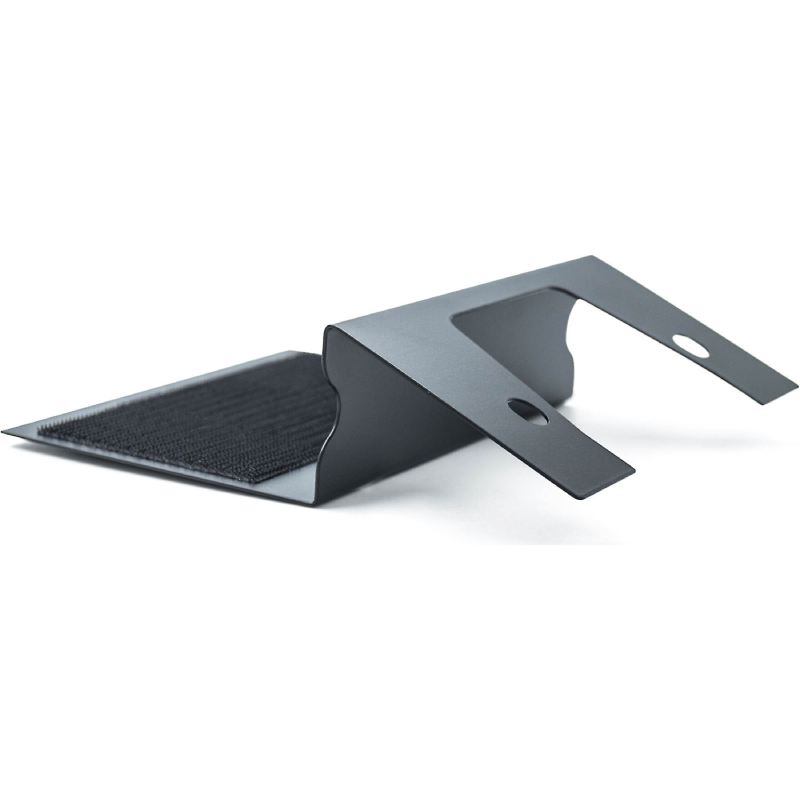

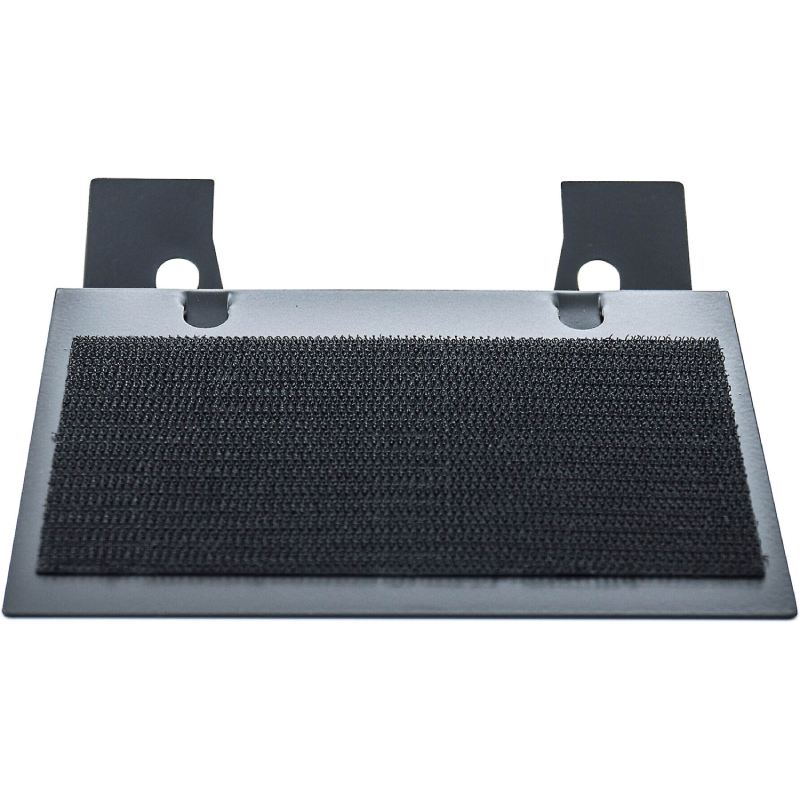

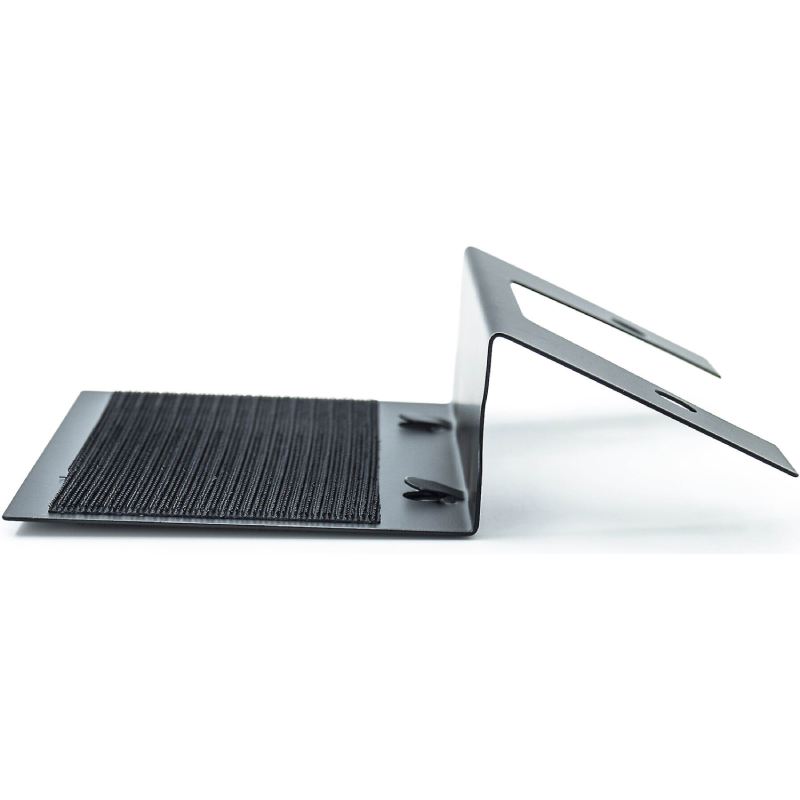

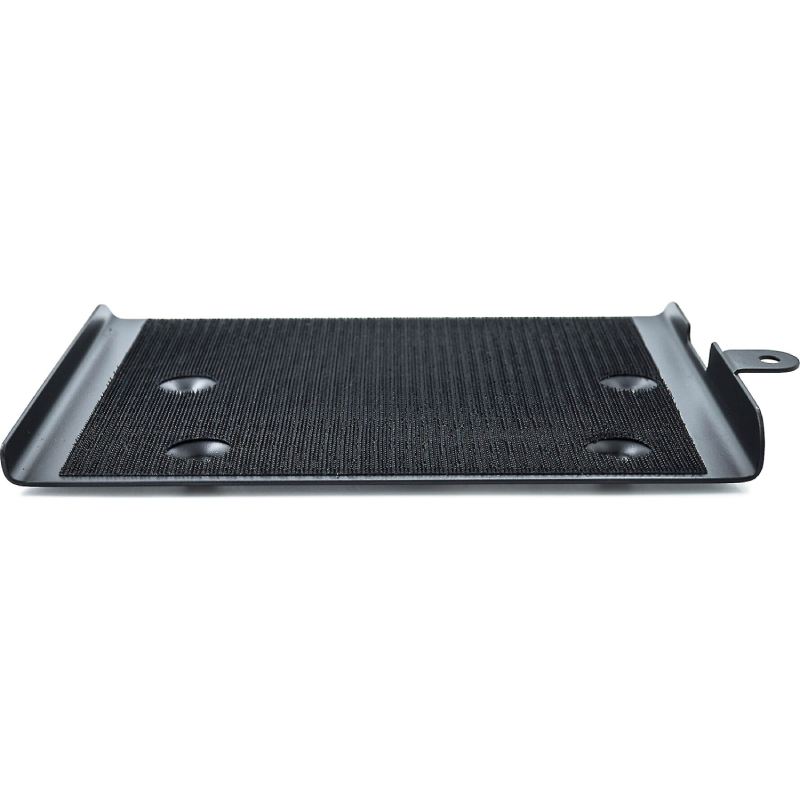

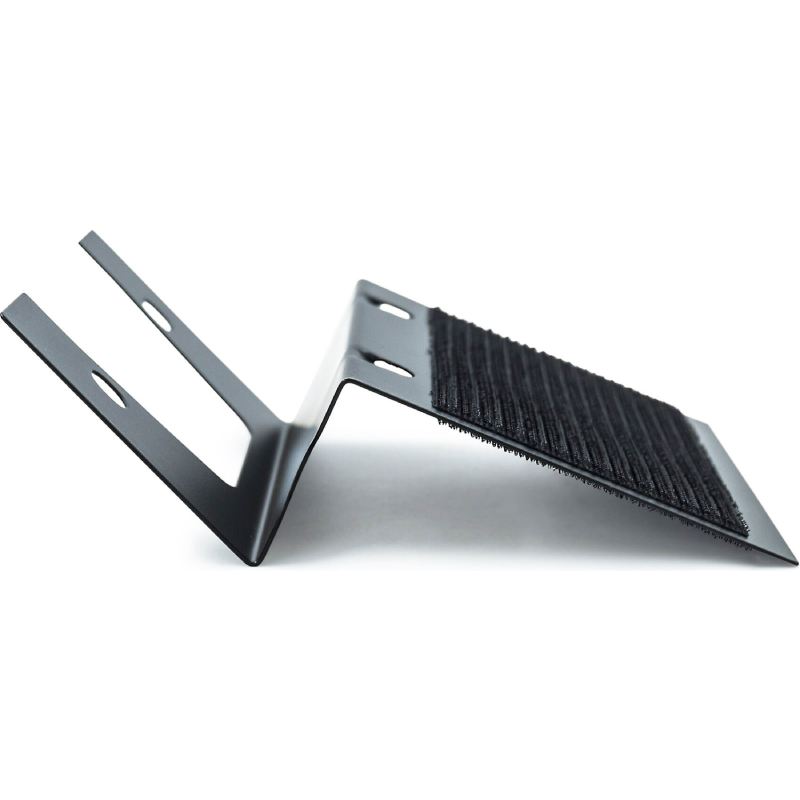

  • Mounting: Two amplifier mounting plates are provided for Harley-Davidson Road Glide/Road Glide Ultra and Street Glide/Street Glide Ultra. Both brackets include pre-applied hook-and-loop fastener as well as on the amplifier, letting you easily attach/detach the amp to either mounting plate. The mounting plates use factory hardware for mounting.



Specifications:

  • Class D 2-Channel Power Amplifier
  • 80W x 2 @ 2 ohms (RMS)
  • No Radio Flash Required
  • Bypass Port For System Expansion
  • Street Glide®/Ultra® Mounting Plate
  • Road Glide® Mounting Plate
  • Plug & Play Power, Speaker, & Input Wiring
  • Speaker Level Input For HD OEM Radio or Any Aftermarket Receiver
  • Input Sensitivity Adjustment
  • High Efficiency Design Will Not Overload HD Electrical Systems
  • UPC:
  • Weight: 0
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
