JL Audio  MX600/3

• Maximum Power : 600 Watts
• Low Frequency Response : 40-400 Hz
• High Frequency Response : 35-300 Hz
• Number of Channels : 3
• Built In Crossovers : Yes
• Amplifier Class : D
• Fuse Rating : 50x1 A
• XP750-SE OFFER : Yes

Features:

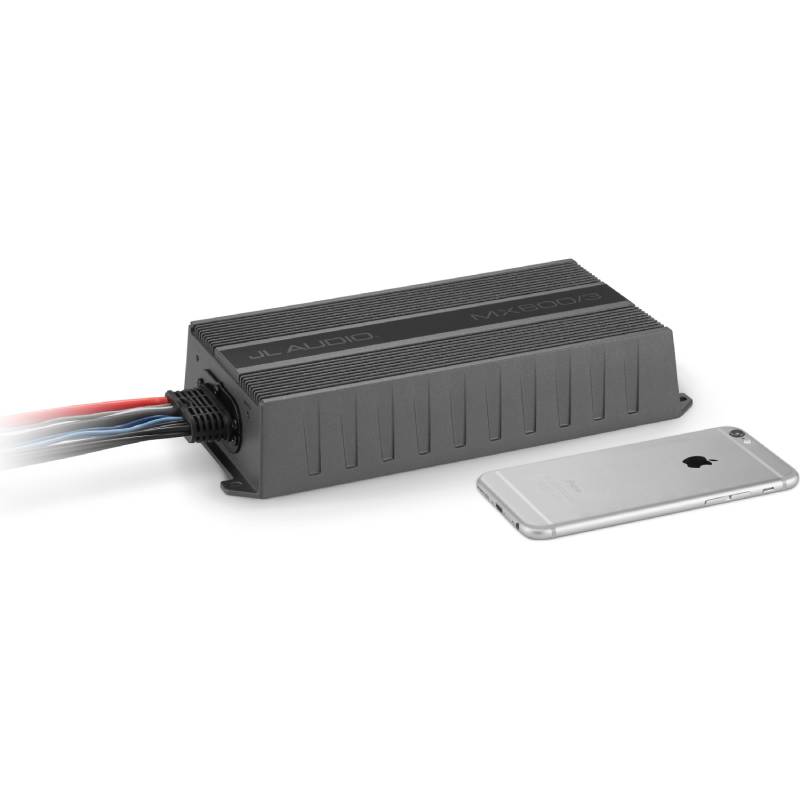

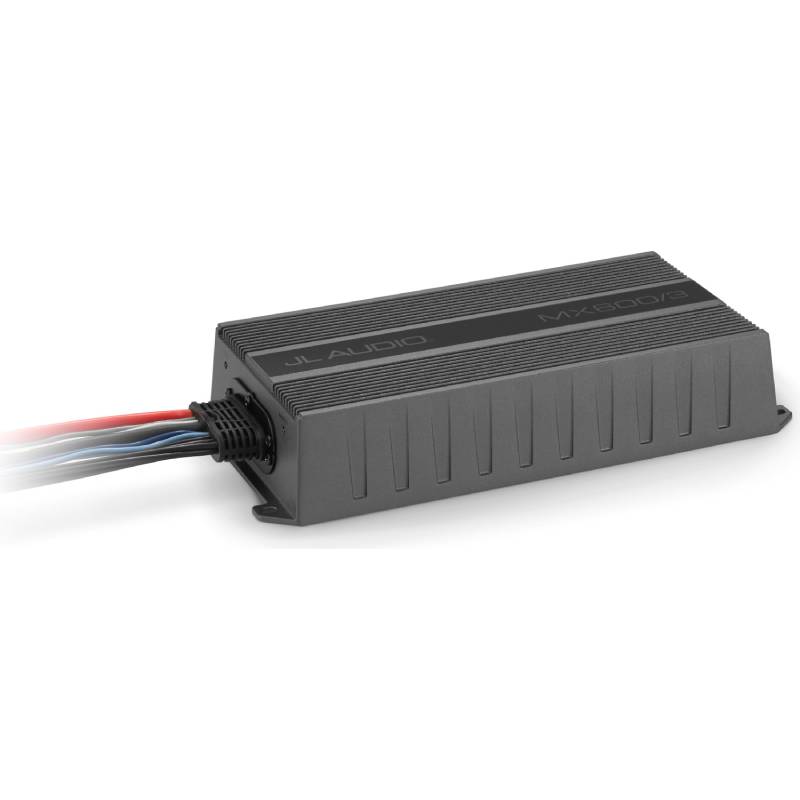

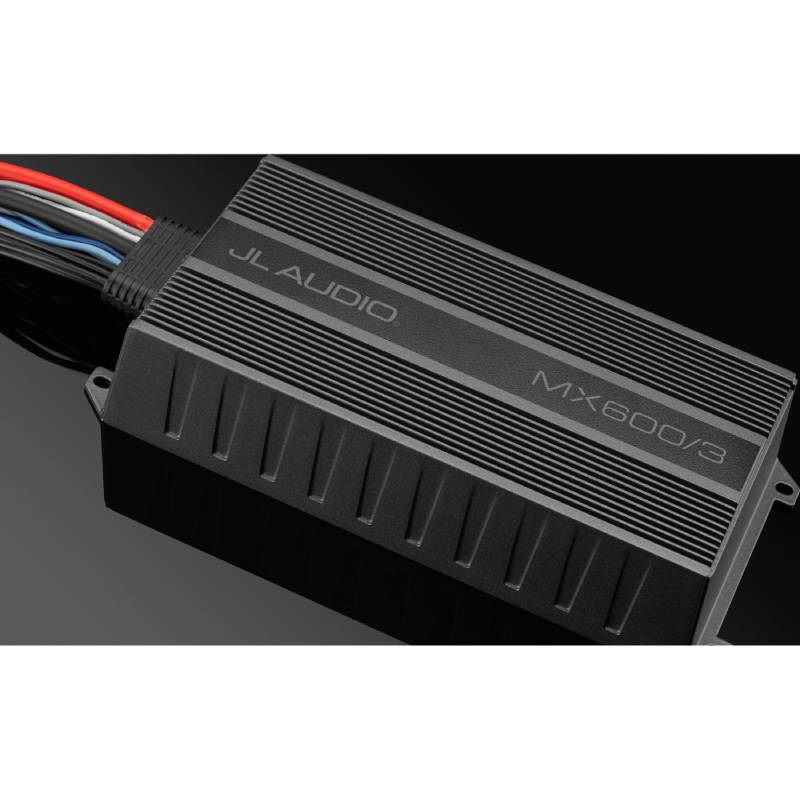

• 3-Channel Amplifier: The JL Audio MX600/3 compact 3-channel Class D marine amplifier is designed for the harsh marine environment. Its IPX7 water-resistance rating (immersion up to 1 meter for up to 30 minutes) also makes it ideal for motorcycles, ATVs, or other utility vehicles. It can be used to drive a pair of full-range speakers and one (or two) subwoofers. You can also bridge the full-range channels to drive a second sub.
• NexD Switching Technology: The MX600/3 employs an advanced, high-speed Class D switching design called NexD that allows the amp to produce serious power without overtaxing the battery and charging system.
• Input Section: The MX600/3's input section accepts a wide range of input voltage levels. It can accept a line-level signal from 250 mV to 4 Volts, or speaker-level signals from 580 mV to 14 Volts. The amp is equipped with separate Input Voltage switches for the front and subwoofer channel that allows you to choose Low or High level input signals.
• Protection Circuitry: The MX600/3's protection circuitry automatically shuts the amplifier down if thermal limits are exceeded, a short-circuit is detected in the speaker wiring, or if voltage or current levels are too high. The green Power LED and red Protect LED will indicate conditions by its on/off or flashing status.

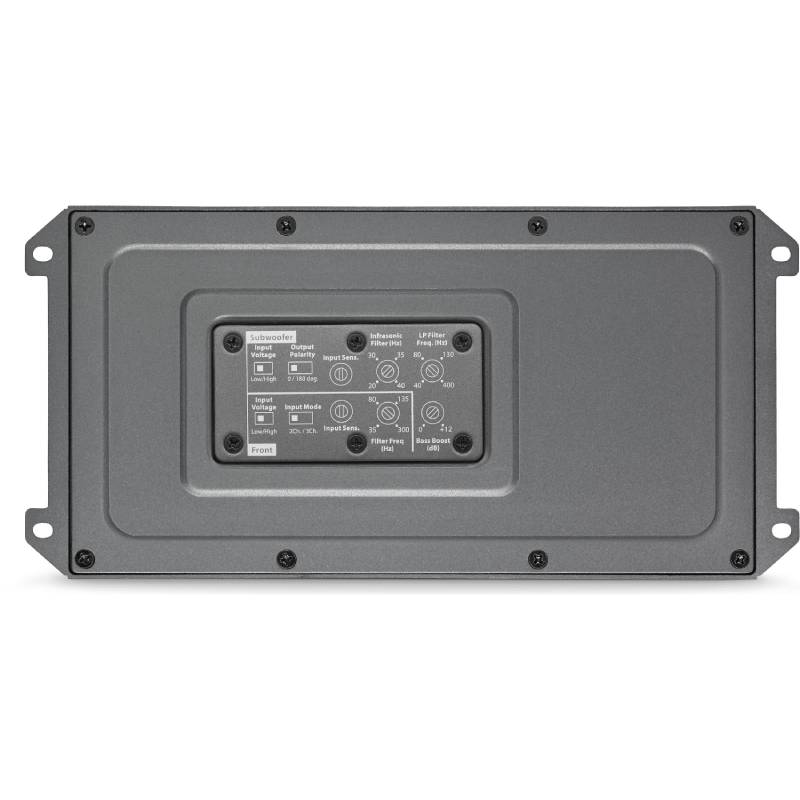

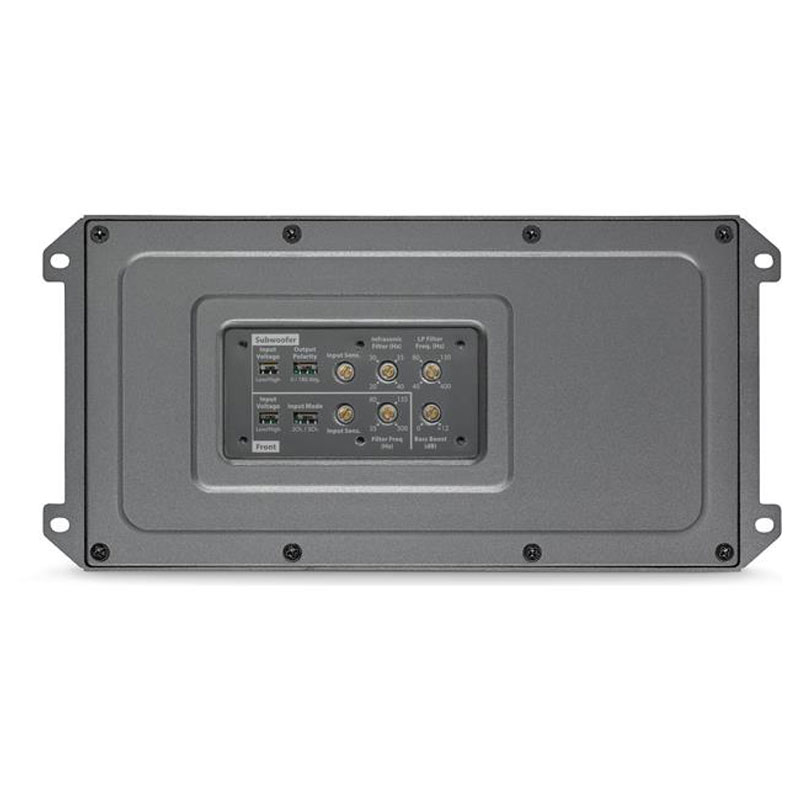

• Control Panel: The amplifier's control panel is located on the bottom of the amplifier. The removable cover is held in place by six Phillips-head screws, and features a rubber gasket that seals out moisture and dust. You will need a small flat screwdriver to set the five switches and four rotary dials. The Control Panel is divided into separate Front and Subwoofer sections.
• Input Voltage: You can select the type of input signal being used: High Level (speaker) or Low Level (line).
• Input Mode: The Input Mode switch lets you select how the signal to the front and subwoofer channels is connected. If "2CH" is selected, all 3 channels are fed the signal from a single stereo input. If "4CH" is selected, the front channels receive the signal connected to the front RCAs, while the subwoofer channel gets its signal from the Sub RCAs.
• Input Sensitivity: The Input Sensitivity Control is a rotary dial that lets you match your source unit's output voltage to the input stage of the amplifier for maximum clean output.
• Filter Frequency: The front channels have a non-defeatable High-pass Filter (HPF) with a variable cutoff frequency. The rotary dial lets you set the frequency between 35 Hz and 300 Hz. The HPF has a slope of 12dB/Octave.
• Remote Bass Controller: The amplifier's subwoofer output level can be controlled from the front the vessel/vehicle using an optional remote level controller.
• Power: The power wire coming out of the amp is a single 8-gauge wire. JL Audio recommends a minimum of 4-gauge wiring for the power wiring. Since there is no fuse installed in the amplifier or on the power wire, you will need to install an appropriate fuse holder with a 50A fuse. Another fuse should be connected to the power wire within 18" of the battery.
• Ground: An 8-gauge ground wire is connected to the amplifier. A minimum of 4-gauge wiring is recommended for the ground wire. You may need a ground distribution block to splice the ground wires together.
• Remote Turn-On: A 16-gauge remote turn-on wire is connected to the amp. You should connect the turn-on lead to the remote turn-on output of your source unit. If the source unit does not have a dedicated remote turn-on output, the amp's turn-on lead can be connected to +12V via a switch that derives power from an ignition-switched circuit. Note: The amp does not have an audio signal-sensing turn-on, so the remote turn-on lead must be connected.
• Signal Inputs: Four female RCA jacks are provided for the input signal--Front and Subwoofer channels. If the source unit does not offer preamp level outputs, you can splice the speaker output wires to a pair of RCA plugs, or use the JL Audio XD-CLRAIC2-SW RCA-to-Speaker Wire Adapter. The amp's RCA connectors have waterproof caps.

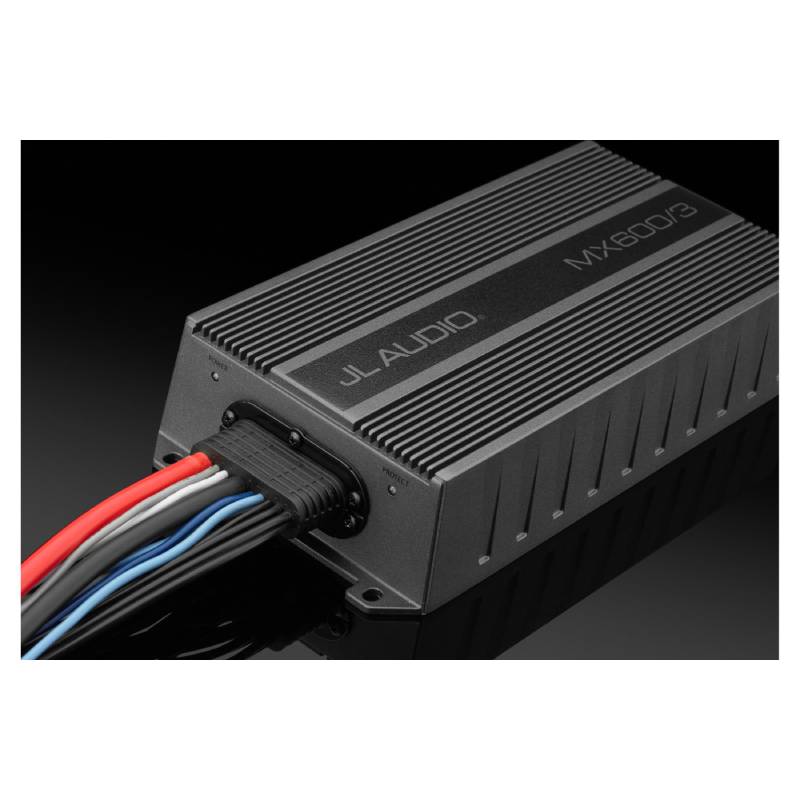

• Speaker Outputs: Six 16-gauge speaker wires are provided on the amplifier for connecting to the wiring to your full-range speakers and subwoofer.

Specificications:

• marine/powersports 3-channel amplifier
• 75 watts RMS x 2 + 250 watts RMS x 1 at 4 ohms
• 100 watts RMS x 2 + 400 watts RMS x 1 at 2 ohms
• 200 watts RMS x 1 bridged at 4 ohms + 300 watts RMS x 1 at 3 ohms
• Class D amplifier design with NextD™ switching amp technology
• front channels: variable high-pass filter (35-300 Hz, 12 dB/octave)
• subwoofer channel:
  • variable low-pass filter (40-400 Hz, 24 dB/octave)
  • variable subsonic filter (20-40 Hz, 12 dB/octave)
  • variable bass boost (0-12 dB at 43 Hz)
  • polarity switch: 0-180°

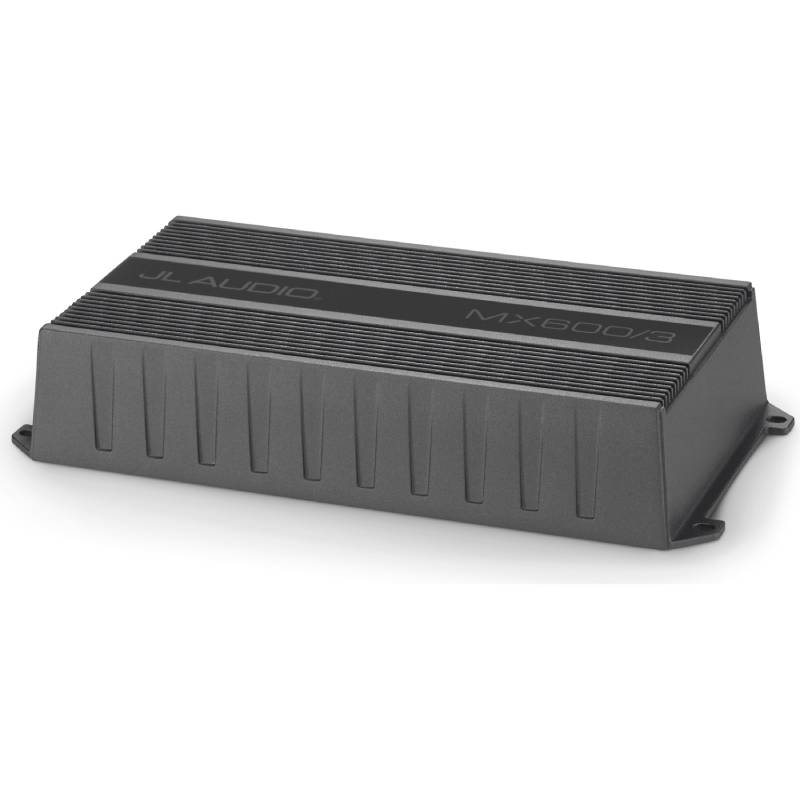

• corrosion-resistant cast aluminum chassis — IPX7 water-resistance rating

Connection Features:

• differential-balanced inputs eliminate noise coming from your vehicle's electrical system
• preamp inputs and outputs
• speaker-level inputs (speaker wire to RCA adapter  required for speaker-level input)
• 4-gauge power and ground leads and a 50-amp fuse recommended — wiring and hardware not included with amplifier
• no onboard fuses — when installing multiple amps in a system, an additional 50-amp in-line fuse between the distribution block and the amplifier is recommended
• 9-3/8"W x 1-13/16"H x 4-1/2"D

• UPC: 699440984096
• Weight: 7
