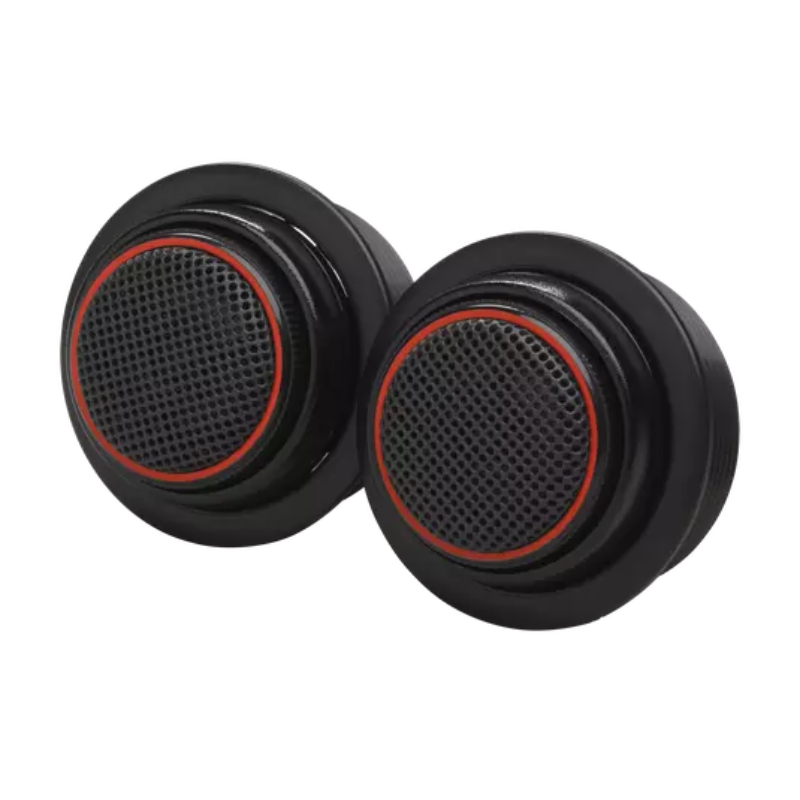

JBL CLUB 194T Club Series 0.75" 50W RMS (150W Peak Power Handling) 3 Ohms Edge-Driven Dome Tweeters
We are a JBL authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 0.75" Edge-Driven Dome Tweeters
- • (2) in-line crossovers with speaker wire attached
- • (2) Flush-mount housings
- • (2) Threaded flush-mount adapters
- • (2) Plastic locking nuts
- • (2) Surface-mount housings
- • (2) Starfish mounts
- • (6) 5/8" Flat head screws
- • (2) Washers
- • (2) Nuts
- • Installation manual
- • (2) JBL Stickers
- • Specs and Template on box

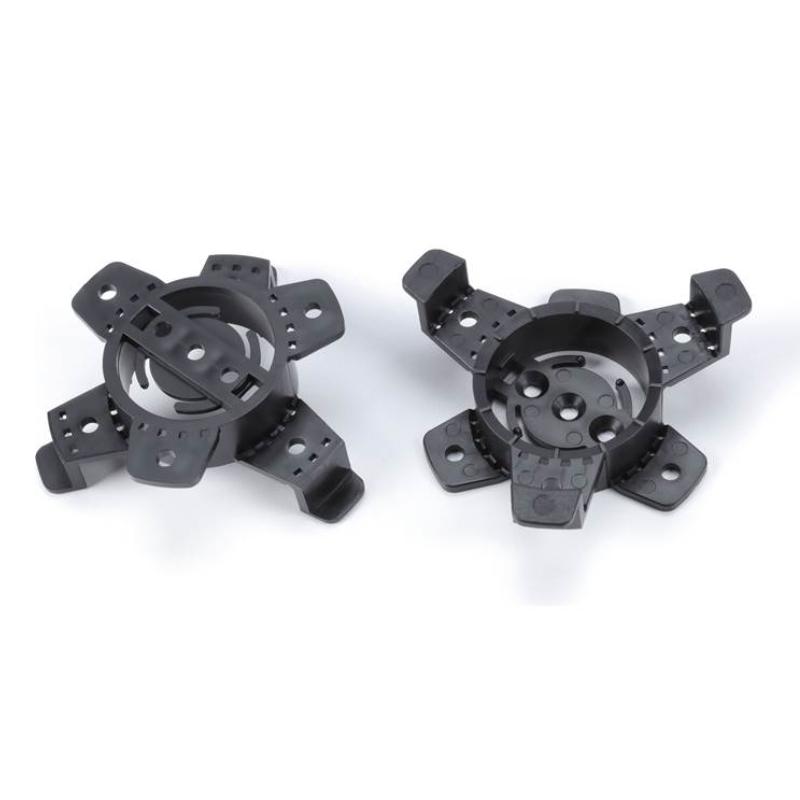

with Starfish™ Tweeter Mounting Adapter
The Club 64C, Club 64CTP component Speaker system come with the Starfish™ tweeter mounting adapter. The Starfish tweeter mounting adapter allows for easy installation of the tweeter behind factory grilles and in locations such as A-Pillar. It also provides six break-off mounting tabs to accommodate many mounting configurations. The tweeter can be surface- or flush-mounted. The tweeter can be easily serviced, and doesn't require removing the whole assembly.

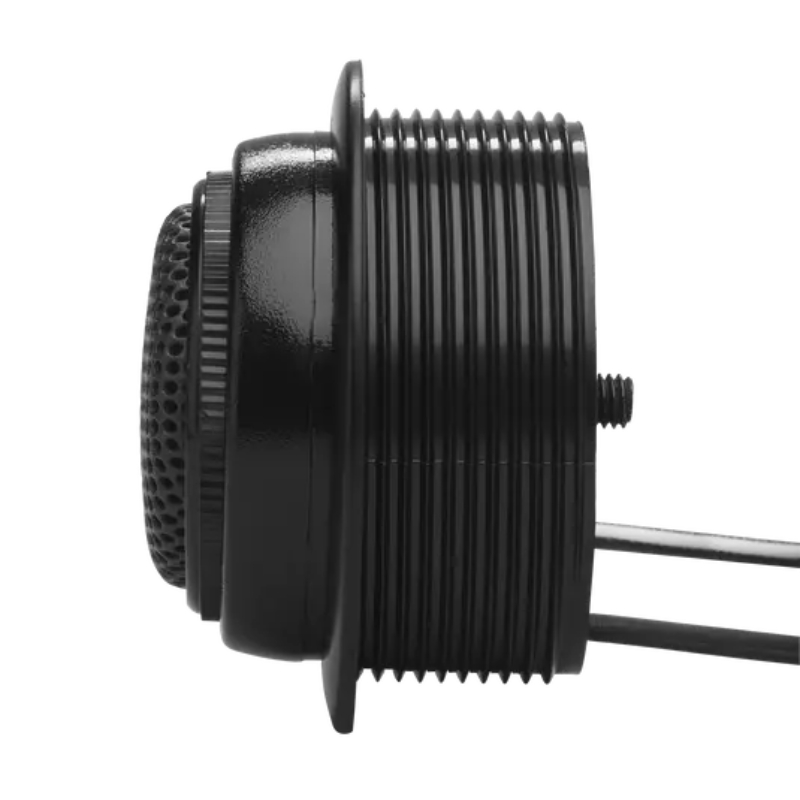

I-Mount™ tweeter-mounting system
The I-Mount™ tweeter-mounting system allows easy and versatile installation of tweeters in each of the component systems. It includes a flush cup and surface-mount mounting hardware. With a 1-3/4" cutout and a 1" mounting depth, installation becomes a snap. This allows the tweeter to be flush-mounted and can be angled up to ±40 degrees. Locknuts are included to keep everything in place, and the tweeter can be replaced without removing the whole assembly.

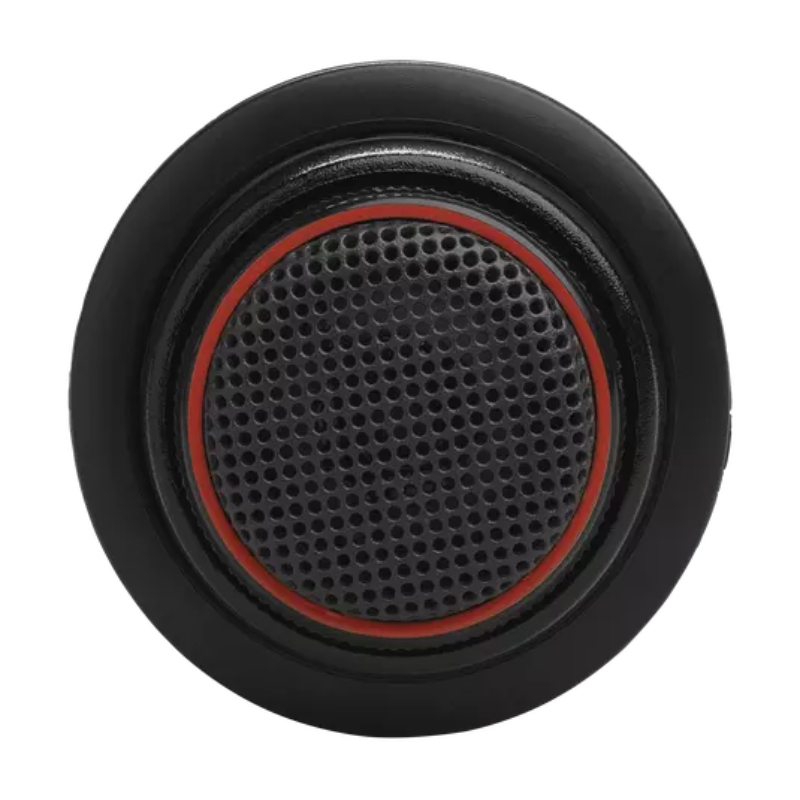

Edge-Driven Silk Dome Tweeters
Provide smooth and broad high-frequency response, maintaining clarity and avoiding harshness at any output level.
- Diameter : 3/4 Inch
- Sensitivity : 92 dB
- Frequency Response : 3000-20000 Hz
- Peak Power Handling : 150 Watts
- RMS Power Handling : 50 Watts
Features:
- Starfish Tweeter Mounting Adapter
- I-Mount Tweeter Mounting Kit
- two 3/4" edge-driven silk dome tweeters
- in-line passive crossover networks
- flush- and surface-mounting hardware included
- handles up to 50 watts RMS (150 watts peak power)
- Compact Design: Fits into a wide range of vehicles, providing versatility and compatibility.
- High Sensitivity: Performs exceptionally well even with factory systems of modest power.
- Rugged Construction: Polypropylene cones with the Plus One™ design ensure durability and deliver impactful bass.
- Edge-Driven Silk Dome Tweeters: Provide smooth and broad high-frequency response, maintaining clarity and avoiding harshness at any output level.
- Easy Installation: Component speaker systems include the Starfish™ Tweeter Mounting Adapter and I-Mount Tweeter Mounting Kit for simplified installation.
- Range of Sizes: Available in various standard sizes including 3", 4", 5-1/4", 6-1/2", 6" x 8", 4" x 6", 6" x 9", and 3/4", catering to diverse vehicle speaker requirements.
Specifications:
- Speaker Size: 3/4
- Design: 1-way
- Tweeter Design: Edge-Driven Dome
- Impedance: 3 Ohms
- Tweeter Composition: Silk
- Sensitivity at 2.83 volts: 92 dB
- Frequency Response: 3000 - 20,000 Hz
- Maximum RMS Wattage: 50 Watts
- Peak Power Handling: 150 Watts
- Top-mount Depth: 0 13/16 inches
- Bottom-mount Depth: 1 inch
- Cutout Diameter or Length: 1 5/8 inches
- Mounting Height: 0.637 inches
- Frame Width: 1.837 inches
- Frame Length: 1.837 inches
- UPC: 050036397056
- Weight: 3
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
