Diamond Audio  MICRO4V2-Bundle

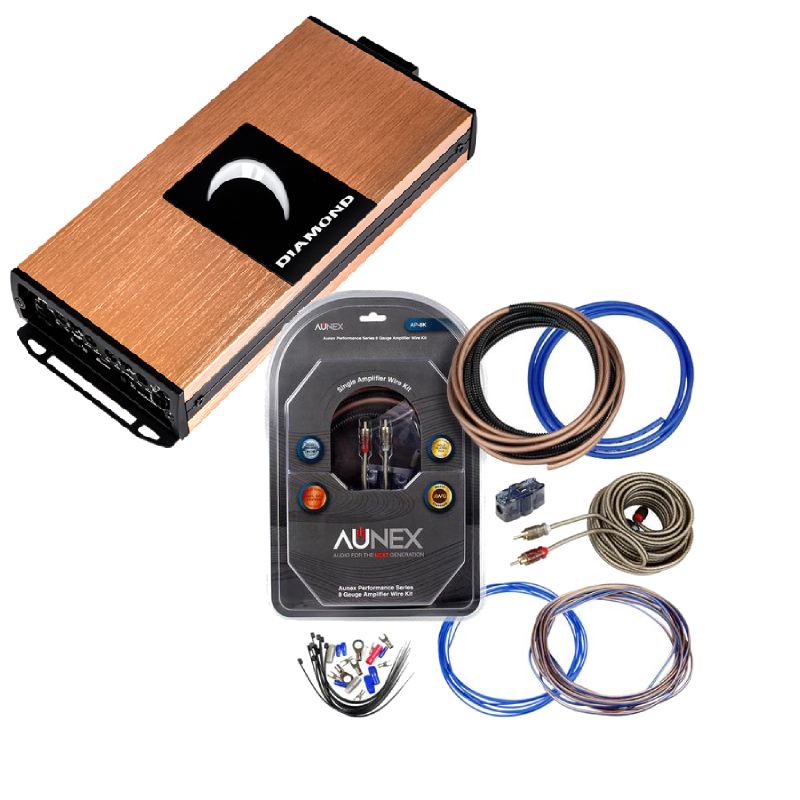

Diamond Audio MICRO4V2 Full Range Class D 4-Channel Amplifier + Aunex AP-8K 8 Gauge Amplifier Wiring Kit

Item #91817

Product Highlights

  • Diamond Audio MICRO4V2 Full Range Class D 4-Channel Amplifier
  • Aunex AP-8K 8 Gauge Amplifier Wiring Kit

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

Diamond Audio MICRO4V2-Bundle includes Diamond Audio MICRO4V2 Full Range Class D 4-Channel Amplifier + Aunex AP-8K 8 Gauge Amplifier Wiring Kit


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Diamond Audio MICRO4V2
  • • Aunex AP-8K

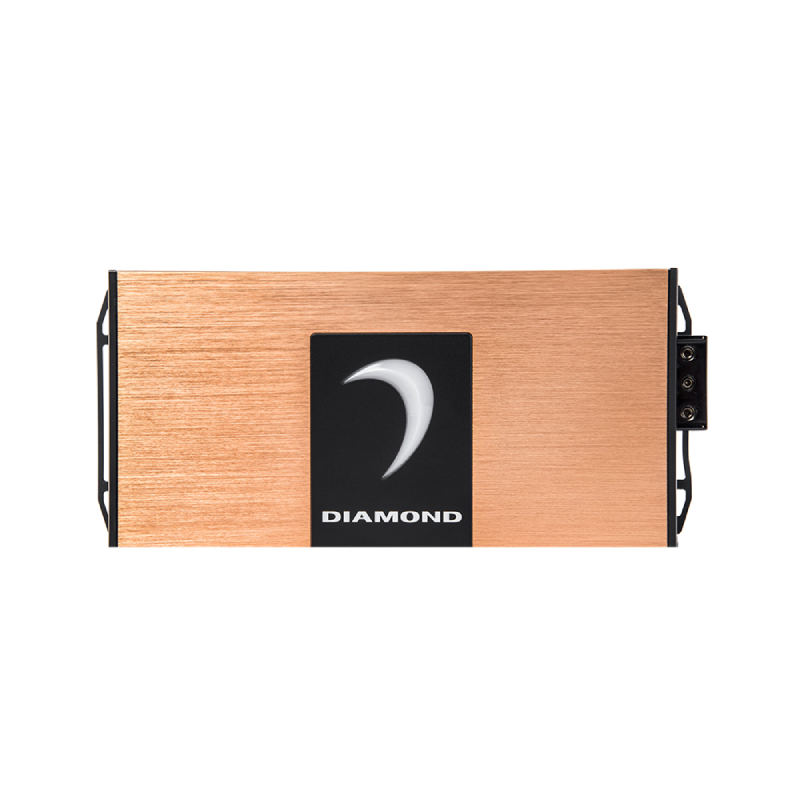

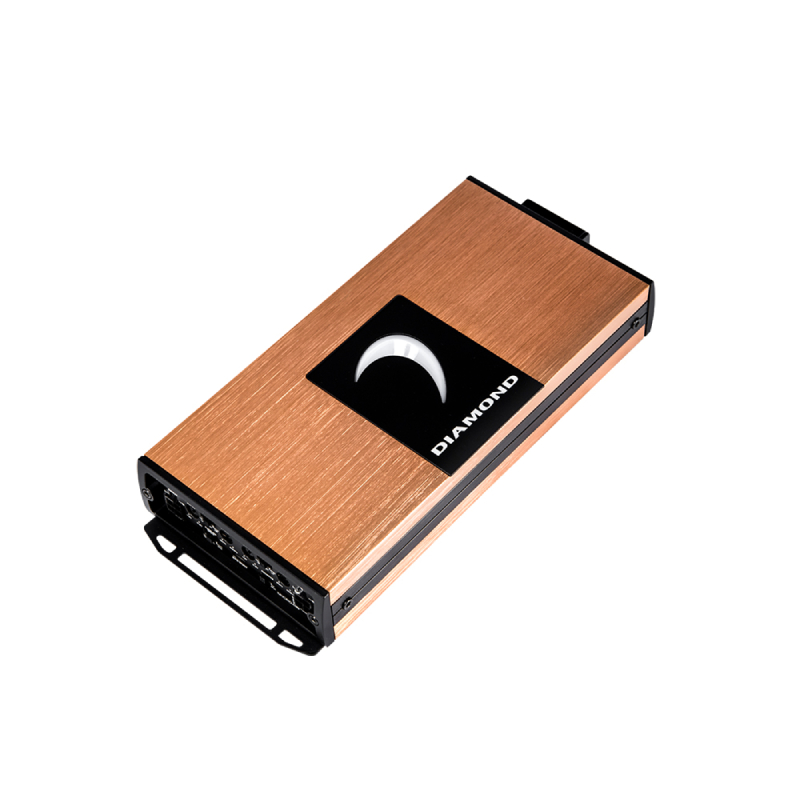

Diamond Audio MICRO4V2 MICROV2 Series 150WX4 @2Ohms, 80W4 @4Ohms Full Range Class D 4-Channel Amplifier

Elite sound quality and superior power in an ultra compact chassis. The Diamond Audio Micro4V2 4 channel power amplifier sets the standard for high end Harley Specific amplifiers. Featuring ultra efficient full range class D topology, these compact amplifiers deliver huge power for their size.

Aunex AP-8K 8 Gauge Complete Amplifier Wiring Kit 100% Copper OFC

The Aunex AP-8K wiring kit is a comprehensive package that includes all the necessary components to install and wire your car's audio amplifier properly. This kit is specifically designed with the Aunex AP-8K amplifier, ensuring compatibility and optimal performance. The wiring kit includes power and ground cables, which are crucial for delivering the necessary electrical current to your amplifier. These cables are made of high-quality materials and feature the appropriate gauge size to handle the power requirements of the AP-8K amplifier.


SPECIFICATIONS



FEATURES


MICRO4V2 MICROV2 Series 150WX4 @2Ohms, 80W4 @4Ohms Full Range Class D 4-Channel Amplifier

Features:

  • Full Range Class D IR Chipset
  • DirectFET Power Mosfet Output Stage
  • SMD Technology on 4 layer Glass PC Board
  • ICAD circuit provides superior overload protection
  • Frequency response 20 Hz – 30kHz
  • Variable 12db crossovers
  • Bridgeable / 2ch-4ch switch control
  • BTR (BlueTooth Receiver enabled)
  • MICRO Bass boost +12DB @45Hz
  • Premium 8 and 4 gauge power connections
  • Multi channels / Mono channel



Specifications:

  • RMS Power (2 Ω): 150 W X 4
  • RMS Power (4 Ω): 80 W X 4
  • Bridged (mono 4 Ω): 300 W X 2
  • Topology: Full Range Class D
  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0DVC – 17.0DVC
  • Idle Current: (0.7A)
  • THD 4 (1KHz @4Ω): 0.5%
  • S-N Ratio (A-weighted @ 1W): -85dBA
  • S-N Ratio (A-weighted @ 1W): -101.1dBA
  • Input Sensitivity – Low Input Level: 200mV – 10.0V
  • Input Sensitivity – High Input Level: N/A
  • Input Impedance – Low Input Level: 20 KΩ
  • Impedance – High Input Level: 20 KΩ
  • Output Impedance: 0.018Ω
  • Damping Factor (50Hz @ 4Ω): >70
  • Bandwidth (-3dB): 10Hz-35Hz
  • Crossover (-12 dB/ Oct) – Variable High Pass: 40Hz-400Hz
  • Crossover (-12 dB/ Oct) – Variable Low Pass: 40Hz-400Hz
  • Crossover (-12 dB/ Oct) – Variable Sub-Sonic: N/A
  • Fuse Rating (ATC): 40A
  • Dimentions- Length x Width x Height (inches): 9.07″ x 4.0″ x 1.46″
  • Dimentions- Length x Width x Height (mm): 230.5 x 103 x 37.2 mm

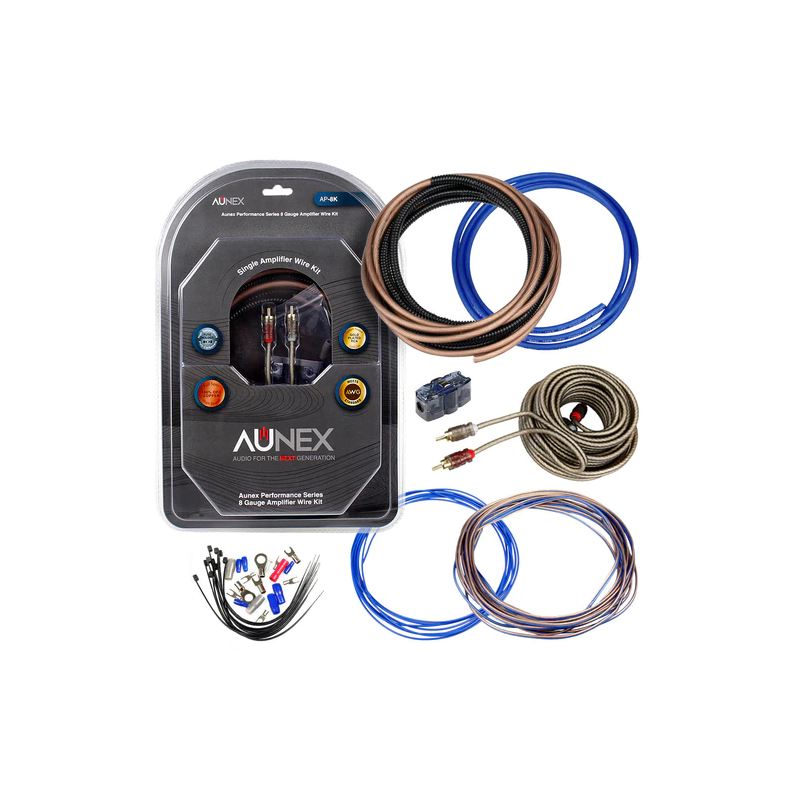

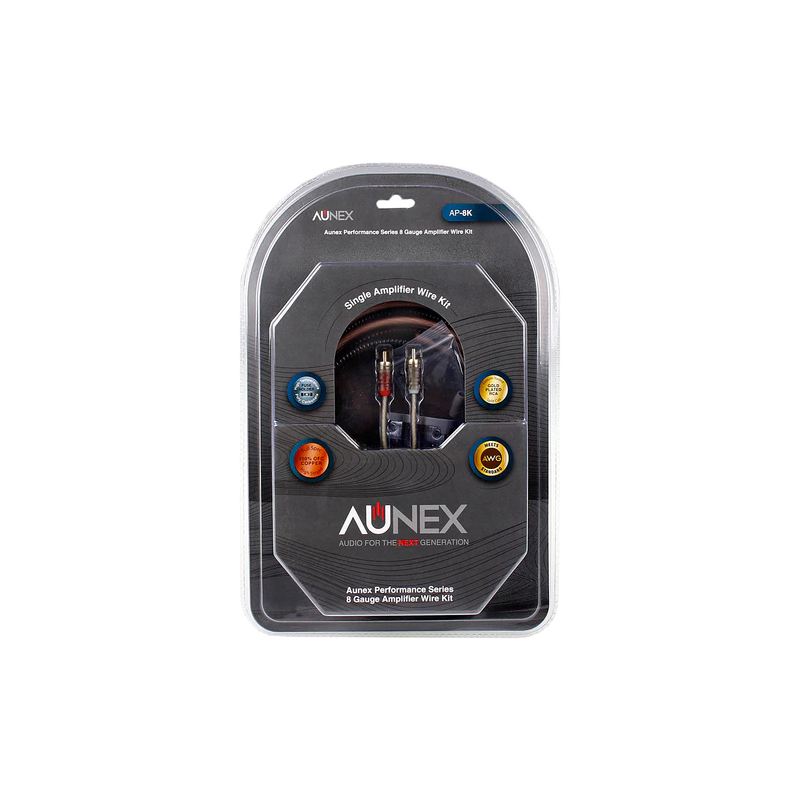

AP-8K 8 Gauge Complete Amplifier Wiring Kit 100% Copper OFC

Features:

  • 17 Ft. of 8 Gauge 100% OFC Ultra-Flex Power Cable — 427 Strands
  • 6 Ft. of 8 Gauge 100% OFC Ultra-Flex Ground Cable — 427 Strands
  • 30 Ft. of 16 Gauge 100% OFC Ultra-Flex Speaker Wire — 67 Strands
  • 17 Ft. 100% OFC Remote Cable — 74 Strands
  • 17 Ft. 2 Channel Dual Layer Shielding RCA Interconnects with Advance Twinning Construction (ATC)
  • 60A Mini ANL High-Temperature Polycarbonate Fuse Holder
  • 4 - 8 Gauge Fuse Holder Rubber Adapter
  • 10 - High-Temperature Wire Ties
  • Firewall Grommet, Ring, Spade and Fork Terminals and Self Tapping Screws Included
  • UPC: 798418839687
  • Weight: 10
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
