Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

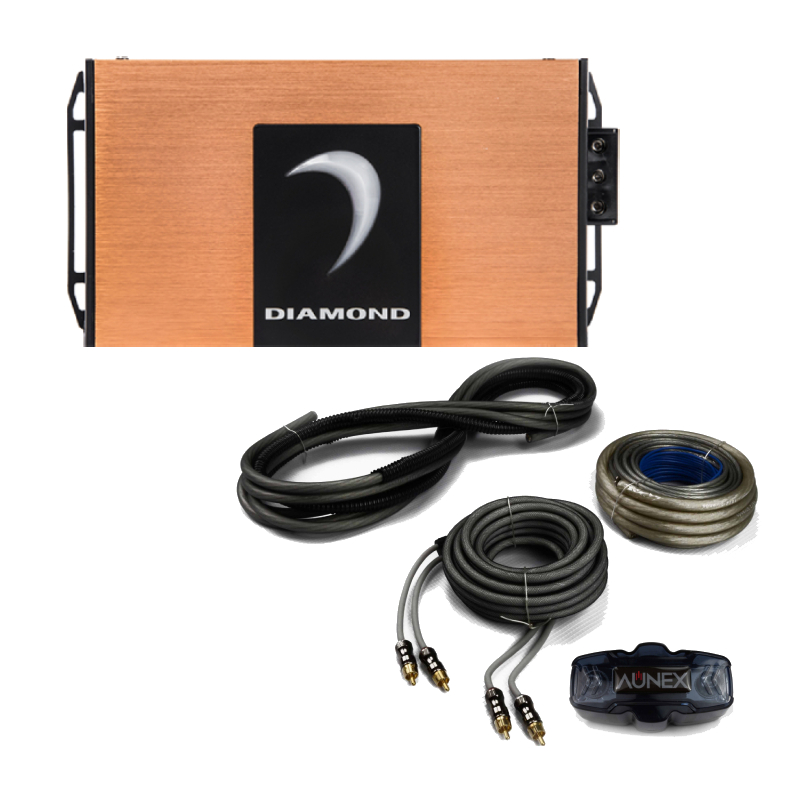

Diamond Audio MICRO1V2 Monoblock 500W RMS + (50% OFF) Aunex AE-4K Elite Series 4 Gauge Premium Amplifier Wiring Kit Exclusive Amplifier Bundle
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Diamond Audio nMICRO1V2
- • Aunex AE-4K
- • Owner's Manual

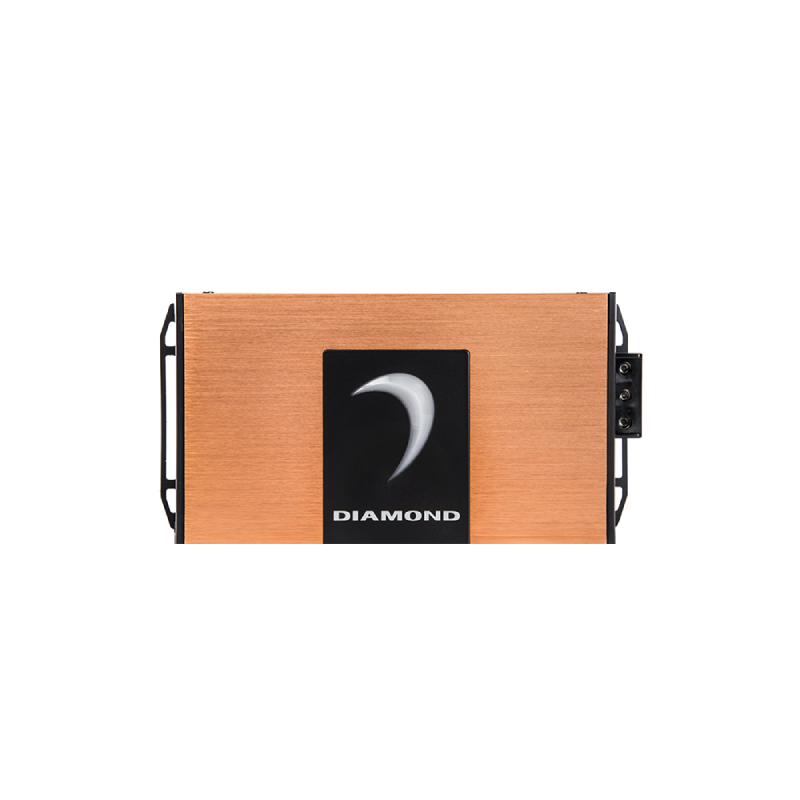

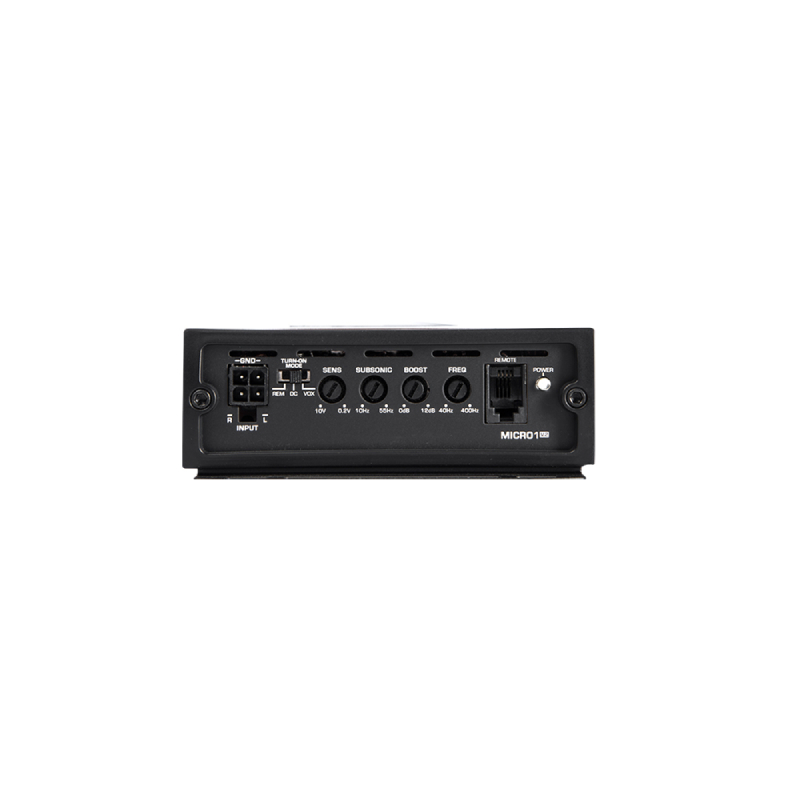

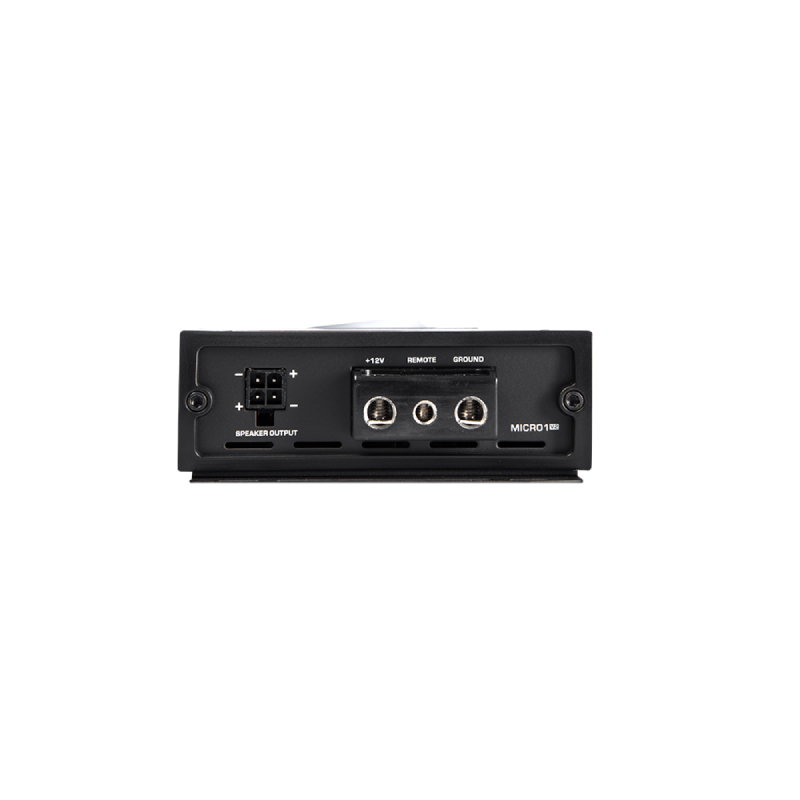

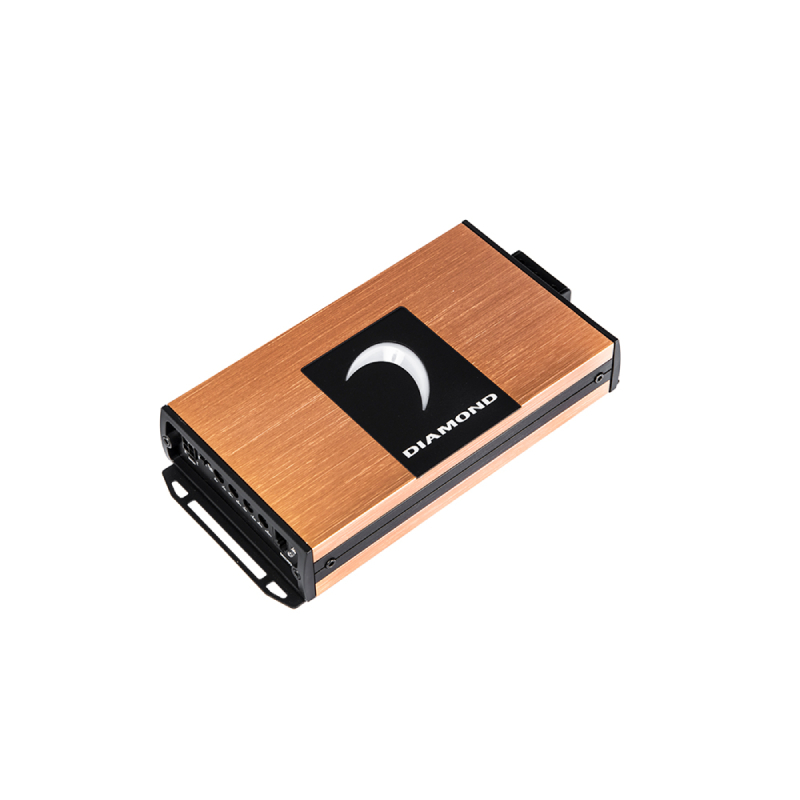

MICRO1V2 MICROV2 Series 500W @1Ohm, 300W @2Ohms Full Range Class D Mono Sub Amplifier
Elevate Your Bass
The Diamond Audio MICRO1V2 is a member of the MICROV2 Series of amplifiers. It's a Class D mono subwoofer amplifier designed to provide power to subwoofers in car audio systems. This means that the amplifier is capable of delivering 500 watts of power when the connected subwoofer's impedance is 1 ohm, and 300 watts of power when the impedance is 2 ohms.
Precision Bass Dominance
This indicates that the amplifier is designed to power a single subwoofer channel. It's dedicated to reproducing the low-frequency bass signals typically handled by subwoofers. Despite being a mono subwoofer amplifier, it's described as "full range." This might imply that the amplifier is designed to handle a wide range of frequencies beyond just the bass frequencies, making it more versatile in certain setups.
Aunex AE-4K Elite Series 4 Gauge Premium Amplifier Wiring Kit
OFC Ultra-flexible Cables
Tinned OFC Ultra-Flex Cable is a type of car audio cable that is composed of tinned oxygen-free copper (OFC) and is designed to be highly flexible. This type of cable is commonly used for connecting speakers and amplifiers in a car audio system. The tinned OFC provides excellent conductivity, while the flexible design makes it easy to work with in tight spaces.

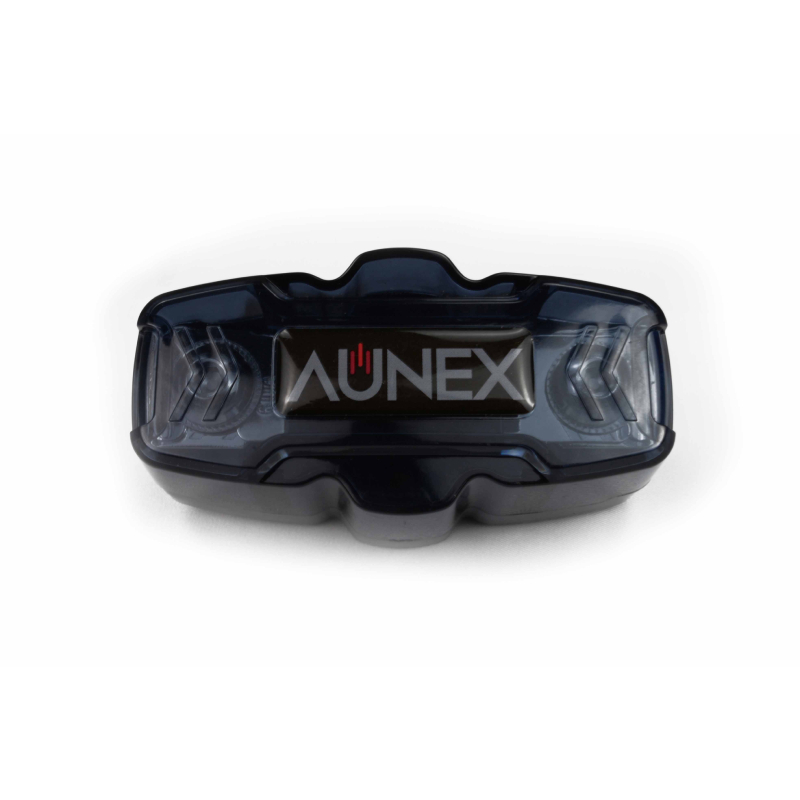

Fuse Holder Rubber Adapter
A fuse holder rubber adapter typically features a molded rubber housing that holds a standard blade-style fuse, a wire lead that attaches to a power source, and an integrated mounting bracket for easy installation. The rubber housing helps to protect the fuse from vibration and corrosion. It also helps to prevent accidental contact with the metal terminals, which can create a short circuit. In addition, the rubber housing is designed to help keep the fuse from rattling around, making it less likely to cause interference with other audio components.
MICRO1V2 MICROV2 Series 500W @1Ohm, 300W @2Ohms Full Range Class D Mono Sub Amplifier
Features:
- Full Range Class D IR Chipset
- DirectFET Power Mosfet Output Stage
- SMD Technology on 4 layer Glass PC Board
- ICAD circuit provides superior overload protection
- Frequency response 20 Hz – 30kHz
- Variable 12db crossovers
- Bridgeable / 2ch-4ch switch control
- BTR (BlueTooth Receiver enabled)
- MICRO Bass boost +12DB @45Hz
- Premium 8 and 4 gauge power connections
- Multi channels / Mono channel
Specifications:
- RMS Power (2 Ω): 300 W
- RMS Power (4 Ω): 175 W
- Bridged (mono 4 Ω): 175 W
- Topology: Full Range Class D
- Power Supply: Full PWM
- Power Supply Threshold: 10.0DVC – 17.0DVC
- Idle Current: (0.7A)
- THD 4 (1KHz @4Ω): 0.5%
- S-N Ratio (A-weighted @ 1W): -85dBA
- S-N Ratio (A-weighted @ 1W): -101.1dBA
- Input Sensitivity – Low Input Level: 200mV – 10.0V
- Input Sensitivity – High Input Level: N/A
- Input Impedance – Low Input Level: 20 KΩ
- Impedance – High Input Level: 20 KΩ
- Output Impedance: 0.011Ω
- Damping Factor (50Hz @ 4Ω): >250
- Bandwidth (-3dB): 10Hz-350Hz
- Crossover (-12 dB/ Oct) – Variable High Pass: N/A
- Crossover (-12 dB/ Oct) – Variable Low Pass: 40Hz-400Hz
- Crossover (-12 dB/ Oct) – Variable Sub-Sonic: 10Hz-55Hz
- Fuse Rating (ATC): 25A
- Dimentions- Length x Width x Height (inches): 7.89″ x 4.0″ x 1.46″
- Dimentions- Length x Width x Height (mm): 200.5 x 103 x 37.2 mm

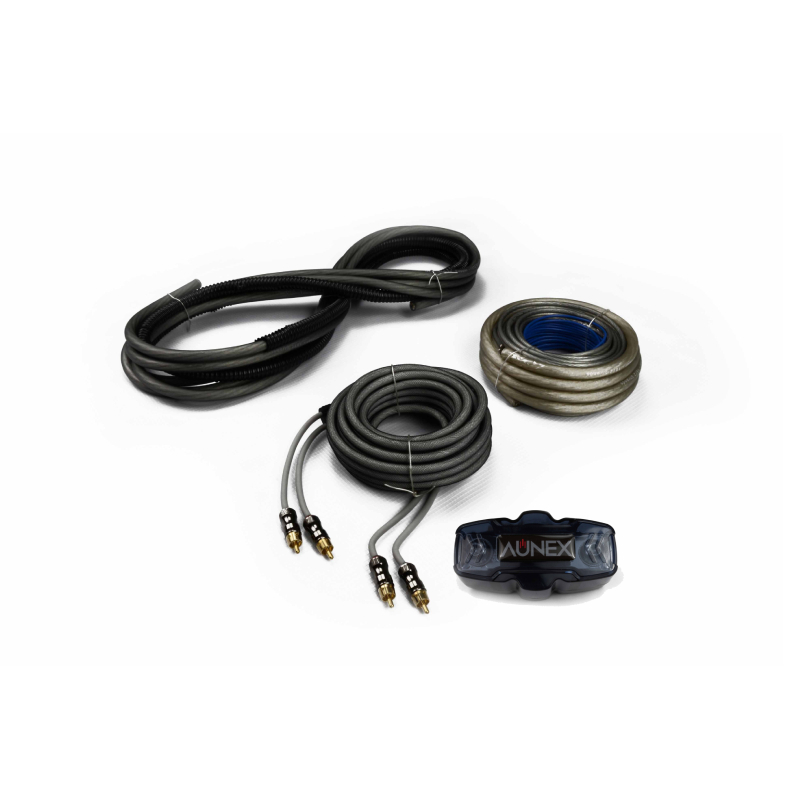

AE-4K Elite Series 4 Gauge Premium Amplifier Wiring Kit
Specifications:
- 20ft - 6.1m 4 Gauge Tinned OFC Ultra-Flex Power Cable - 1,872 Stranda
- 6ft - 1.8m 4 Gauge OFC Ultra-Flex Ground Cable - 1,872 Strands
- 30ft - 9.1m 12 Gauge Tinned OFC Ultra-Flex Speaker Wire - 292 Strands
- 20ft - 6.1m Tinned OFC Remote Cable - 74 Strands
- 20ft - 6.1m 2 Channel 4-Layer Shielding RCA interconnects with Advance Twinning Construction 100A ANL High Temperature Poly Carbonate Fuse Holder
- 1/0-4 Gauge Fuse Holder Rubber Adapter
- (10) High Temperature Wire Ties
- Firewall Grommet, Ring Terminals, Fork Terminals, Butt Connectors and Self Tapping Screws Included.
- UPC: 798418839984
- Weight: 11
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
