Kicker  42CWQ104-Bundle

Kicker 42CWQ104 10" 1400W Peak Power Dual 4 Ohms Voice Coil Subwoofer + Aunex AP800.1D 800W x 1 @4Ohms, 1600W Max Power Class D Monoblock Amplifier

Item #91869

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

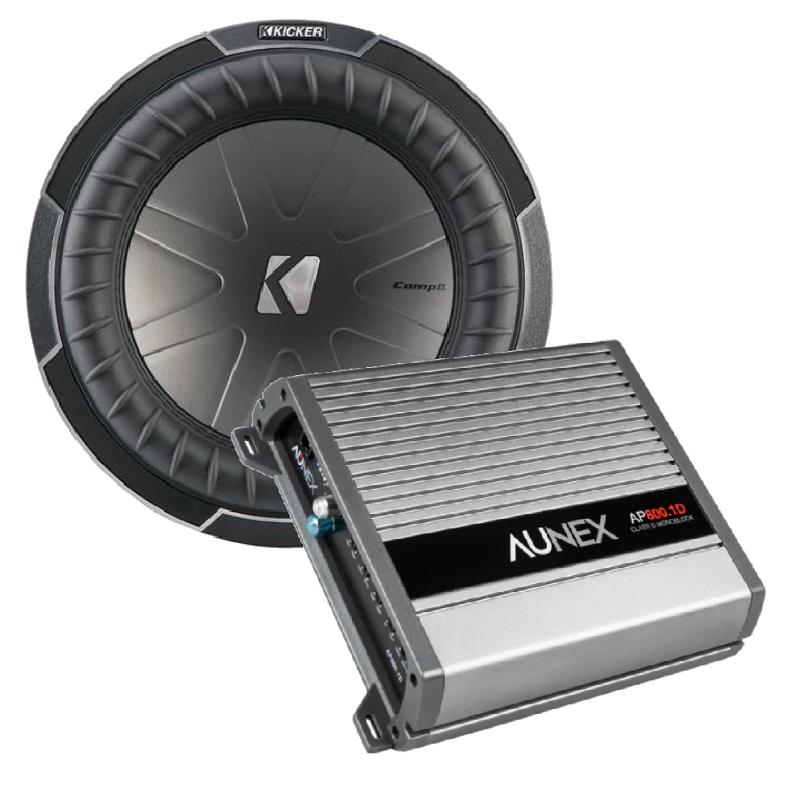

Kicker 42CWQ104-Bundle includes Kicker 42CWQ104 10" 1400W Peak Power Dual 4 Ohms Voice Coil Subwoofer + Aunex AP800.1D 800W x 1 @4Ohms, 1600W Max Power Class D Monoblock Amplifier


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Kicker 42CWQ104
  • • Aunex AP800.1D

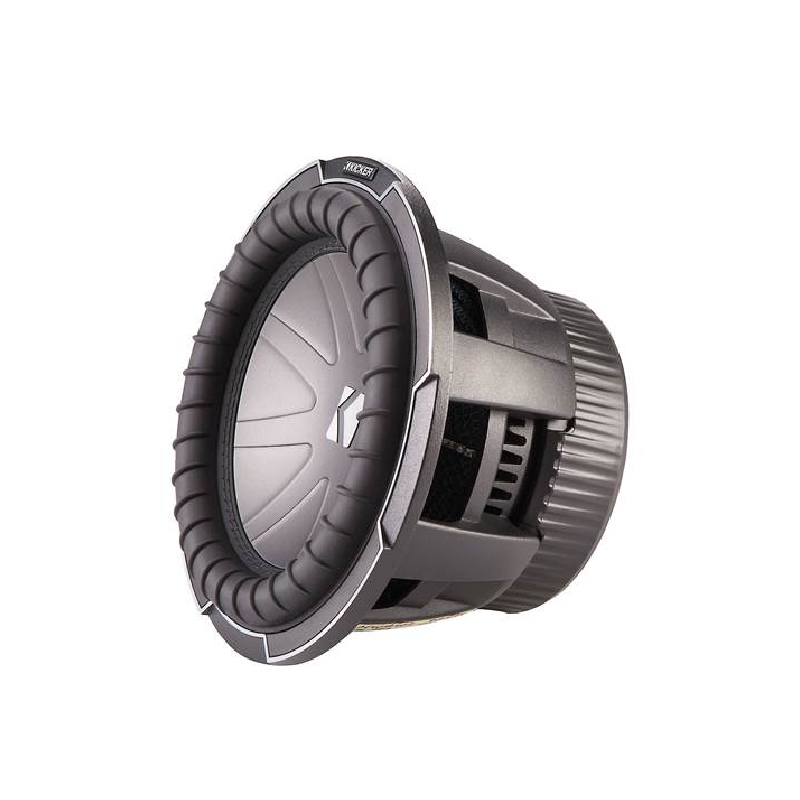

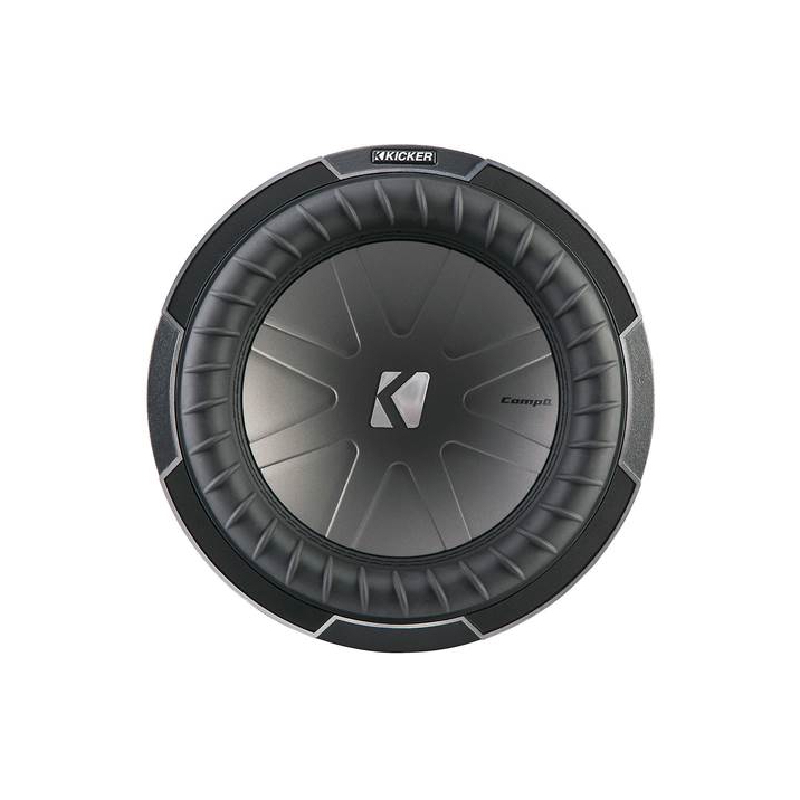

42CWQ104 CompQ Series 10" 700W RMS (1400W Peak Power Handling) Dual 4 Ohms Voice Coil Subwoofer

CompQ Series Subwoofer

If you are looking for a flagship subwoofer to replace your car's stock subwoofer, then the Kicker Q-Class 42CWQ104 is maybe the perfect option for you. Belonging to its Q-Class CompQ Series, this subwoofer can deliver a no-nonsense bass performance and can be easily installed on aftermarket enclosures.

SoloKon Cone and Santoprene Rubber Surround

This 10-inch subwoofer comes with the famous combination of Kicker's SoloKon cone and Santoprene rubber surround, ensuring an accurate low-frequency performance with minimal distortion while having the durability to withstand the rigors of long usage periods at high volume levels.

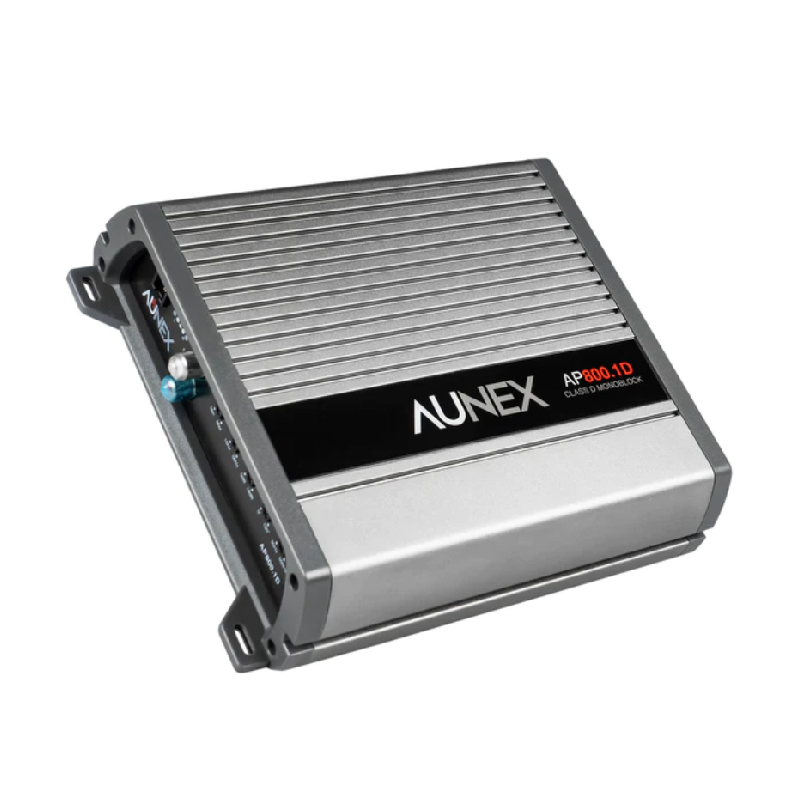

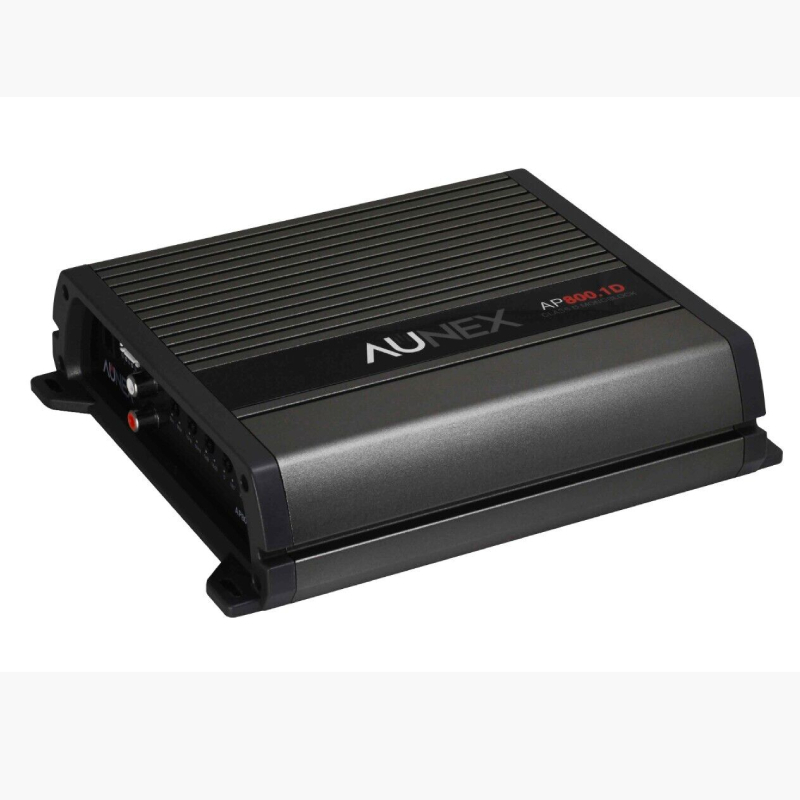

AP800.1D AP Series 800W x 1 RMS @4Ohms, 1600W Max Power Class D Monoblock Amplifier

Aunex AP Series Amplifier

For car audio enthusiasts seeking to enhance their bass performance, the Aunex AP800.1D amplifier is a game-changer. With its robust power output and advanced features, this amplifier delivers unparalleled bass reproduction, taking your in-car audio experience to new depths. The Aunex AP800.1D boasts a continuous power output of 800 watts, providing the punch you need to feel the bass in your music. Its Class-D amplifier technology ensures high efficiency, minimizing power consumption and reducing strain on your car's electrical system.

Flexible Configuration Options

Upgrade your car audio system and experience powerful bass like never before with the Aunex AP800.1D amplifier. With its impressive power output, efficiency, and flexible configuration options, this amplifier elevates your bass performance. Immerse yourself in deep, thumping bass and elevate your in-car audio experience with the Aunex AP800.1D amplifier.


SPECIFICATIONS



FEATURES


42CWQ104 CompQ Series 10" 700W RMS (1400W Peak Power Handling) Dual 4 Ohms Voice Coil Subwoofer

Features:

  • Rated Impedance [Ω]: 4
  • Fs [Hz]: 38
  • Sensitivity [1W, 1m]: 85.7
  • Qts: 0.437
  • Qms: 8.916
  • Qes: 0.46
  • Re [Ω]: 6.52
  • Vas [ft³, L]: .59, 16.75
  • Continuous Power Handling [Watts RMS]: 700
  • Outer Frame Dimension [in, cm]: 10-11/16, 27.2
  • Mounting Depth [in, cm]: 6-3/8, 16.2
  • Mounting Cutout [in, cm]: 9-3/16, 23.4
  • Frequency Response [Hz]: 24 – 100

Sealed Enclosure Specs:

  • Minimum Sealed Volume ft3 (L): .66 (18.7)
  • Minimum Sealed Power Handling: 700 RMS
  • Maximum Sealed Volume ft3 (L): 1.25 (35.4)
  • Maximum Sealed Power Handling: 700 RMS

Panel Dimensions for Minimum Sealed Enclosures using 3/4” (1.9cm) thick MDF:

  • Box Volume [ft³, L]: .66 (18.7)
  • Panel A [in, cm]: 12x12, 30.5x30.5
  • Panel B [in, cm]: 12x10.5, 30.5x26.7
  • Panel C [in, cm]: 10.5x10.5, 26.7x26.7

Vented Minimum:

  • Box Volume, ft³ (L) + port displacement: 1.25, 35.4
  • Port Opening Size, in x in (cm x cm): 2.5x11.25, 6.4x29
  • Port Length, in (cm): 19.75, 50
  • Power Handling, RMS: 700

Vented Maximum:

  • Box Volume, ft³ (L): 2.25, 63.7
  • Port Opening, in x in (cm x cm): 3x11.25, 7.6x29
  • Port Length, in (cm): 18, 46
  • Power Handling, Watts RMS: 700





AP800.1D AP Series 800W x 1 RMS @4Ohms, 1600W Max Power Class D Monoblock Amplifier

Features:

  • Heavy Density Aluminum Extruded Heatsink
  • 2 Layer PCB, SMD Technology
  • Differential Balanced RCA Inputs
  • Fully Variable Crossover: 30Hz - 500Hz @ 24dB/Octave Slope
  • Fully Variable Infrasonic Filter: 10Hz - 50Hz @ 24dB/Octave
  • Boost Eq. 0 - 18dB @ 45Hz Center
  • Auto-Sensing in High-Level Input Mode
  • Power and Protection Logo Illuminated Status Indicator
  • 4 Gauge Power and Ground Terminals
  • 12 Gauge Speaker Output Terminals
  • Advance Protection Circuit Monitoring: Short, Thermal, Overload, And Impedance
  • Finish: Anodized with Texture Paint

Specifications:

  • Channels: 1
  • Rated RMS Power 4 Ohms Mono @ 14.4V: 300 Watts x 1
  • Rated RMS Power 2 Ohms Mono @14.4V: 600 Watts x 1
  • Rated RMS Power 1 Ohm Mono @ 14.4V: 800 Watts x 1
  • Peak Music Power: 1600 Watts
  • Frequency Response: 10Hz - 500Hz
  • THD + Noise: <0.5%
  • S/N Ratio A-Weighted: >105dB
  • Input Sensitivity (Low Level RCA): 250mV - 6V
  • Input Sensitivity (High Level Speaker Output): 450mV - 11V
  • Crossover Low Pass (24dB/Octave): 50Hz - 500Hz
  • Boost EQ Low Pass - 45Hz Centered: 0 - 18dB
  • Infrasonic Filter: 10Hz - 50Hz
  • Phase - Fully variable: 0 - 108°
  • Efficiency @ 4 Ohm: 85%
  • Operating Voltage: 9 - 17 Volts
  • Fuse Requirement: 80A (Included)
  • Dimensions (H x W x D): 2.0" x 8.5" x 7.2"
  • UPC: 798418840485
  • Weight: 40
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
