Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.
Alpine KTP-445U-Bundle2 includes Alpine KTP-445U 45W x 4 @2Ohms, Class D 4-channel Compact Amplifier + Aunex AP-8K 8 Gauge Amplifier Wiring Kit
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Alpine KTP-445U
- • Aunex AP-8K

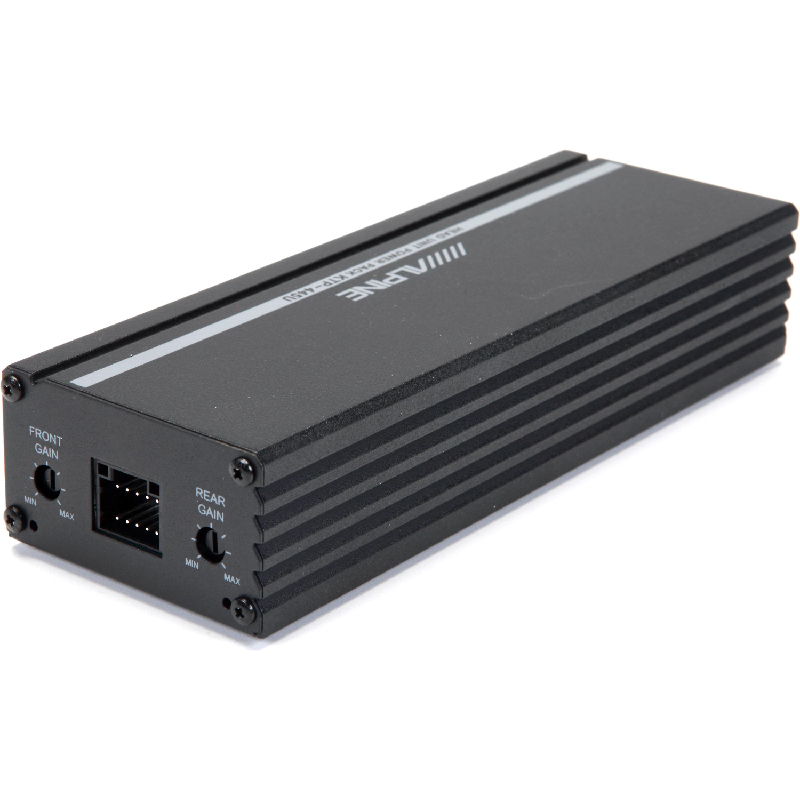

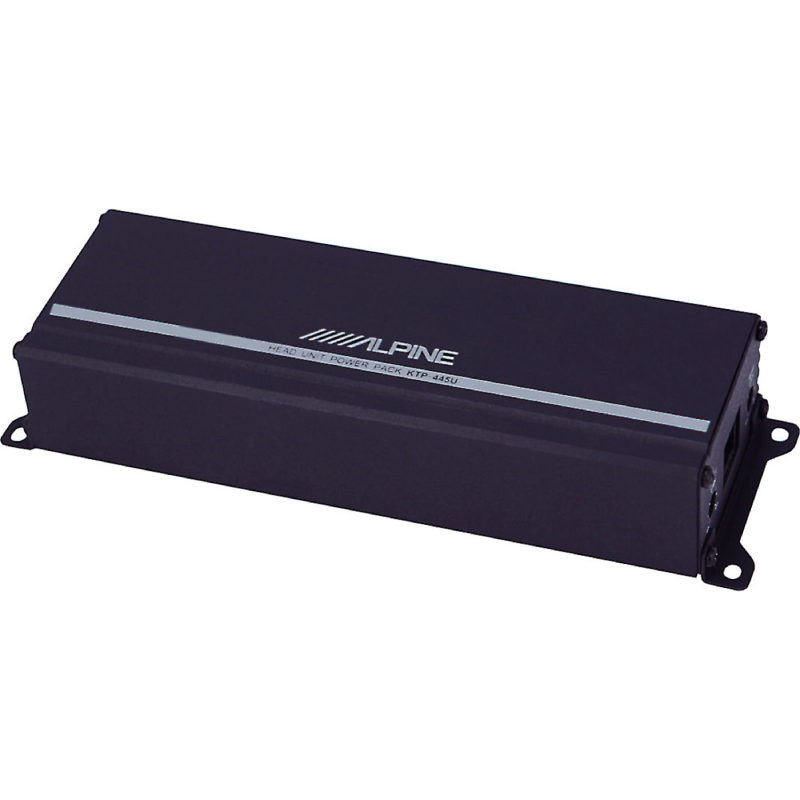

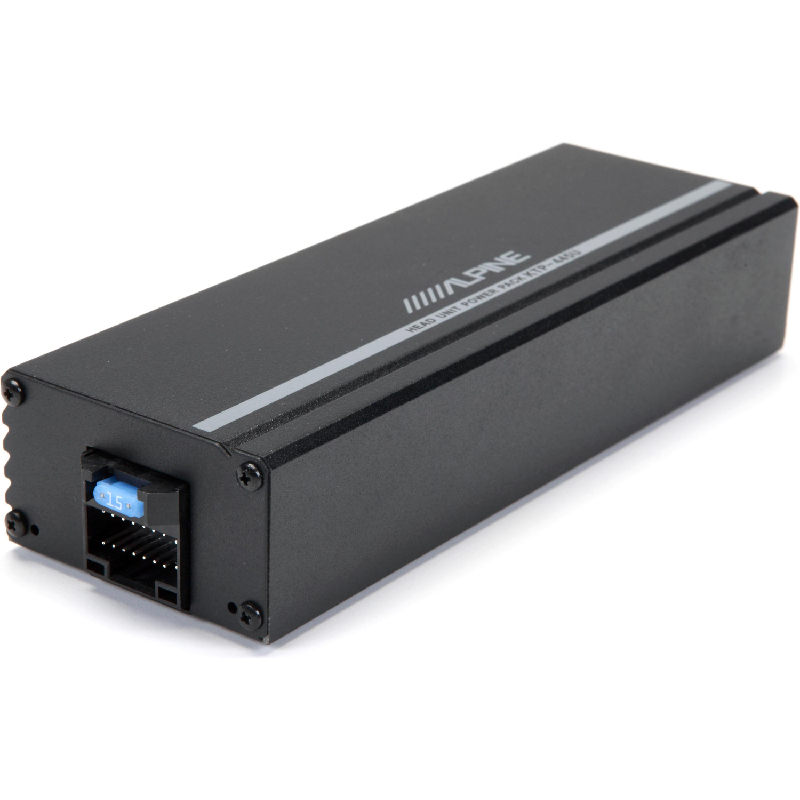

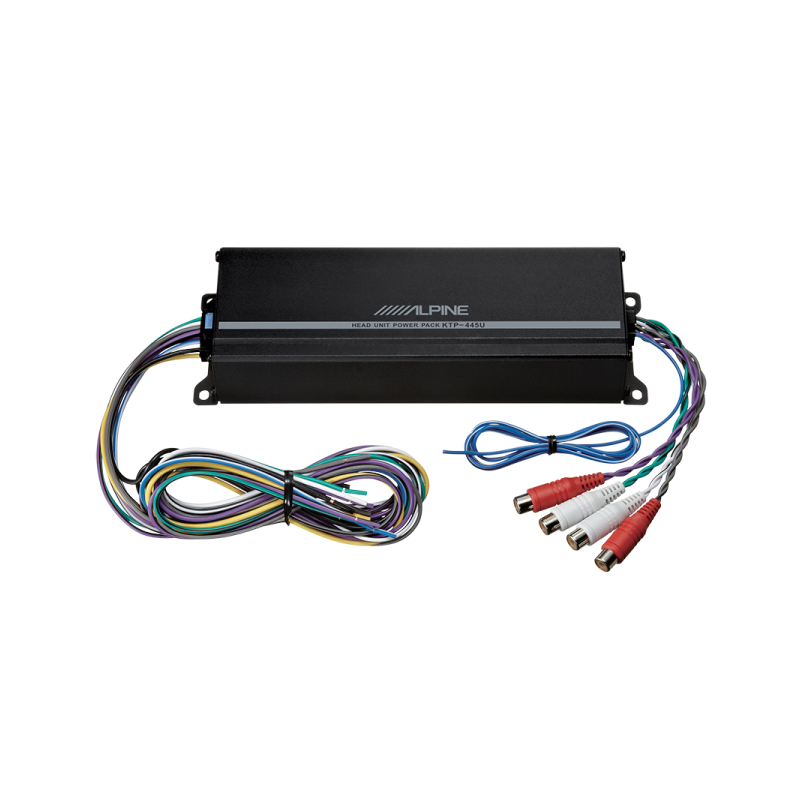

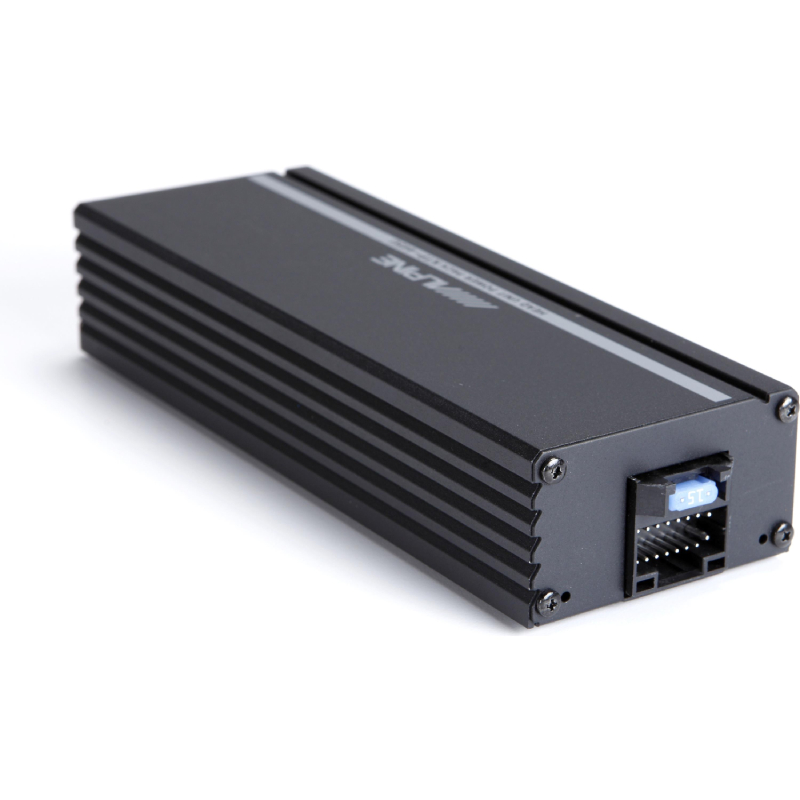

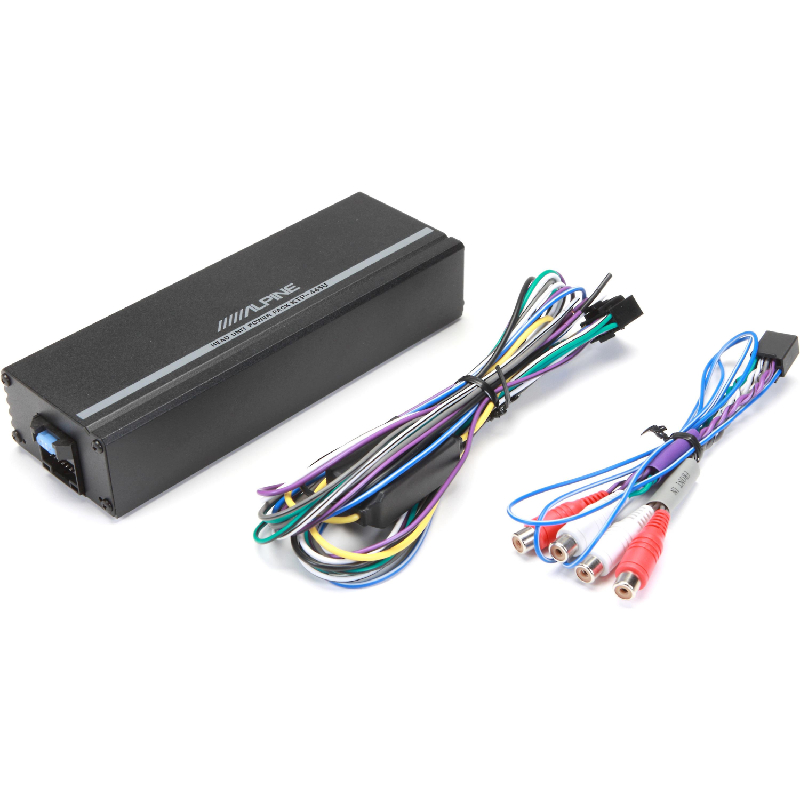

Alpine KTP-445U Power Pack Series 45W x 4 RMS @2Ohms Class D 4-Channel Universal Compact Amplifier
Thanks to its Class-D amplifier design, the Alpine KTP-445U can deliver 45 Watts of RMS Power at 4 or 2 ohms and 90 Watts of continuous power output at 4 ohms when setting the amplifier on a bridge mode. It has a signal-to-noise ratio rate of 82 dB, which means that it has minimal noise when you use the amplifier at high volume levels.
Aunex AP-8K 8 Gauge Complete Amplifier Wiring Kit 100% Copper OFC
The Aunex AP-8K wiring kit is a comprehensive package that includes all the necessary components to install and wire your car's audio amplifier properly. This kit is specifically designed with the Aunex AP-8K amplifier, ensuring compatibility and optimal performance. The wiring kit includes power and ground cables, which are crucial for delivering the necessary electrical current to your amplifier. These cables are made of high-quality materials and feature the appropriate gauge size to handle the power requirements of the AP-8K amplifier.
KTP-445U Power Pack Series 45W x 4 RMS @2Ohms Class D 4-Channel Universal Compact Amplifier
Features:
- For aftermarket and factory installed systems
- Compact size
- 4-channel Amplifier
- 45 Watts x 4 @ 4Ω/2Ω
- 90 Watts x 2 @ 4Ω Bridged
- Fuse: 15A
Specifications:
- Power Output
- Per Channel, Ref: 14.4V, 4ohms, @ < 1% THD+N: 45W RMS x 4
- Per Channel, Ref: 14.4V, 2ohms, @ < 1% THD+N: 45W RMS x 4
- S/N Ratio
- IHF A-wtd + AES-17, Ref: 1 W into 4 ohms: 82dB
- IHF A-wtd + AES-17, Ref: Rated Power into 4 ohms: 98dB
- Frequency Response
- +0 / -3 dB, Ref: 1 W into 4 ohms 15Hz – 45kHz
- Input Impedance
- > 10k ohms
- Input Sensitivity
- Ref: Rated Power into 4 ohms, RCA Inputs: 0,2 – 4,0 V
- Ref: Rated Power into 4 ohms, Speaker Level Inputs: 0,5 – 10,0 V
- Crossover
- Ch 1 / 2: Selectable HPF (-12 dB/oct.), defeatable: Off/60/80/120Hz
- Ch 3 / 4: Selectable HPF (-12 dB/oct.), defeatable: Off/60/80/120Hz
- Dimensions
- Width: 189.0mm (7-7/16”)
- Height: 38.2mm (1-1/2”)
- Depth: 64.5mm (2-1/2”)

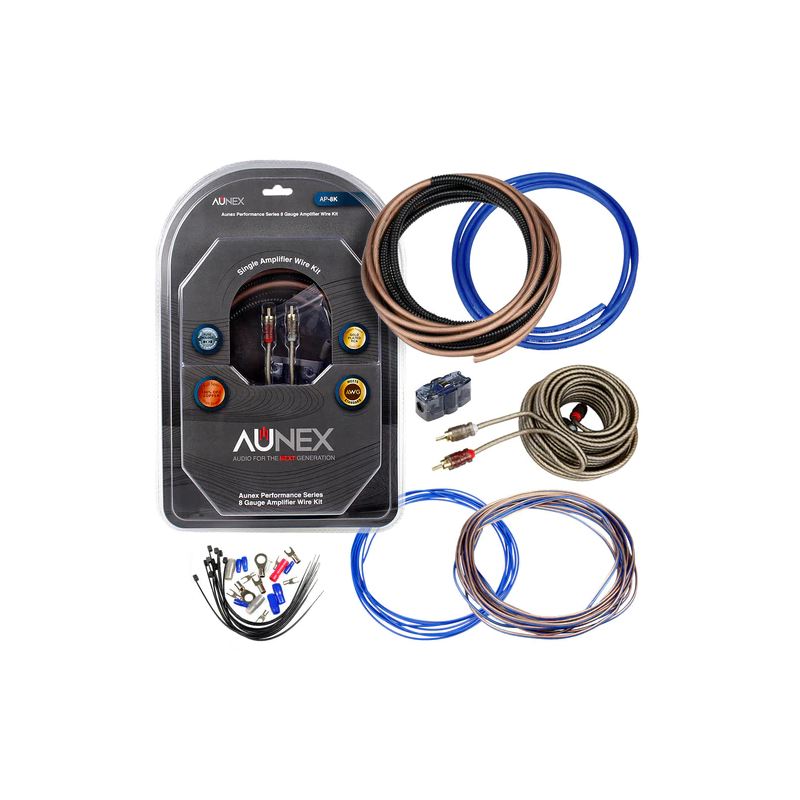

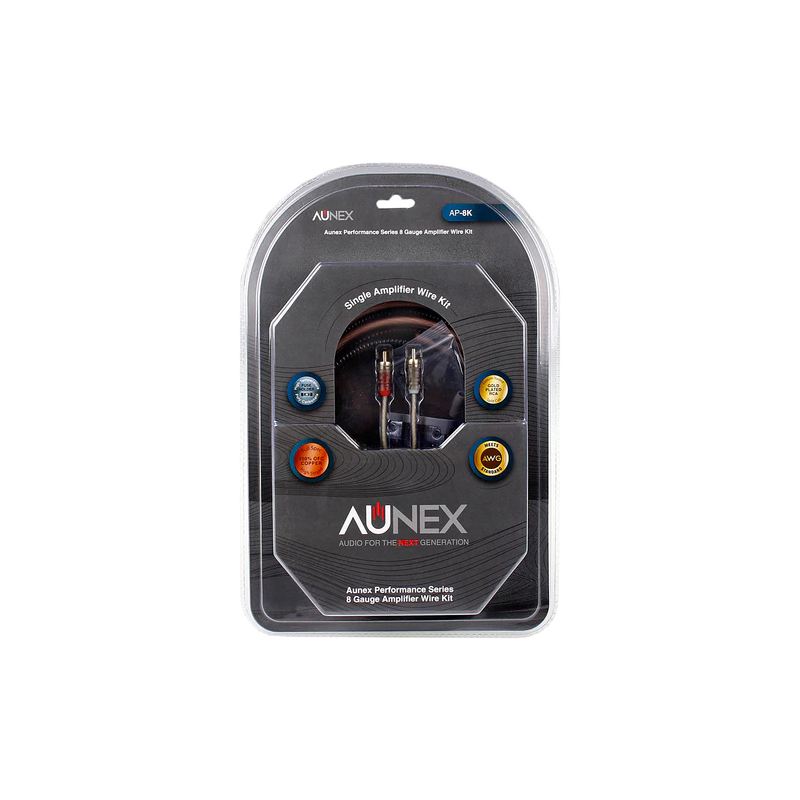

AP-8K 8 Gauge Complete Amplifier Wiring Kit 100% Copper OFC
Features:
- 17 Ft. of 8 Gauge 100% OFC Ultra-Flex Power Cable — 427 Strands
- 6 Ft. of 8 Gauge 100% OFC Ultra-Flex Ground Cable — 427 Strands
- 30 Ft. of 16 Gauge 100% OFC Ultra-Flex Speaker Wire — 67 Strands
- 17 Ft. 100% OFC Remote Cable — 74 Strands
- 17 Ft. 2 Channel Dual Layer Shielding RCA Interconnects with Advance Twinning Construction (ATC)
- 60A Mini ANL High-Temperature Polycarbonate Fuse Holder
- 4 - 8 Gauge Fuse Holder Rubber Adapter
- 10 - High-Temperature Wire Ties
- Firewall Grommet, Ring, Spade and Fork Terminals and Self Tapping Screws Included
- UPC: 798418840775
- Weight: 6
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
