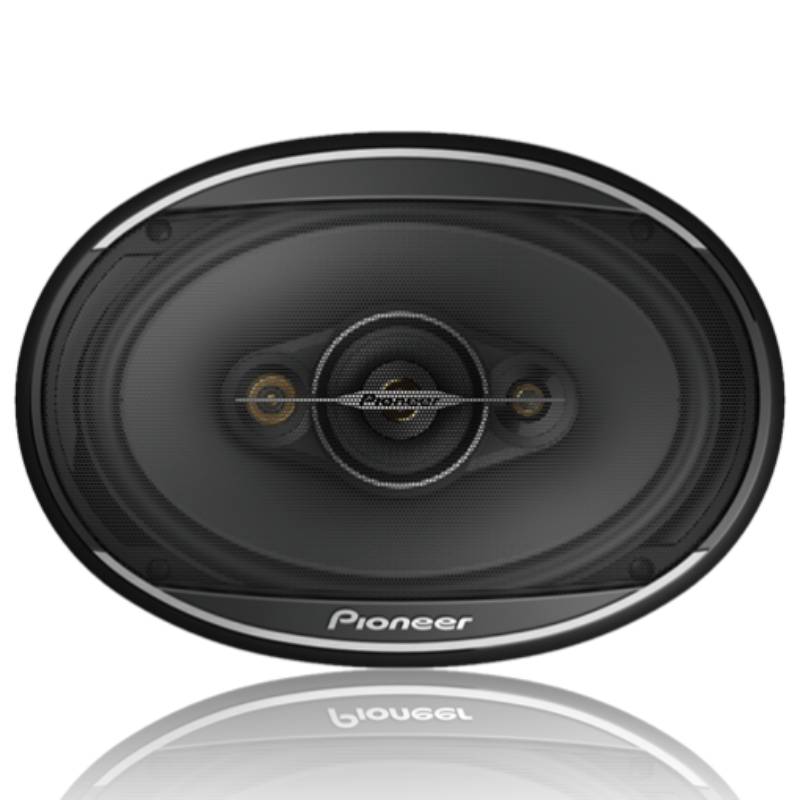

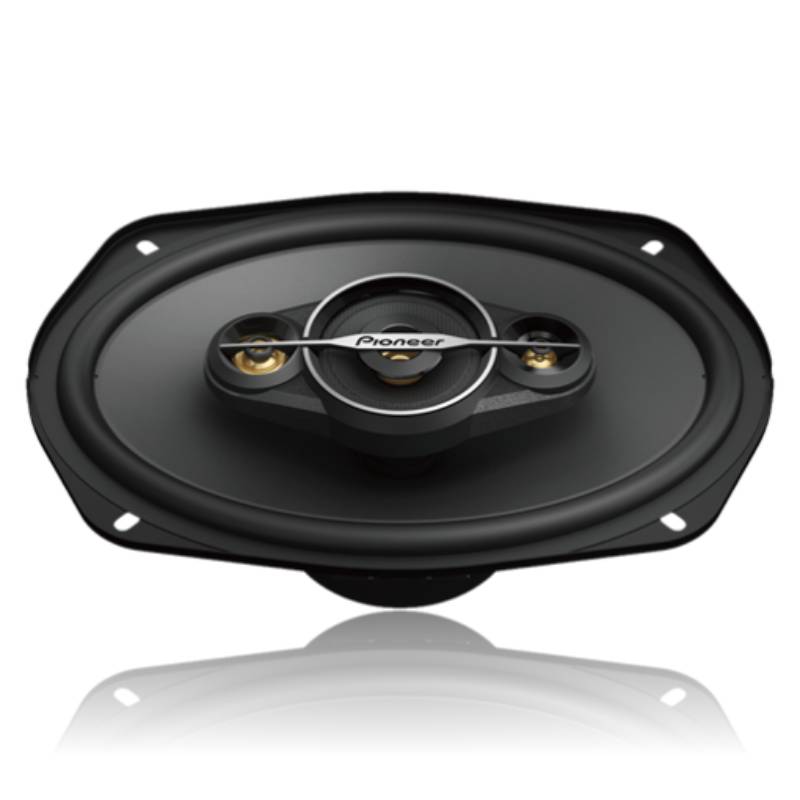

Pioneer TS-A6961F A-Series 6x9" 90W RMS (450W Peak Power Handling) 4 Ohms 4-way Coaxial Speakers
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 6"x9" 4-way coaxial speakers
- • (2) Pioneer Multi-Fit mounting brackets
- • (2) Protective Grilles
- • (2) 12" lengths of speaker wire (female quick slides on one end and bare wire on the other)
- • (8) 1-1/8" Screws
- • (8) 3/8" Screws
- • Warranty information
- • Specs and template on box
- • Owner's Manual
Why Choose Pioneer TS-A6961F Full Range Car Speakers?
Clear & Powerful Car Audio Performance
The Pioneer TS-A6961F is a set of 6x9" car speakers from Pioneer's A-Series lineup. These speakers are designed to provide clear and detailed sound with good power handling capabilities, making them a popular choice for upgrading car audio systems.
4-Way Coaxial Speakers for Unparalleled Sound Precision
These speakers are 4-way coaxial speakers. This means they are designed with multiple drivers (woofers, tweeters, and sometimes mid-range drivers) integrated into a single speaker unit. Each driver is responsible for handling a specific range of frequencies, resulting in more detailed and balanced sound reproduction.
Seamless Installation, Superior Sound

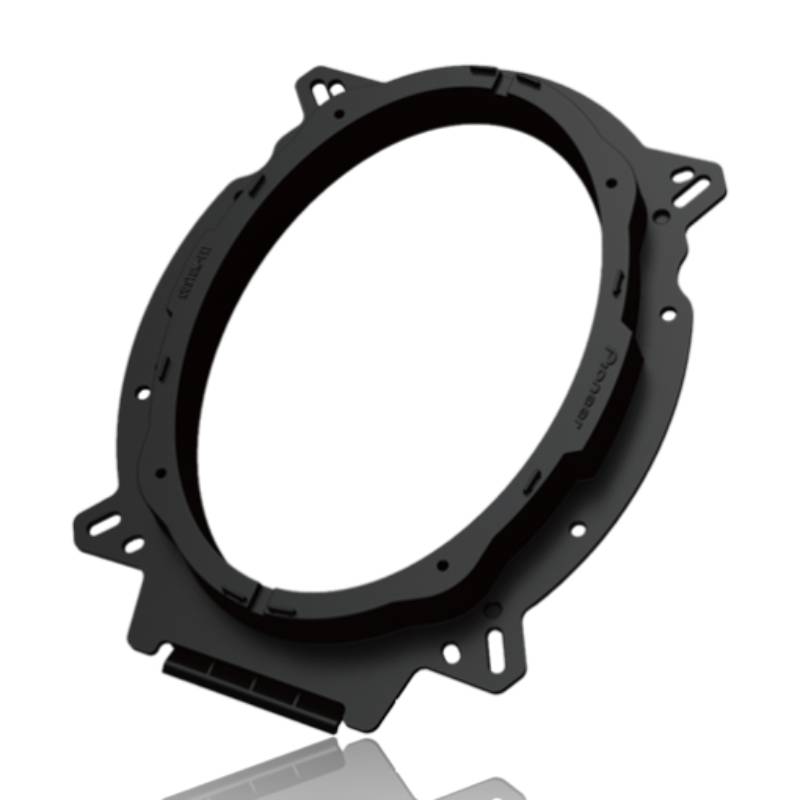

The component system includes 6" x 9" adapters for better sound and flexibility. With built-in crossovers, installation becomes more flexible without extra modules. The Pioneer adapters can be adjusted easily to fit various applications by removing tabs. It's simpler than ever to upgrade your factory speakers.
Frequently Asked Questions (FAQ)
- • Will these speakers work with my factory stereo?
Yes. They are compatible with most factory and aftermarket head units, but an external amplifier can provide greater output and improved sound quality.
- • Why do the speakers sound distorted at higher volumes?
Distortion is usually caused by amplifier clipping, excessive bass boost, or insufficient power from the head unit. Using a properly matched amplifier and adjusting the equalizer can produce cleaner sound.
- • Why is the bass weaker than I expected after installation?
Weak bass is often caused by incorrect speaker polarity or poor sealing between the speaker and the mounting surface. Verify the wiring and ensure the speakers are securely mounted for optimal bass response.
- • Will these fit my factory 6"x9" speaker locations?
They fit many vehicles with factory 6"x9" openings, but compatibility varies by make and model. Some vehicles may require mounting brackets or speaker wiring adapters.
- • Why does one speaker cut in and out while driving?
Loose wiring connections, damaged speaker wires, or poor terminal contact are the most common causes. Inspect all wiring and connectors before replacing the speaker.
- • Can I connect these to an aftermarket amplifier?
Yes. A compatible amplifier supplies cleaner power and allows the speakers to achieve better clarity, volume, and dynamic performance.
- • Why do my rear deck or door panels vibrate after installation?
The increased output can cause loose trim panels and factory mounting surfaces to rattle. Adding sound-deadening material and tightening loose hardware can greatly reduce unwanted vibrations.
- • Do these speakers need a break-in period?
Yes. Playing music at moderate listening levels for several hours allows the suspension to loosen naturally and improves overall sound quality.
- • Why do I hear crackling or popping sounds during playback?
Crackling is commonly caused by damaged wiring, amplifier clipping, or a faulty audio source. Check the wiring, amplifier settings, and source device to locate the issue.
- • Are these suitable for different music genres?
Yes. Their full-range design delivers balanced performance for rock, pop, hip-hop, country, jazz, electronic music, podcasts, and everyday listening.
- Diameter : 6x9 Inch
- Sensitivity : 92 dB
- Impedance : 4 Ohm
- Frequency Response : 29-28000 Hz
- Peak Power Handling : 450 Watts
- Design : 4 Way
- Woofer Composition : Carbon and Mica reinforced IMPP
- Shallow Mount : Yes Inch
- RMS Power Handling : 90 Watts
Features:
- 450 Watts Max Power (90 Watts Nom).
- Carbon & Mica reinforced IMPP Cone Design.
- Pioneer “Open & Smooth”™ Sound Concept.
- Pioneer Designed Multi-Fit Speaker Adapters Included.

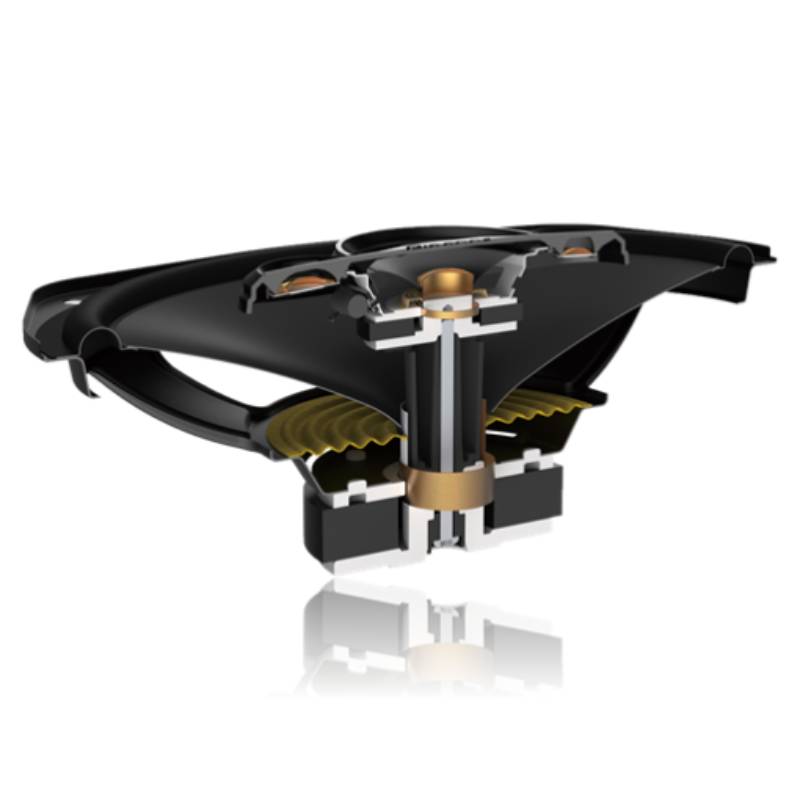

- Carbon & Mica reinforced IMPP cone construction for fast and deep bass response.
- A specially designed tweeter diaphragm to provide clear mid-range and highs with low distortion.
Specifications:
- Size: 6x9"
- Design: 6x9" 4-Way Coaxial
- Tweeter Design: 18mm
- Tweeter Composition: Pulp/PET
- Woofer Composition: Carbon & Mica Reinforced IMPP
- Woofer Surround: Elastic polymer
- Woofer Magnet Composition: Ferrite
- Warranty: 1 Year
- Max. Music Power (Nominal): 450W MAX (90W Nom)
- Frequency Response: 29Hz - 28kHz
- Sensitivity (1W/1 m): 92dB
- Impedance: 4 Ohms
- Mounting Depth: 72mm
- Cut-Out Dimensions: 153 x 222mm
- Grills Included: Yes
- UPC: 884938509497
- Weight: 6
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
