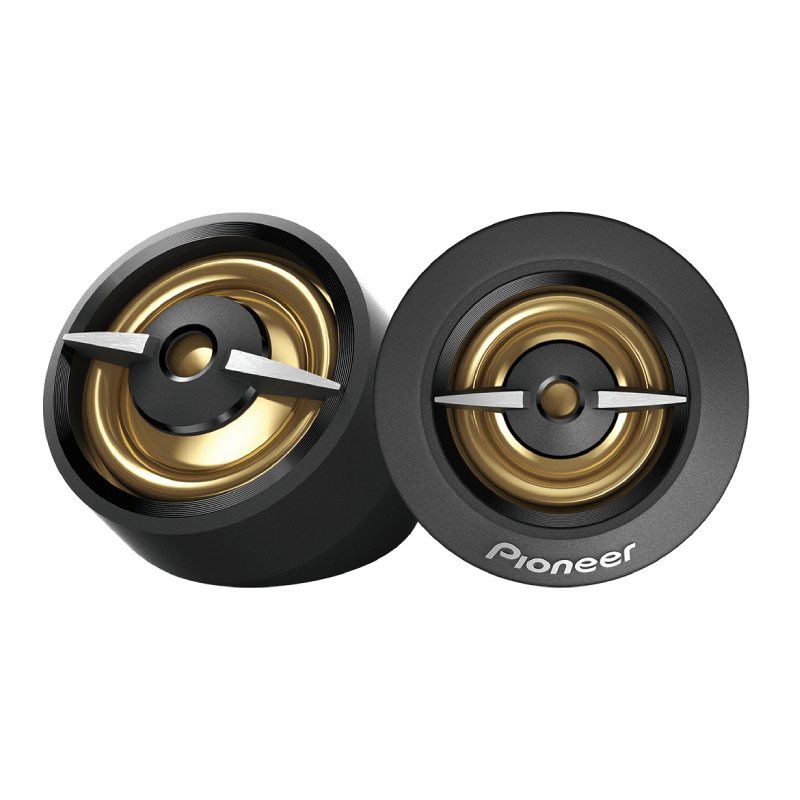

Pioneer TS-A301TW A-Series 0.75" 100W RMS (450W Peak Power Handling) at 6 Ohms, Component Car Tweeters (Pair)
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) tweeters (with attached 10" speaker leads terminated with quick-connects)
- • (2) 40" lengths of speaker wire with in-line crossover (each has quick slides on one end and bare wire on the other)
- • (2) angled surface mount housings
- • (2) flush mount rings
- • (2) factory mount brackets
- • (6) 1/2" screws
- • (2) adhesive backed foam discs
- • Warranty information
- • Specs on box
- • Owner's Manual
Why Choose Pioneer TS-A301TW Car Tweeters?
Pioneer for Superior Sounds
Your ears can tell when your factory speakers fall short. Generations of drivers have trusted Pioneer for an enhanced listening experience. The latest A-Series speakers from Pioneer use advanced 21st-century materials and design to elevate your vehicle's sound quality. The TS-A301TW 3/4" tweeters feature a polyetherimide dome, providing precise high-frequency reproduction throughout your car's interior.
Superior construction
Enables these 3/4" tweeters to handle an impressive 100 watts RMS, while their efficient design ensures excellent performance even with a smaller amplifier. Mount these tweeters in an optimal spot in your vehicle, and you'll discover a new world of musical details. If you're upgrading your car's worn-out speakers, the lifelike sound of Pioneer's A-Series speakers will bring your music back to life.
Frequently Asked Questions (FAQ)
- • Why aren't the tweeters producing any sound after installation?
This is usually caused by incorrect wiring, a blown inline crossover, or loose terminal connections. Verify the polarity and ensure all connections are securely attached.
- • Can I install these without replacing my factory door speakers?
Yes. Many users add standalone tweeters to factory systems to improve high-frequency detail without replacing the existing speakers.
- • Why do the high frequencies sound too bright?
Treble-heavy equalizer settings or mounting the tweeters directly toward the listener can make highs sound harsh. Reducing the treble level or changing the mounting angle often provides a more balanced sound.
- • Do I need to use the included crossover?
Yes. The crossover blocks damaging low frequencies from reaching the tweeters and helps deliver cleaner high-frequency performance.
- • Why do the tweeters cut out when I increase the volume?
This is commonly caused by amplifier clipping, improper crossover wiring, or excessive gain settings. Lower the gain and verify the crossover is installed correctly.
- • Where is the best location to mount the tweeters?
Most users achieve the best sound by installing them on the A-pillars, sail panels, or upper door panels. Higher mounting positions improve stereo imaging and vocal clarity.
- • Why do I hear static or hiss from the tweeters?
Electrical interference, poor grounding, or damaged signal cables can introduce unwanted noise. Check the amplifier ground and inspect the RCA or speaker wiring.
- • Can I use these with an aftermarket amplifier?
Yes. They perform well with a properly tuned amplifier that delivers clean power within the recommended specifications.
- • Why do the tweeters sound louder than my midrange speakers?
This often happens when the equalizer, crossover, or amplifier gain is set too high for the tweeters. Fine-tuning the system settings can create a more balanced overall sound.
- • Will adding tweeters improve my overall listening experience?
Yes. They enhance high-frequency detail, improve instrument separation, and create a wider, more realistic soundstage when installed and tuned correctly.
- Diameter : .75 Inch
- Sensitivity : 90 dB
- Frequency Response : 1800-58000 Hz
- Peak Power Handling : 450 Watts
- RMS Power Handling : 100 Watts
Features:
- 20mm Polyetherimide (PEI) hard dome tweeter
- Included multi-fit installation adapters optimize fitment in applicable original equipment (OE) speaker locations
- Inline high-pass network for simple installation
Specifications:
- Speaker Size: 3/4"
- Driver Design: 1-way
- Woofer Design: ---
- Woofer Material: ---
- Woofer Surround: ---
- Midrange Design: ---
- Midrange Material: ---
- Tweeter Design: Dome
- Tweeter Material: Polyetherimide
- Super Tweeter Design: ---
- Super Tweeter Material: ---
- Impedance: 6 Ohms
- Weather-resistant: No
- Grilles Included: Plastic protective bridge
- Sensitivity (1W at 1 meter): 90 dB
- Sensitivity at 2.83 volts: N/A
- Frequency Response: 1800 – 58k Hz
- Maximum RMS Wattage: 100 W
- Peak Power Handling: 450 W
- Top-mount Depth: 9/16"
- Bottom-mount Depth: 1 3/8"
- Cutout Diameter or Length: 1 11/16"
- Mounting Height: 0.2"
- Frame Width: 1.952"
- Frame Length: 1.952"
- UPC: 884938509367
- Weight: 1
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
These are some crazy loud tweeters. Not impressed with its aesthetics, but sound wise, these are really amazing tweeters especially for the price.
