Pioneer TS-A6971F A-Series 6"x9" 600W Peak Power Handling at 4 Ohms, 4-way Coaxial Car Speakers (Sold as Pair)
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 6"x9" A-Series 4-way Coaxial Car Speakers
- • (2) Grilles
- • (2) Grille frames
- • (2) Multi-application mounting brackets
- • (2) 12" lengths of speaker wire (each has quick-slides on one end and bare wire on the other)
- • (8) 1-1/8" screws
- • (8) 3/8" screws
- • Warranty information
- • Specifications and template on box
- • Owner's Manual
Why Choose Pioneer TS-A6971F Full Range Car Speakers?
Big Full-Range Upgrade That Hits Different
Carbon and mica-reinforced IMPP woofers deliver tight, controlled bass with minimal distortion at high volumes. Its 4-way coaxial design layers lows, mids, and highs for a fuller, highly detailed sound that far exceeds factory audio.
More Detail, Bigger Soundstage, Easy Upgrade Fit
PEI midrange and high-frequency drivers create a wide, open soundstage with distinct vocal separation and crisp instrument detail. Featuring a fast-responding, lightweight rigid cone and multi-fit mounting brackets, it maintains sharp audio at high volumes while ensuring straightforward factory installation.
Frequently Asked Questions (FAQ)
- • Why do my new speakers have less bass than I expected?
Weak bass is often caused by incorrect wiring polarity or a factory stereo with limited power output. Double-check the wiring and adjust the equalizer before considering additional upgrades.
- • Will these fit my vehicle without modification?
Fitment depends on your vehicle's factory speaker size, mounting depth, and available clearance. Confirm compatibility with your vehicle before installation to avoid fitment issues.
- • Why do the speakers distort when I raise the volume?
Distortion is commonly caused by amplifier clipping or excessive bass and treble settings. Proper amplifier tuning and balanced EQ settings help keep the sound clean.
- • Can I install these using my factory radio?
Yes. They are compatible with most factory head units, although an aftermarket amplifier can significantly improve overall sound quality.
- • Why do I hear rattling from my doors after replacing the speakers?
Higher-output speakers often expose loose door panels, clips, or mounting hardware. Applying sound-deadening material and tightening the installation usually eliminates the vibration.
- • Why does one speaker randomly stop working while driving?
A loose wiring connection, damaged speaker wire, or faulty connector is the most common cause. Inspect the wiring behind the door panel and ensure every connection is secure.
- • Can I use these with a high-powered aftermarket amplifier?
Yes. Make sure the amplifier's RMS output matches the speakers' recommended power handling for reliable long-term performance.
- • Why do my music streaming apps sound worse than CDs or lossless files?
Compressed audio streams contain less detail than high-quality audio files. Using higher-bitrate or lossless sources will allow the speakers to perform at their best.
- • Why do I hear a whining noise that changes with engine RPM?
This is typically caused by electrical interference or an improper ground in the audio system. Inspect the grounding points and keep signal cables separated from power cables.
- • Should I replace all four speakers at once for the best sound?
Replacing all speakers creates a more balanced soundstage and consistent audio quality throughout the vehicle. Mixing new speakers with older factory units can result in uneven performance.
- Diameter : 6x9 Inch
- Sensitivity : 92 dB
- Impedance : 4 Ohm
- Frequency Response : 29-33000 Hz
- Peak Power Handling : 600 Watts
- Design : 4 Way
- RMS Power Handling : 100 Watts
Features:

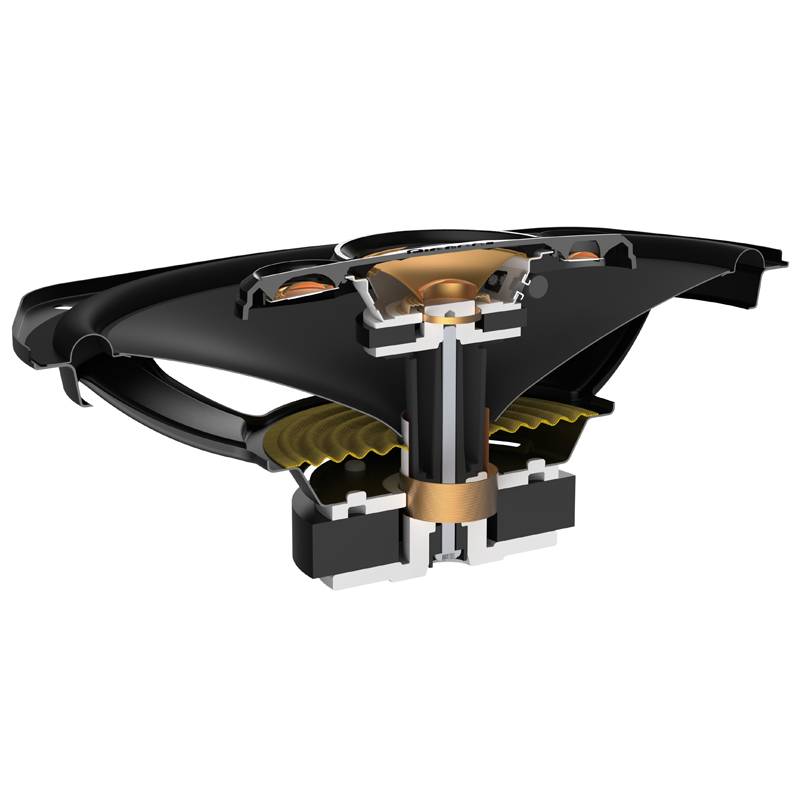

- Multi-Layer Carbon and Mica Reinforced IMPP Woofer System: Built with injection-molded polypropylene cones enhanced by carbon and mica materials, ensuring uniform cone thickness, improved rigidity, and accurate low-frequency reproduction with reduced distortion and enhanced clarity.
- Expanded 4-Way Coaxial Sound Architecture: Integrates woofer, midrange, tweeter, and super tweeter elements into a single system, delivering a wider frequency range with improved detail separation and a more immersive full-spectrum audio experience.
- PEI Multi-Driver High-Frequency Dispersion Design: Utilizes Polyetherimide (PEI) materials across midrange and high-frequency drivers, producing a broader soundstage with improved imaging and clearer vocal and instrumental definition.
- Lightweight High-Precision Cone Engineering: Designed with a low-mass yet rigid cone structure that enhances responsiveness, improves efficiency, and maintains stable audio clarity even at higher listening levels.
- Universal Vehicle Mounting Bracket Support System: Includes Pioneer mounting brackets designed for adaptable installation across various vehicle applications, ensuring secure placement and reliable fitment in compatible factory speaker locations.
Specifications:
- System Type: 4-way Coaxial
- Sound Pressure Level (Sensitivity): 92 dB (+- 1.5dB)
- Frequency Range: 29 Hz to 33k Hz
- Continuous Power Handling (RMS): 100 Watts
- Maximum Peak Power Handling: 600 Watts
- Nominal Impedance: 4 ohms
- Woofer Diameter: 6x9"
- Woofer Cone Material: Carbon and mica reinforced IMPP
- Woofer Surround Material: Elastic polymer
- Woofer Basket Material: Iron Plate Press
- Woofer Magnet Material: Ferrite
- Woofer Magnet Weight: 13.05 oz
- Woofer Voice Coil Bobbin: Glass Imide
- Woofer Voice Coil Wire: Copper
- Woofer Mounting Depth: 2-7/8" (Shallow basket)
- Tweeter Type: Twin Polyethylene terephthalate (PET) dome tweeter
- Tweeter Diameter: 11 mm (Super) and 18 mm
- Warranty (must be purchased from an Authorized Pioneer Dealer): 1 year
- UPC: 884938509527
- Weight: 5
