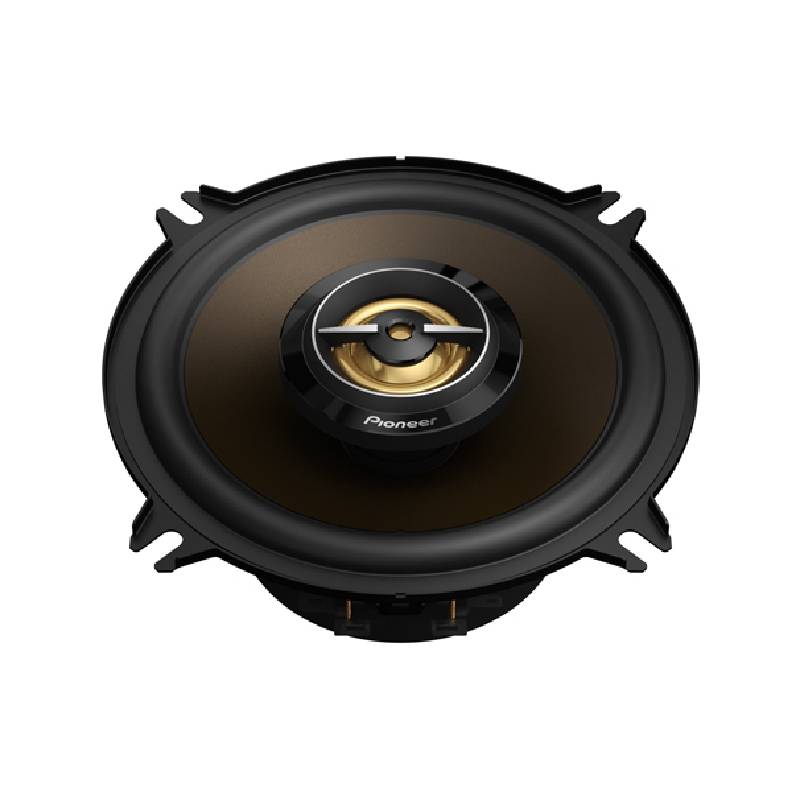

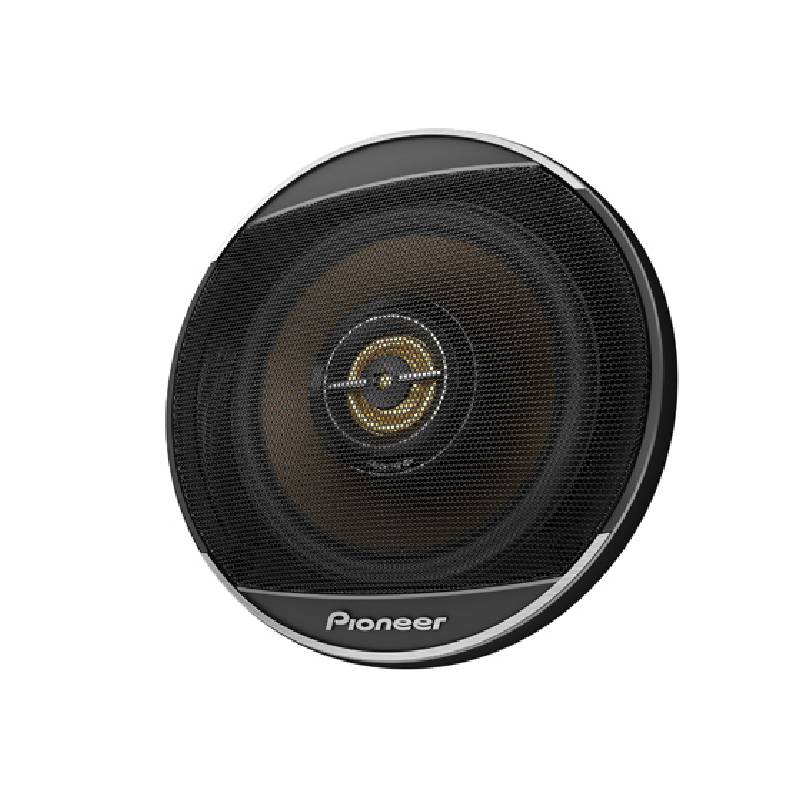

Pioneer  TS-A523FH

A-Series 5" 220W Peak Power Handling 4 Ohms 2-way Coaxial Speakers (Pair)

Item #92187

Product Highlights

  • 5" 2-way coaxial speakers
  • 220W peak power handling
  • 4 Ohms impedance
  • Sold as a pair

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Pioneer TS-A1301C A-Series 5.25" 300W Peak Power Handling 4 Ohms 2-way Car Component System


We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • (2) 2-way speakers
  • • (2) Grilles
  • • (2) Grille frames
  • • (2) 12" lengths of speaker wire (each has quick-slides on one end and bare wire on the other)
  • • (8) 3/4" screws
  • • Warranty information
  • • Specifications and template on box

Engineered for Superior Sound

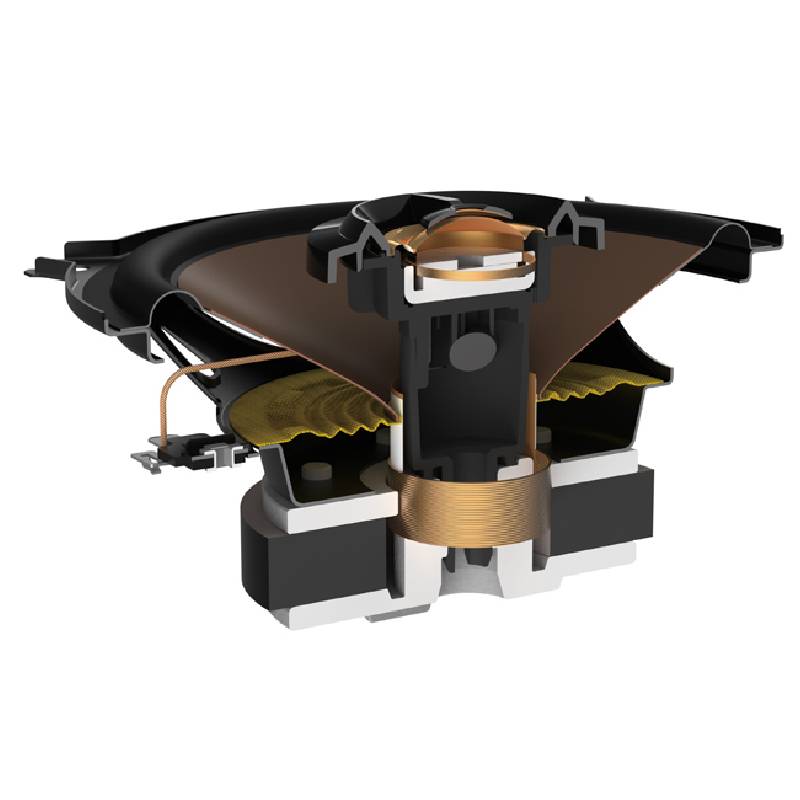

Pioneer’s A-Series MAX speakers are crafted with advanced materials to ensure an exceptional listening experience. The woofer cone features an injection-molded polypropylene design reinforced with aramid fiber and mica, delivering smooth sound and robust bass. The deeper basket design, combined with Pioneer's exclusive suspension system, maintains cone stability during high-energy music peaks, keeping your sound precise. The inline dome tweeter ensures that higher frequencies are vividly reproduced, bringing every detail of your music to life. With streamlined grilles included for custom installation, these versatile speakers promise years of high-quality performance and enjoyment in your car.

Pioneer A-Series MAX: Unmatched Audio Excellence

Pioneer's A-Series speakers have been a trusted choice at Crutchfield for years, and the latest A-Series MAX models continue this tradition with enhanced performance at a great value. The Pioneer TS-A523FH 5-1/4" 2-way car speakers proudly represent the A-Series MAX, designed to elevate your car audio experience, especially when paired with an external amplifier. Enjoy powerful, clear audio without the distortion that can disrupt your enjoyment. With Pioneer's engineering prowess, these speakers deliver consistent, high-quality sound for their entire lifespan.


SPECIFICATIONS


  • Diameter : 5 Inch
  • Sensitivity : 88 dB
  • Impedance : 4 Ohm
  • Frequency Response : 39-49,000 Hz
  • Peak Power Handling : 220 Watts
  • Design : 2 Way
  • Woofer Composition : Aramid fiber reinforced IMPP
  • Tweeter Composition : Component Polyetherimide (PEI)
  • RMS Power Handling : 55 Watts

FEATURES


Features:

  • 320 Watts Max Power (55 Watts Nominal)
  • 20mm Polyetherimide (PEI) hard dome tweeter
  • 39 Hz to 49 kHz Frequency Range
  • 5" Aramid fiber reinforced Injection Molded Polypropylene (IMPP) cone construction
  • Pioneer patented P.F.S.S. (Progressive Flex Suspension System) (U.S. Patent #20,120,106,777)



Specifications:

  • System Type: Coaxial 2-way
  • Sound Pressure Level (Sensitivity): 88 dB (+- 1.5dB)
  • Frequency Range: 39 Hz to 49 kHz
  • Continuous Power Handling (RMS): 55 Watts
  • Maximum Peak Power Handling: 320 Watts
  • Nominal Impedance: 4 ohms
  • Woofer Diameter: 5"
  • Woofer Cone Material: Aramid fiber reinforced IMPP
  • Woofer Surround Material: Elastic Polymer
  • Woofer Basket Material: Iron Plate Press
  • Woofer Magnet Material: Ferrite
  • Woofer Magnet Weight: 7.41 oz
  • Woofer Voice Coil Bobbin: Glass Imide
  • Woofer Voice Coil Wire: Copper
  • Woofer Mounting Depth: 2-1/8" (Shallow basket)
  • Tweeter Type: Component Polyetherimide (PEI) hard dome tweeter
  • Tweeter Diameter: 20 mm
  • Tweeter Diaphragm Material: Film (PEI)
  • Tweeter Magnet Material: Neodymium
  • Tweeter Magnet Weight: 0.17 oz
  • Warranty (must be purchased from an Authorized Pioneer Dealer): 1 year
  • UPC: 884938509398
  • Weight: 4
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
