Pioneer  GM-D1004-Bundle3

Pioneer GM-D1004 Slim Series 45W RMS x 4 @2Ohms + Amplifier + (2-SETS OF SPEAKERS) Pioneer TS-D68F D Series 6x8" 80W RMS 2-Way Car Coaxial Speakers

Item #92261

Condition:   Brand New

Product Highlights

  • Pioneer GM-D1004 Slim Series Amplifier
  • 45W RMS x 4 @ 2 Ohms
  • 2 Sets of Pioneer TS-D68F D Series Speakers
  • 6x8" 80W RMS 2-Way Coaxial Speakers

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$459.97

Reg. Price $650.00  Save $190.03
In Stock
In Stock

Getting Delivery Estimate...
  Free 2-Years Warranty Included!

No Credit needed for acima logoLearn More

Pioneer Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

Pioneer GM-D1004-Bundle Pioneer GM-D1004 Slim Series 45W RMS x 4 @2Ohms + Amplifier + (2-SETS OF SPEAKERS) Pioneer TS-D68F D Series 6x8" 80W RMS 2-Way Car Coaxial Speakers


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •Pioneer GM-D1004
  • •(2) Pioneer TS-D68F
  • •Owner's Manual

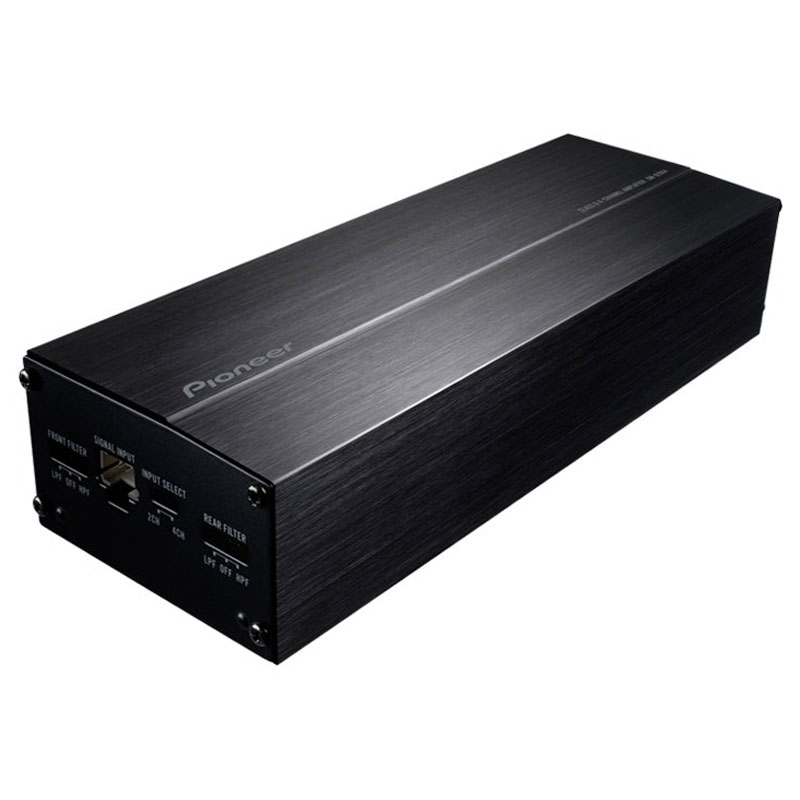

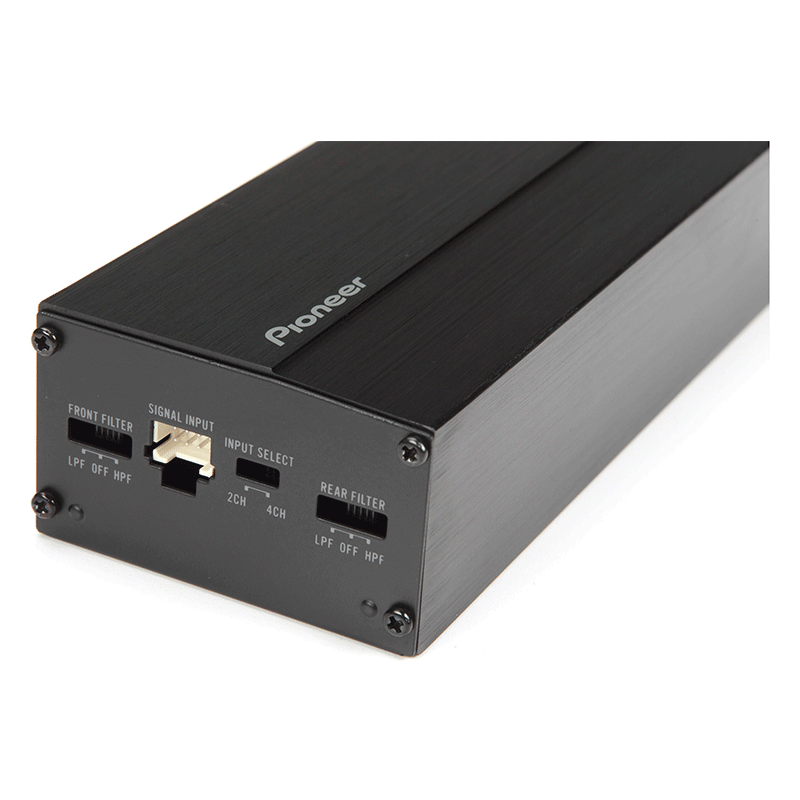

Pioneer GM-D1004 Slim Series 45W RMS x 4 @2Ohms, 400W Max Power Class D 4-channels Compact Bridgeable Amplifier

Compact Design

The Pioneer GM-D1004 is a compact and versatile amplifier that delivers powerful sound and easy installation. Designed for use in car audio systems, the GM-D1004 is a must-have for anyone looking to enhance their listening experience on the road. The GM-D1004 features a Class FD topology and can deliver up to 400 watts of maximum power. The amplifier is equipped with Pioneer's patented A/B channel architecture, which ensures high-fidelity sound reproduction and efficient power handling. Additionally, the GM-D1004 features a compact design that makes it easy to install in any car audio system.

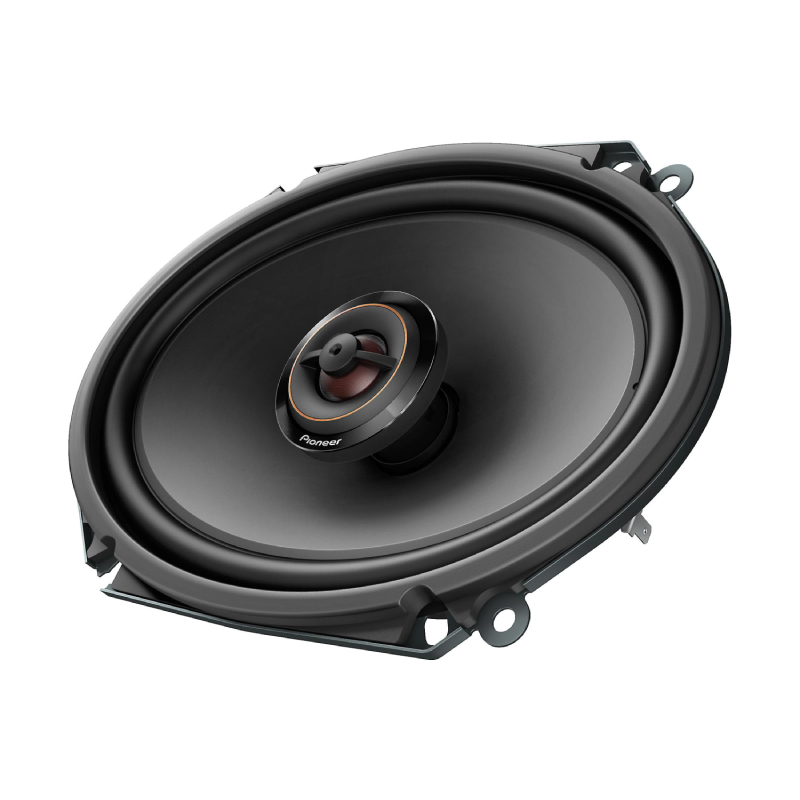

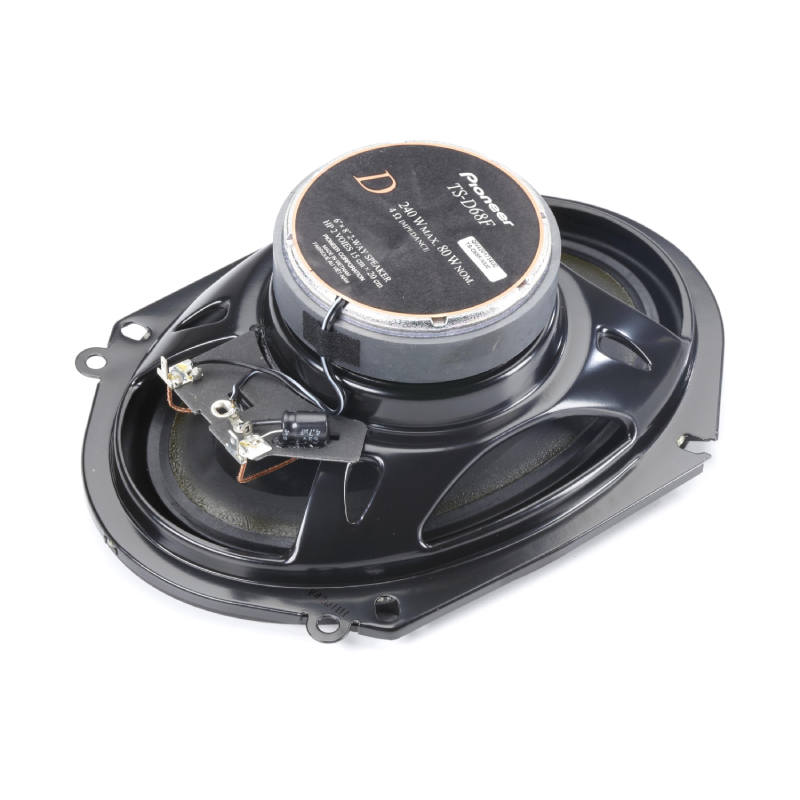

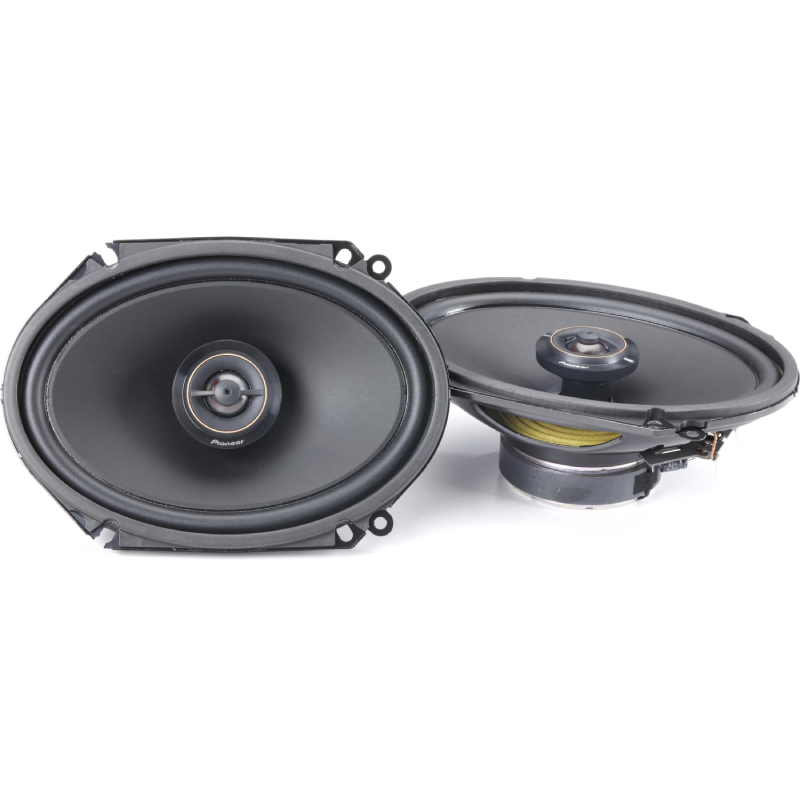

Pioneer TS-D68F D Series 6x8" 80W RMS (240W Peak Power Handling) 4 Ohms 2-Way Car Coaxial Speakers

High-frequency Performance

Contoured from lightweight, resin-impregnated fibers of coated polyester fabric, the D tweeter delivers extended high-frequency performance. The 26mm diaphragm is very resistant to the harsh environmental conditions of the automotive interior (temperature, humidity, vibration, etc.), while maintaining its uniform hemispherical shape to reduce dome breakup due to excessive vibration at ultrasonic frequencies. The result is extremely low distortion levels and a smooth, natural sound.


SPECIFICATIONS



FEATURES


Pioneer  GM-D1004 Slim Series 45W RMS x 4 @2Ohms, 400W Max Power Class D 4-channels Compact Bridgeable Amplifier

Features:

  • Allowable Load Impedance: 2 ohm to 8 ohm allowable
  • Avg Current Consumption (amps x #ch): 1.7 A x 4-Channel - 4 Ohm / 1.7 A x 2-Channel - 2 Ohm / 1.7 A x 4-Channel - 2 Ohm
  • Bass Boost: 75 dB
  • Continuous-Power-Output: 45 W x 4-Channel - 4 Ohm / 45 W x 4-Channel - 2 Ohm / 90 W x 2-Channel - 4 Ohm Bridged
  • Crossover Network Channel: LPF - A/B Ch 80 Hz / HPF - A/B Ch 80 Hz
  • Crossover Network Channel Slope: -12db/oct (A/B Ch)
  • Crossover Network Subwoofer Channel: 80 Hz
  • Crossover Network Subwoofer Slope: -12 dB/octave
  • Frequency Response – Subwoofer Channel: 10 Hz to 40 kHz
  • Frequency Response Channel: 10Hz to 40kHz (+0dB,-3dB) A/B Ch
  • Fuse Rating: 15 A
  • Maximum Power Output: 100 W x 4-Channel (4 Ohm) / 100 W x 4-Channel (2 Ohm) / 200 W x 2-Channel (4 Ohm Bridged)
  • RCA Input: 4-Channel
  • Signal to Noise: 74 dBA (Reference: 1 W into 4 ohm)
  • Speaker Line input Sensor: Yes
  • THD - Subwoofer: < 0.05% (1 kHz)
  • THD-A/B/C Channel: < 0.05% (1 kHz) A/B Ch



Specifications:

  • 400 Watts Max Power
  • Variable High Pass and Low-Pass Filters
  • Refined Class FD Design Offers Extreme Efficiency and High-Quality Sound
  • Bridgable: Yes
  • Class: D
  • Grounding System: Negative
  • Power Source: 14.4V (10.8 V to 15.1 V allowable)
  • Protection Control system: Yes
  • Terminal Type: Removable



Pioneer  TS-D68F D Series 6x8" 80W RMS (240W Peak Power Handling) 4 Ohms 2-Way Car Coaxial Speakers

Features:

  • 26mm Polyester Soft Dome Tweeter with Swivel Capability
  • Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) Cone Construction
  • Universal Woofer Basket Design Expands Installation Flexibility for Maximum Bass and Sound Quality
  • 26mm Polyester Soft Dome Tweeter with Swivel Capability
  • Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) Cone Construction
  • Universal Woofer Basket Design Expands Installation Flexibility for Maximum Bass and Sound Quality
  • Diameter: 6” x 8”
  • Cone Material: Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP)
  • Surround Material: Butyl Rubber
  • Magnet Material: Ferrite
  • Magnet Weight: 11.3 oz
  • Type: Soft Dome
  • Diameter: 26mm
  • Diaphragm Material: Polyester
  • Magnet Material: Neodymium
  • Magnet Weight: 6.4 g
  • Swivel Type: Yes
  • UPC: 798418841260
  • Weight: 32
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
