Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

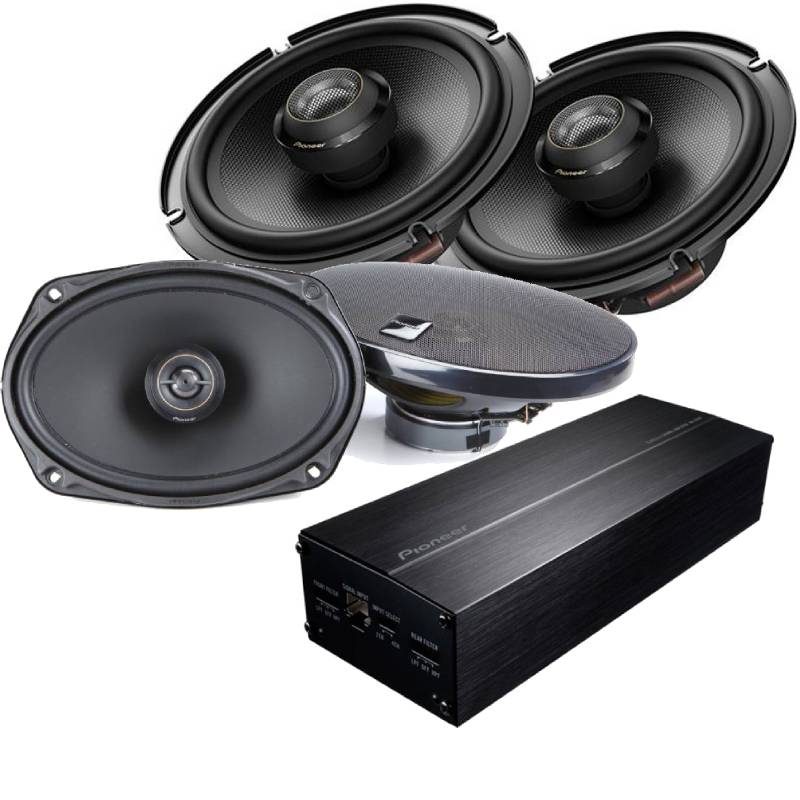

Pioneer GM-D1004-Bundle6 Pioneer GM-D1004 Slim Series 45W RMS x 4 @2Ohms Amplifier +Pioneer TS-D69F D Series 6x9" 110W RMS 2-Way Car Coaxial Speakers + Pioneer TS-Z65F 6.5” 110W RMS 2-Way Coaxial Speakers
We are an authorized dealer so you get up-to-date, fully warrantied products.
What's Inside?
- •Pioneer GM-D1004
- •Pioneer TS-D69F
- •Pioneer TS-Z65F
- •Owner's Manual

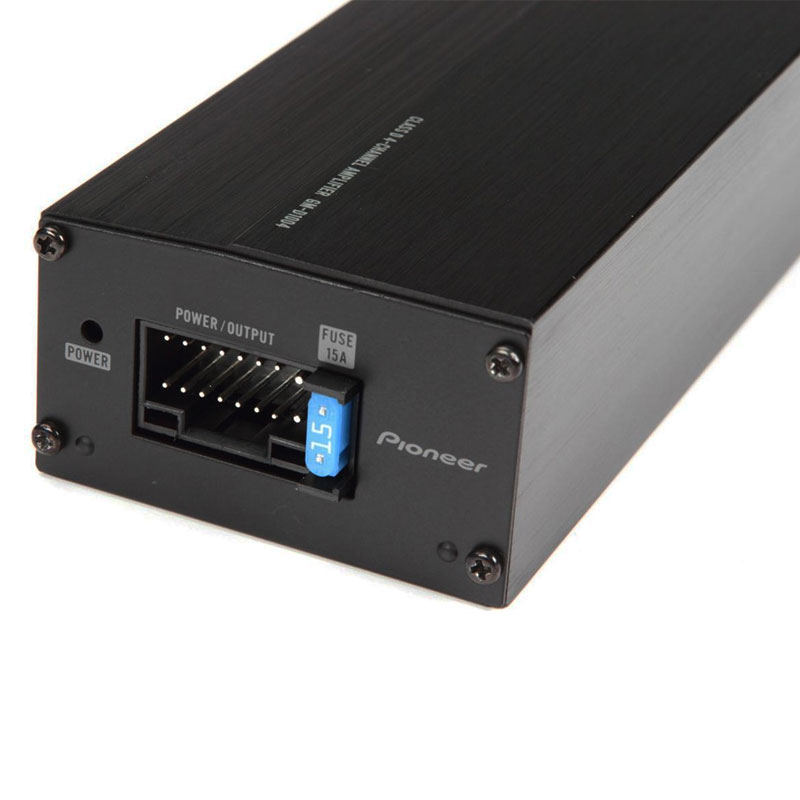

Pioneer GM-D1004 Slim Series 45W RMS x 4 @2Ohms, 400W Max Power Class D 4-channels Compact Bridgeable Amplifier
Compact Design
The Pioneer GM-D1004 is a compact and versatile amplifier that delivers powerful sound and easy installation. Designed for use in car audio systems, the GM-D1004 is a must-have for anyone looking to enhance their listening experience on the road. The GM-D1004 features a Class FD topology and can deliver up to 400 watts of maximum power. The amplifier is equipped with Pioneer's patented A/B channel architecture, which ensures high-fidelity sound reproduction and efficient power handling. Additionally, the GM-D1004 features a compact design that makes it easy to install in any car audio system.
Pioneer TS-D69F D Series 6x9" 110W RMS (330W Peak Power Handling) 4 Ohms 2-Way Car Coaxial Speakers
Thermoplastic Resin
The Pioneer TS-D69F features a 6x9-inch woofer cone and a 1-inch soft-dome tweeter, resulting in a wide frequency response and well-balanced sound. The aramid fiber interlaced injection-molded polypropylene (IMPP) cone ensures accurate and dynamic bass reproduction, while the tweeter delivers clear and detailed high frequencies.
Pioneer TS-Z65F 6.5” 110W RMS (330W Peak Power Handling) 2-Way Coaxial Speakers
Carefully Selected Materials
The Z is based on highly advanced technology developed by Pioneer, employing carefully selected materials and parts, benefiting from our decades of automotive loudspeaker design theory and testing ability. The Z is based on highly advanced technology developed by Pioneer, employing carefully selected materials and parts, benefiting from decades of automotive loudspeaker design theory and testing ability. Following Pioneer’s OPEN & SMOOTH™ sound concept.

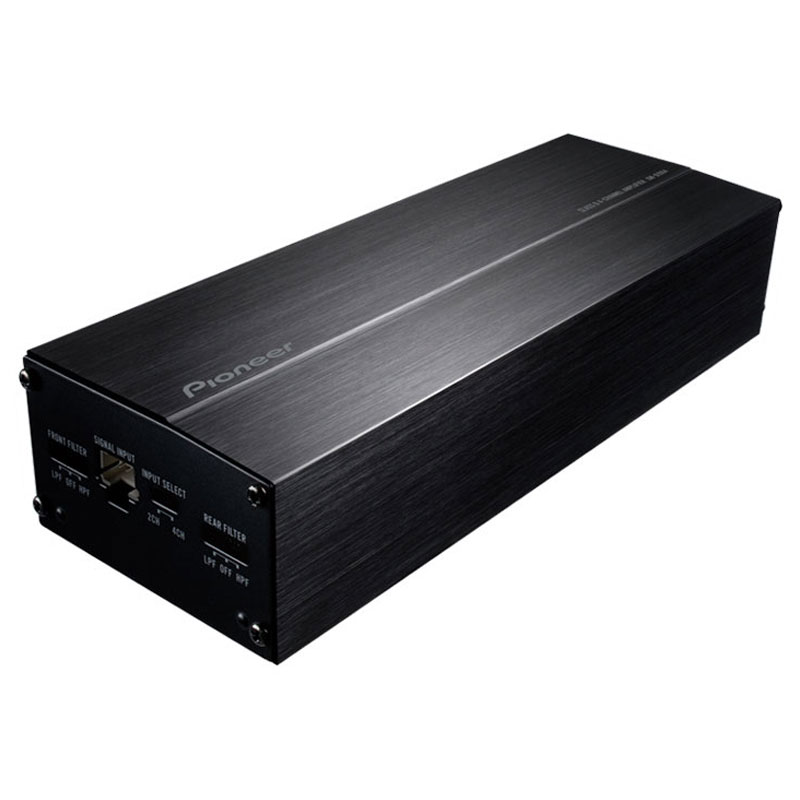

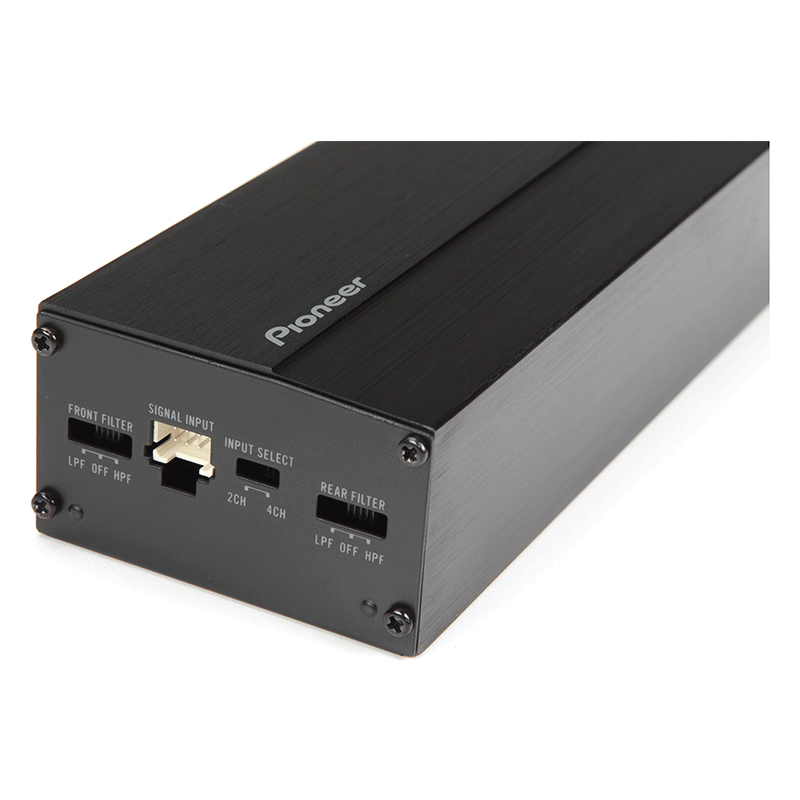

Pioneer GM-D1004 Slim Series 45W RMS x 4 @2Ohms, 400W Max Power Class D 4-channels Compact Bridgeable Amplifier
Features:
- Allowable Load Impedance: 2 ohm to 8 ohm allowable
- Avg Current Consumption (amps x #ch): 1.7 A x 4-Channel - 4 Ohm / 1.7 A x 2-Channel - 2 Ohm / 1.7 A x 4-Channel - 2 Ohm
- Bass Boost: 75 dB
- Continuous-Power-Output: 45 W x 4-Channel - 4 Ohm / 45 W x 4-Channel - 2 Ohm / 90 W x 2-Channel - 4 Ohm Bridged
- Crossover Network Channel: LPF - A/B Ch 80 Hz / HPF - A/B Ch 80 Hz
- Crossover Network Channel Slope: -12db/oct (A/B Ch)
- Crossover Network Subwoofer Channel: 80 Hz
- Crossover Network Subwoofer Slope: -12 dB/octave
- Frequency Response – Subwoofer Channel: 10 Hz to 40 kHz
- Frequency Response Channel: 10Hz to 40kHz (+0dB,-3dB) A/B Ch
- Fuse Rating: 15 A
- Maximum Power Output: 100 W x 4-Channel (4 Ohm) / 100 W x 4-Channel (2 Ohm) / 200 W x 2-Channel (4 Ohm Bridged)
- RCA Input: 4-Channel
- Signal to Noise: 74 dBA (Reference: 1 W into 4 ohm)
- Speaker Line input Sensor: Yes
- THD - Subwoofer: < 0.05% (1 kHz)
- THD-A/B/C Channel: < 0.05% (1 kHz) A/B Ch
Specifications:
- 400 Watts Max Power
- Variable High Pass and Low-Pass Filters
- Refined Class FD Design Offers Extreme Efficiency and High-Quality Sound
- Bridgable: Yes
- Class: D
- Grounding System: Negative
- Power Source: 14.4V (10.8 V to 15.1 V allowable)
- Protection Control system: Yes
- Terminal Type: Removable

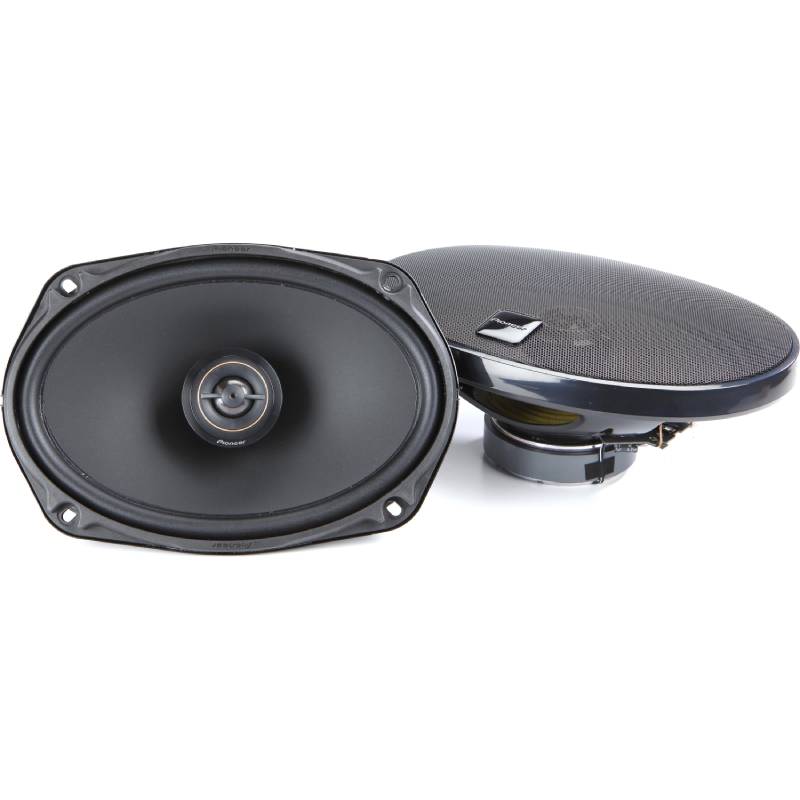

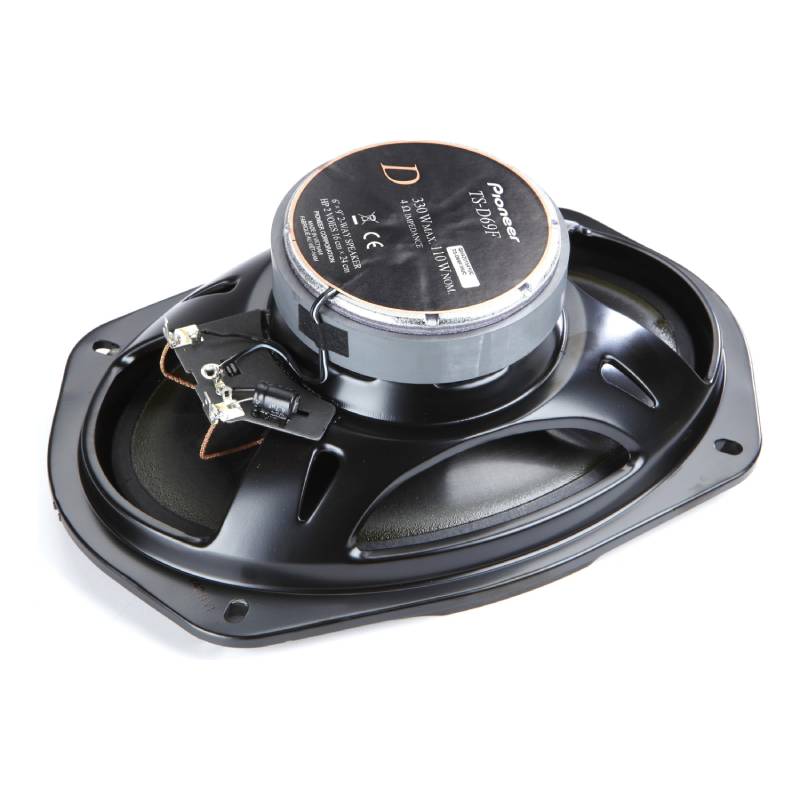

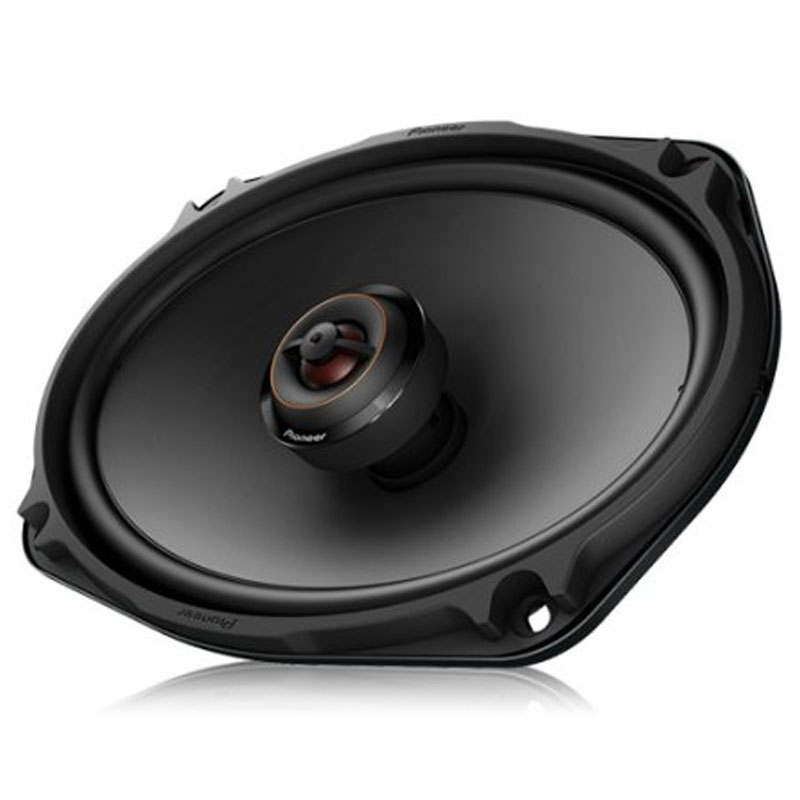

Pioneer TS-D69F D Series 6x9" 110W RMS (330W Peak Power Handling) 4 Ohms 2-Way Car Coaxial Speakers
- 26mm Polyester Soft Dome Tweeter with Swivel Capability
- Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) Cone Construction
- Universal Woofer Basket Design Expands Installation Flexibility for Maximum Bass and Sound Quality
- System Type: 2-way Coaxial
- Sound Pressure Level (Sensitivity):87dB (+- 1.5dB)
- Frequency Range: 33 Hz to 42 kHz
- Continuous Power Handling (RMS): 110 Watts
- Maximum Peak Power Handling: 330 Watts
- Nominal Impedance: 4 ohms
- Diameter: 6” x 9”
- Cone Material:Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP)
- Surround Material: Butyl Rubber
- Magnet Material: Ferrite
- Magnet Weight: 15.2 oz
- Type: Soft Dome
- Diameter: 26mm
- Diaphragm Material: Polyester
- Magnet Material: Neodymium
- Magnet Weight: 6.4 g
- Swivel Type: Yes

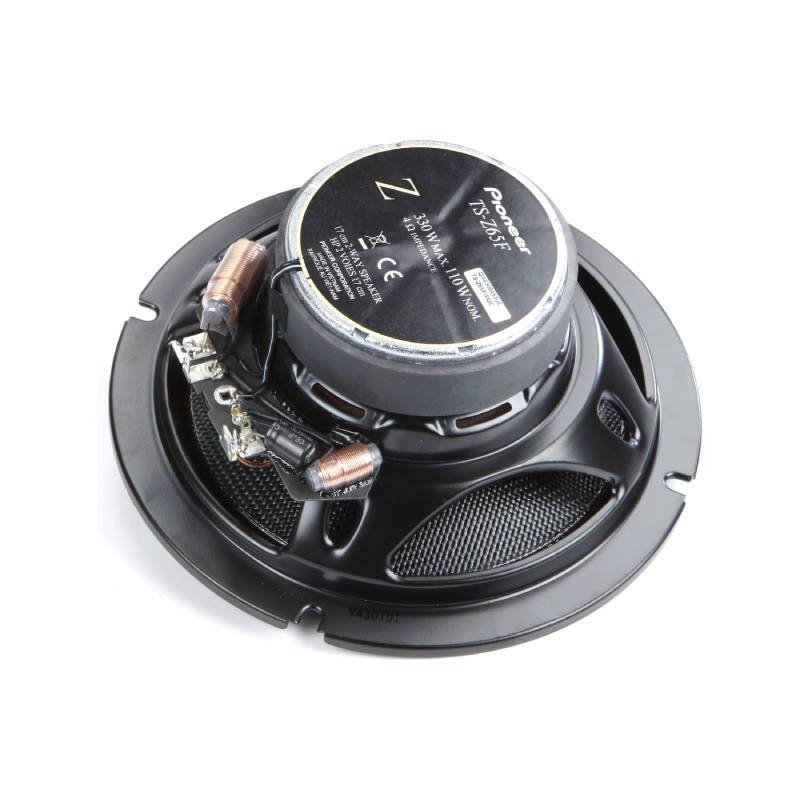

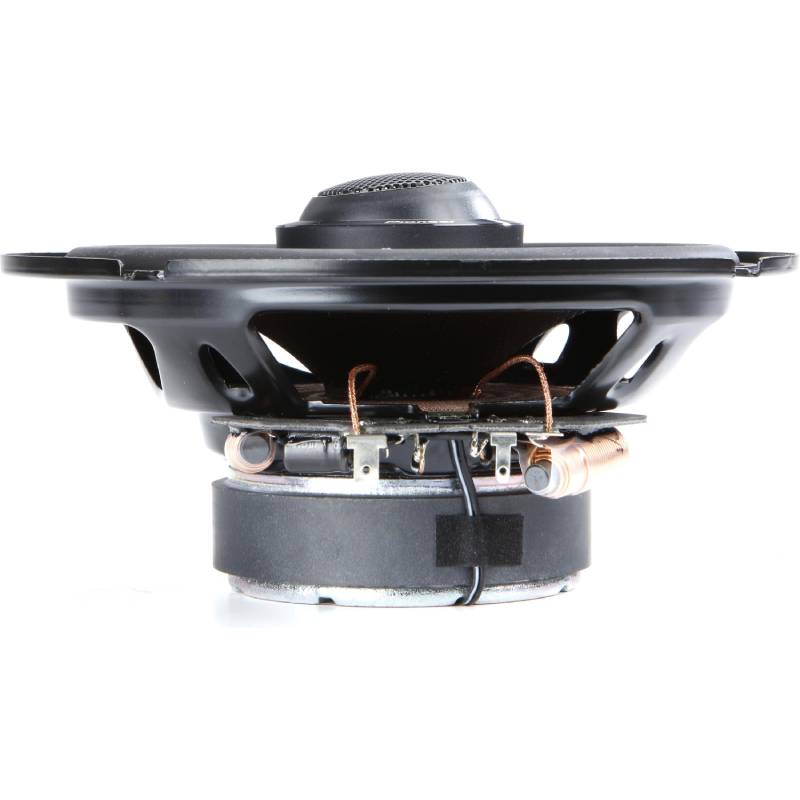

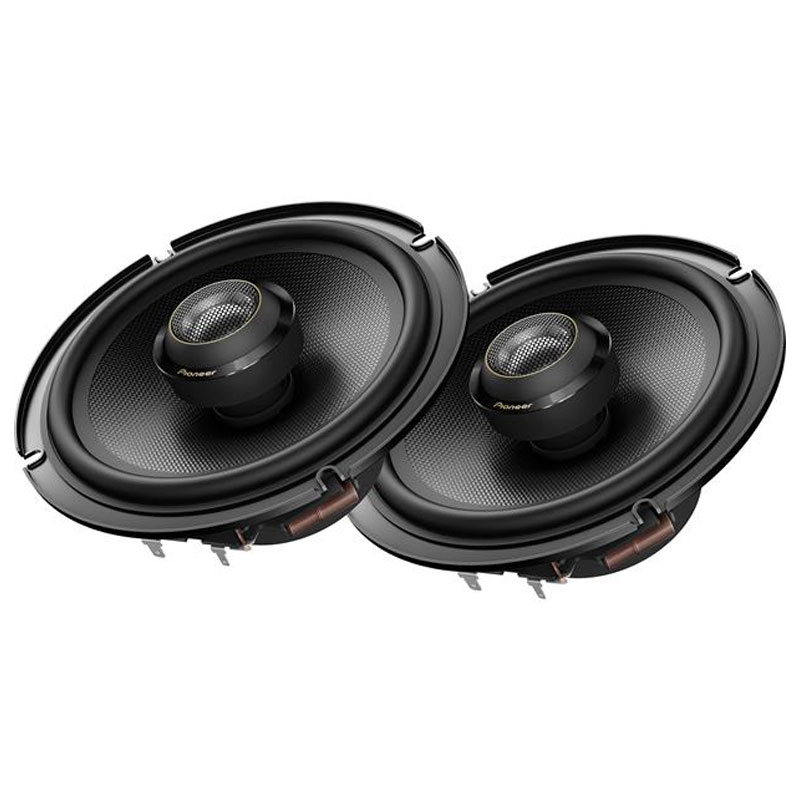

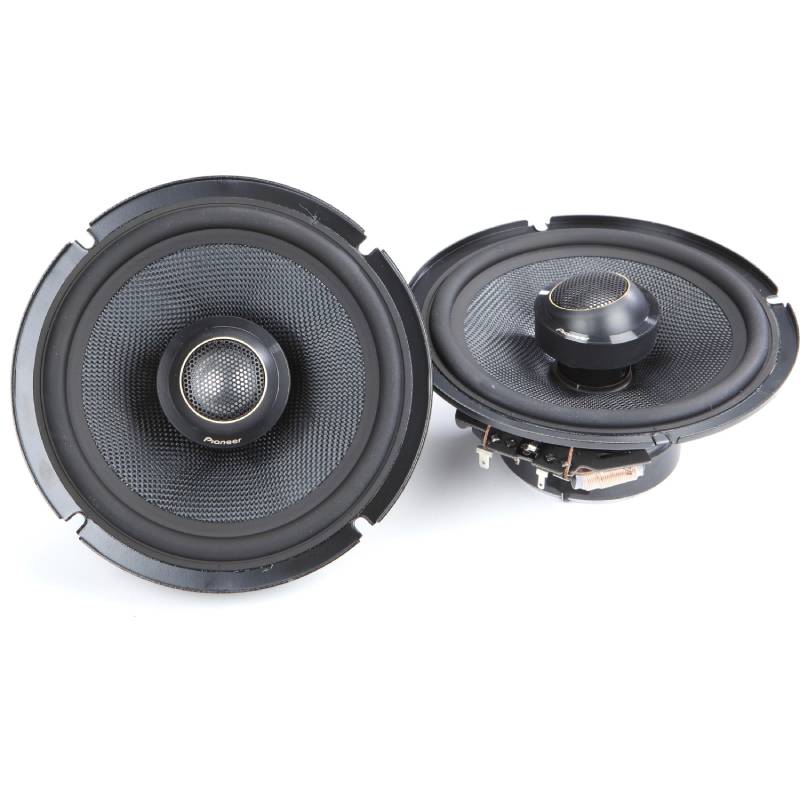

Pioneer TS-Z65F 6.5” 110W RMS (330W Peak Power Handling) 2-Way Coaxial Speakers
Features:
- 29mm Aluminum Alloy Dome Tweeter with Vertex Drive System
- Twaron® Aramid Fiber Construction
- Designed for Hi-Res Audio
- System Type: 2-way Coaxial
- Sound Pressure Level (Sensitivity): 85 dB (+- 1.5dB)
- Frequency Range: 32 Hz to 96 kHz
- Hi-Res Certfied: Yes
- Continuous Power Handling (RMS): 110 Watts
- Maximum Peak Power Handling: 330 Watts
- Nominal Impedance: 4 ohms
- Diameter: 6.5”
- Cone Material: Twaron Aramid Fiber
- Surround Material: Butyl Rubber
- Basket Material: Stamped Steel
- Magnet Material: Ferrite
- Magnet Weight: 11.3 oz
- Mounting Depth: 2.6”
- Type: Balanced Dome
- Diameter: 29mm
- Diaphragm Material: Aluminum
- Magnet Material: Neodymium
- Magnet Weight: 6.4 g
- Swivel Type: Yes
- UPC: 713783829101
- Weight: 38
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
