JL Audio  JD500/1-Bundle3

JL Audio JD500/1 JD Series Class D Monoblock Subwoofer Amplifier + Memphis Audio SRX500.1V SR Series Monoblock Car Amplifier

Item #92657

Product Highlights

  • JL Audio JD500/1 Class D
  • 500W RMS power
  • Compact and efficient
  • powering subwoofers

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

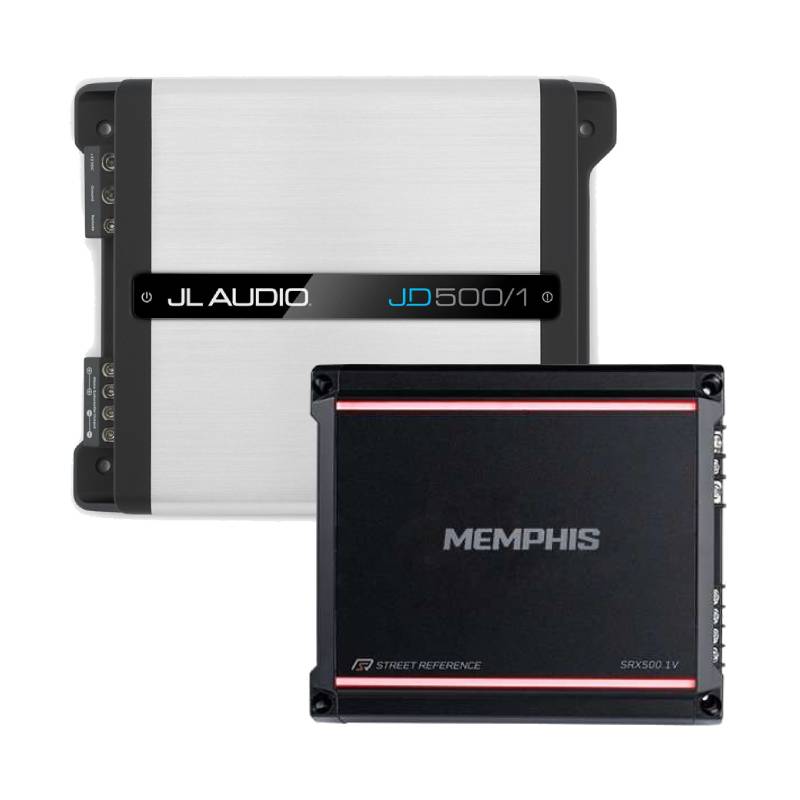

JL Audio JD500/1 JD Series Class D Monoblock Subwoofer Amplifier + Memphis Audio SRX500.1V SR Series Monoblock Car Amplifier


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •JL Audio JD500/1
  • •Memphis Audio SRX500.1V
  • •Owner's Manual

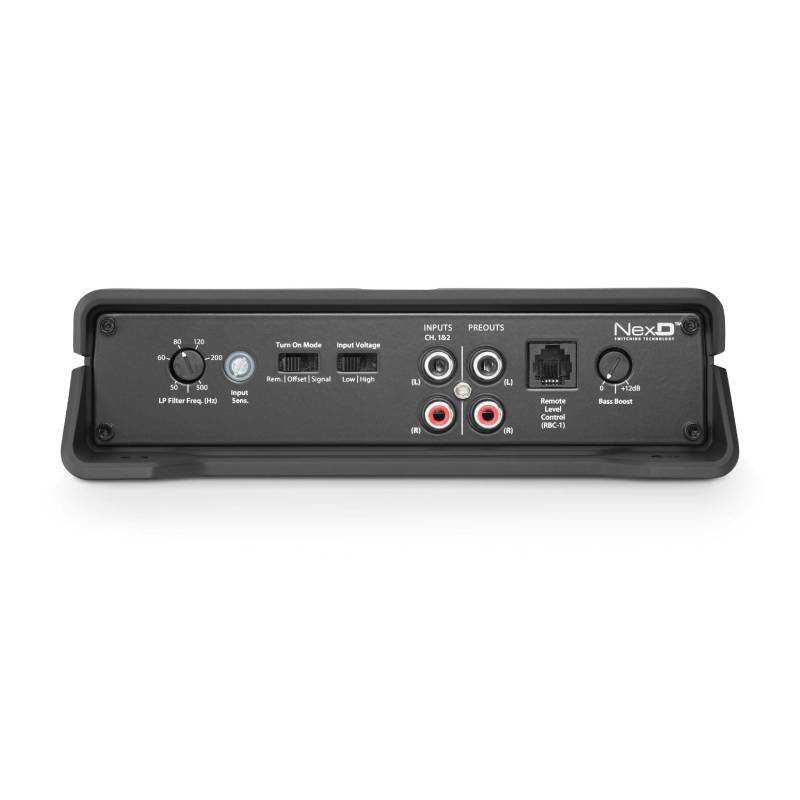

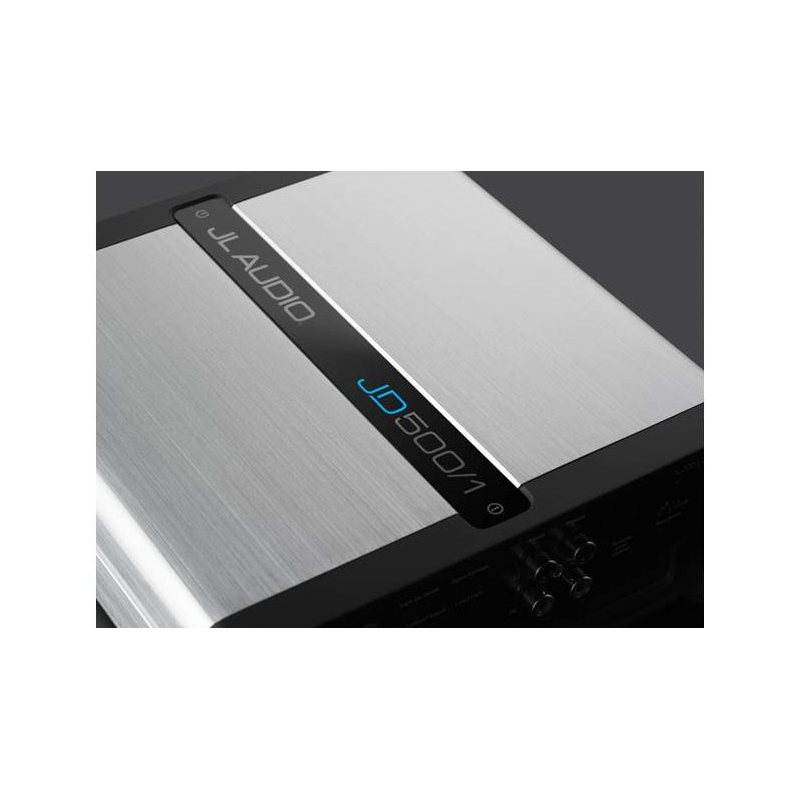

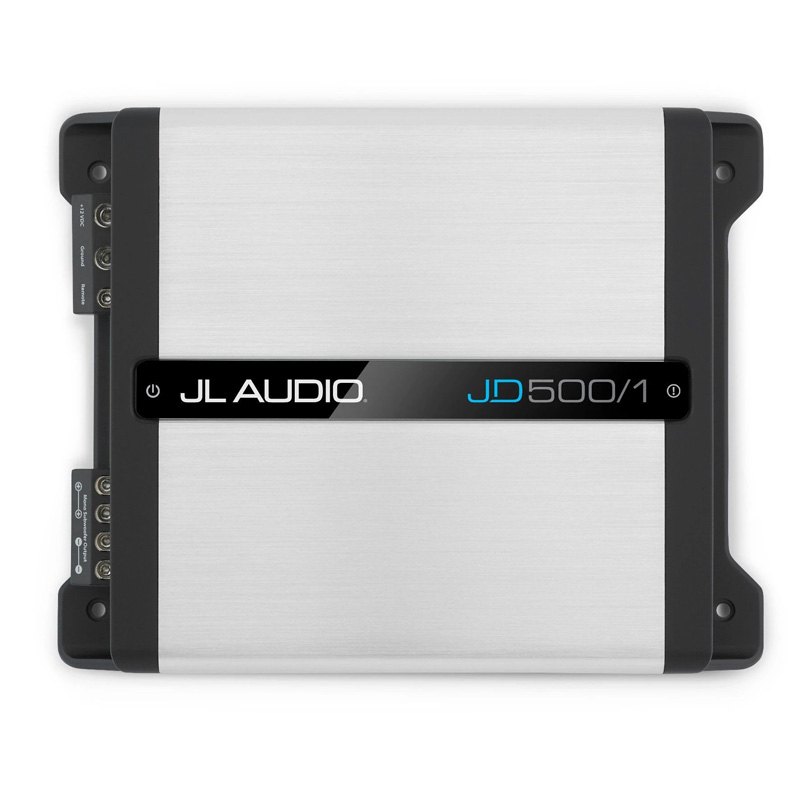

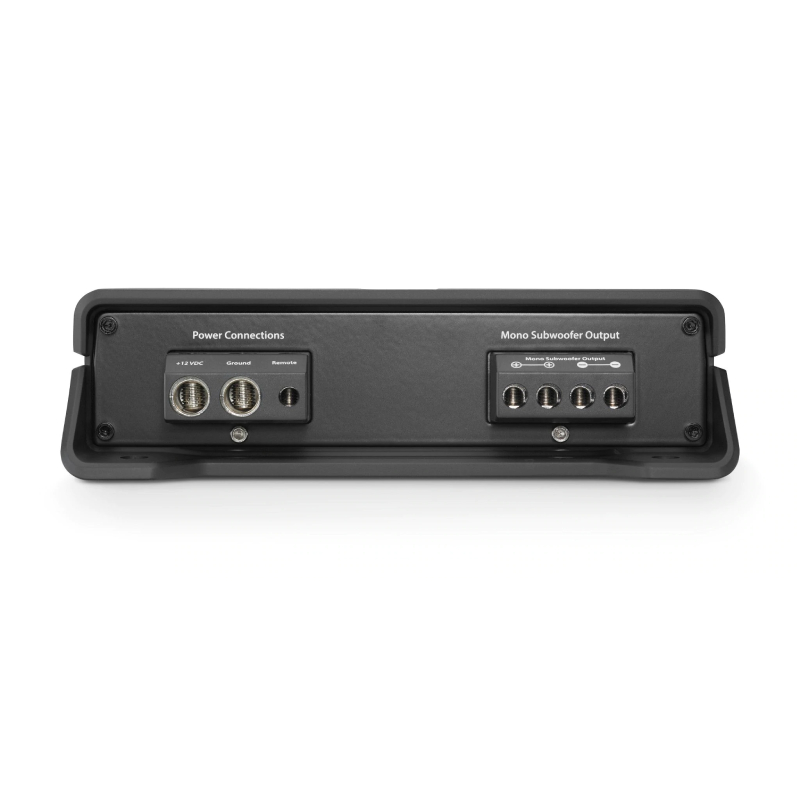

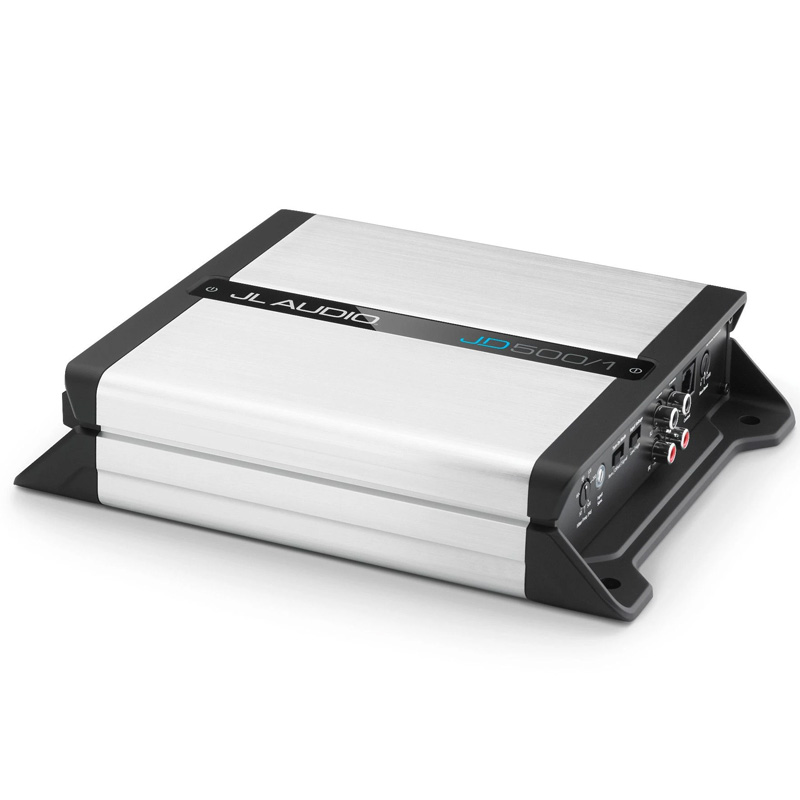

JL Audio JD500/1 JD Series 500W x 1 RMS @2Ohms Class D Monoblock Subwoofer Amplifier





Perfect Subwoofer for your Car's Audio System

Do you have a subwoofer in your car's audio system that is not living up to its potential? It may be time for you to replace your subwoofer's amplifier. The JL Audio JD500/1 is a perfect upgrade option to power up your subwoofer and maximize its capacity to give you the heart-pounding bass that you are looking for.

Nex-D Switching Technology

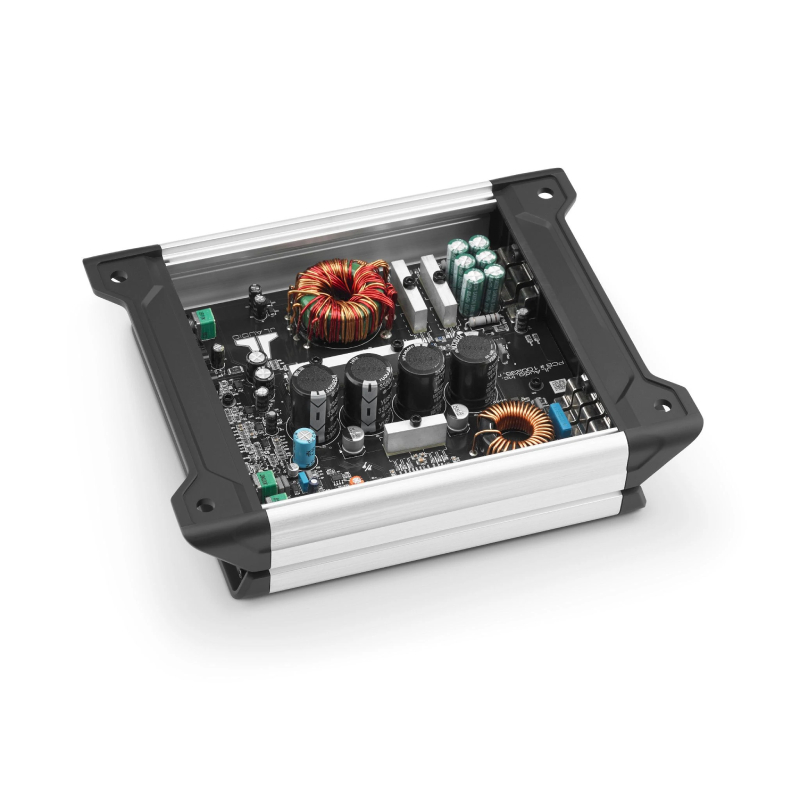

The JL Audio JD500/1 amplifier is equipped with JL Audio's Nex-D Switching technology, which uses a self-oscillating modulator, allowing your amplifier to produce pure bass output and reducing the noise from supply voltage fluctuations. It also comes with Differential-Balanced inputs that were designed to cancel out induced cable noise that is pretty typical with car audio installations.

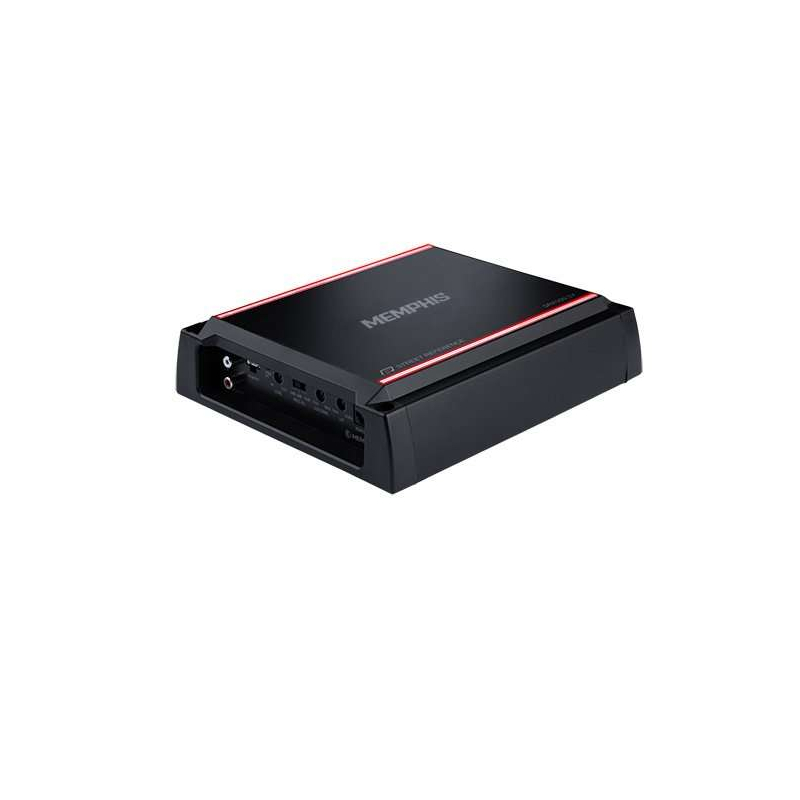

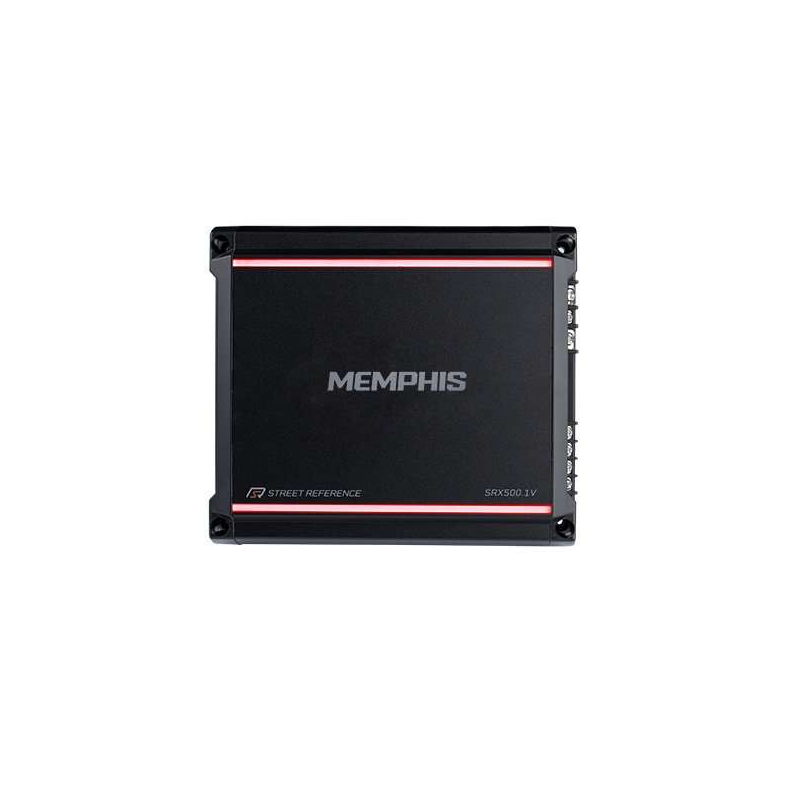

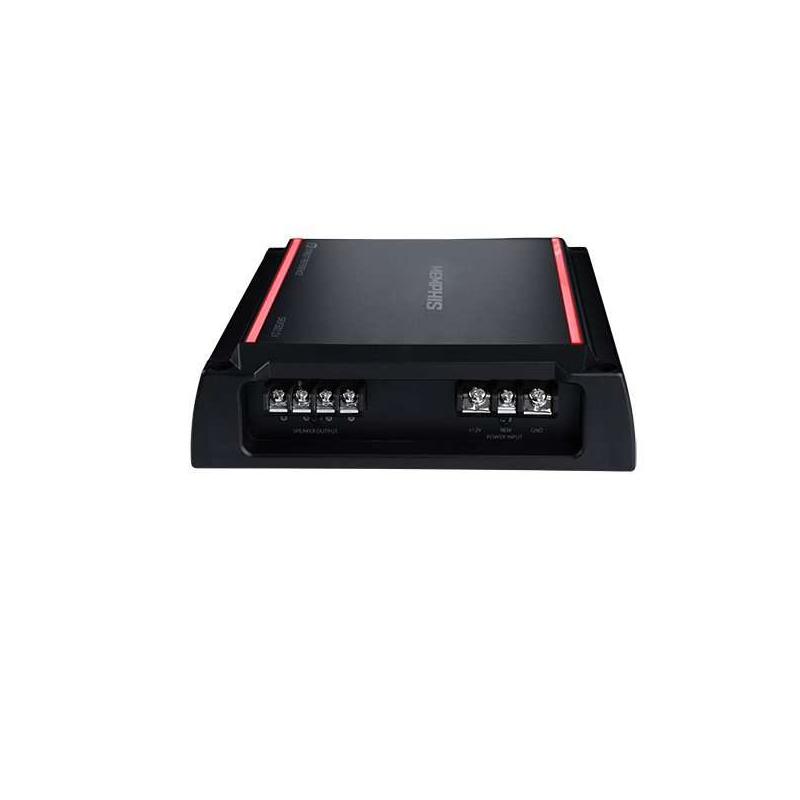

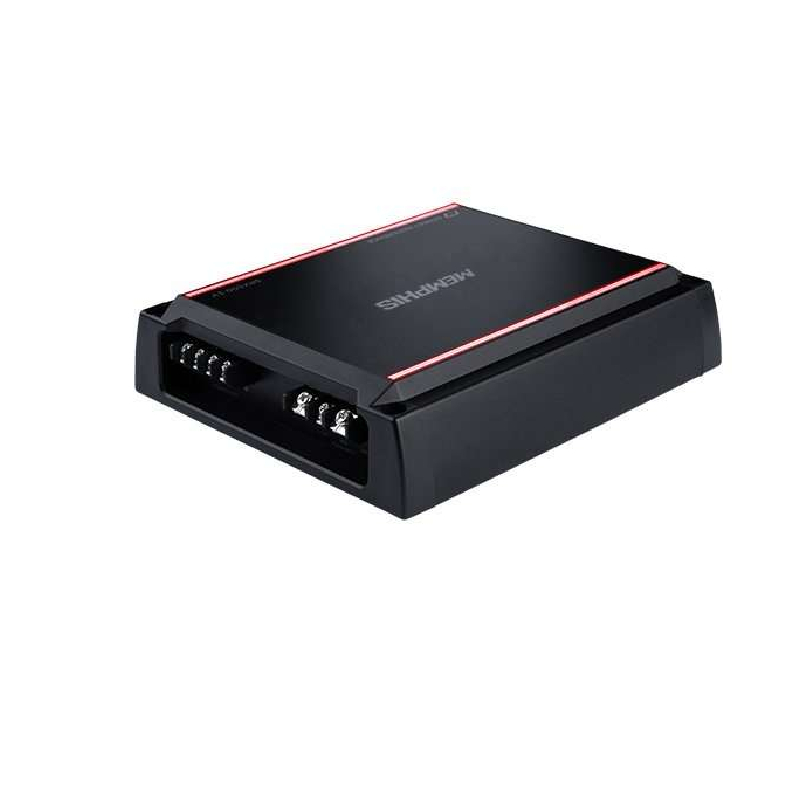

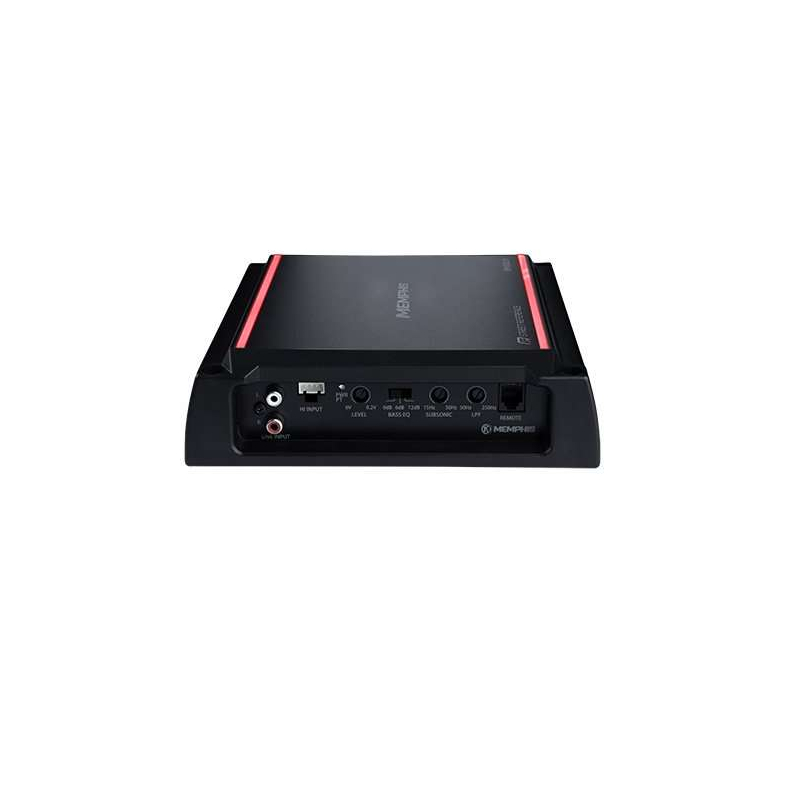

Memphis Audio SRX500.1V SR Series 500Wx1 RMS 2-Ohms AB-Class Monoblock Car Amplifier

Street Reference Amplifiers

This is the ultimate combination of performance, aggressive style and value. These powerhouses are capable of pushing the envelope without breaking the bank. It's the perfect choice for any entry to mid-level system. These amplifiers feature a sleek black aluminum textured finish with a brilliant LED accent.


SPECIFICATIONS



FEATURES


JL Audio  JD500/1 JD Series 500W x 1 RMS @2Ohms Class D Monoblock Subwoofer Amplifier

Features:

Rated Continuous (RMS) Power @ 14.4 V

  • @ 4 ohms: 250 W RMS x 1
  • @ 3 ohms: 350 W RMS x 1
  • @ 2 ohms: 500 W RMS x 1
  • @ 1.5 ohms: N/A



Rated Continuous (RMS) Power @ 12.5 V

  • @ 4 ohms: 225 W RMS x 1
  • @ 3 ohms: 300 W RMS x 1
  • @ 2 ohms: 400 W RMS x 1
  • @ 1.5 ohms: N/A



General Specifications

  • Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
  • S/N Ratio, referred to highest rated power: >80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W: >60 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Damping Factor @ 4 ohms: >1000 / 50 Hz
  • Damping Factor @ 2 ohms: >500 / 50 Hz
  • THD+N @ Rated Power: <1% @ 2 ohms per Ch.
  • Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
  • Min.Copper Power / Ground Wire Gauge: 4 AWG wire
  • Fuse Rating: 50 A (AFS, AGU or MaxiFuse™)



Signal Processing

  • Filter Mode(s): Low-Pass only
  • Filter Slope(s): 12 dB/octave
  • Filter Frequency Range: 50 Hz - 500 Hz
  • Detented, Calibrated Filter Freq. Potentiometer: No
  • Filter Defeat Function: No
  • Infrasonic Filter: No
  • Bass Boost EQ: Yes
  • Output Polarity Switch: No
  • Remote Subwoofer Level Control: Optional (RBC-1)
  • Remote Bass EQ Boost Control: No
  • Pass-Through Preamp Output: Buffered



Physical Specifications

  • Height (H): 2.10 in / 53 mm
  • Width (W): 9.50 in / 242 mm
  • Depth (D): 7.50 in / 190 mm



Memphis Audio  SRX500.1V SR Series 500Wx1 RMS 2-Ohms AB-Class Monoblock Car Amplifier

Features:

  • Textured aluminum heatsink
  • Selectable bass boost
  • Variable crossover network
  • Ultra-bright LED accent light strip
  • Remote level control included
  • Variable subsonic filter
  • RMS Power: 2Ω 500 x 1
  • Frequency Response: 20Hz-250Hz
  • Dimensions: 8.92 x 7.87 x 2.16
  • Recommended AMP Kit: 4GKit
  • Marine Certified: No
  • Amplifier Class: A/B
  • Number of Channels: 1 - Mono
  • Total RMS Power Output: 500 watts
  • Maximum Input Gauge Size: 4 AWG
  • Minimum Impedance Unbridged: 2 ohms
  • Minimum Impedance Bridged: Not Bridgeable
  • THD at Rated RMS Power: 1%
  • Speaker Level Inputs: Yes
  • Preamp Outputs: No
  • Built-in Crossover: Low-Pass (LP) / Subsonic
  • Low-Pass Crossover Frequency: 17 - 250 Hz
  • Subsonic Filter: 15 - 50 Hz
  • Signal-to-Noise Ratio: 98 dB
  • Bass Boost: Selectable 0, 6, and 12 dB @ 45 Hz
  • UPC:
  • Weight: 13
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
