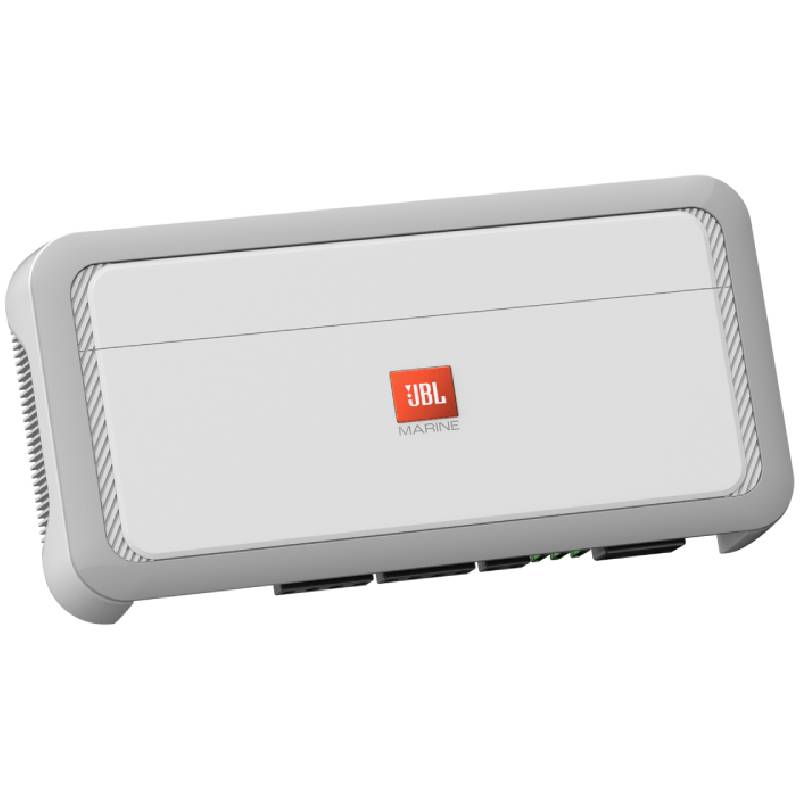

JBL MA5055 CLUB Series 50Wx4 @4Ohms + 500Wx1 @2Ohms, 1600W Max Power Class A/B+D 5-channel Marine Amplifier
We are a JBL authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (1) marine five channel amplifier
- • (4) Bare wire-to-RCA adapters
- • (6) 30A ATO fuses (3 installed, 3 spare)
- • Remote bass control module
- • 16.5' Remote control cable (RJ-25 plugs on both ends)
- • (2) Self-tapping screws for remote (M3 x 15mm)
- • (4) Mounting screws (M4 x 53mm)
- • (2) JBL stickers
- • (1) logo badage
- • Owner's Manual
Unleash Marine Audio Power
The JBL MA5055 CLUB Series amplifier is suitable for powering a marine audio system with multiple speakers and a subwoofer, providing both power and durability for use in marine environments. Also, it is designed to withstand the harsh marine environment, including exposure to water, salt, and UV rays. It typically features corrosion-resistant materials and coatings to ensure longevity in marine applications.
High-Fidelity Sound and Efficiency Combined in One Amplifier
It has five separate channels for powering speakers or subwoofers. The amplifier uses a combination of Class A/B and Class D amplifier technology. Class A/B is known for its high-fidelity sound reproduction, while Class D offers high efficiency and compact size. This combination allows for both high-quality audio performance and efficient power usage.
- Maximum Power : 1400 Watts
- Number of Channels : 5
- Built In Crossovers : Yes
- RMS Power Output : 50x4+500x1 Watts
- Channel Separation : Yes
- Amplifier Class : A/B+D
- Fuse Rating : 30x3 A
Features:
- Compact size
- High and low level input
- Variable crossover and bass boost
- Low noise and distortion
- Input Level Control
- Full on-board protection
- Phase Switch
- RBC wired remote
- Class AB+D amp technology
- Turn-on mode
Specifications:
- 5 channel marine amplifier
- 50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms
- 75 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
- 100 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
- variable high- and low-pass filters: 32-320 Hz, 12 dB/octave
- low-pass filter: 32-320 Hz, 12 dB/octave
- bass boost on subwoofer channel: 0-12dB at 45Hz
- phase switch on subwoofer channel: 0, 180 degrees
- preamp and speaker-level inputs
- fuse rating: 30A x 3
- 4-gauge power and ground leads recommended — wiring and hardware not included with amplifier
- Dimensions: WxHxD=360mm x 51.3mm x 180mm WxHxD=14-3/16” x 2-1/16" x7-1/8”
- UPC: 050036396950
- Weight: 10
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
