JL Audio  M7-12IBC

M7 Series 12" 600W RMS 4 Ohm, Marine Subwoofer Core for Infinite-Baffle Use, Sold Individually

Item #93055

Condition:   Brand New

Product Highlights

  • M7 Series
  • 12" Subwoofer
  • 600W RMS
  • 4 Ohm
  • Marine, Infinite-Baffle Use

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$929.99

Reg. Price $1,029.99  Save $100.00
Special Order Item

Estimated shipping time is 7-10 days. Risk Free

Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for Learn More


JL Audio Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


JL Audio Banner for Onlinecarstereo

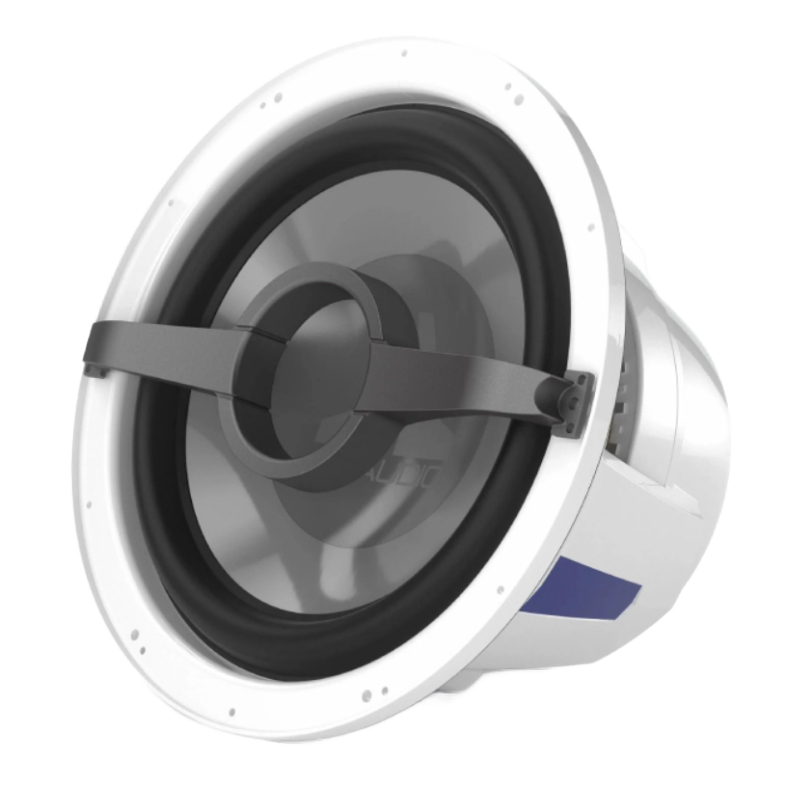

JL Audio M7-12IBC M7 Series 12" 600W RMS 4 Ohm, Marine Subwoofer Core for Infinite-Baffle Use, Sold Individually


We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?





Unleash the Ultimate Marine Audio Experience with Our Subwoofer Engineered for Staggering Bass and Long-Lasting Performance

Experience the ultimate in marine audio with our subwoofer, engineered to deliver staggering bass in infinite-baffle applications without the need for a dedicated enclosure, featuring a massive 4-inch voice coil for exceptional power handling, a rugged suspension system for outstanding linear excursion, and compatibility with amplifiers in the 200W – 600W range, all while requiring a minimum of 3 cu. ft. of air for ideal operation; built to withstand harsh saltwater environments, it promises long-lasting enjoyment and reliable performance for your demanding marine adventures.

  • Diameter : 12 Inch
  • Sensitivity : 86.7 dB
  • Impedance : 4 Ohm
  • RMS Power Range : 600 Watts
  • Color : White

Features:

  • Reference Standard Performance: Engineered to produce staggering amounts of jaw-dropping bass in infinite-baffle applications.
  • Infinite-Baffle Design: Operates without a dedicated enclosure, ideal for versatile marine installations.
  • Massive Voice Coil: Boasts a 4-inch voice coil for exceptional power handling and high output.
  • Rugged Suspension System: Designed for outstanding linear excursion and enhanced durability.
  • Amplifier Compatibility: Best paired with amplifiers in the 200W – 600W range for optimal performance.
  • Large Air Volume Optimization: Requires a minimum of 3 cu. ft. (84.95 liters) of air behind it for ideal operation.
  • Marine-Grade Durability: Built to withstand harsh saltwater environments for reliable performance.
  • Long-Lasting Enjoyment: Designed to deliver years of listening pleasure in demanding marine settings.
  • Subwoofer Core Only: Note that this product includes the subwoofer core only, with the subwoofer grille insert and trim ring sold separately.



Specifications:

  • Continuous Power Handling (RMS): 600 W
  • Nominal Impedance (Znom): 4 ohms
  • Nominal Diameter: 12.00 in / 300 mm
  • Overall Diameter: 14.00 in / 356 mm
  • Bolt Hole Circle Diameter: 12.813 in / 325 mm
  • Frontal Grilles Protrusion*: 1.48 in / 38 mm
  • Mounting Hole Diameter: 12.0625 in / 306 mm
  • Mounting Depth: 7.94 in / 202 mm
  • Driver Displacement: 0.148 cu ft / 4.19 L
  • Net Weight: 25.35 lbs / 11.5 kge
  • Free Air Resonance (Fs): 35.34 Hz
  • Electrical “Q” (Qes): 0.856
  • Mechanical “Q” (Qms): 10.389
  • Total Speaker “Q” (Qts): 0.791
  • Equivalent Compliance (Vas): 1.99 cu ft / 56.35 L
  • One-Way Linear Excursion (Xmax)*: 0.73 in / 18.5 mm
  • Reference Efficiency (no): 0.28%
  • Efficiency (1 W / 1 m)**: 86.7 dB SPL
  • Effective Piston Area (Sd): 80.54 sq in / 0.052 sq m
  • DC Resistance (Re): 3.543 ohms
  • Infinite Baffle Use: Yes (preferred)
  • Min. Sealed Enclosure Volume: 2.0 cu ft / 56.6 L (or larger)
  • Optimum Sealed Enclosure Volume: 3.0 cu ft / 70.8 L
  • UPC: 699440929943
  • Weight: 25.35
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
