Alpine DM-65C-G DM Series 6.5" 50W RMS (200W Peak Power Handling) 4 Ohms, 2-Way Car Component System with Two Teteron Dome Tweeters (Speaker Grilles Included)
We are an Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

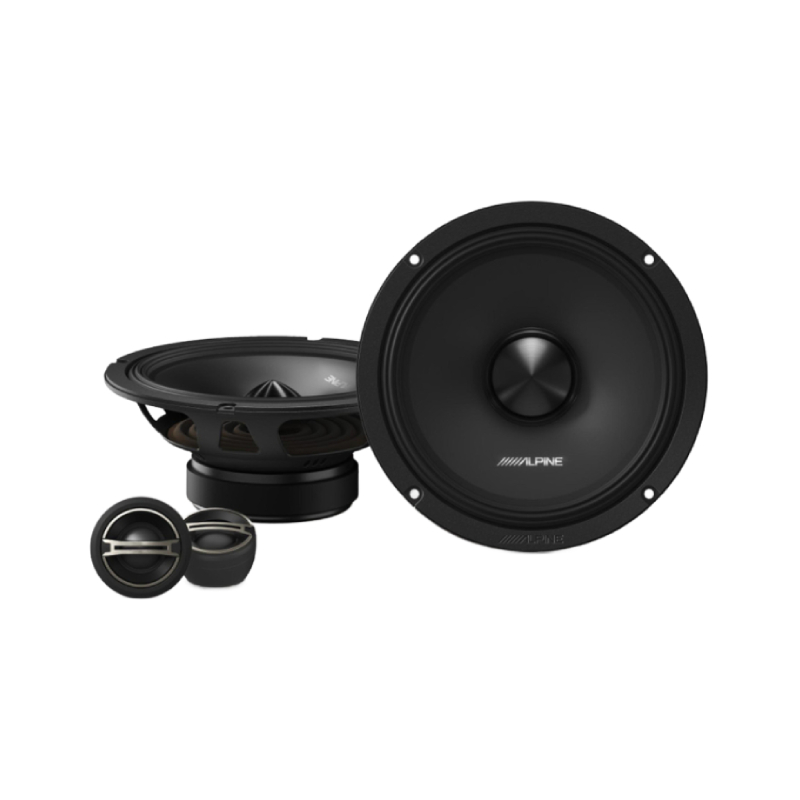

What's Inside?

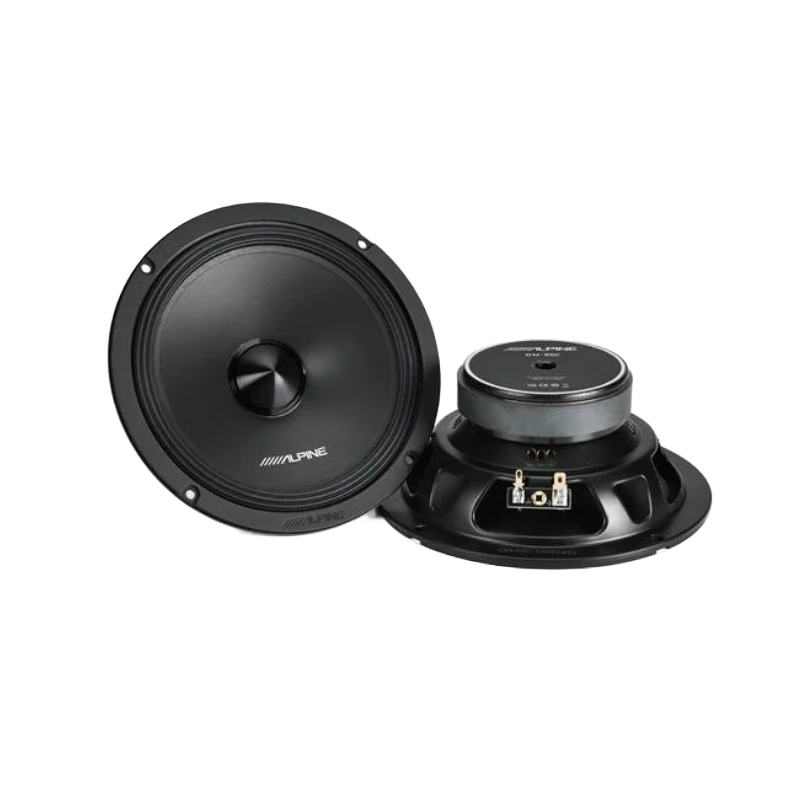

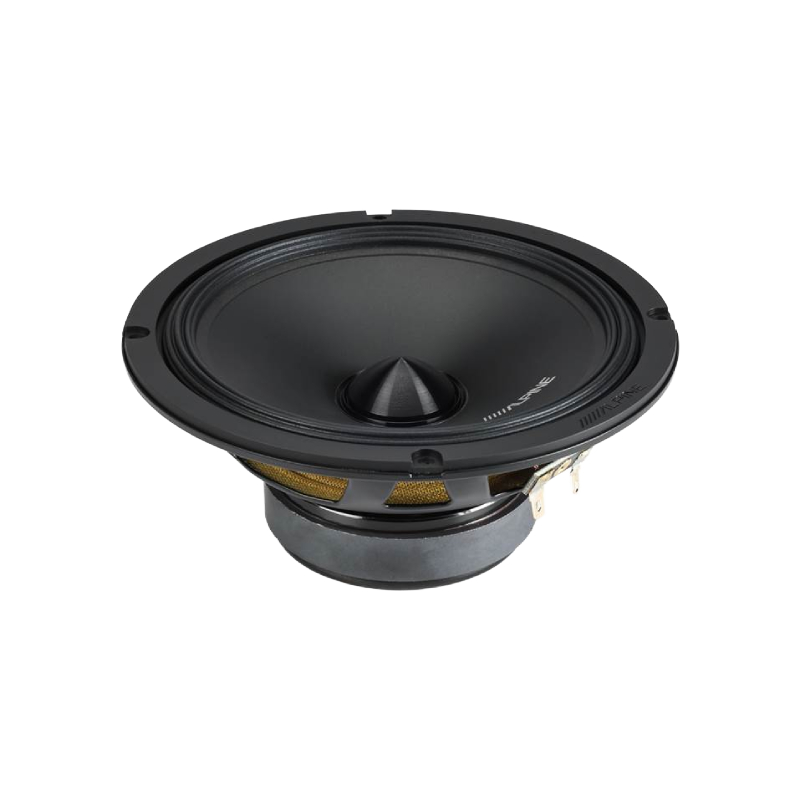

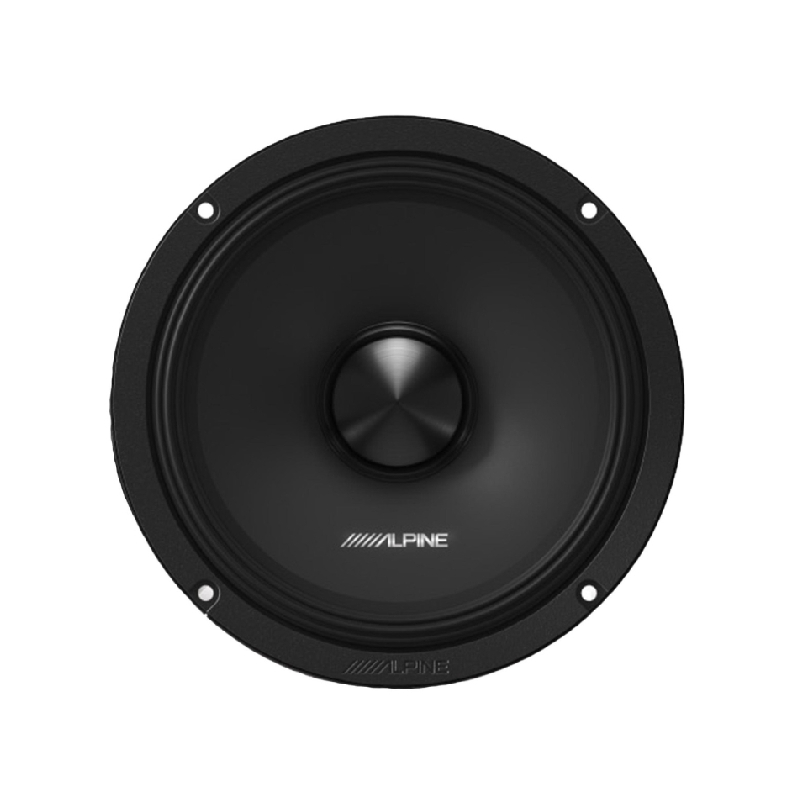

- • (2) Woofers

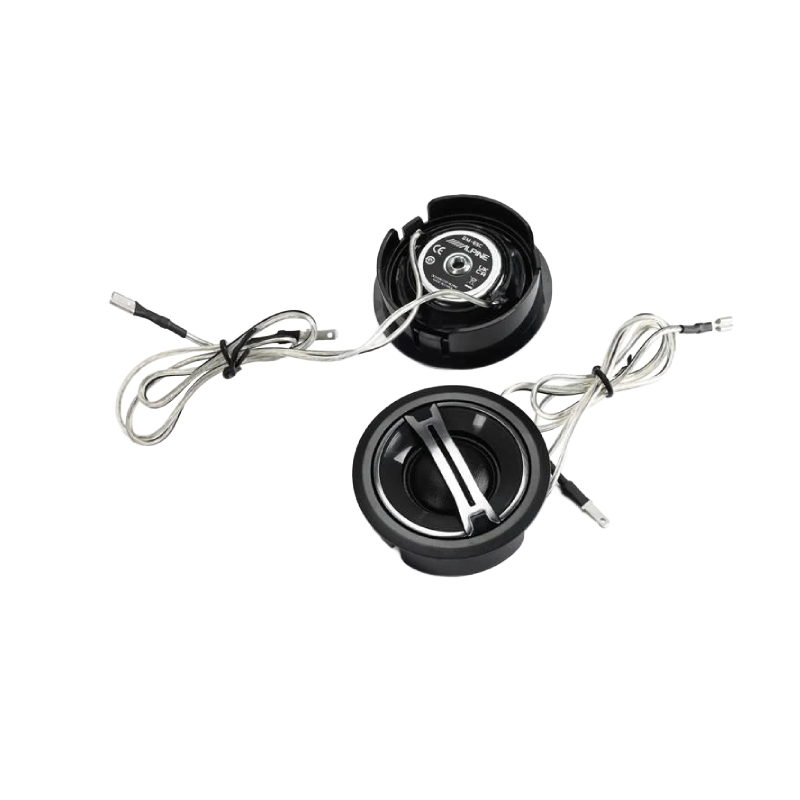

- • (2) Tweeters (each with an 11" length of wire attached)
- • (2) Flush mount housings (with tweeters installed)

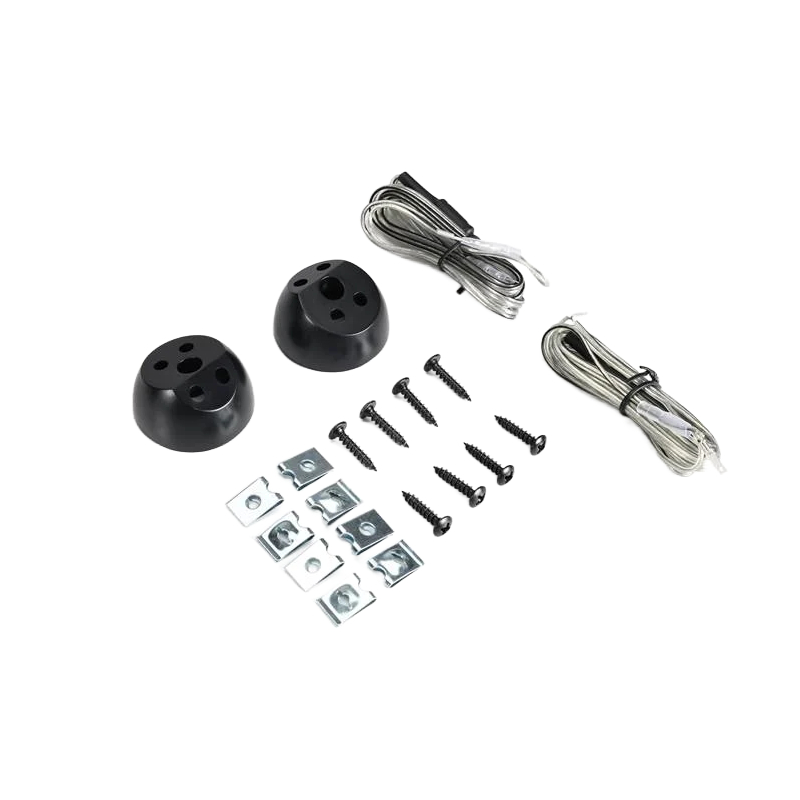

- • (2) Angled surface mount housings
- • (2) 56" Tweeter wires with in-line crossovers (each with quick slides on one end to attach the tweeters)
- • (4) Self-adhesive foam pads
- • (8) 3/4" Screws
- • (2) M4x8mm Machine screws
- • (8) Speed clips
- • (2) Grilles
- • (2) Grille frames
- • Grille putty
- • Specs on box
- • Owner's Manual
Why Choose Alpine DM-65C-G Component System?
Powerful Sound for Your Ride
Boost your car's sound with the 6.5-inch Alpine DM-65C-G Component Speaker Set! Enjoy clear highs and deep bass with the durable polypropylene woofer and Tetoron dome tweeter. With great sensitivity and the ability to handle up to 200W of power, these speakers provide powerful sound that’s perfect for any drive. The sleek black steel mesh grilles not only look great but also protect your speakers. Easy to install, they’ll quickly bring an exciting upgrade to your car’s audio system!
Clear Sound with Easy Installation
Upgrade your sound with the Alpine DM-65C-G 6.5" Speakers! Enjoy balanced audio, smooth highs, and clear vocals with 200W peak power. Easy to install with in-line filters and built to last with rubber surrounds and injection-molded bass diaphragms. Grilles included for added protection and style!
Durable Speakers with Protective Grilles
Built with a rubber surround and injection-molded bass diaphragm, these speakers offer long-lasting performance. Included grilles provide added protection while giving your installation a clean, professional appearance.
Frequently Asked Questions (FAQ)
- • Will these component speakers fit my factory door speaker locations?
They are designed to fit many vehicles, but available mounting depth and speaker opening size should always be verified before installation. Measuring your factory speaker locations helps avoid fitment issues and additional modifications.
- • Why do the tweeters sound too harsh after I installed them?
This usually happens because the tweeters are aimed directly at the listening position or the treble settings are too aggressive. Repositioning the tweeters and making small equalizer adjustments often results in a smoother, more balanced sound.
- • How do the included M4x8mm machine screws function during the layout installation?
These specialized short machine screws are intended to anchor the back of the flush mount housings securely into custom panel setups. They lock the inner structural housing ring tightly against the backside of your dashboard face to stop the tweeter from shaking free.
- • Why isn't one of the tweeters producing any sound?
A loose wire, incorrect crossover connection, or installation mistake is the most common cause of this issue. Inspecting all wiring and verifying the in-line crossover connections usually restores normal operation.
- • Can I mount the tweeters on the dashboard instead of the doors?
Yes, the included flush-mount and angled surface-mount housings provide multiple installation options for different vehicle interiors. Proper tweeter placement improves stereo imaging and creates a more realistic listening experience.
- • Why do the speakers distort when I raise the volume?
Distortion is often caused by amplifier clipping, excessive bass or treble boost, or gain settings that are too high. Proper amplifier tuning and balanced equalizer settings usually eliminate the problem.
- • Can I add a subwoofer later without replacing these speakers?
Yes, these speakers work very well as part of a larger audio system with a dedicated subwoofer. Adding a subwoofer improves deep bass while allowing the component speakers to focus on clean midrange and high-frequency reproduction.
- • Why do my door panels vibrate more after upgrading the speakers?
The increased output from the new speakers can cause factory door panels and trim pieces to resonate more than before. Installing sound-deadening material and securely fastening loose panels significantly reduces unwanted vibrations.
- • Why do the quick slide connectors on the long extensions feel loose when pushed onto the tweeter leads?
The quick slides are keyed explicitly to match the corresponding male terminal widths to ensure the audio signals remain perfectly in phase. If the connection feels loose, make sure you are not forcing the larger tab onto the narrower terminal blade.
- • Can I skip using the 56-inch wire extensions and connect the tweeters straight to the woofer cables?
No, the short 11-inch leads attached directly to the tweeters are completely raw and contain no acoustic filtering. You must route through the 56-inch extension cables because bypassing their built-in in-line crossovers will instantly burn out the delicate 20mm domes.
- Diameter : 6.5 Inch
- Sensitivity : 92 dB
- Frequency Response : 65-20000 Hz
- Peak Power Handling : 200 Watts
- Woofer Composition : Polypropylene
- Tweeter Composition : Tetoron
- RMS Power Handling : 50 Watts
Features:
- Efficient Sound Performance: Peak power of 200W and 92dB sensitivity for reliable, balanced sound.
- Improved Listening Experience: Tedoron tweeter diaphragm and Neodymium magnets for smooth highs and clear vocals.
- Easy Installation: Tweeters include in-line filters for hassle-free setup.
- Durable Build Quality: Rubber surround and injection-molded bass diaphragm for long-lasting performance.
- Included Grilles: Grilles included for added protection and sleek look.
Specifications:
- Speaker Size: 6.5 inches
- Driver Design: 2-way
- Woofer Design: Cone
- Woofer Material: Polypropylene
- Woofer Surround: Rubber
- Tweeter Design: 20mm Dome
- Tweeter Material: Tetoron
- Impedance: 4 ohms
- Weather-resistant: No
- Grilles Included: Black steel mesh with a plastic frame
- Sensitivity: 92 dB (1W at 1 meter)
- Frequency Response: 65 - 20k Hz
- Maximum RMS Wattage: 50W
- Peak Power Handling: 200W
- Top Mount Depth: 2.5625 inches
- Bottom Mount Depth: 2.75 inches
- Cutout Diameter: 5.5625 inches
- Mounting Height: 0.27 inches
- Frame Width: 6.505 inches
- Frame Length: 6.505 inches
- UPC: 793276001832
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
