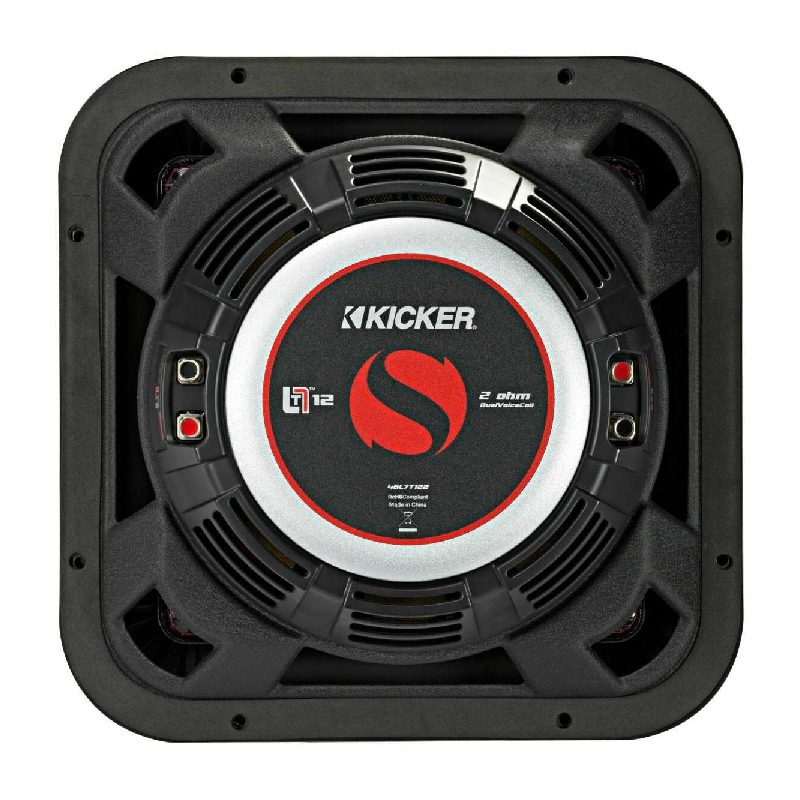

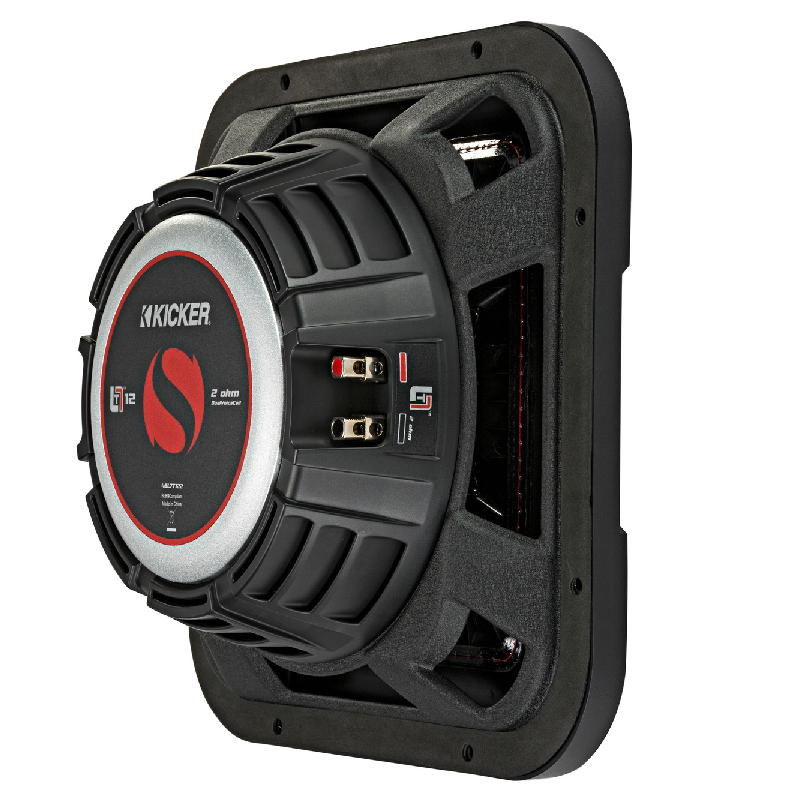

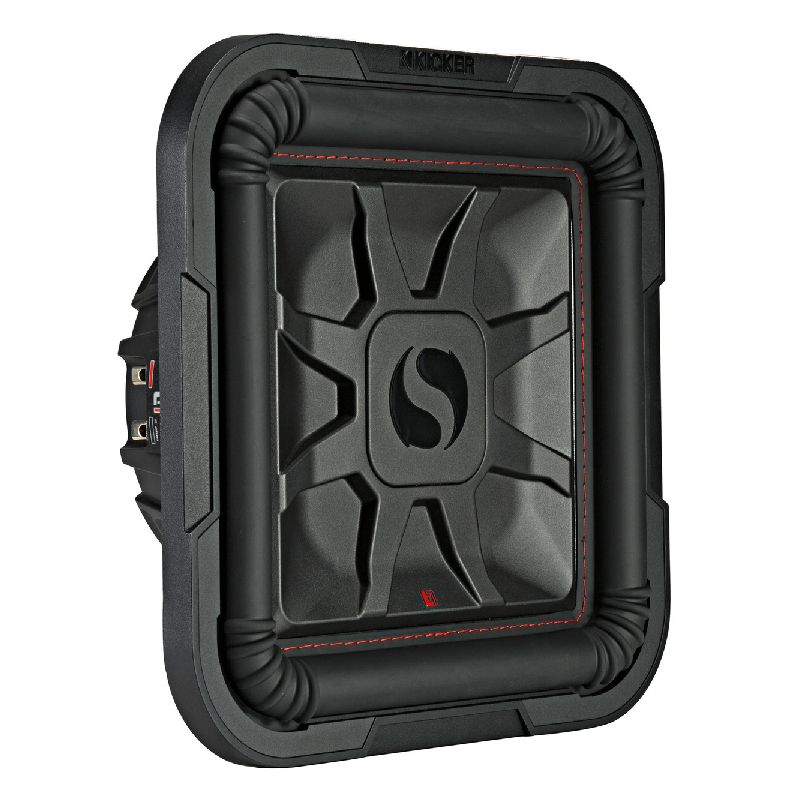

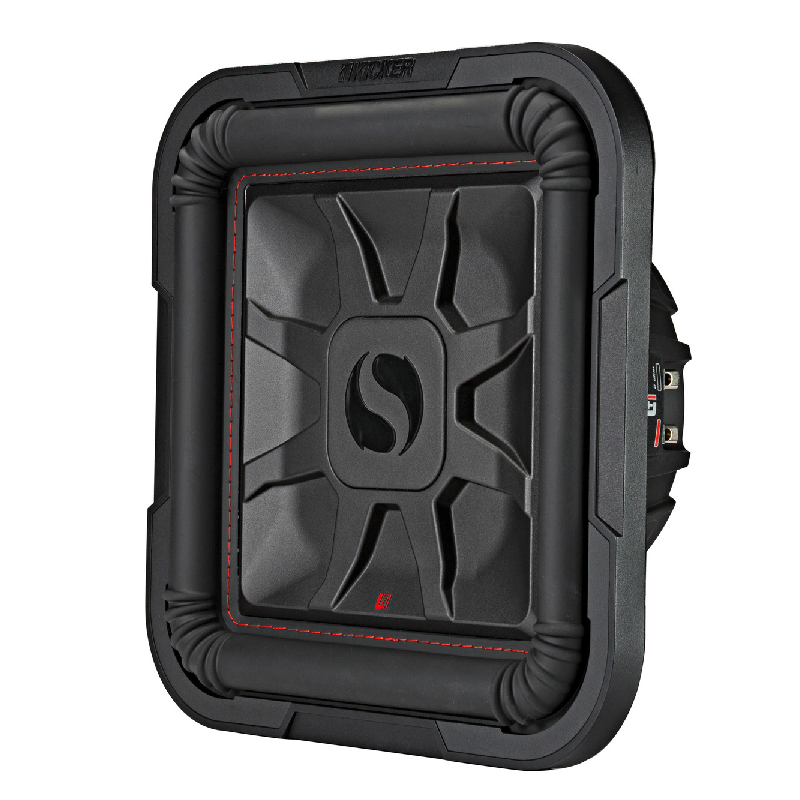

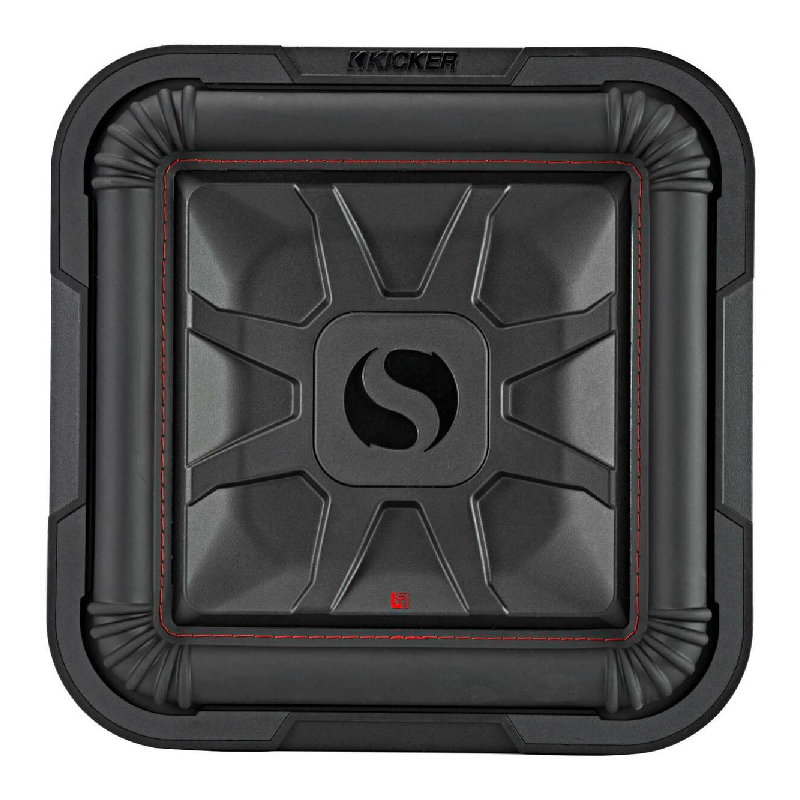

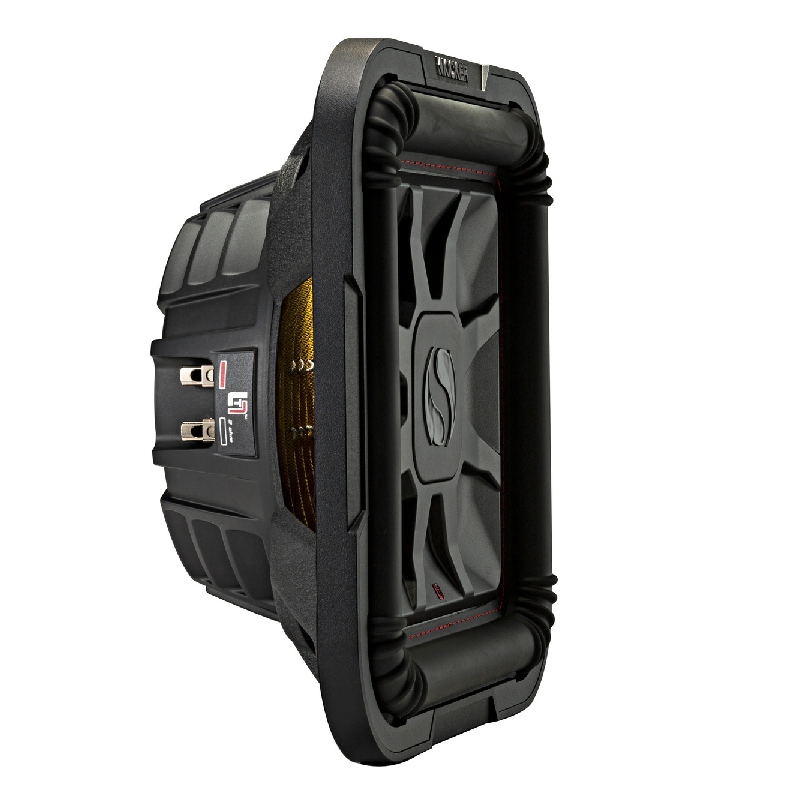

Kicker 46L7T122 L7T Series 12" 600W RMS (1200W Peak Power Handling) 2 Ohms, Dual Voice Coil Shallow Mount Component Car Subwoofer
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 12" L7T Series Dual Voice Coil Component Car Subwoofer
- • (4) Adhesive backed hardware covers
- • Hardware cover installation instructions
- • (2) Kicker decals
- • Template on box lid
- • Owner's Manual
Why Choose Kicker 46L7T122 Component Car Subwoofer?
Compact Design, Maximum Bass Impact
Unlock powerful low-end performance with dual 2Ω voice coils for flexible wiring and optimal amplifier matching, a square sub design that moves more air for deeper bass than traditional round drivers, and a thin-mount profile just 4-1/8" deep—perfect for tight spaces like under seats, behind panels, or in compact trunks.
Engineered for Deep, Accurate Bass
Experience consistent, powerful low frequencies with a ribbed Santoprene surround that resists heat and stress for smooth, precise cone movement, while a bumped top plate allows extra cone excursion for deeper, more impactful bass without sacrificing performance at high volumes.
Reinforced Design for Consistent, Powerful Bass
Enjoy precise, distortion-free low frequencies with a SoloKon™ cone featuring 360° back bracing that minimizes flex, while the UniPlate solid pole piece and backplate enhance heat dissipation for cooler, more reliable performance under heavy loads.
Frequently Asked Questions (FAQ)
- • Will this shallow-mount subwoofer fit under my truck seat?
Many users choose it for under-seat installations because of its shallow mounting depth. Always measure your available space before installation.
- • Why does it sound weak after installation?
Weak bass is often caused by incorrect amplifier settings or an improperly sized enclosure. Check the gain, crossover, and enclosure specifications.
- • Can I use this in a sealed enclosure?
Yes. It is designed to perform well in compact sealed enclosures when built to the recommended specifications.
- • Why is there a rattling noise when the bass gets loud?
Rattling often comes from loose enclosure panels, vehicle trim pieces, or mounting hardware. Inspect the installation before assuming the subwoofer is damaged.
- • Does this require a powerful amplifier?
It performs best with an amplifier that matches its RMS power rating. Using too little or too much power can affect performance.
- • Why does the amplifier go into protection mode when playing bass?
This can happen because of incorrect wiring, low impedance, or amplifier overheating. Verify the wiring configuration and amplifier compatibility.
- • Can I wire the voice coils in different configurations?
Yes. The dual voice coil design allows multiple wiring options depending on your amplifier requirements.
- • Why does the subwoofer smell hot after extended use?
A hot smell can indicate amplifier clipping or excessive power. Reduce the gain and check your system tuning.
- • Can this produce deep bass despite its shallow design?
Yes. Many users choose it because it delivers strong low-frequency performance in limited mounting spaces.
- • Can this subwoofer be mounted in a custom fiberglass enclosure?
Yes. It is commonly used in custom shallow enclosures as long as the enclosure volume meets the recommended specifications.
- Diameter : 12 Inch
- Sensitivity : 86.54 dB
- Impedance : 2 Ohm
- Frequency Response : 25-100 Hz
- Peak Power Handling : 1200 Watts
- Shallow Mount : Yes Inch
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : 0.55-1.25 Cubic ft.
- Suggested Ported Box Volume : 1.75-2.25 Cubic ft.
- Mounting Depth : 4-1/8 Inches
- RMS Power Handling : 600 Watts
Features:
- Dual 2Ω Voice Coils: Flexible wiring options allow for series or parallel configurations, making it easy to match your amplifier for optimal performance.
- Square Sub Design: Maximizes cone surface area, moving more air and delivering more low-frequency output compared to round drivers, even in constrained spaces.
- Thin-Mount Profile: With only 4-1/8" (10.5 cm) mounting depth, this sub fits where traditional subs won’t, such as under seats, behind panels, or in tight trunk locations.
- Ribbed Santoprene Surround: Heat- and stress-resistant material ensures the surround maintains its shape over time, allowing for smooth, linear cone movement and precise bass reproduction.
- Bumped Top Plate: Provides additional cone excursion for deeper, more powerful low-frequency output while maintaining smooth performance at high volume levels.
- SoloKon Cone with 360° Back Bracing: Reinforced cone structure reduces flex and distortion for accurate and consistent bass across the frequency spectrum.
- UniPlate Solid Pole Piece & Backplate: Advanced motor design improves heat dissipation, allowing the subwoofer to run cooler under heavy loads and maintain reliability.
- Durable Steel Basket: Rigid frame minimizes vibration and resonance, providing a solid foundation for accurate, distortion-free sound reproduction.
- Sealed or Ported Box Compatibility: Optimized for versatile installation and tuning, allowing you to customize bass response for either tight, controlled low-end (sealed) or maximum output and extended lows (ported).
Specifications:
- Size: 12-inch (30 cm)
- Impedance: 2 Ohm DVC
- Recommended Amplifier Power: 600 W RMS
- Peak Power Handling: 1200 W
- Sensitivity: 86.54 dB (1 W / 1 m)
- Frequency Response: 25 – 100 Hz
- Mounting Depth: 4-1/8" (10.5 cm)
- Mounting Cutout, Square: 11-1/16" (28.1 cm)
- Sealed Box Volume: 0.55 – 1.25 cu. ft. (15.6 – 35.4 L)
- Vented Box Volume: 1.75 – 2.25 cu. ft. (49.6 – 63.7 L)
- UPC: 713034085829
- Weight: 17.2
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
Big fan of Kicker subs. Had an L5 years back. Right now, I've hooked up the L7 with the Alpine mono amp I copped months ago, and it's doing work. Crafted a custom box for it. This thing pounds when I blast the volume, but it also keeps it real at lower volumes. Perfect for my music vibe.
