Kenwood Excelon  X803-5

X Series 5-Channel 75W RMS x 4 at 2-Ohms + 5th Channel 500W RMS x 1 at 2-Ohms, Class-D Full Range Car Amplifier with Wired Remote Control

Item #94517

Condition:   Brand New

Product Highlights

  • X Series Car Amplifier
  • 5 Channel Class D Power
  • 75W RMS x4 at 2 Ohms
  • 500W RMS Sub Channel
  • Wired Remote Control Included

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$499.00

Reg. Price $570.00  Save $71.00

Out of Stock Check out other products listed below
Kenwood Excelon Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Kenwood Excelon Banner

Kenwood Excelon X803-5 X Series 5-Channel 75W RMS x 4 at 2-Ohms + 5th Channel 500W RMS x 1 at 2-Ohms, Class-D Full Range Car Amplifier with Wired Remote Control


We are a Kenwood Excelon authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 5-Channel amplifier (3 installed 30A mini-ATC fuses)
  • • 7" Speaker-level input harness
  • • Remote level controll
  • • 19.5' Remote level control cable (RJ-14 connectors on both ends)
  • • Hex nut
  • • Flat washer
  • • (4) 1/2" screws
  • • (2) Allen keys (4mm & 2.5mm)
  • • Warranty information
  • Owner's Manual
Unleash Powerful Sound with the X803-5 Amplifier

Experience powerful, high-quality sound with the X803-5 amplifier. With 1600W of maximum power and customizable features like bass boost and adjustable filters, it lets you fine-tune your audio for the perfect listening experience. The wired remote makes it easy to control the volume, while its sleek, compact design ensures a simple, clean installation. The X803-5 is the ultimate choice for amazing sound in any setup.

Elevate Your Sound with Immersive High-Resolution Audio and Advanced Technology

Dive into rich, high-resolution audio that goes beyond CD quality, capturing every detail of your music with deep lows and crisp highs, while magnetic-shielded output coils and high-quality capacitors reduce distortion for an incredibly clear and immersive sound experience.

Effortless Installation and Easy Control with Secure Connections

Enjoy a hassle-free installation with gauge-style terminals for a secure connection, one-side terminals for a cleaner setup, and a speaker level input harness for easy integration with factory receivers. Plus, the included wired level control lets you adjust the subwoofer volume with ease.


SPECIFICATIONS


  • Maximum Power : 1600 Watts
  • Number of Channels : 5
  • Frequency Response : 20-50000 Hz
  • Amplifier Class : D
  • Fuse Rating : 3x30 A

FEATURES


Features:

  • Rich and Immersive High-Resolution Audio: Exceeds CD quality to capture and express every detail of your favorite music with ultra-high and low frequencies for a truly immersive sonic experience.
  • Output Coil with Magnetic Shield: Prevents magnetic flux from radiating, reducing noise and enhancing overall sound quality.
  • High-Quality Capacitors: PMLCAP (Polymer Multi-Layer Capacitors) in the LC filter circuits reduce distortion, ensuring a clear and accurate sound.
  • Gauge-Style Terminals: Securely locks wires into position with a set screw for a firm and reliable installation.

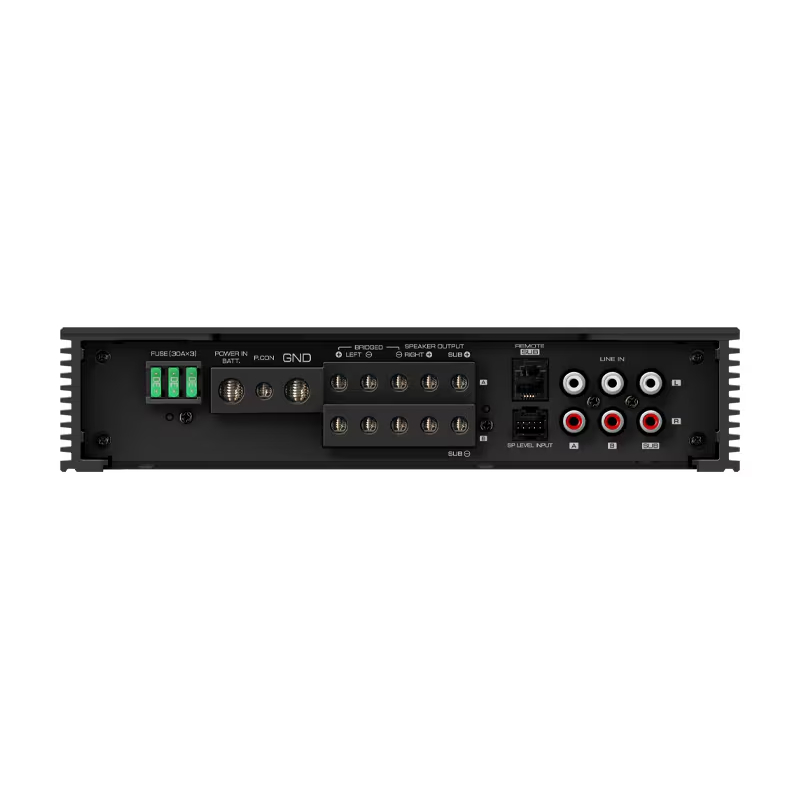

  • One-Side Connection: All terminals and connections are located on one side, simplifying installation and providing a cleaner, more organized setup.
  • Speaker Level Input Harness: Includes a harness to connect directly to speaker wires from factory-installed receivers for easy integration.
  • Wired Level Control Included: Allows for convenient adjustment of the subwoofer volume.



Specifications:

  • Model: X803-5
  • Maximum Power Output: 1600W
  • RMS Power Output (4Ω): 50W x 4 + 300W
  • RMS Power Output (2Ω): 75W x 4 + 500W
  • RMS Power Output Bridged: 150W x 2 (Bridged) + 300W
  • Speaker Level Input: Yes
  • Signal Sensing Turn-On: Yes

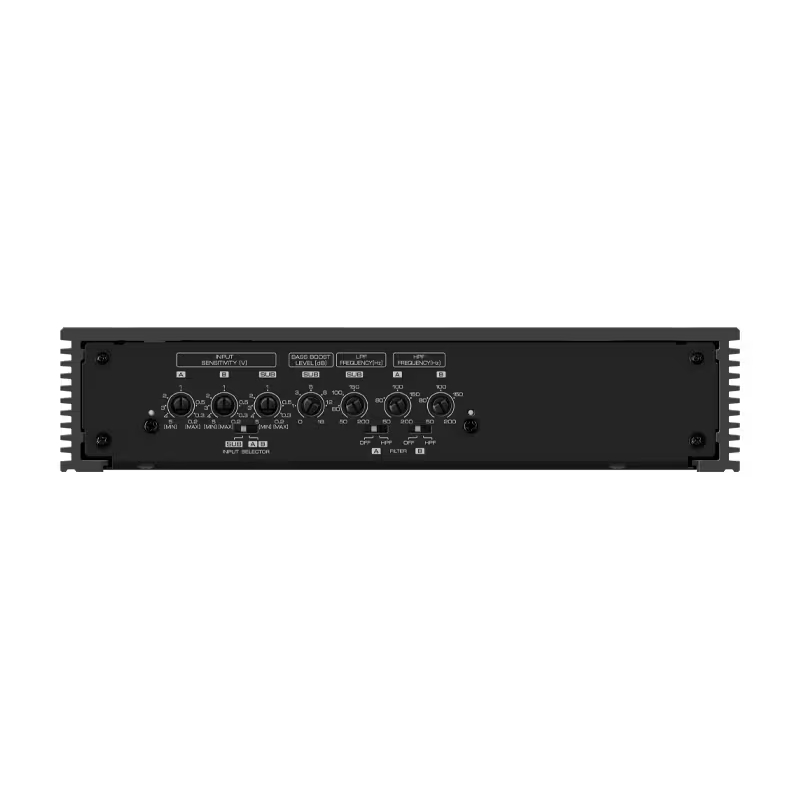

  • Variable High Pass Filter: Yes
  • Variable Low Pass Filter: Yes
  • Infrasonic Filter: Yes
  • Bass Boost: Yes
  • Wired Remote Included: Yes
  • Dimensions (W x H x D): 9-3/4" x 2-1/16" x 6-5/8"
  • UPC: 019048240248
  • Weight: 4.6
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
