Kicker 51LX13007 LX Series 7-Channel 150W RMS x 4 + 65W x 2 at 2 Ohm with 700W at 1 Ohm Sub Amp Channel, Class-D Full Range Car Amplifier with LX Remote Control and LX Control Center Included
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

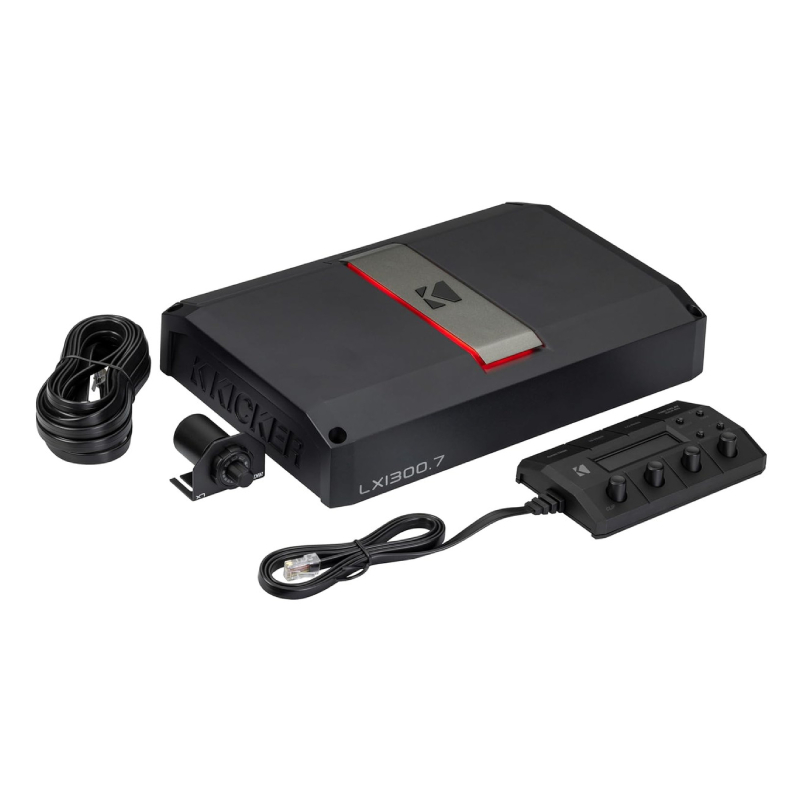

What's Inside?
- • 7-Channel Class-D Full Range Car Amplifier
- • LXCC Control Center with attached 39" cord (terminated in an RJ-45 connector)
- • LXRC Remote bass control with attached mounting bracket
- • 19.5' Remote bass control cable (terminated in RJ-45 connectors on both ends)
- • 10" Speaker-level input harness
- • (4) 1-3/8" screws
- • (4) 3/8" screws
- • 3mm Allen key
- • Power chart
- • Power certificate
- • Owner's Manual
Why Choose Kicker 51LX13007 7-Channel Amplifier?
Powerful and Precise Sound
Keep your sound clean and your system safe with the Output Clipping Indicator, designed to prevent distortion and potential damage. Enjoy longer playtimes and cooler performance with the efficient Class-D Design, which reduces power draw without sacrificing output. Plus, dial in the perfect audio balance effortlessly using Gain-Match LEDs, ensuring optimal sound quality every time.
Take Control of Power and Lighting
Enjoy richer, more powerful bass with SHOCwave2.0™, a state-of-the-art digital bass restoration algorithm that brings back lost low frequencies. Stay in charge with a Battery Voltage Display, featuring a fuel-gauge-style readout for effortless monitoring. Plus, set the mood with RGB LED Control, letting you adjust brightness for a fully personalized lighting experience.

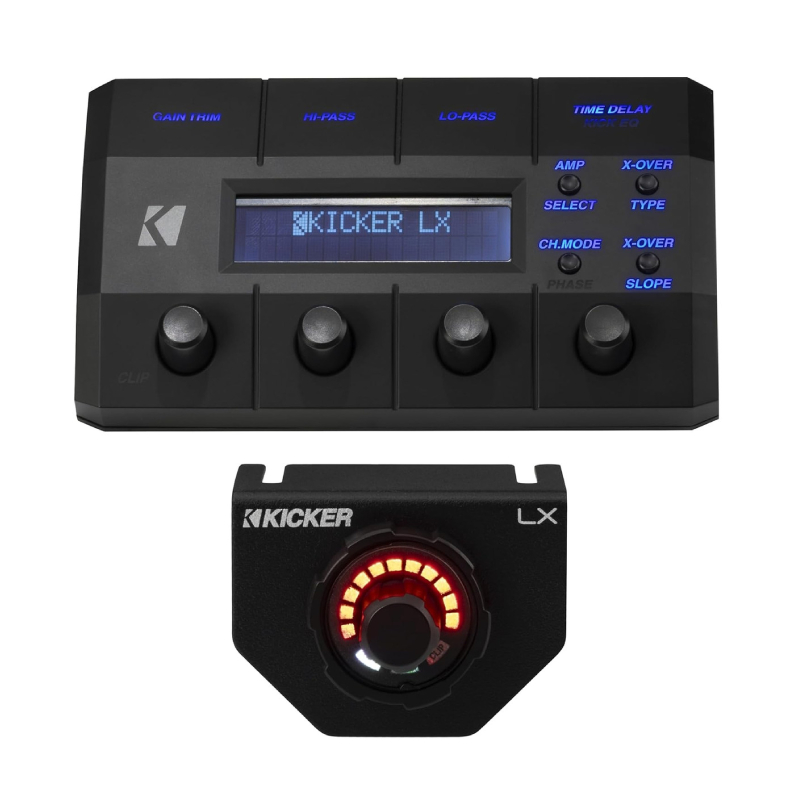

Ultimate Control and Precision with LX Control Center and LXRC Dash Remote
Take full control of your sound with the LX Control Center (LXCC), offering real-time diagnostics for battery voltage, amp temperature, LED clip indication, and protection status. Fine-tune your audio with Precision Control, adjusting gain trim, time delay, and customizable crossovers (HP, LP, or BP) for ultimate clarity. Boost your bass with Parametric Bass Boost, featuring adjustable center frequency and Q for a deep, powerful low end. Plus, the LXRC Dash Remote gives you instant, dynamic control over your bass levels right at your fingertips.
Clear and Reliable Performance
Get powerful, distortion-free audio with FIT+™ Technology, handling signals up to 40V for ultimate clarity. Stay protected with advanced thermal, circuit, and voltage safeguards for reliable performance. Plus, personalize your setup with a reversible center panel and 11 vibrant RGB LED accent colors.
Frequently Asked Questions (FAQ)
- • Why won't the amplifier turn on after installation?
Check the battery fuse, ground connection, and remote turn-on wire. A loose power or ground cable is one of the most common causes.
- • Can I power my entire speaker system with this?
Yes. A 7-channel amplifier is designed to power multiple speakers and a subwoofer from a single unit.
- • Why do my door speakers sound distorted?
Distortion is often caused by excessive gain or clipping. Proper gain adjustment helps produce cleaner sound and protects your speakers.
- • Can I connect this amplifier to a factory stereo?
Yes, but some factory radios require a line output converter. This provides the amplifier with a proper audio signal.
- • Why is there no sound from one or more channels?
Loose speaker wires or incorrect channel settings are common causes. Verify all connections and crossover adjustments.
- • Does this amplifier require a large power cable?
Yes. Use the recommended power wire size to ensure stable voltage and maximum performance.
- • Why does the amplifier get hot during long drives?
High output levels and poor ventilation can increase operating temperature. Mount the amplifier in an area with adequate airflow.
- • Can I bridge channels for more power?
Only if the amplifier's specifications support bridged operation. Follow the wiring diagram in the owner's manual before connecting speakers.
- Number of Channels : 7
- Frequency Response : 20-20000 Hz
- Amplifier Class : D
Features:
- LX Control Center (LXCC): Monitor and adjust system with real-time diagnostic readouts for battery voltage, LED output clip indication, amp temperature, and protection status
- Precision Control: Adjust gain trim, left-channel time delay, and selectable crossover type, slope, and frequency; offers HP, LP, or BP crossovers for all full-range channels
- Parametric Bass Boost: 0–6dB with adjustable center frequency and Q for sub channel
- LXRC Dash Remote: Dynamic fingertip remote for bass level adjustments
- SHOCwave2.0™: Digital bass restoration algorithm to recover lost low-bass frequencies
- Battery Voltage Display: Fuel-gauge-style readout for easy voltage monitoring
- RGB LED Control: Control RGB LED brightness for personalized lighting
- Output Clipping Indicator: Prevents distortion and protects your system from damage
- Class-D Design: Reduces current draw for longer playtimes and cooler temperatures
- Gain-Match LEDs: Quickly find the perfect gain setting for optimal sound
- FIT+™ Technology: Accepts low- and high-level signals up to 40V, eliminating noise for crystal-clear sound
- Comprehensive Protections: Includes thermal, circuit, and voltage stability protections for reliable performance
- Customizable Appearance: Reversible center panel and 11 RGB LED accent color options
Specifications:
- RMS Power @ 14.4V: 150W x 4 @ 2Ω
- RMS Power @ 14.4V: 125W x 4 @ 4Ω
- RMS Power @ 14.4V: 250W x 2 @ 4Ω bridged
- RMS Power @ 14.4V: 65W x 2 @ 2Ω
- RMS Power @ 14.4V: 65W x 2 @ 4Ω
- RMS Power @ 14.4V: 130W x 1 @ 4Ω bridged
- RMS Power @ 14.4V: 700W @ 1Ω (Sub)
- RMS Power @ 14.4V: 550W @ 2Ω (Sub)
- RMS Power @ 14.4V: 300W @ 4Ω (Sub)
- Dynamic Power: 1500W
- Frequency Response: 20Hz - 20kHz (Stereo Channels)
- Frequency Response: 10Hz - 160Hz (Sub Channel) (+0/-1dB)
- Signal-to-Noise Ratio: >95dB (rated power)
- Signal-to-Noise Ratio: >75dB (1W output)
- Variable Electronic Crossover: Off/HP/LP/BP
- Variable Electronic Crossover: HP 20Hz - 5kHz (Stereo Channels)
- Variable Electronic Crossover: LP 40Hz - 5kHz (Stereo Channels)
- Variable Electronic Crossover: LP 40Hz - 160Hz, 24dB/octave Linkwitz-Riley (Sub Channel)
- Variable Electronic Crossover: selectable 12, 18, or 24dB/oct Butterworth, 12 or 24dB/oct Linkwitz-Riley (Sub Channel)
- Variable Subsonic Filter: 24dB/octave Linkwitz-Riley, adjustable 10Hz - 80Hz (Sub Channel only)
- KickEQ+™ (Sub Channel): 0 - 6dB, variable center 20Hz - 80Hz, variable bandwidth 1 - 5
- Input Sensitivity: High level 1V - 40V
- Input Sensitivity: Low level 125mV - 5V
- Dimensions: Height 2-3/8"
- Dimensions: Width 8-7/16"
- Dimensions: Length 12-5/8"
- UPC: 713034020240
- Weight: 11.4
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
