JL Audio C6-275cm C6 Series 2.75" 50W RMS (100W Peak Power Handling) 4 Ohms, Component Midrange Car Speaker (Single)
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

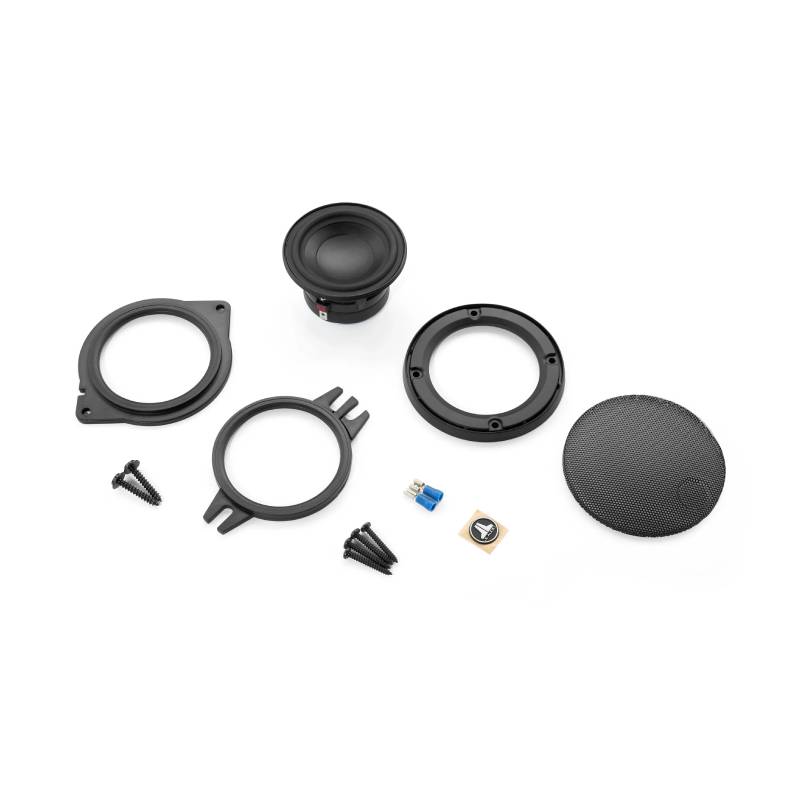

What's Inside?
- • (1) midrange driver
- • (1) threaded 4-hole bracket (installed)
- • (1) threaded 2-3/4" Bracket
- • (1) threaded 3-1/2" Bracket
- • (4) 1-1/4" Screws
- • (2) 1" Screws
- • (1) JL Audio logo grille badge
- • (1) 0.187" Female quick slide (crimp-on/14-16 gauge)
- • (1) 0.110" Female quick slide (crimp-on/14-16 gauge)
- • Warranty information
- • Owner's Manual
Why Choose JL Audio C6-275cm Midbass Driver?
Precision Midrange Performance
The 2-3/4" mineral-filled polypropylene cone delivers clean, articulate mids for vocals, guitars, and snare hits. Designed for active systems, it works seamlessly with C6 series speakers and active crossovers. A DMA-optimized motor reduces distortion and enhances transient response, ensuring accurate, dynamic midrange reproduction.
Durable, Compact Design
The rubber surround ensures long-lasting durability and smooth, controlled cone excursion. With a shallow 1.5" top-mount depth, this speaker fits easily in tight locations such as A-pillars, dash pods, or OEM dash openings.
Versatile, Protected, and Powerful
Screw-on adapter rings enable installation in a wide range of factory dash locations. A fine mesh grille protects the driver while maintaining a sleek look, and the speaker handles up to 50W RMS for reliable performance.
Frequently Asked Questions (FAQ)
- • Can I use the JL Audio C6-275cm as midrange speakers in a 3-way component system?
Yes. The C6-275cm is specifically designed to reproduce midrange frequencies in JL Audio's C6 3-way component systems.
- • Why do voices sound like they're coming from the floor after installation?
The midrange placement or DSP time alignment may need adjustment. Proper positioning greatly improves soundstage and vocal imaging.
- • Can I run the C6-275cm without the factory C6 crossover network?
No. These midrange drivers require the proper crossover or active DSP tuning to prevent damage from low frequencies.
- • Why do my midrange speakers distort even at moderate volume?
The crossover point may be set too low or the amplifier may be clipping. Verify both settings before increasing volume.
- • Can I install the C6-275cm in my dashboard instead of the doors?
Yes. Many high-end 3-way systems mount the midrange drivers in the dashboard or A-pillars for improved staging.
- • Why do instruments sound too forward after upgrading to the C6-275cm?
The midrange level may need adjustment through the crossover or DSP. Proper tuning creates a more natural balance.
- • Can I power the C6-275cm directly from my head unit?
It is not recommended. These premium midrange drivers perform best with a clean external amplifier.
- • Why does one midrange driver stop playing after a few minutes?
A loose speaker connection, overheating amplifier channel, or crossover issue is the most common cause.
- • Can I mix the C6-275cm with speakers from another JL Audio series?
While possible, the best tonal balance is achieved when using the complete JL Audio C6 component system.
- • Why does the midrange become clearer after retuning my DSP?
Accurate crossover frequencies, equalization, and time alignment allow the C6-275cm to perform at its full potential.
- Diameter : 2.75 Inch
- Sensitivity : 86.5 dB
- Impedance : 4 Ohm
- Frequency Response : 300-10000 Hz
- Peak Power Handling : 100 Watts
- Top Mount Depth : 1.42 Inches
- RMS Power Handling : 50 Watts
Features:
- Precision Midrange Driver: 2-3/4" mineral-filled polypropylene cone delivers clean, articulate mids for vocals, guitars, and snare hits.
- Active System Compatible: Designed to work with active crossovers and other C6 series speakers.
- DMA-Optimized Motor: Reduces distortion and improves transient performance for accurate midrange reproduction.
- Rubber Surround: Ensures durability and smooth, controlled cone excursion.
- Compact Mounting Depth: 1.5" top-mount depth fits tight locations like A-pillars, dash pods, or OEM dash openings.
- Versatile Mounting System: Screw-on adapter rings allow installation in a wide range of factory dash locations.
- Grille Included: Fine mesh grille protects the driver while maintaining aesthetic appeal.
- Power Handling: Handles up to 50 watts RMS.
Specifications:
- Speaker Size: 2-3/4"
- Driver Design: 1-Way Midrange
- Midrange Design: Cone
- Midrange Material: Mineral-Filled Polypropylene
- Impedance: 4 Ω
- Weather-Resistant: No
- Grilles Included: Fine mesh
- Sensitivity (1W/1m): 83.5 dB
- Sensitivity at 2.83V: 86.5 dB
- Frequency Response: 350 – 4,800 Hz
- Maximum RMS Wattage: 50 W
- Peak Power Handling: 100 W
- Top-Mount Depth: 1.5"
- Bottom-Mount Depth: N/A
- Cutout Diameter: 2-9/16"
- Mounting Height: 0.27"
- Frame Width: 2.95"
- Frame Length: 2.95"
- UPC: 699440990608
- Weight: 3
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
