JL Audio C6-100ct C6 Series 1" 80W RMS Power Handling 4 Ohms, 1-Way Edge-Driven Silk Dome Car Component Tweeter (Single)
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

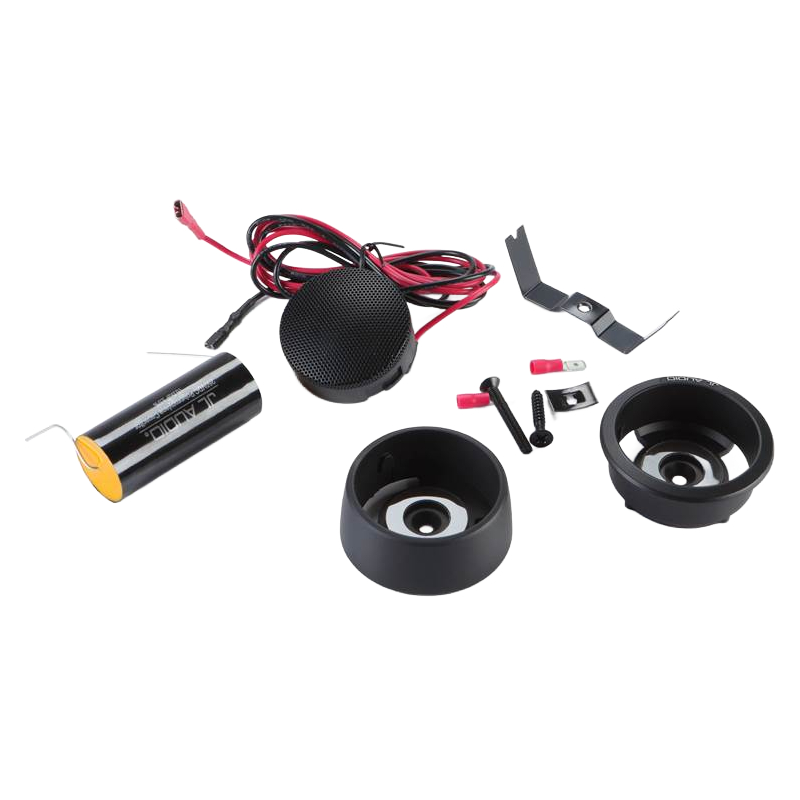

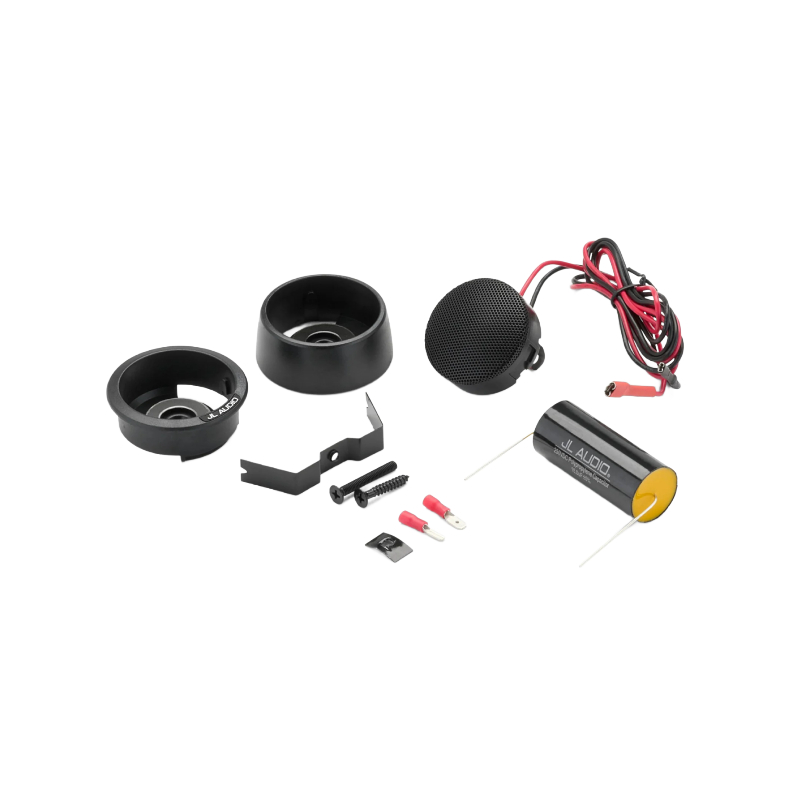

What's Inside?
- • (1) C6-100ct Tweeter (36" wire attached)
- • (15) microfarad capacitor
- • Flush-mount housing
- • Surface-mount housing
- • Metal spring clip for flush-mount housing
- • Speed clip
- • M4x30mm Machine screw
- • 1" Flat-head screw
- • Crimp-on 0.187" male quick slide
- • Crimp-on 0.110" male quick slide
- • Owner's Manual
Why Choose JL Audio C6-100ct Car Tweeter?
High-Performance Silk Dome Tweeter
The 1" silk edge-driven dome tweeter delivers smooth, accurate, and distortion-free highs. A neodymium motor provides excellent power handling and efficiency for precise audio reproduction, while a built-in protection capacitor safeguards against transient electrical damage, ensuring long-term reliability.
Versatile, High-Performance Tweeter
Designed for active systems, this tweeter pairs seamlessly with C6 woofers (sold separately). Flexible surface- and flush-mount fixtures allow creative installation options, while high off-axis performance ensures clarity and detail even when you’re not directly in front of the speaker.
Compact, Durable Tweeter
Includes a black steel grille for protection and a premium look. Handles 10–80W RMS for reliable performance, and features a shallow 0.875" top-mount depth, making it ideal for tight installation spaces.
JL Audio C1-075CT vs C1-100CT vs C2-075CT vs C3-100CT vs C6-100CT vs C7-100CT | Which JL Audio Tweeter Is Best?
| JL Audio Tweeter Performance Battle |
JL Audio C1-075CT
0.75" Aluminum Dome Component Tweeters
BUDGET PICK
- • 0.75" Aluminum Dome Tweeter
- • 50 Watts RMS
- • 6 Ohm Impedance
- • Built-In High-Pass Filter
- • Crisp High Frequencies
- • Factory Speaker Upgrade
- • Easy Installation
- • Great Entry-Level Choice
|
JL Audio C1-100CT
1" Aluminum Dome Component Tweeters
BEST VALUE
- • 1" Aluminum Dome Tweeter
- • 60 Watts RMS
- • 4 Ohm Impedance
- • Higher Output Capability
- • Detailed Highs
- • Great Efficiency
- • Easy to Amplify
- • Excellent Daily Driver
|
JL Audio C2-075CT
0.75" Silk Dome Component Tweeters
SMOOTHEST SOUND
- • 0.75" Silk Dome Tweeter
- • Warm & Natural Sound
- • Reduced Listening Fatigue
- • Smooth High Frequencies
- • Excellent Imaging
- • Passive Crossover Included
- • Ideal for SQ Systems
- • Premium Upgrade from C1
|
JL Audio C3-100CT
1" Silk Dome High-Performance Tweeters
BEST SQ VALUE
- • 1" Silk Dome Tweeter
- • Enhanced Detail Retrieval
- • Excellent Sound Staging
- • Smooth Frequency Response
- • High Power Handling
- • Audiophile Performance
- • Passive or Active Compatible
- • Great SQL Choice
|
JL Audio C6-100CT
1" Premium Silk Dome Audiophile Tweeters
AUDIOPHILE PICK
- • 1" Premium Silk Dome Tweeter
- • 75 Watts RMS
- • Exceptional Detail
- • Natural Tonal Balance
- • Wide Soundstage
- • Designed for DSP Systems
- • Competition-Level Sound Quality
- • Active System Ready
|
JL Audio C7-100CT
1" Ceramic-Coated Aluminum Dome Reference Tweeters
BEST OVERALL
- • 1" Ceramic-Coated Aluminum Dome
- • Reference-Grade Performance
- • Outstanding Resolution
- • Exceptional Imaging
- • Ultra-Wide Frequency Response
- • Highest Detail Retrieval
- • Competition Sound Quality
- • Flagship JL Audio Tweeter
|
JL Audio C6-100ct Installation & Compatibility Guide | DSP Setup, Active Wiring & Audiophile Tweeter Integration
JL Audio C6-100ct Install & Fitment Guide
Reference-Grade Silk Dome Tweeter Designed for Active DSP Systems & High-Resolution Audio Builds
System Overview
Speaker Type: 1" Edge-Driven Silk Dome Tweeter
Power Handling: 10–80W RMS (recommended 25–100W RMS)
Impedance: 4 Ohm
Frequency Range: 3 kHz – 21 kHz
System Type: ACTIVE (DSP required for best performance)
Install Difficulty: Advanced (Tuning Required)
Step 1: Understand Active System Requirement
The JL Audio C6-100ct is designed for active DSP-based systems. Unlike entry-level tweeters, it does NOT rely on passive crossovers for full system design. Instead, tuning is handled through DSP or amplifier filtering.
Recommended Setup: DSP (JL TwK, VXi, or equivalent) + dedicated amplifier channel per tweeter
Minimum Setup: External amplifier with high-pass filtering (3–4 kHz recommended)
Step 2: Mounting Options
Flush Mount: OEM-style integration into pillars, dash, or factory locations
Surface Mount: Flexible placement with angled aiming for better imaging
Positioning Tip: Aim tweeters toward listening position to improve soundstage accuracy
Step 3: Wiring & Protection Setup
The C6-100ct includes a 15μF protection capacitor that MUST be used in all installations. This protects against turn-on/off noise spikes but does NOT replace proper crossover filtering.
Wiring Flow: DSP / Amp → (High-Pass Filter 3–4 kHz) → Tweeter → 15μF capacitor in line
Important: Running full-range signal will damage the tweeter
Best Practice: One amplifier channel per tweeter for precise imaging
Step 4: System Testing & DSP Tuning
Before final assembly, test at low volume and verify correct polarity, channel balance, and smooth crossover integration. Fine-tune EQ and time alignment using DSP for proper imaging.
Recommended Crossover Point: 3.1–4.0 kHz @ 24 dB/oct
Level Matching: Adjust tweeter gain to match midrange output
Compatibility Guide
Factory Systems: Not ideal for direct OEM replacement without DSP or amplifier upgrades
Amplifier Matching: Best with clean 25–100W RMS per channel amplification
DSP Systems: Highly recommended (required for proper performance tuning)
Active Systems: Designed specifically for fully active 2-way or 3-way setups
Impedance: 4Ω compatible with most high-quality amplifiers and DSP amps
Fitment Notes
• Requires proper DSP tuning for full performance potential
• Not plug-and-play with factory head units
• Incorrect filtering will cause distortion or tweeter damage
• Best used in high-end SQL or audiophile builds
• Soundstage improves significantly with correct aiming and delay tuning
Pro Tip: The JL Audio C6-100ct is not just a tweeter upgrade—it is a resolution upgrade. It only performs at its best when paired with DSP tuning, correct high-pass filtering, and precise time alignment.
Frequently Asked Questions (FAQ)
- • Why do my JL Audio C6-100ct tweeters sound harsh or too revealing after installation?
This is one of the most common real-user experiences. The C6 series is extremely detailed and will expose flaws in tuning, poor head units, or untreated doors. Without proper DSP tuning or EQ correction, highs can sound overly bright or fatiguing. Most users fix this by lowering 6–10 kHz EQ range and properly setting crossover slopes.
- • Why does my system sound worse after upgrading to C6 tweeters?
Many users report this “upgrade sounds worse” issue. The C6-100ct is highly revealing, so it exposes weak midrange speakers, bad gain structure, or factory DSP processing. The problem is not the tweeter—it’s that the rest of the system becomes the limiting factor.
- • Do I really need DSP for JL Audio C6-100ct?
Yes. Real-world installs strongly recommend DSP because the C6-100ct is designed for active systems. Without DSP control (crossover, EQ, time alignment), users often experience imbalance, harshness, or poor imaging.
- • Why do my tweeters distort even at moderate volume?
This is typically caused by amplifier clipping or incorrect high-pass filtering. Some users assume silk dome tweeters are “safe at any volume,” but improper gain settings or low crossover points (below 3 kHz) will quickly cause distortion.
- • Can I run C6-100ct tweeters without a DSP or active crossover?
Technically yes, but many users report poor results. The C6 is designed for active tuning, and passive or head-unit-only setups often lead to harsh sound, poor imaging, or incorrect frequency separation.
- • Why is one tweeter louder or clearer than the other?
This is commonly caused by incorrect DSP channel gain, polarity reversal, or mismatched crossover settings. Installer reports often show that swapping channels or rechecking polarity resolves the issue immediately.
- • Why does my tweeter sound thin or weak compared to my old setup?
The C6-100ct is very neutral by design. Users coming from boosted factory tweeters often mistake this neutrality for weakness. Once properly tuned, the detail and imaging become much more accurate and realistic.
- • Do JL C6-100ct tweeters require break-in time?
Yes. Some users report that initial sound can feel slightly sharp or forward. After several hours of use, the silk dome suspension relaxes and high frequencies become smoother and more natural.
- • Why do I hear distortion only on certain songs or frequencies?
This is often caused by poor DSP tuning or overlapping crossover points between tweeter and midrange drivers. Real-world troubleshooting often involves adjusting crossover slopes (typically around 3–4 kHz) and reducing EQ peaks.
- • What is the most common installation mistake with C6-100ct?
The most common issue is improper system design—especially skipping DSP, using incorrect crossover points, or not balancing tweeter/midrange levels. This results in harsh highs or poor imaging even though the hardware is high-end.
- Diameter : 1 Inch
- Sensitivity : 93 dB
- Frequency Response : 3000-21000 Hz
- Peak Power Handling : 80 Watts
- RMS Power Handling : 40 Watts
Features:
- Silk Edge-Driven Dome Tweeter: 1" tweeter delivers smooth, accurate, and distortion-free highs.
- Neodymium Motor: Provides excellent power handling and efficiency for precise audio reproduction.
- Built-In Protection Capacitor: Guards against transient electrical damage to ensure reliable performance.
- Active System Compatible: Designed for use with active crossovers; pairs with C6 woofers sold separately.
- Surface- and Flush-Mount Fixtures: Flexible installation options for creative system placement.
- High Off-Axis Performance: Maintains clarity and detail even when not directly in front of the tweeter.
- Grille Included: Black steel fixed grille for protection and premium appearance.
- Power Handling: Handles 10–80 watts RMS.
- Compact Mounting Depth: 0.875" top-mount depth for tight installation spaces.
Specifications:
- Speaker Size: 1"
- Driver Design: 1-Way Tweeter
- Tweeter Design: 1" Edge-Driven Dome
- Tweeter Material: Silk
- Impedance: 4 Ω
- Weather-Resistant: No
- Grilles Included: Black steel, fixed
- Sensitivity (1W/1m): 90 dB
- Sensitivity at 2.83V: 93 dB
- Frequency Response: 3,000 – 21,000 Hz
- Maximum RMS Wattage: 80 W
- Top-Mount Depth: 0.875"
- Cutout Diameter: 1-7/8"
- Mounting Height: 0.3"
- Frame Width: 2.125"
- Frame Length: 2.125"
- UPC: 699440990509
- Weight: 1
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
