Kenwood Excelon  X503-1-Bundle New

X503-1 Excelon Series 1000W Max Power, Class-D Mono Subwoofer Car Amplifier with Wired Remote Control Included + KFC-XW1000F Excelon Series 10" 1000W Peak Power Handling 4-Ohm, Single Voice Coil Car shallow-mount Subwoofer - (Sold as each)

Item #95258

Condition:   Brand New

Product Highlights

  • X503-1 Excelon Series
  • 1000W Max Power
  • Class-D
  • Mono Subwoofer Car Amplifier
  • Wired Remote Control Included
  • KFC-XW1000F Excelon Series
  • 10"
  • 1000W Peak Power Handling
  • 4-Ohm
  • Single Voice Coil
  • Car Shallow-Mount Subwoofer
  • (Sold as each)

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$466.20

In Stock
In Stock

Only 1 left
Getting Delivery Estimate...
  Free 2-Years Warranty Included!

No Credit needed for Learn More

Kenwood Excelon Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

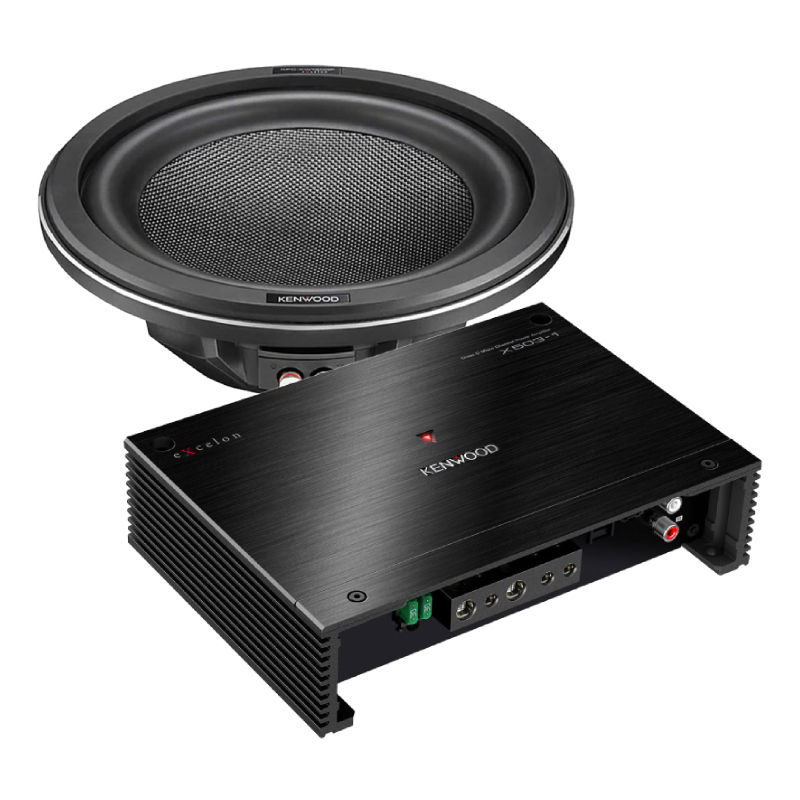

Kenwood Excelon X503-1 Excelon Series 1000W Max Power, Class-D Mono Subwoofer Car Amplifier with Wired Remote Control Included + Kenwood Excelon KFC-XW1000F Excelon Series 10" 1000W Peak Power Handling 4-Ohm, Single Voice Coil Car shallow-mount Subwoofer - (Sold as each)


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • X503-1 Class-D Mono Subwoofer Car Amplifier
  • • X503-1 Wired Remote Control
  • • X503-1 Owner's Manual
  • • KFC-XW1000F One 10" SVC Woofer
  • • KFC-XW1000F Rubber concealing ring (installed)
  • • KFC-XW1000F Self-adhesive foam strip
  • • KFC-XW1000F Kenwood" logo sticker for woofer
  • • KFC-XW1000F eXcelon logo sticker for woofer
  • • KFC-XW1000F Cardboard template
  • • KFC-XW1000F Warranty Card
  • • KFC-XW1000F Owner's Manual
Unleash Powerful Sound with the Compact X503-1 Amplifier

Experience incredible sound performance with the X503-1 amplifier, offering up to 1000W of powerful output to elevate your music. It includes easy-to-use features like a wired remote for quick volume adjustments and automatic turn-on with signal sensing. With built-in filters and bass boost, you’ll enjoy clear, rich, and deep sound. Compact and stylish, it’s designed to fit seamlessly into your setup without taking up too much space.

Superior Sound Quality with Noise-Free Performance and Powerful Bass

Elevate your listening experience with features designed for superior sound, including an Output Coil with Magnetic Shield to minimize noise, High-Quality Capacitors for crystal-clear audio, and an Infrasonic Filter that delivers deep, efficient bass.

Enhance Your Audio with Secure Connections, Easy Installation, and Convenient Controls

Transform your audio experience with a design that combines convenience and performance: gauge-style terminals for secure connections, one-side terminals for easy installation, a speaker level input harness for seamless integration with factory-installed receivers, and a wired level control for effortless subwoofer volume adjustments.

Great-sounding Subwoofer

One of our website's top-selling car subwoofers, the Kenwood Excelon KFC-XW1000F, is an excellent option if you plan to install one in your car. Not only is this a great-sounding subwoofer, but it is also under Kenwood's flagship line, a highly respected brand in the car audio industry.

Uses a Carbon Glass Fiber Honeycomb Cone

This 10-inch subwoofer uses a carbon glass fiber honeycomb cone, which makes it highly efficient in producing low tones while giving the durability that is needed for subwoofers to last for a long time, even when pushed to its limits. This material enables the subwoofer to be quick in its response without breaking. The subwoofer also has a rubber surround, giving additional durability and better low-frequency response.

Unique Flat Design

With its unique flat design, you can still install this subwoofer in hard-to-fit areas of your car. It has a cast-aluminum basket, an industry standard for speakers, highly known for its durability and rigidness. It also has a great ventilation design and is highly efficient in keeping the heat down to a minimum.

The subwoofer uses a pair of silver-plated spring terminals as your way for you to connect to your car's amplifier. These terminals are also durable, so you can expect a stable audio connection from your amplifier to the subwoofer. The terminals can accept up to 10 AWG speaker wires.

Get Prepared for Some Heart-pounding Beats

The subwoofer has a rated power of 250 Watts RMS and 1000 Watts peak power. Its sensitivity is up to 90 dB, so it is loud enough for you to feel the bass you are hoping for in a car subwoofer. Get prepared for some heart-pounding beats, as these subwoofers are always ready to produce the bassy tones that every audiophile is always looking for.

X503-1 Excelon Series 1000W Max Power, Class-D Mono Subwoofer Car Amplifier with Wired Remote Control Included



Features:

  • Output Coil with Magnetic Shield: Prevents magnetic flux from radiating from the subwoofer's coil, reducing noise and enhancing sound quality.
  • High-Quality Capacitors: Utilizes PMLCAP's (Polymer Multi-Layer Capacitors) in LC filter circuits to decrease distortion, ensuring clear and detailed sound.
  • Infrasonic Filter (ISF): Cuts off frequencies below 25Hz when activated, improving amplifier efficiency and delivering clear bass output.
  • Gauge-Style Terminals: Securely lock wires into position with set screws for a firm and reliable connection.

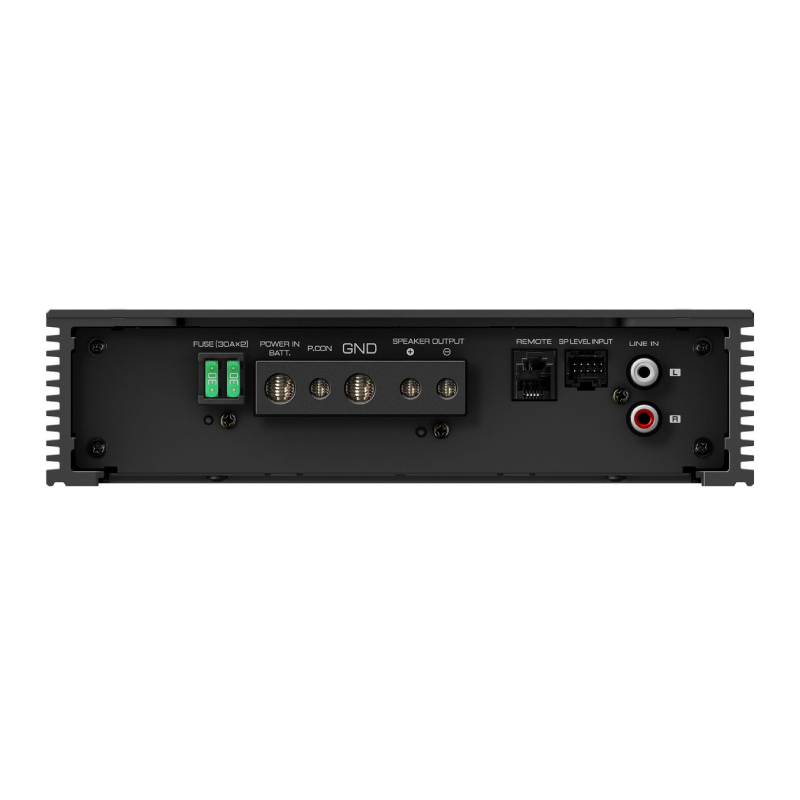

  • One-Side Connection: All terminals and connections are located on one side for easier installation and a cleaner look.
  • Speaker Level Input Harness: Includes a harness to connect directly to speaker wires from factory-installed receivers.

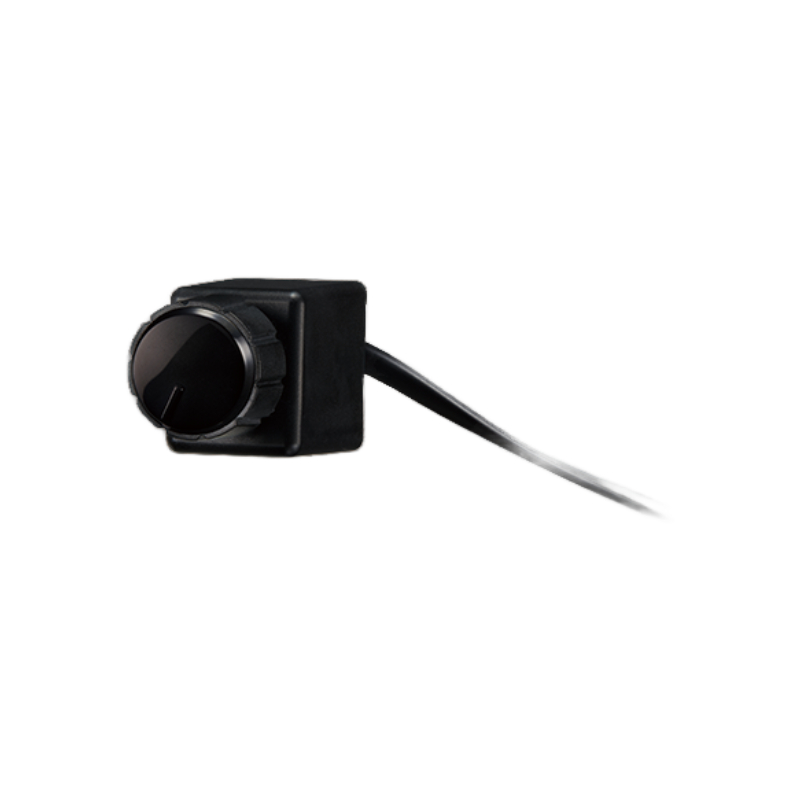

  • Wired Level Control Included: Features a wired remote for convenient subwoofer volume adjustment.



Specifications:

  • Model: X503-1
  • Maximum Power Output: 1000W
  • RMS Power Output (4Ω): 300W
  • RMS Power Output (2Ω): 500W
  • Speaker Level Input: Yes
  • Signal Sensing Turn-On: Yes
  • Variable Low Pass Filter: Yes
  • Infrasonic Filter: Yes
  • Bass Boost: Yes
  • Wired Remote Included: Yes
  • Dimensions (W x H x D): 8-3/8" x 2-1/16" x 5-7/8"



KFC-XW1000F Excelon Series 10" 1000W Peak Power Handling 4-Ohm, Single Voice Coil Car shallow-mount Subwoofer - (Sold as each)



Features:

  • Flat Subwoofer: The Kenwood eXcelon flat subwoofer design is approximately 40% slimmer in height than a standard subwoofer. This makes them ideal for installation in the tightest of spaces such as behind or under the seat of a pickup truck.
  • Carbon-Glass Fiber Cone: The eXcelon flat woofer uses a carbon-glass fiber honeycomb cone which allows the woofer to be efficient and durable at the same time.
  • Rubber Surround: The Kenwood woofer features a smooth linear rubber surround for added durability and increased excursion resulting in exceptional deep bass response.
  • Super Linear Spider: The flat woofer utilizes a super linear spider for maximum control over the woofer's linear motion to improve overall sound quality.
  • Heat Transfer System: The Kenwood woofer features an advanced Heat Transfer System designed specifically for its slim-design to provide proper ventilation to keep the woofer cool.
  • Aluminum-Cast Basket: The woofer is housed in a cast-aluminum basket for increased rigidity and long-lasting reliability.
  • Spring Terminals: The flat woofer utilizes a pair of silver-plated spring terminals on one side of the woofer for connection to your amplifier's speaker wiring. The spring terminals will accept up to 10 AWG speaker wire.
  • Concealing Ring: The eXcelon woofer comes supplied with a removable, rubber concealing ring used to hide the woofer's mounting screws for a neat and professional looking installation. The concealing ring increases the top mounting height to 1".



Specifications:

  • Size: 10 -inch
  • Impedance (Ohms): 4
  • Cone Material: Carbon-glass fiber
  • Surround Material: Butyl rubber
  • Ideal Sealed Box Volume (cubic feet): 0.6
  • Ideal Ported Box Volume (cubic feet): 0.6
  • Port diameter (inches): 3
  • Port length (inches): 11
  • Free-Air: No
  • Dual Voice Coil: No
  • Sensitivity: 90 dB at 1 watt
  • Frequency Response: 35 - 800 Hz
  • Max RMS Power Handling: 250
  • Peak Power Handling (Watts): 1000
  • Top Mount Depth (inches): 3 3/8
  • Bottom Mount Depth (inches): 3 15/16
  • Cutout Diameter or Length (inches): 9 1/8
  • Vas (liters): 21.05
  • Fs (Hz): 38.6
  • Qts: 0.72
  • Xmax (millimeters): 7.5
  • UPC:
  • Weight: 18
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
