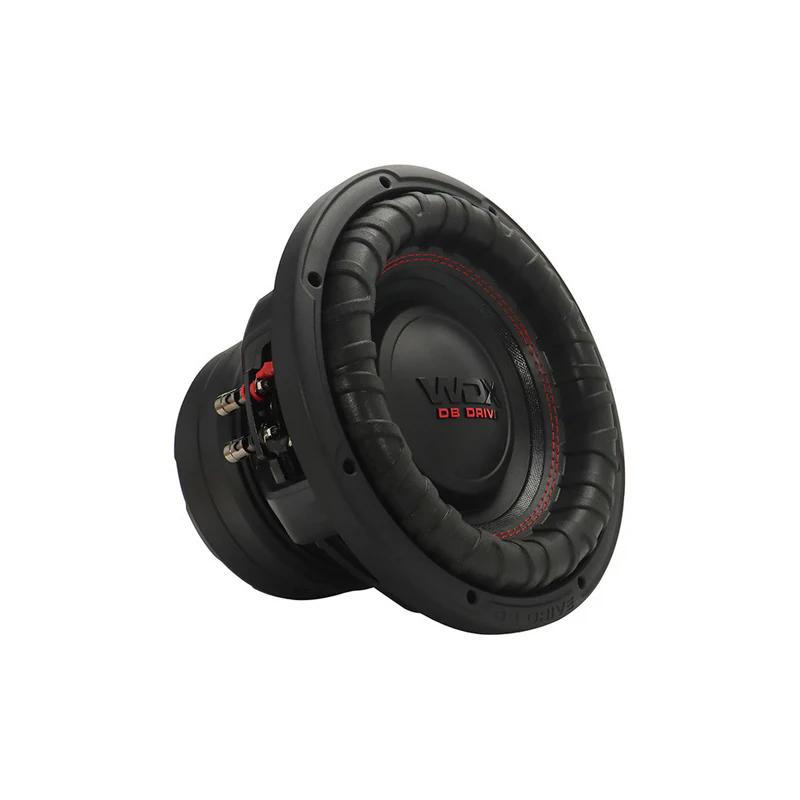

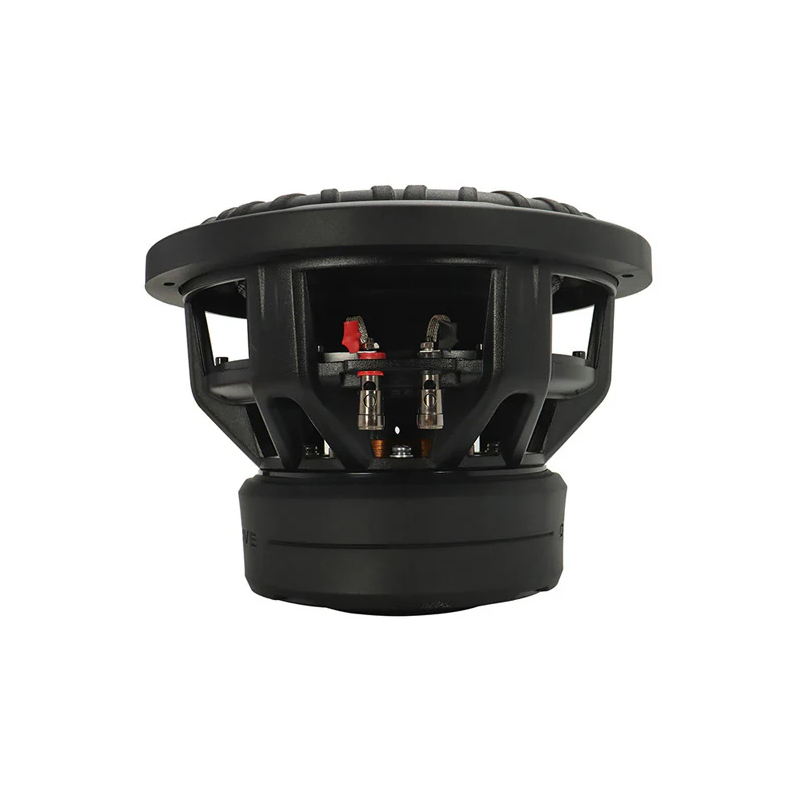

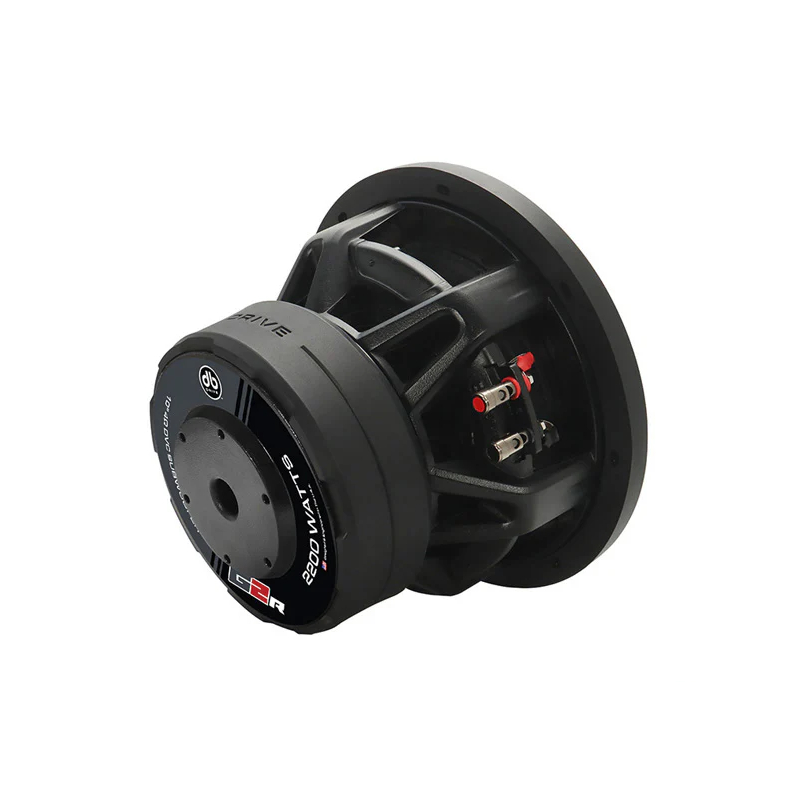

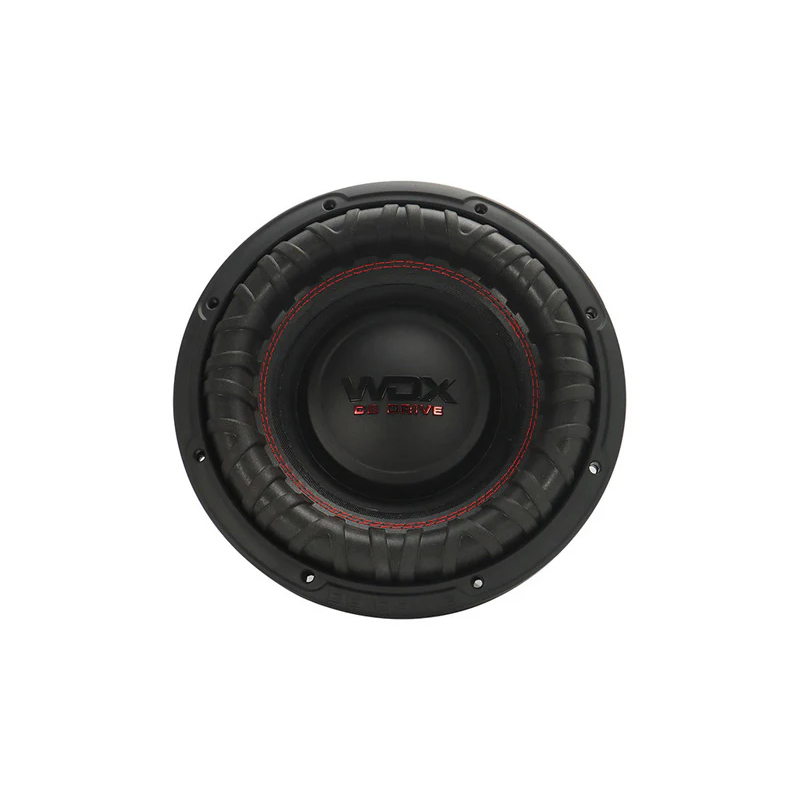

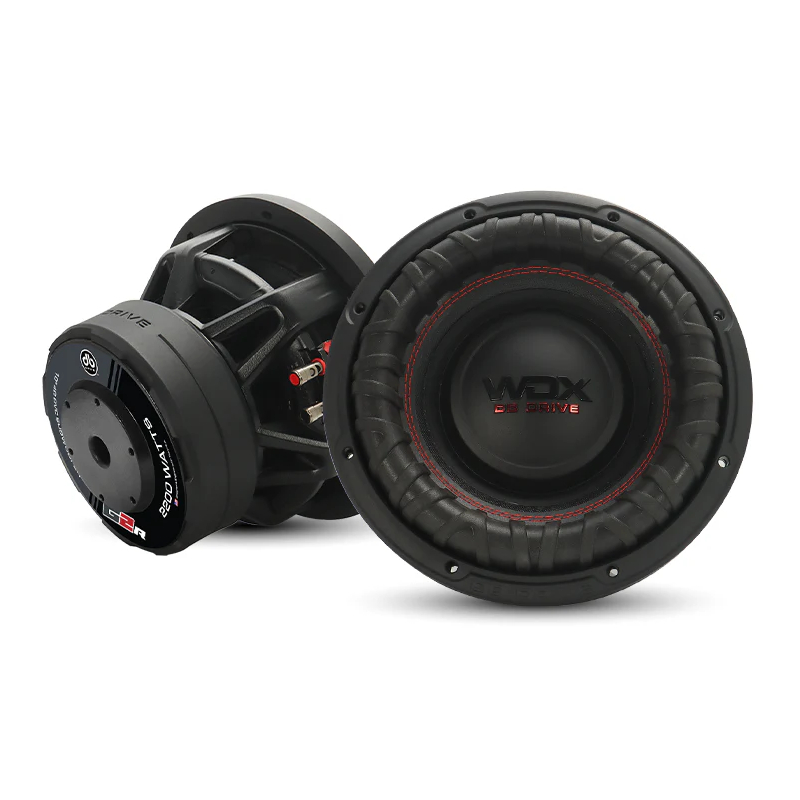

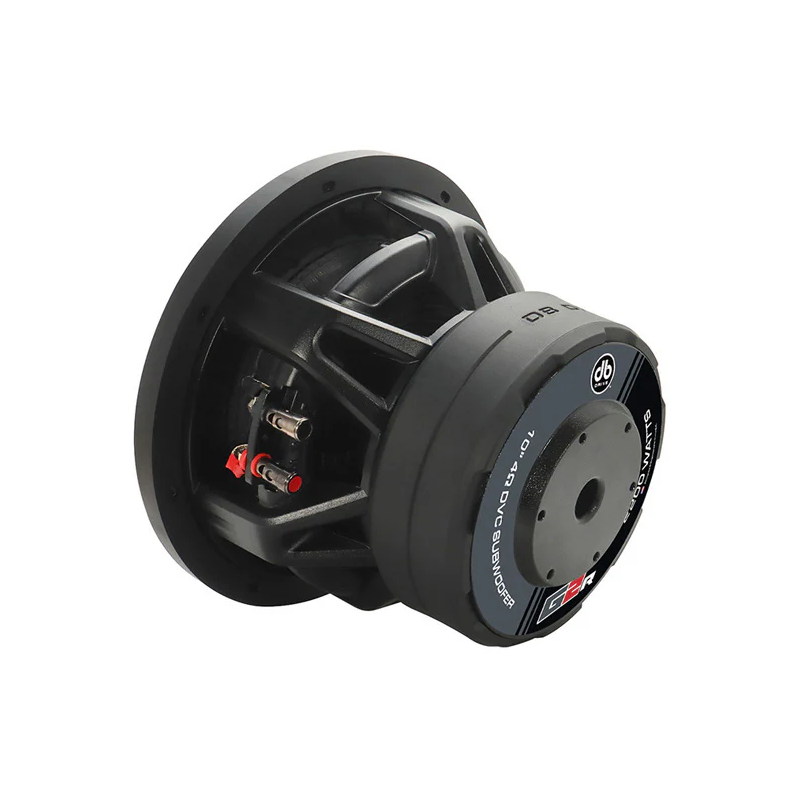

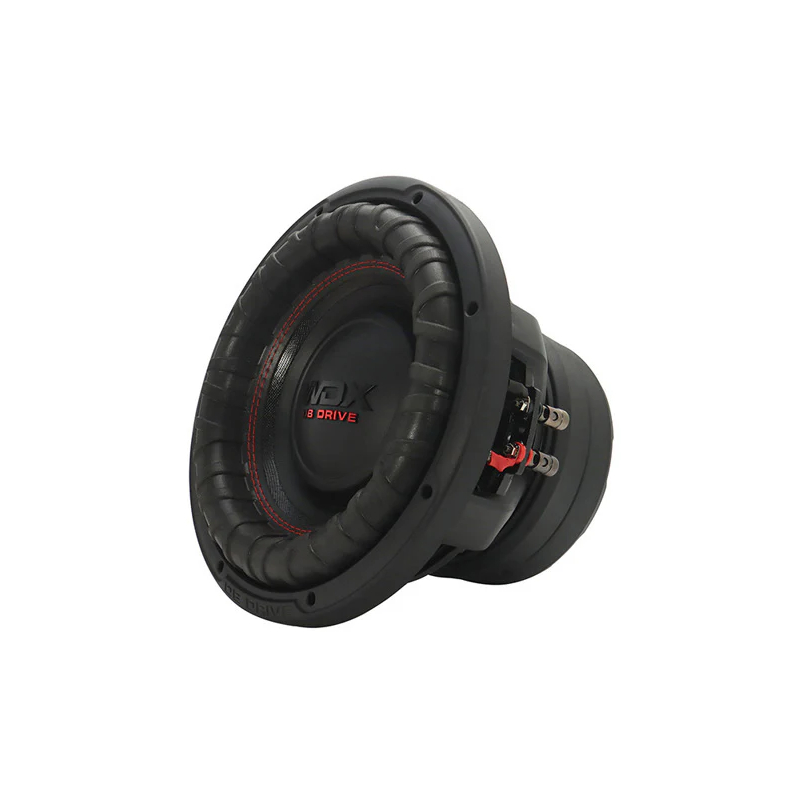

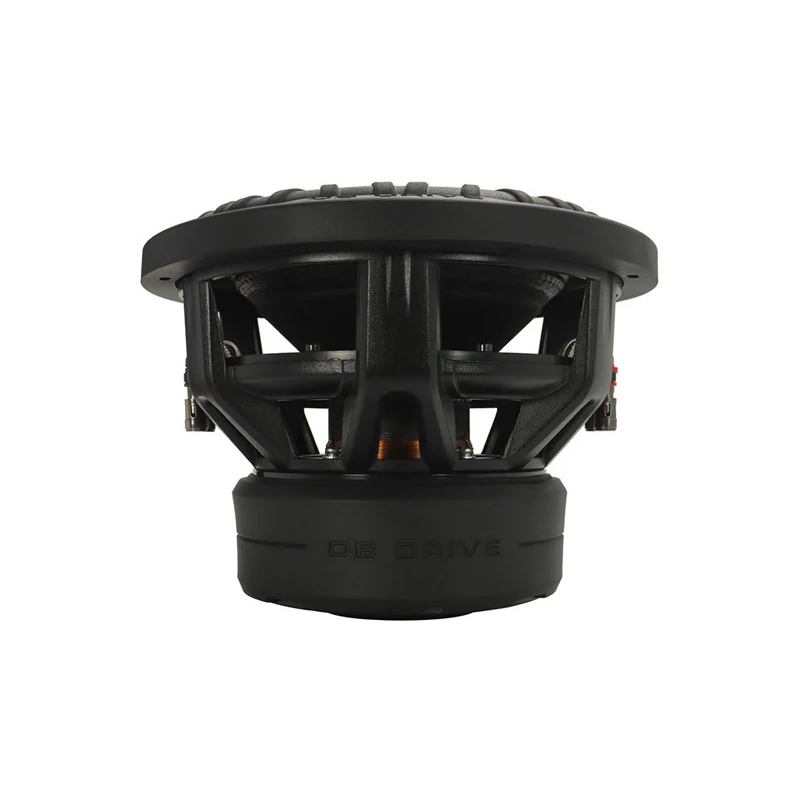

DB Drive WDX10G2R.4 WDX G2R Series 10" 1100W RMS (2200W Peak Power Handling) 4-Ohm, Dual Voice Coil Car Subwoofer (sold individually)
We are a DB Drive authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Unleash Real Bass Power
If you’re chasing deep, clean, and powerful bass, the DB Drive WDX10G2R.4 hits hard and delivers every time. With up to 2200 watts of peak power and 1100 watts RMS, this 10" sub is built for bass lovers who want more than just volume—they want impact. Feel every drop, every rumble, and every note the way it was meant to be heard. This isn’t just another subwoofer—it’s the one that changes how your music feels.
Built to Perform, Built to Last
From the inside out, the WDX10G2R.4 is engineered for serious performance. A 3" high-temp anodized aluminum voice coil handles extreme heat without missing a beat, while a die-cast aluminum basket keeps everything solid under pressure. The dual voice coil setup gives you wiring flexibility, and the custom ribbed surround ensures tight, controlled movement. It’s designed to play loud, play clean, and play for the long haul.
Every Detail Dialed In
This sub means business—from the non-pressed paper cone that moves air with precision to the oversized compression terminals built for heavy-duty power. A custom-fit gasket seals out rear-wave cancellation for purer output, while the protective magnet cover and reinforced foam surround round out a build that’s as tough as it sounds. Want bass that punches hard and holds nothing back? The WDX10G2R.4 delivers.
- Diameter : 10 Inch
- Maximum Power : 2200 Watts
- Sensitivity : 79.7 dB
- Impedance : 4 Ohm
- Peak Power Handling : 2200 Watts
- Number of Voice Coils : Dual
- RMS Power Handling : 1100 Watts
Features:
- 3.0" Anodized Aluminum High-Temperature Voice Coil: Large-diameter coil built for high heat resistance and steady output in demanding setups.
- Non-Pressed Paper Cone: Offers lightweight and flexible construction for improved sound quality.
- Double-Stitched Reinforced Foam Surround: Provides enhanced durability and resilience, improving the speaker's lifespan.
- Dual Poly-Cotton Dampeners: Reduces distortion for clearer sound reproduction.
- Die-Cast Aluminum Vented Basket: Promotes better airflow, preventing overheating and improving overall performance.
- Rubber Gasket Trim Ring: Ensures a secure and vibration-resistant seal for enhanced sound clarity.
- Large Gauge Compression Terminals: Allows for high-current connections and improved signal transmission.

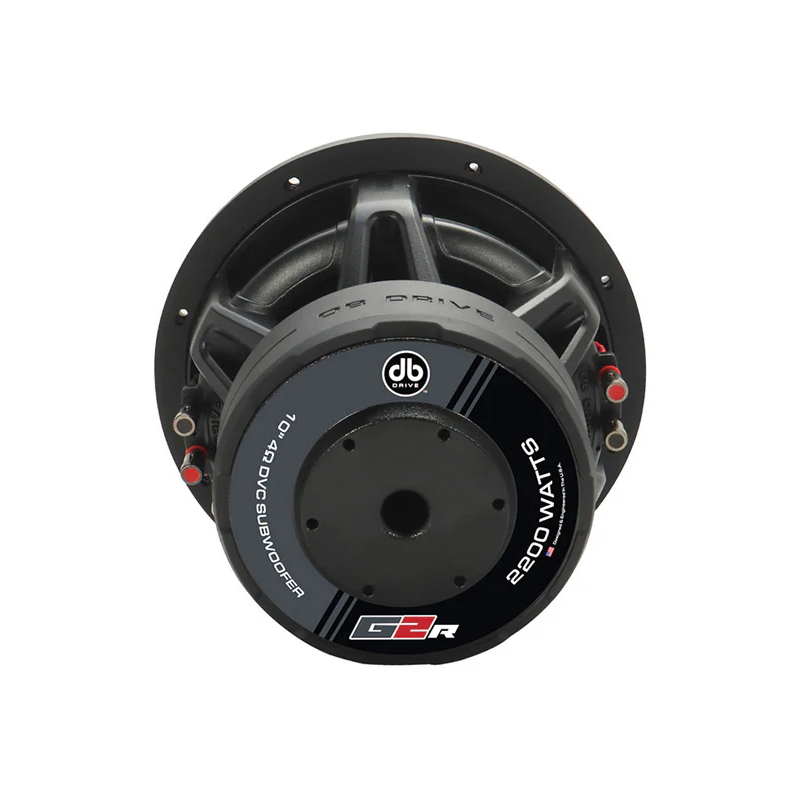

- Protective Magnet Cover: Shields the magnet from damage and helps maintain sound quality.
Specifications:
- Dynamic Power Handling: 2200 Watts
- Nominal Power Handling: 1100 Watts
- Impedance: Dual 4Ω Voice Coil
- Resonant Frequency (fs): 32.536 Hz
- D.C. Voice Coil Resistance (Re): 2 x 3.2Ω
- Mechanical Quality Factor (Qms): 3.731
- Electrical Quality Factor (Qes): 0.966
- Total Quality Factor (Qts): 0.768
- Equivalent Air Volume (Vas): 16.974 L
- Mechanical Compliance of Suspension (CMS): 94.146 mm/N
- Mass of Diaphragm/Coil (Mms): 254.158 g
- Force Factor (BL): 18.551
- Sound Pressure Level (SPL): 79.7 dB
- UPC: 811536039408
- Weight: 26
