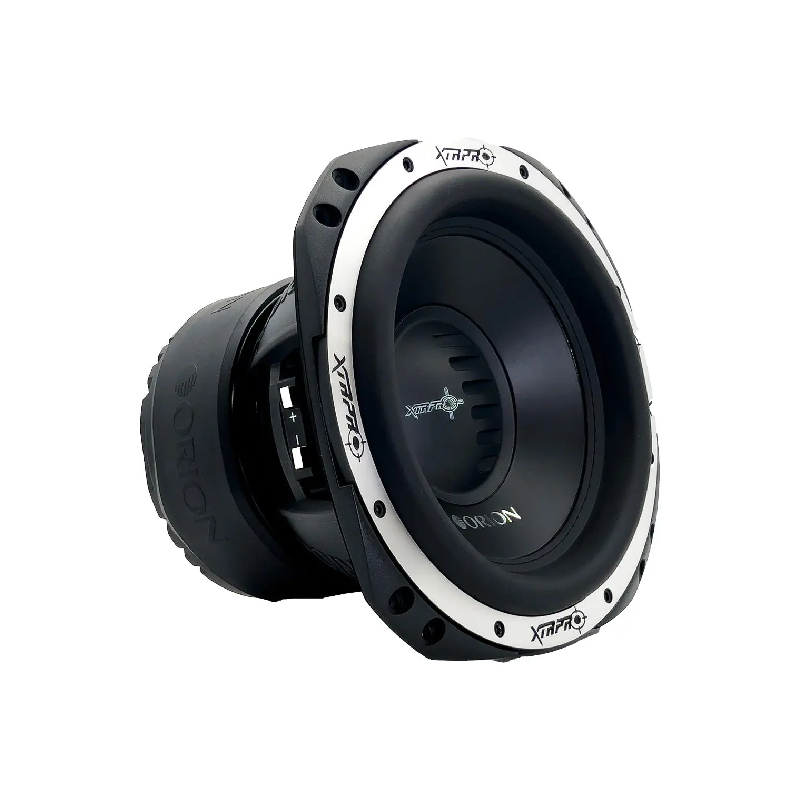

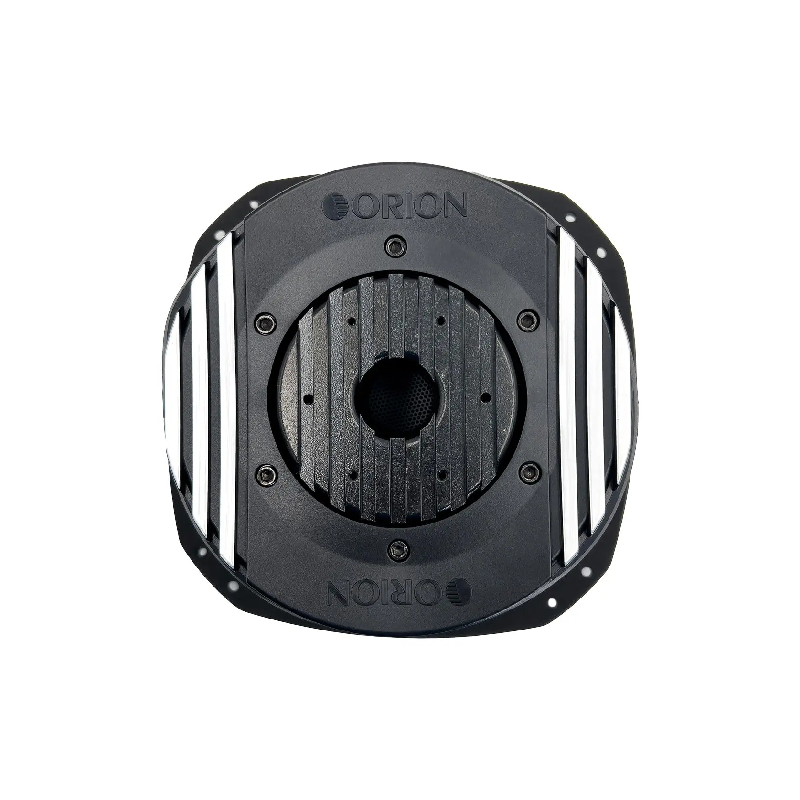

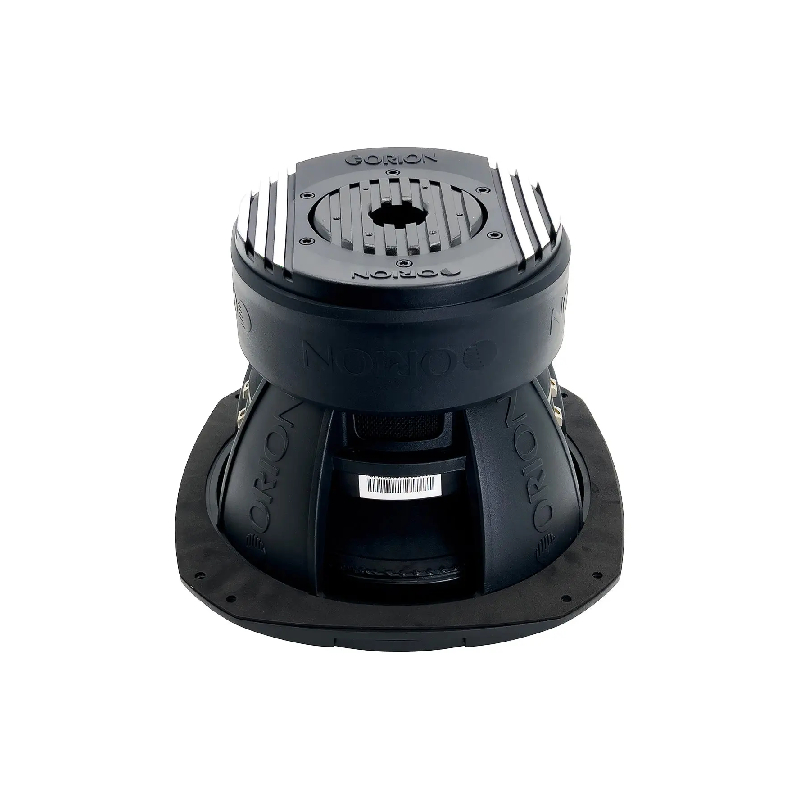

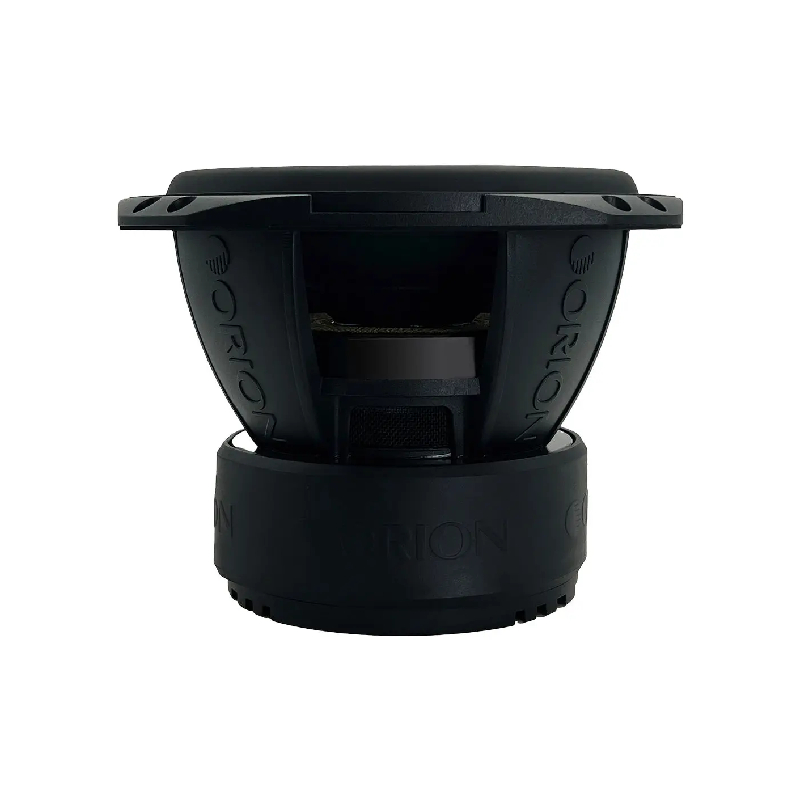

Orion  XTRPRO104D

XTR Pro Series 10" 5000W Peak Power Handling 4 Ohm, Dual Voice Coil Component Car Subwoofer

Item #39314

Product Highlights

  • XTR Pro Series
  • 10" Component Car Subwoofer
  • 5000W Peak Power Handling
  • 4 Ohm Impedance
  • Dual Voice Coil Design

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Rockford Fosgate Banner

Orion XTRPRO104D Pro Series 10" 1250W RMS (5000W Peak Power Handling), 4 Ohm, Dual Voice Coil Component Car Subwoofer


We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •10" 5000W Peak Power Handling, 4 Ohm, Dual Voice Coil Component Car Subwoofer
  • • Owner's Manual
High-Power Precision and Dynamic Bass Performance

Experience the ultimate in-car audio with 5000 watts of peak power and 1250 watts RMS, delivering intense, crystal-clear bass at any volume. Its dual 4-ohm voice coils provide flexible wiring options for seamless system integration, while the non-pressed paper cone and santoprene surround ensure distortion-free, high-clarity sound. With an impressive 88.3 dB sensitivity, this subwoofer transforms every watt into rich, detailed, and immersive bass for an unforgettable listening experience.

Wide Range Performance with Cool, Reliable Operation

Enjoy full-spectrum sound with a wide 35 Hz to 1 kHz frequency range that delivers everything from deep, thunderous bass to crisp, detailed highs. Engineered with a forced convection cooling system, this subwoofer stays cool even during intense sessions, ensuring long-lasting reliability. Its dual 4-ohm impedance design offers flexible amplifier compatibility and wiring options, making it easy to customize your setup for peak performance.

Deep, Powerful Bass with Precision Magnet Design

Experience rich, resonant bass with a high-quality ferrite magnet engineered for strength and accuracy. This powerful magnet system enhances low-frequency impact, delivering tight, controlled, and immersive bass that brings your music to life with precision and depth.


Frequently Asked Questions (FAQ)


  • • Why Does My Orion XTRPRO104D Not Reach Its Expected Bass Output?
    If the subwoofer sounds weaker than expected, users should check amplifier power, gain settings, enclosure design, impedance wiring, and the signal reaching the amplifier before assuming there is a problem with the woofer.
  • • How Should I Wire the Dual 4-Ohm Coils on the XTRPRO104D?
    Incorrect voice-coil wiring can create an unexpected amplifier load, so users need to verify whether the coils are connected in series or parallel and confirm that the resulting impedance is appropriate for the amplifier.
  • • Why Does My XTRPRO104D Sound Different After Switching Amplifiers?
    Changing amplifiers can alter the available power, gain structure, and impedance interaction, which may noticeably change the subwoofer's output even when the speaker wiring remains the same.
  • • Why Does the Orion XTRPRO104D Get Hot During Heavy Bass Playback?
    Extended high-output operation can increase heat around the voice coil and amplifier, so users experiencing excessive heat should examine power levels, clipping, enclosure conditions, and electrical-system voltage.
  • • Why Does My XTRPRO104D Have Less Bass in My New Enclosure?
    The enclosure has a major effect on subwoofer performance. Orion lists approximately 0.75 cubic feet for the XTRPRO104/XTRPRO102 in a sealed design and 0.75 cubic feet tuned to 44 Hz for a vented design in its published manual.
  • • Why Does the XTRPRO104D Make a Mechanical Noise at High Excursion?
    A knocking, scraping, or unusual mechanical sound during heavy cone movement can indicate excessive excursion, an installation issue, damaged components, or a signal that is pushing the woofer beyond its intended operating conditions.
  • • Why Does My Amplifier Go Into Protection With the XTRPRO104D?
    Protection can occur when the amplifier encounters an unsuitable impedance, shorted speaker wiring, inadequate electrical supply, excessive heat, or another fault in the system. Checking the final impedance of the dual voice coils is an important first step.
  • • Why Does My XTRPRO104D Sound Clean at Low Volume but Distort When Turned Up?
    Distortion that appears only at higher volume can be associated with amplifier clipping, excessive gain, insufficient electrical supply, or the subwoofer being driven beyond its usable mechanical limits.
  • • Why Is My XTRPRO104D Performing Poorly Even With a Powerful Amplifier?
    A high-power amplifier alone does not guarantee strong bass. Incorrect enclosure volume, tuning, gain, crossover configuration, wiring, or voltage drop can prevent the subwoofer from performing as intended. Orion specifically identifies enclosure design, tuning, grounding, and voltage-related issues as common areas requiring attention.
  • • Why Does My XTRPRO104D Stop Producing Bass After Extended Use?
    If output disappears after prolonged operation, users should check whether the amplifier has entered protection, whether electrical voltage has dropped, and whether the speaker or voice coils show signs of thermal stress. Orion also advises determining whether a failure originates from the product itself or from another component in the system before pursuing a warranty claim.

SPECIFICATIONS


  • Diameter : 10 Inch
  • Sensitivity : 88.7 dB
  • Impedance : 4 Ohm
  • Frequency Response : 35-1000 Hz
  • Peak Power Handling : 5000 Watts
  • Number of Voice Coils : Dual
  • RMS Power Handling : 1250 Watts

FEATURES


Features:

  • Professional-Grade Power: Delivers 5000 watts peak and 1250 watts RMS for listeners who demand intense bass and crystal-clear sound, ensuring deep and powerful audio at any volume level.
  • Dual 4-Ohm Voice Coil Configuration: Provides versatile wiring options for seamless integration into various car audio systems, allowing customization and optimization of your setup for maximum performance.
  • Precision Sound Reproduction: Built with a non-pressed paper cone and santoprene surround, ensuring distortion-free, high-clarity sound even under extreme power conditions.
  • Efficient Sensitivity Rating: Featuring an 88.3 dB sensitivity rating, this subwoofer maximizes power efficiency, delivering dynamic and detailed bass that fills your vehicle with rich, immersive sound.
  • Wide Frequency Range: Covers a broad 35 Hz to 1 kHz range, reproducing everything from thunderous low-end bass to crisp, intricate high notes with precision and depth.
  • Advanced Cooling System: Designed with a forced convection cooling system to prevent overheating during high-output performance, ensuring reliable, long-lasting operation.
  • Flexible Impedance: The dual 4-ohm impedance design enhances compatibility with different amplifiers, allowing flexible wiring configurations for optimal system performance.
  • High-Quality Ferrite Magnet: Features a robust ferrite magnet that delivers deep, resonant bass and powerful low-frequency impact, ensuring precision and strength in every beat.



Speficication:

  • Subwoofer Size: 10 (Inches)
  • Voice Coil Configuration: Dual 4-ohm
  • Power Handling (Peak): 5000 Watts
  • Power Handling (RMS): 1250 Watts
  • Sensitivity: 88.7 dB
  • Frequency Response: 35 Hz - 1 kHz
  • Voice Coil Diameter: 2.5 (Inches)
  • Voice Coil Material: Aluminum Wound Voice Coil on a Kapton Former
  • Spider: Dual Flat Conex Spiders with Loop Stitched Tinsel Leads
  • Dustcap Material: Polypropylene
  • Cone Material: UV Coated Reinforced Paper
  • Surround Material: Santoprene
  • Basket Material: Proprietary Cast Aluminum Frame
  • Dimensions (L x W x H): 10" x 10.31" x 5.12" (254 x 261.87 x 130mm)
  • Magnet Information: 133 Oz Ferrite
  • Speaker Displacement: 0.1204 (cu. ft.)
  • Mounting Depth: 185mm / 7.27 (Inches)
  • Cutout Diameter: 235mm / 9.25 (Inches)
  • Overall Diameter: 271mm / 10.67 (Inches)
  • UPC: 818550011205
  • Weight: 31
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
