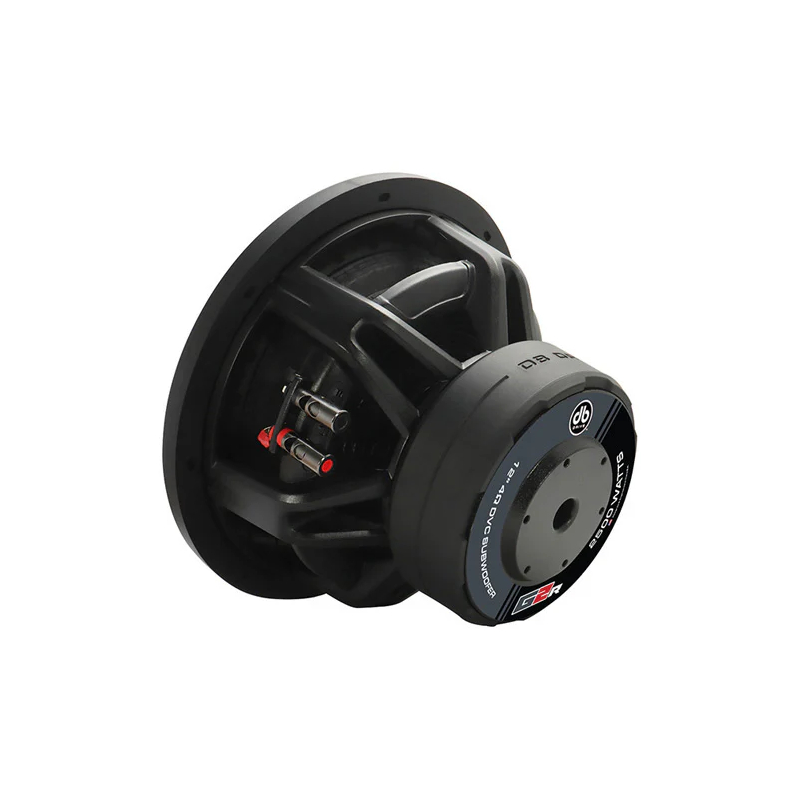

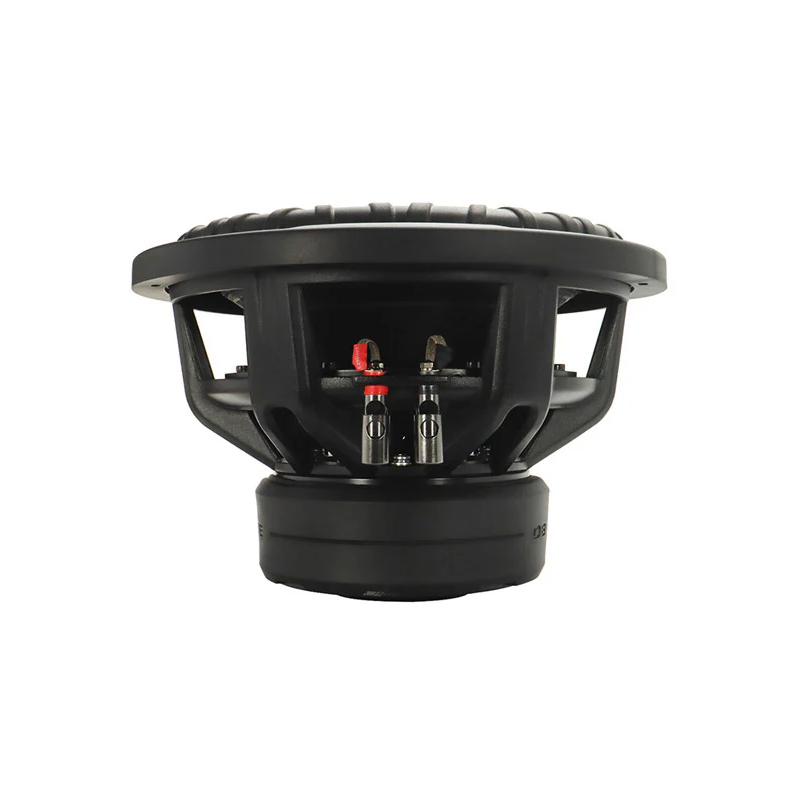

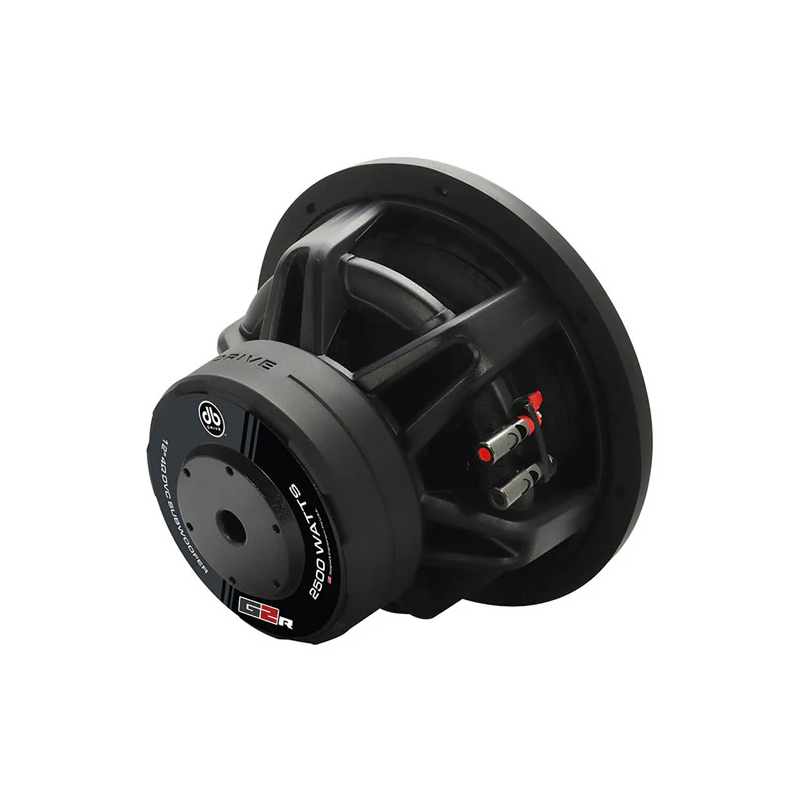

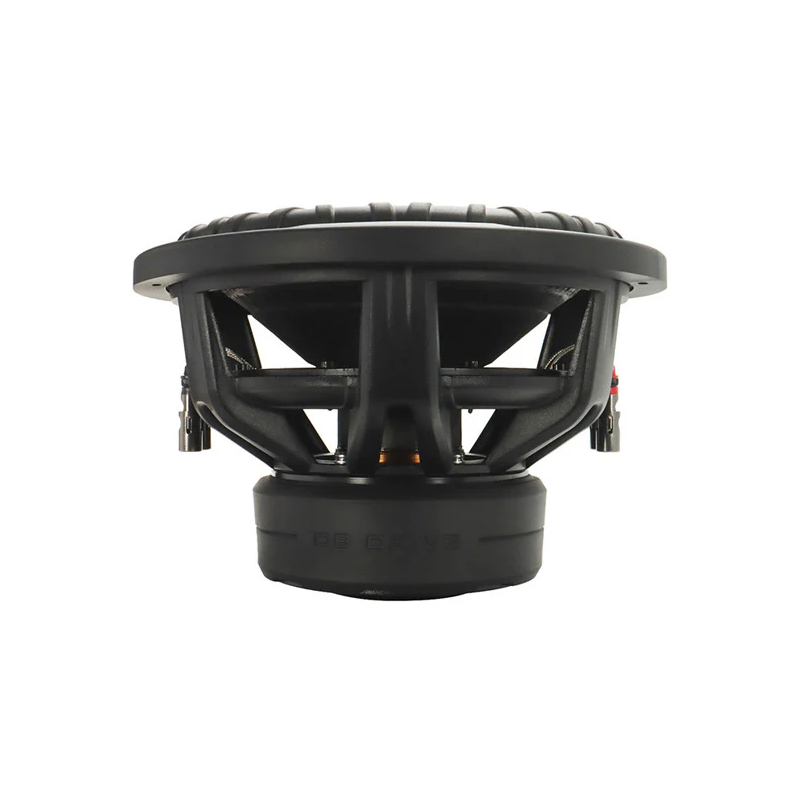

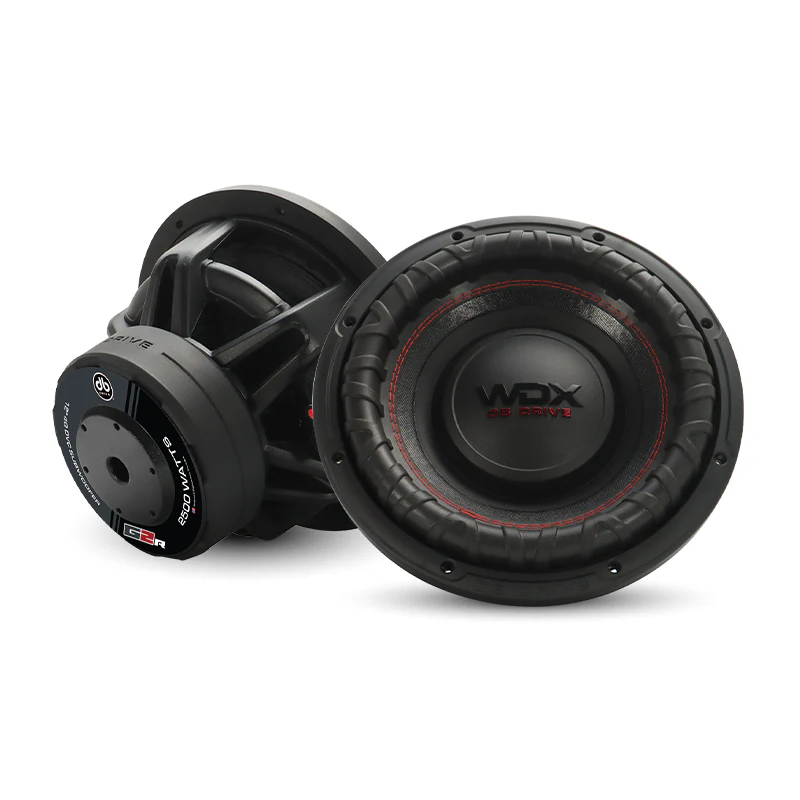

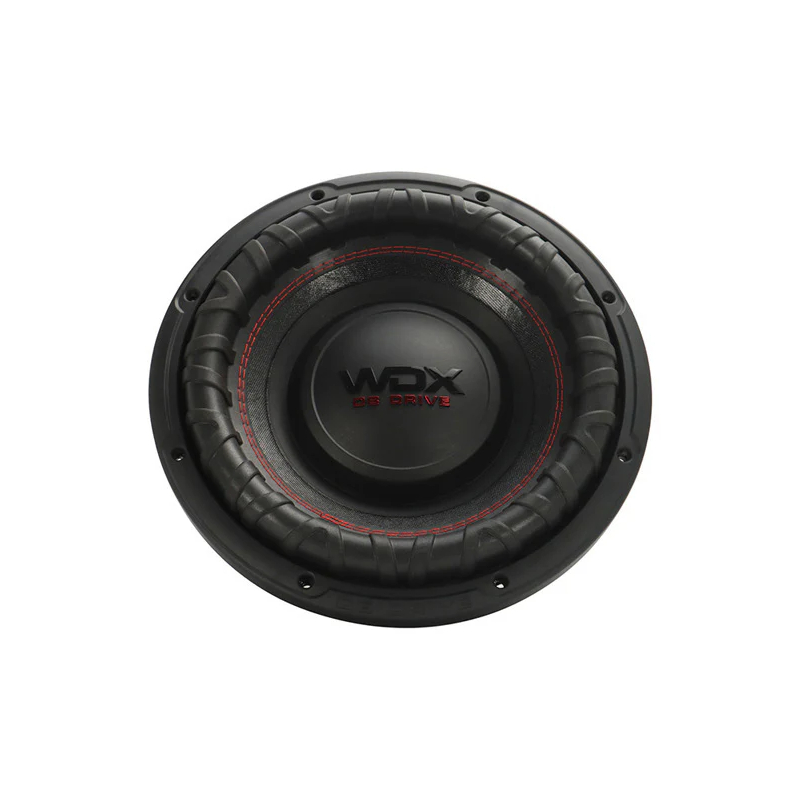

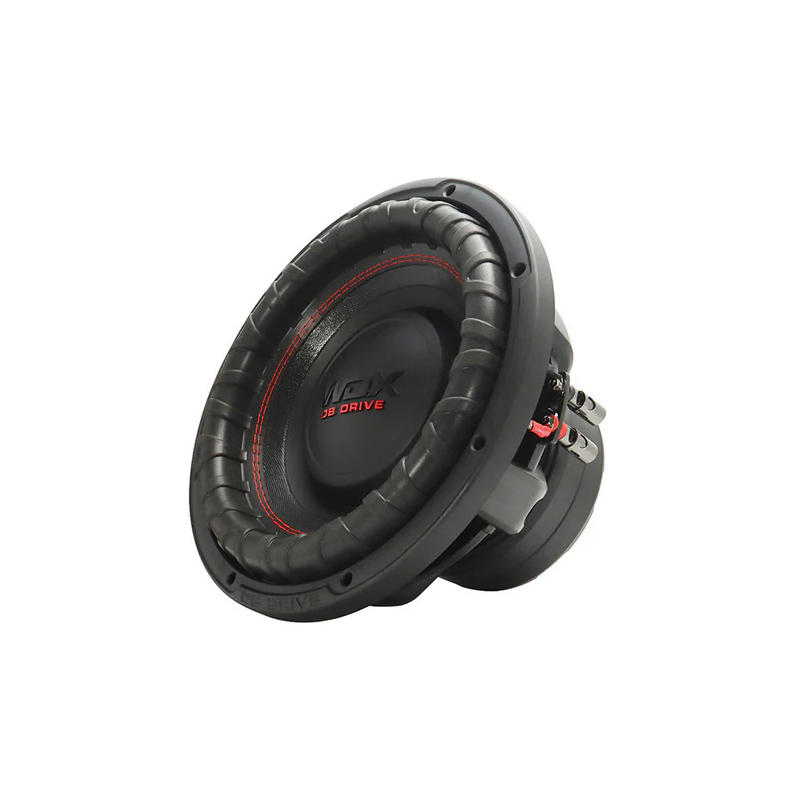

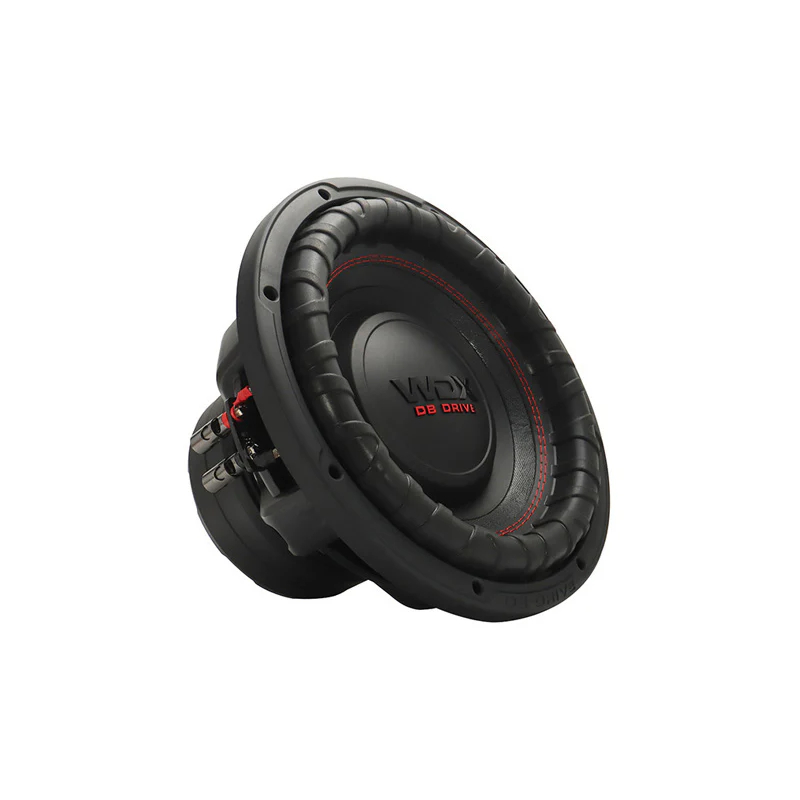

DB Drive WDX12G2R.4 WDX G2R Series 12" 1250W RMS (2500W Peak Power Handling) 4-Ohm, Dual Voice Coil Car Subwoofer (sold individually)
We are a DB Drive authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Feel Every Beat
If you're the kind of person who doesn't just listen to music—you feel it—then the DB Drive WDX12G2R.4 is built for you. This 12" subwoofer brings serious power to the party, with 1250 watts RMS and an earth-shaking 2500 watts peak. It's not just loud—it’s tight, clean, and hits hard. Whether you’re cruising the streets or showing off at a meet, this sub turns every drive into a front-row concert experience.
Engineered to Go Hard
You don’t baby your system—and you shouldn’t have to. The WDX12G2R.4 is made to take a beating and keep pounding. With a die-cast aluminum basket, double-stitched foam surround, and high-temp 3.0" voice coil, it’s built to handle the heat and pressure of serious bass. Everything from the custom-tooled dust cap to the protective magnet cover is designed to last—and look good doing it.
Clean Looks, Dirty Bass
Power means nothing without control, and this sub delivers both. The custom mounting gasket creates a tight seal for cleaner, deeper bass with zero wasted energy. The dual voice coils and oversized terminals make wiring easy, while the high-excursion motor delivers smooth, punchy lows that don’t distort when you crank it. This isn’t just about making noise—it’s about building a system that hits right, every single time.
- Diameter : 12 Inch
- Maximum Power : 2500 Watts
- Sensitivity : 80.1 dB
- Impedance : 4 Ohm
- Peak Power Handling : 2500 Watts
- Number of Voice Coils : Dual
- RMS Power Handling : 1250 Watts
Features:
- 3.0" Anodized Aluminum High-Temperature Voice Coil: Large-diameter coil built for high heat resistance and steady output in demanding setups.
- Non-Pressed Paper Cone: Offers lightweight and flexible construction for improved sound quality.
- Double-Stitched Reinforced Foam Surround: Provides enhanced durability and resilience, improving the speaker's lifespan.
- Dual Poly-Cotton Dampeners: Reduces distortion for clearer sound reproduction.
- Die-Cast Aluminum Vented Basket: Promotes better airflow, preventing overheating and improving overall performance.
- Rubber Gasket Trim Ring: Ensures a secure and vibration-resistant seal for enhanced sound clarity.
- Large Gauge Compression Terminals: Allows for high-current connections and improved signal transmission.

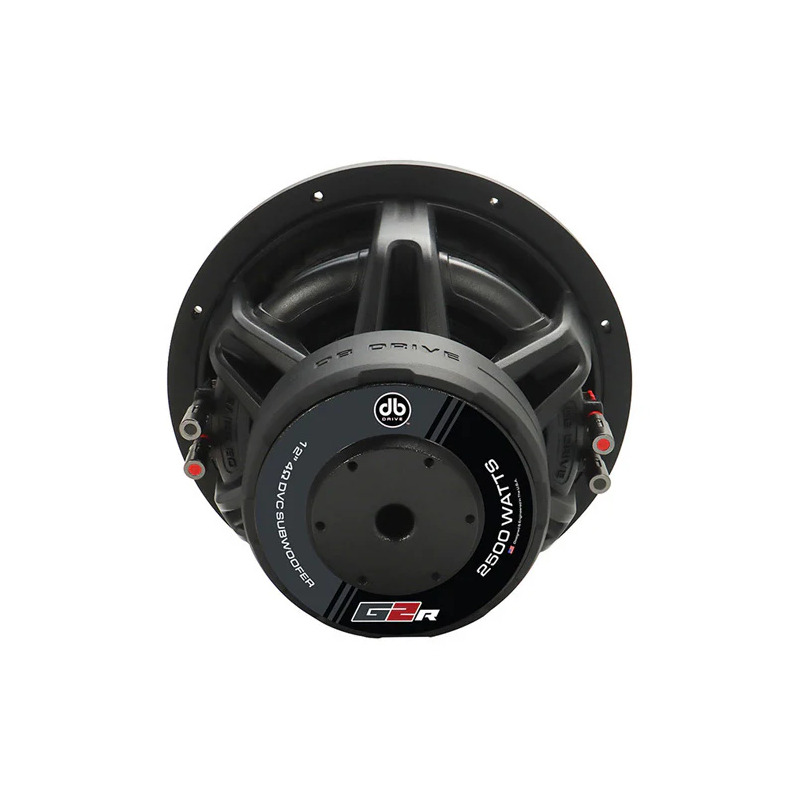

- Protective Magnet Cover: Shields the magnet from damage and helps maintain sound quality.
Specifications:
- Dynamic Power Handling: 2500 Watts
- Nominal Power Handling: 1250 Watts
- Impedance: Dual 4Ω Voice Coil
- Resonant Frequency (fs): 33.597 Hz
- D.C. Voice Coil Resistance (Re): 2 x 3.2Ω
- Mechanical Quality Factor (Qms): 4.413
- Electrical Quality Factor (Qes): 1.253
- Total Quality Factor (Qts): 0.976
- Equivalent Air Volume (Vas): 22.153 L
- Mechanical Compliance of Suspension (CMS): 57.973 mm/N
- Mass of Diaphragm/Coil (Mms): 387.090 g
- Force Factor (BL): 20.429
- Sound Pressure Level (SPL): 80.1 dB
- UPC: 811536039422
- Weight: 27.2
