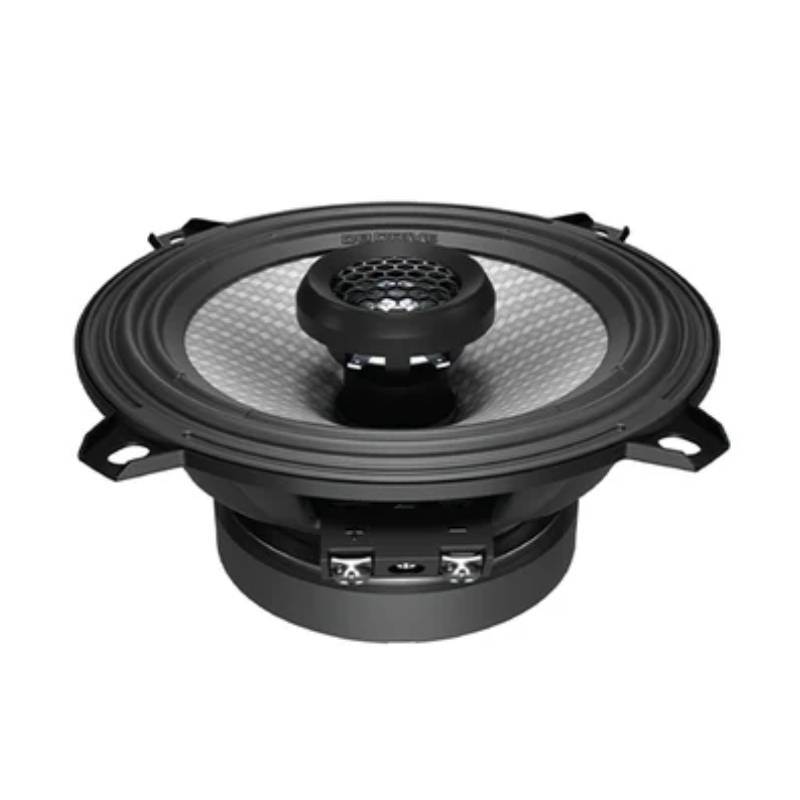

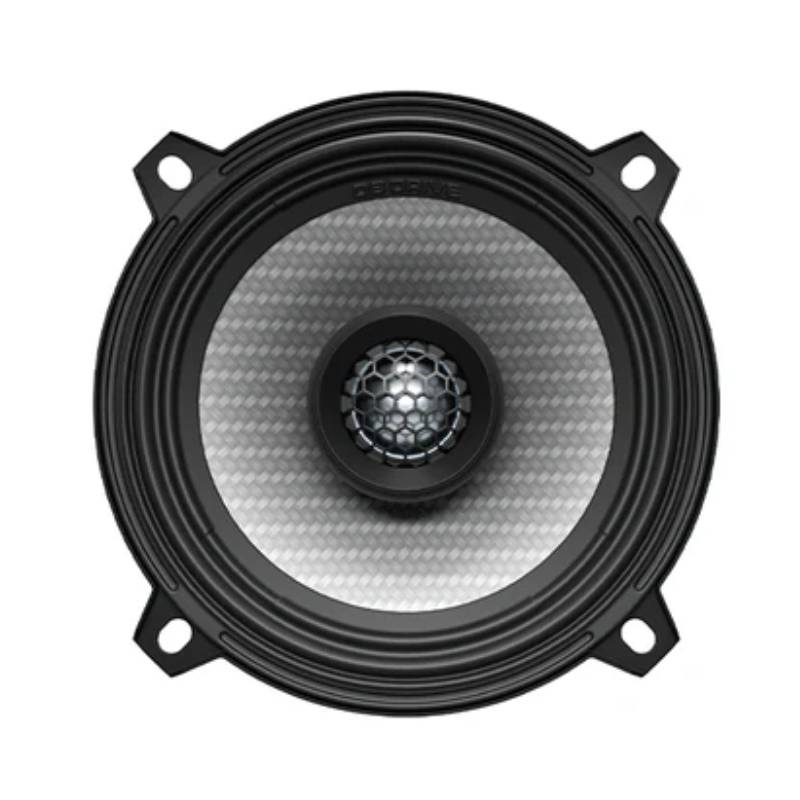

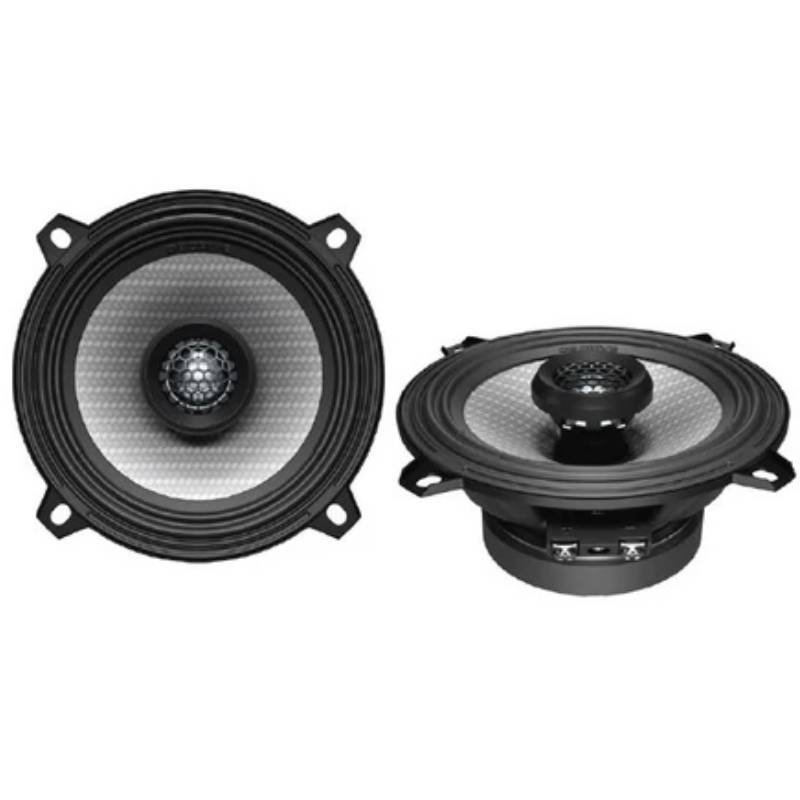

DB Drive DX-S525 DX Series 5.25" 170W Max Power @ 4-Ohms, 2-Way Coaxial Car Speaker (PAIR)
We are a DB Drive authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 5.25" 2-Way Coaxial Speaker
- • Mounting Hardware
- • Owner's Manual
Crisp Highs, Powerful Mids, and Precision Sound Performance
Experience crisp, detailed highs and powerful, distortion-free mids with a 0.75" aluminum dome tweeter and durable polypropylene midrange cone built for lasting clarity. Backed by a 1" oversized voice coil and optimized frequency design, this speaker delivers balanced, high-performance sound at any volume.
Precision-Built for Pure, Balanced, High-Performance Sound
Built for precision and power, this speaker features forged motor plates and a ferrite oxide magnet for tight, distortion-free sound with accurate cone control. Its rugged steel basket and 12dB crossover deliver clean, balanced audio across every frequency, giving you pure, high-performance sound in any setup.
- Diameter : 5.25 Inch
- Sensitivity : 89 dB
- Impedance : 4 Ohm
- Frequency Response : 75 - 20000 Hz
- Peak Power Handling : 170 Watts
- Design : 2 Way
Features:
- 0.75" Aluminum Dome Tweeter with Optimized Off-Axis Frequency Response: This tweeter delivers crisp, detailed high frequencies and maintains consistent audio clarity, even for listeners seated off-center, thanks to its carefully engineered off-axis performance.
- Injection Molded PP Composite Midrange Cone with Rubber Surround: Made from durable, lightweight polypropylene composite, this midrange cone ensures clear, distortion-free audio while the flexible rubber surround enhances bass response and extends the speaker’s durability.
- 1" Oversized Midrange Voice Coil with Enhanced Thermal Capacity: A larger voice coil allows for greater power handling and efficient heat dissipation, ensuring consistent, reliable performance even at high output levels.
- Optimized Frequency Bandwidth Design: The speaker is engineered to accurately reproduce a wide range of audio frequencies, delivering balanced sound from deep lows to clean mids and bright highs.
- Forged Motor Plates with Linear Gauss Geometry: These strong, forged motor plates keep the magnet and voice coil precisely aligned, while the linear gauss geometry produces a stable magnetic field for reduced distortion and improved sound clarity.
- Ferrite Oxide Magnet with Optimized Motor Force: The ferrite oxide magnet generates a powerful, steady magnetic field, and its motor force is carefully tuned to control the speaker cone’s motion for precise, efficient, and accurate sound output.
- Stamp Cast Steel Basket: A rugged, stamp-cast steel basket provides a solid, stable frame that minimizes unwanted vibrations and resonance, preserving audio quality and speaker integrity.
- Onboard 12dB Crossover: The built-in 12dB crossover effectively splits audio frequencies between the tweeter and midrange driver, ensuring each component handles the frequencies it’s designed for, resulting in smooth, balanced, and detailed sound reproduction.
Specifications:
- Max Power : 170 Watts
- Nominal Power Handling : 55 Watts
- Frequency Response: 75Hz - 20KHz
- Impedance: 4Ω
- Sensitivity: 89 dB
- UPC: 810180460200
- Weight: 0
- Authorized Internet Dealer
Warranty: 0 Months Onlinecarstereo.com warranty.
0 Months warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
