JL Audio CF-690W Custom Fit Series 6"x9" 75W RMS (150W Peak Power Handling) 4 Ohms, Midrange Car Speakers for Select Ram, Toyota, Chevy, and GM Models (Pair)
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) Woofers

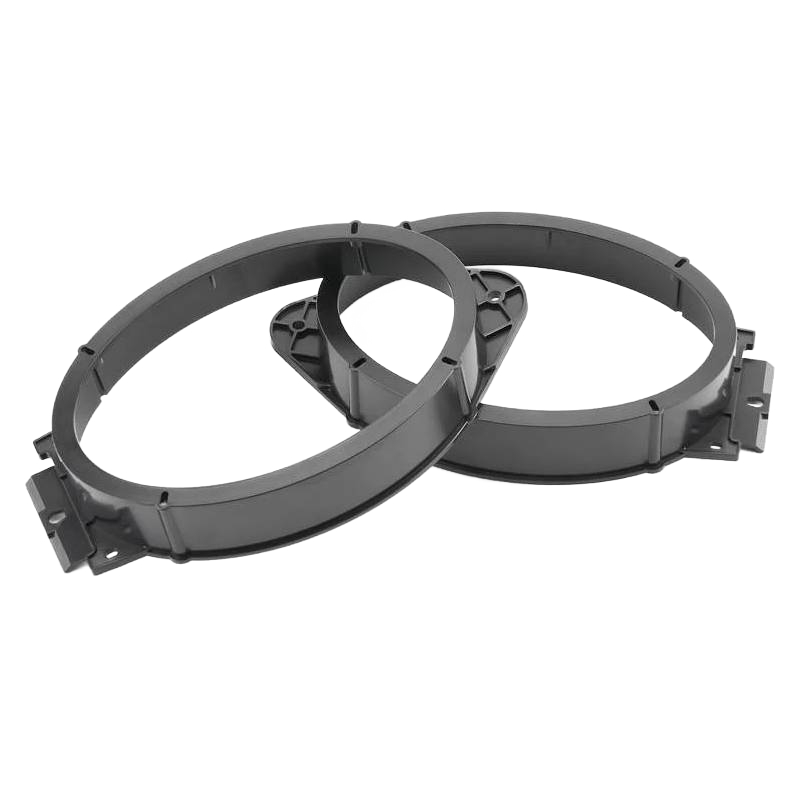

- • (4) OEM adapter rings
- • (2) woofer foam gaskets
- • (16) 1" mounting screws
- • (2) 0.187” female crimpable connectors
- • (2) 0.110" female crimpable connectors
- • Owner's Manual
Why Choose JL Audio CF-690W Midbass Drivers?
High-Fidelity Performance Meets Durable Design
The CF-series drivers are engineered for performance, using specialized cone and surround materials to improve efficiency and extend high-frequency response. Built with JL Audio’s proprietary DMA-optimized motor, suspension, and cone modeling, these speakers deliver superior linearity, reduced distortion, and high-fidelity sound at all volume levels. Durable glass-filled, high-temperature polymer frames with insert-molded terminals and drop-in mounting geometry make OEM replacement quick and easy.
Perfect Fit, Powerful Performance
Available in 6"×9" woofers and 2.75" midtweeters, these speakers install directly into a wide range of OEM vehicle locations with minimal effort. Designed to deliver strong, clean sound with aftermarket amplifiers, they perform exceptionally across various system configurations. The drop-in fit works seamlessly in select Ram, Toyota, and GM vehicles with no cutting or modification required.
Responsive Sound, Easy Installation

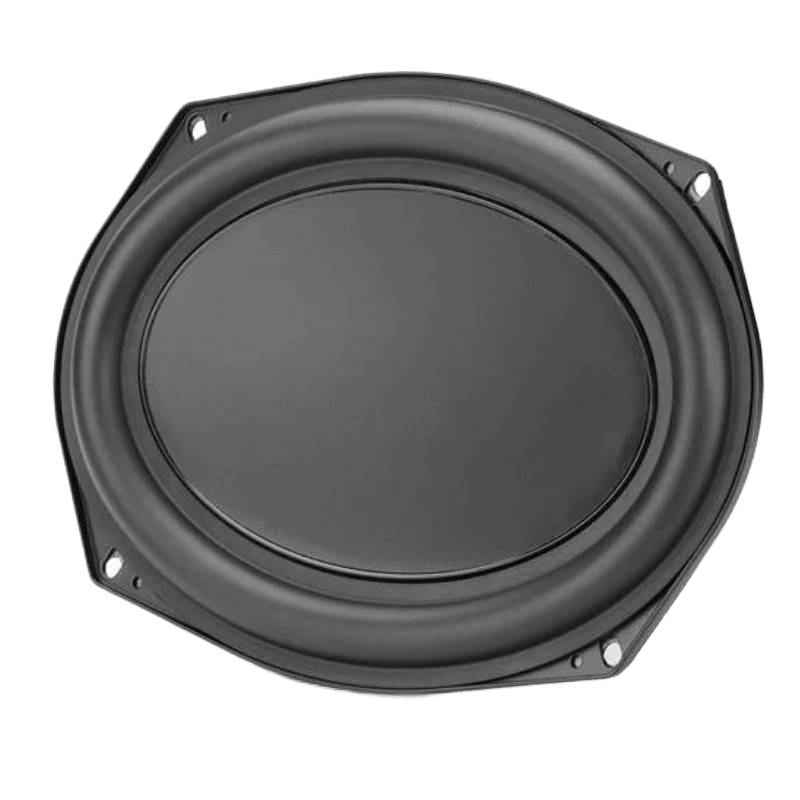

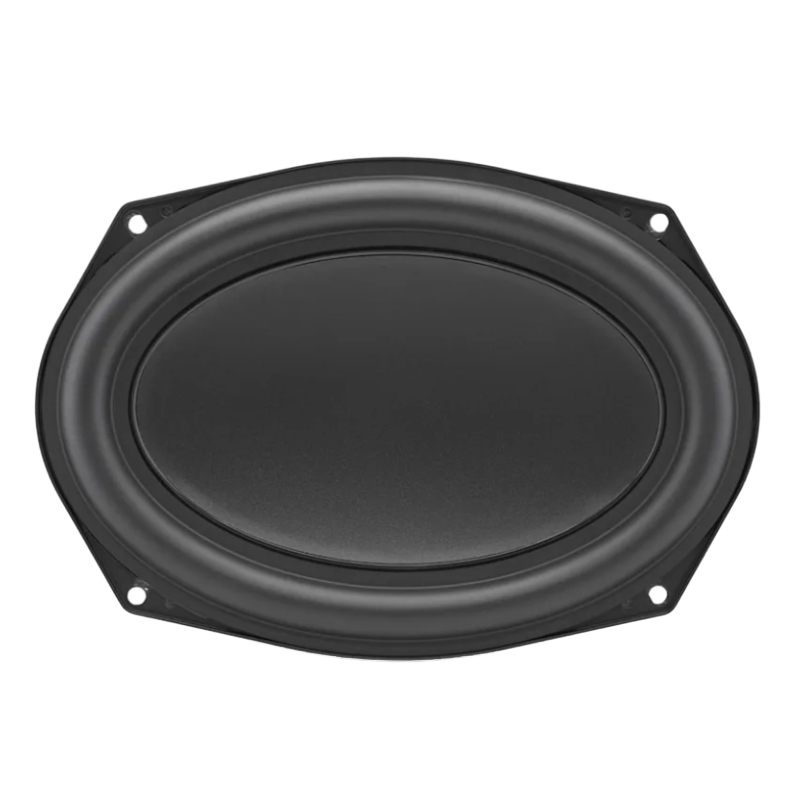

The vacuum-formed, mineral-filled polypropylene woofer cone with rubber surround delivers responsive, durable performance. Tuned for solid low-end response and clear upper-range clarity, it ensures balanced sound from midbass to upper midrange. OEM-style installation includes adapter rings and foam gaskets for a tight, factory-grade finish while retaining OEM grilles.
Frequently Asked Questions (FAQ)
- • Will the JL Audio CF-690W fit in my factory 6x9-inch speaker location?
In most vehicles, yes. Always verify the mounting depth and bolt pattern before installation.
- • Why do my CF-690W speakers have weak bass compared to my factory speakers?
The factory speakers may have relied on heavy bass boost. Retuning the EQ and sealing the mounting surface usually restores bass performance.
- • Can I use the CF-690W without an external amplifier?
Yes. They will play from most factory or aftermarket head units, but an amplifier provides greater output and control.
- • Why do my rear deck speakers rattle at higher volumes?
Loose trim panels or the rear deck itself are often vibrating, not the speakers. Adding sound deadening usually helps.
- • Can I install the CF-690W in my front doors instead of the rear deck?
Yes, if your vehicle is designed for 6x9-inch door speakers and provides enough mounting depth.
- • Why do the speakers sound dull after replacing my factory amplifier?
The crossover or equalizer settings may need to be recalibrated for the new amplifier.
- • Can I pair the CF-690W with a dedicated subwoofer?
Yes. Using a high-pass filter on the speakers and letting the subwoofer handle deep bass improves overall system performance.
- • Why do the speakers sound louder with the trunk open?
Opening the trunk changes the vehicle's acoustics and allows low frequencies to travel more freely.
- • Do I need foam speaker baffles behind the CF-690W?
Foam baffles can provide extra protection from moisture, but fully sealing the rear of the speaker may reduce bass output.
- • Why do cymbals and vocals sound clearer after installing the CF-690W?
The CF-690W offers improved accuracy and frequency response compared to many factory 6x9-inch speakers.
- Diameter : 6x9 Inch
- Sensitivity : 84 dB
- Impedance : 4 Ohm
- Frequency Response : 36-610 Hz
- Peak Power Handling : 150 Watts
- Vehicle Make : Ram, GM
- Vehicle Make : Toyota
- Vehicle Make : Chevy
- RMS Power Handling : 75 Watts
Features:
- Engineered for Performance: Each CF-series driver uses a specialized cone and surround material to deliver improved efficiency and extended high-frequency response.
- DMA-Optimized Speakers: Built with JL Audio’s proprietary motor, suspension, and cone modeling technology to achieve superior linearity, reduced distortion, and high-fidelity output at all volume levels.

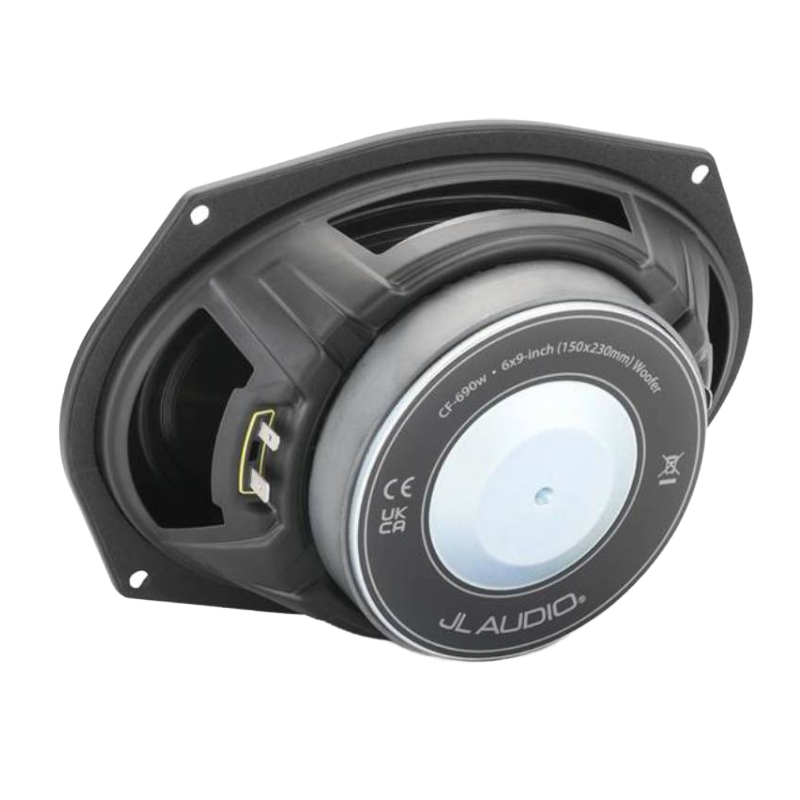

- Advanced Frame Design: Features durable, glass-filled, high-temperature polymer frames with insert-molded terminals and drop-in mounting geometry for easier OEM replacement.
- Made to Fit: Available in both 6" × 9" woofers and 2.75" midtweeters to install directly into a wide range of OEM vehicle locations with minimal effort.
- Powerfully Adaptable: Performs exceptionally well when paired with aftermarket amplifiers, delivering strong, clean sound across many system configurations.
- Drop-In Fit: Designed to fit factory locations in select Ram, Toyota, and GM vehicles with no cutting or modification required.
- Efficient Woofer Construction: Vacuum-formed, mineral-filled polypropylene cone with rubber surround provides responsive, durable performance.
- Expansive Frequency Range: Tuned for solid low-end response and clean upper-range clarity, ensuring balanced sound from midbass to upper midrange.
- OEM-Style Installation: Includes adapter rings and foam gaskets for a tight, factory-grade finish while retaining OEM grilles.
Specifications:
- Speaker Size: 6"×9"
- Driver Design: 1-way
- Woofer Material: Mineral-filled polypropylene
- Woofer Surround: Rubber
- Impedance: 4 ohms
- Sensitivity (1W/1m): 84 dB
- Frequency Response: 36 – 20,000 Hz
- RMS Power Handling: 75 watts
- Peak Power Handling: 150 watts
- Top-Mount Depth: 2.85"
- Weather-Resistant: No
- Grilles Included: No (uses factory grilles)
- Included Hardware: Four OEM-style adapter rings, two foam gaskets
- UPC: 699440990677
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
