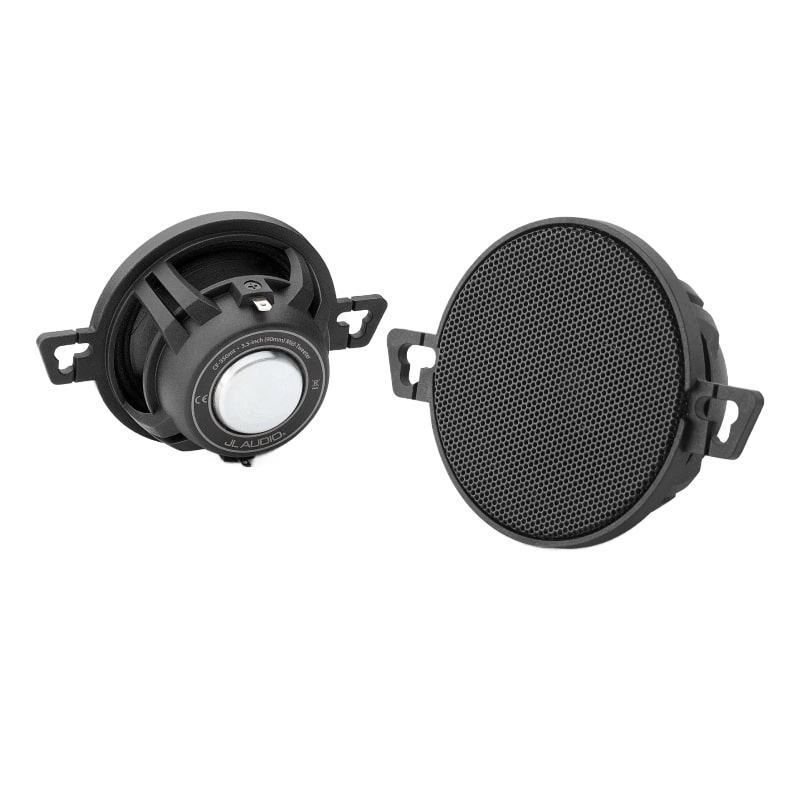

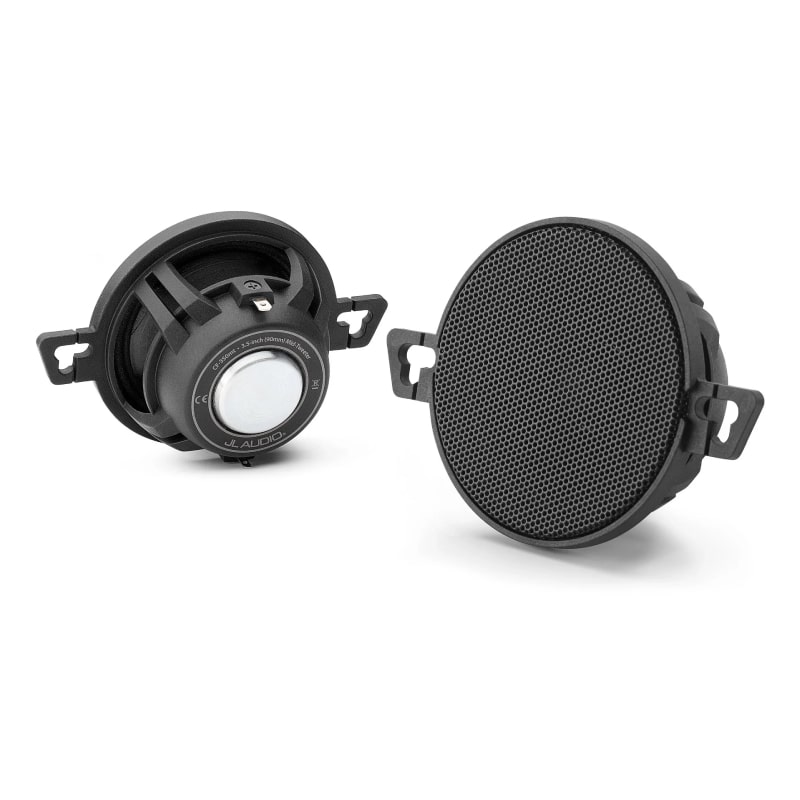

JL Audio CF-350mt CF Series 3.5" 30W RMS (50W Peak Power Handling) 4 Ohm, 1-Way Car Mid-Tweeters (Pair), Compatible with Chevrolet, GMC, Cadillac, Dodge, Jeep, RAM, Toyota, and Other Vehicles
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

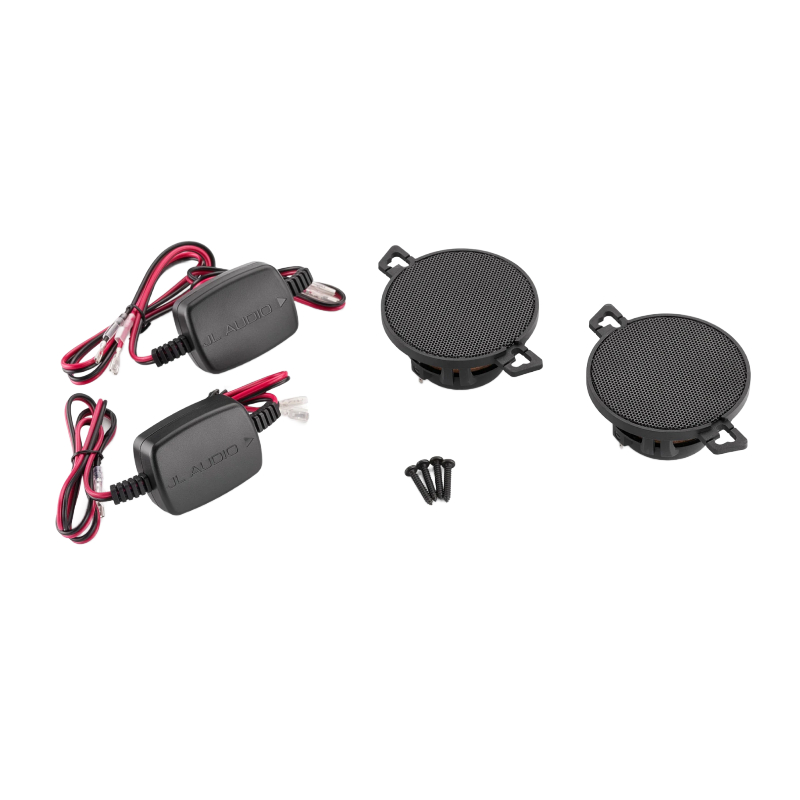

What's Inside?
- • (2) CF-350mt Mid-Tweeters
- • (2) in-line crossovers
- • (8) 1" Screws
- • (2) 0.187" Female quick slides (crimp-on/14-16 gauge)
- • (2) 0.110" Female quick slides (crimp-on/14-16 gauge)
- • Owner's Manual
Why Choose JL Audio CF-350mt Midbass Drivers?
Marine-Ready, Crisp Highs
The 1" silk dome tweeter delivers smooth, detailed highs that cut through wind, water, and boat noise. Built with marine-grade, corrosion- and UV-resistant materials, it ensures long-lasting performance in salt air, moisture, and sunlight. An in-line high-pass filter protects the tweeter and maintains clean, distortion-free sound.
Versatile, Powerful, and Compact
Includes flush- and surface-mount fixtures with Classic and Sport trim rings for flexible installation and stylish integration. Capable of handling up to 75W RMS (150W peak), these tweeters deliver clear, powerful highs. With a compact 1.2" mounting depth, they fit easily into most marine audio setups.
Crisp, Efficient High-Frequency Performance
With an optimized frequency response of 4,800–25,000Hz, these tweeters deliver crisp, clear highs for detailed sound reproduction. Their 4Ω impedance and 91dB sensitivity ensure strong output even when paired with standard marine amplifiers.
Frequently Asked Questions (FAQ)
- • Will the JL Audio CF-350mt fit in my factory 3.5-inch dash speaker location?
In many vehicles, yes. Always verify the cutout diameter and mounting depth before installation.
- • Why do vocals sound too forward after installing the CF-350mt?
The midrange level or DSP equalization may be set too high. Reducing the output level usually creates a more natural balance.
- • Can I use the CF-350mt with my factory amplifier?
Yes, but an aftermarket amplifier or DSP will allow the speaker to perform much closer to its full potential.
- • Why do the speakers distort only at high volume?
The factory amplifier may be clipping before the speakers reach their limits. Check gain and crossover settings.
- • Can I install the CF-350mt in custom A-pillars?
Yes. Custom A-pillar installations are popular for improving stereo imaging and soundstage.
- • Why do navigation prompts sound louder than my music?
The vehicle's factory audio processing may use different output levels for voice prompts. This is normal on many OEM systems.
- • Can I run the CF-350mt in an active 3-way system?
Yes. It is well suited for active DSP-controlled systems with properly configured crossover points.
- • Why does my center image disappear when I move my head slightly?
Time alignment or speaker aiming may need adjustment. Small DSP changes can significantly improve imaging.
- • Should I angle the CF-350mt toward the listening position?
Yes. Proper aiming can improve clarity, imaging, and overall tonal balance in many installations.
- • Why does the CF-350mt reveal hiss that I never noticed before?
The speaker's high resolution can expose background noise from the source unit or amplifier. Improving gain structure usually reduces it.
- Diameter : 3.5 Inch
- Sensitivity : 86 dB
- Frequency Response : 450-20000 Hz
- Peak Power Handling : 50 Watts
- RMS Power Handling : 35 Watts
Features:
- Custom-Fit Design: Engineered to deliver amazing sound from factory locations, featuring shallow polymer frames and breakaway mounting tabs for maximum compatibility with popular vehicles like Chevrolet, GMC, Cadillac, Dodge, Jeep, RAM, Toyota, and many more.
- Advanced Engineering: Benefits from proprietary FEA modeling and extensive loudspeaker design expertise to create speakers that play loudly while maintaining smooth, dynamic low-distortion sound.

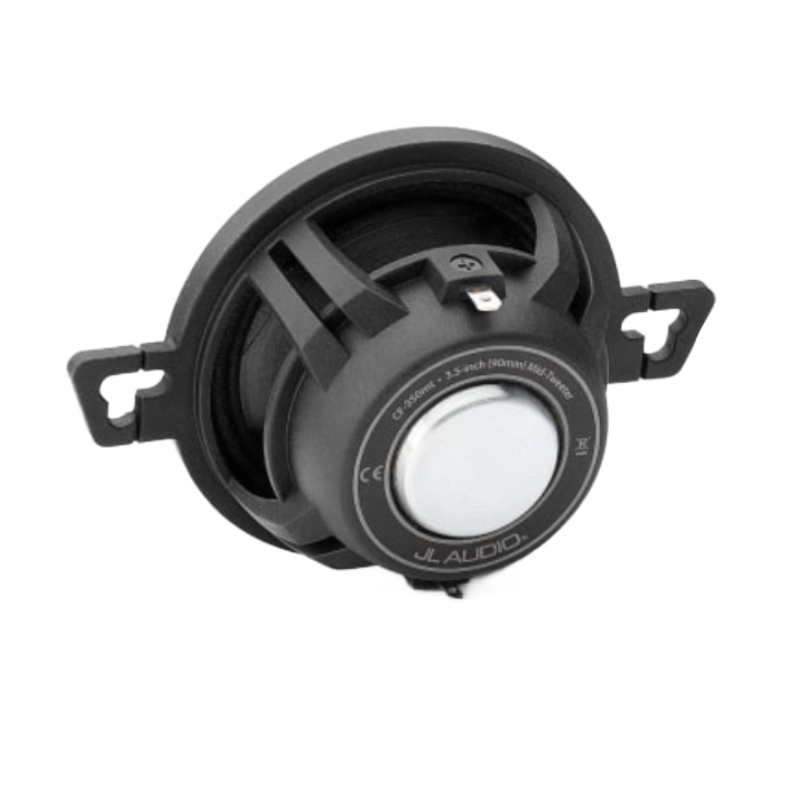

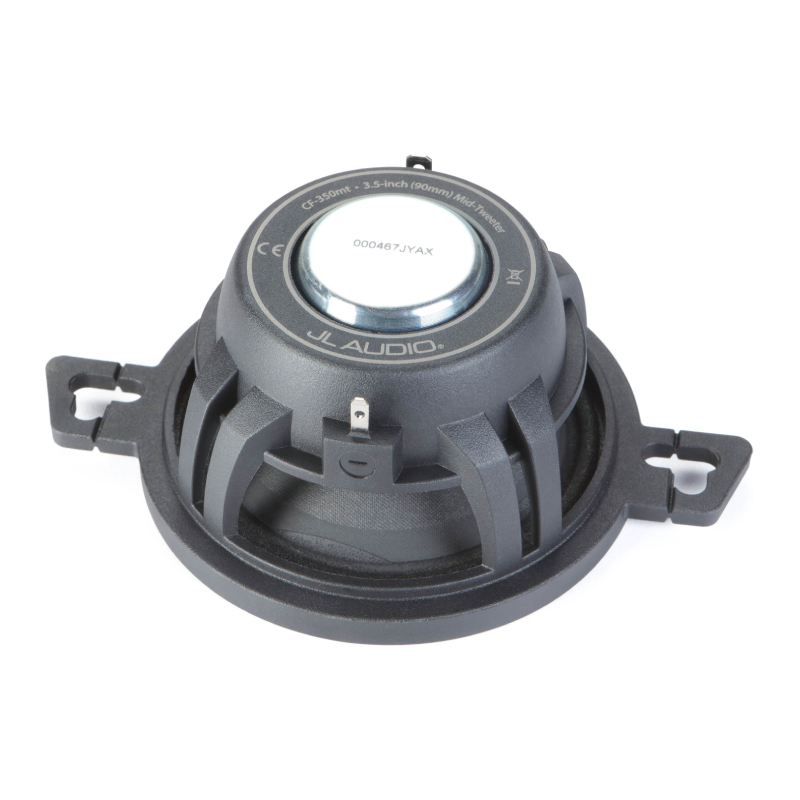

- Mid-Tweeter Construction: Proprietary 3.5" (90 mm) composite frame and a DMA-optimized motor system for superior performance.
- High-Efficiency Cone: Ultralight, fiber-reinforced pulp cone with a custom "S" roll surround for excellent efficiency and extended high-frequency response.
- Linear Compliance: Flat, progressive-roll spider ensures linear compliance for optimal sound quality.
- Powerful Motor: Neodymium motor delivers high energy output from a compact and lightweight design.

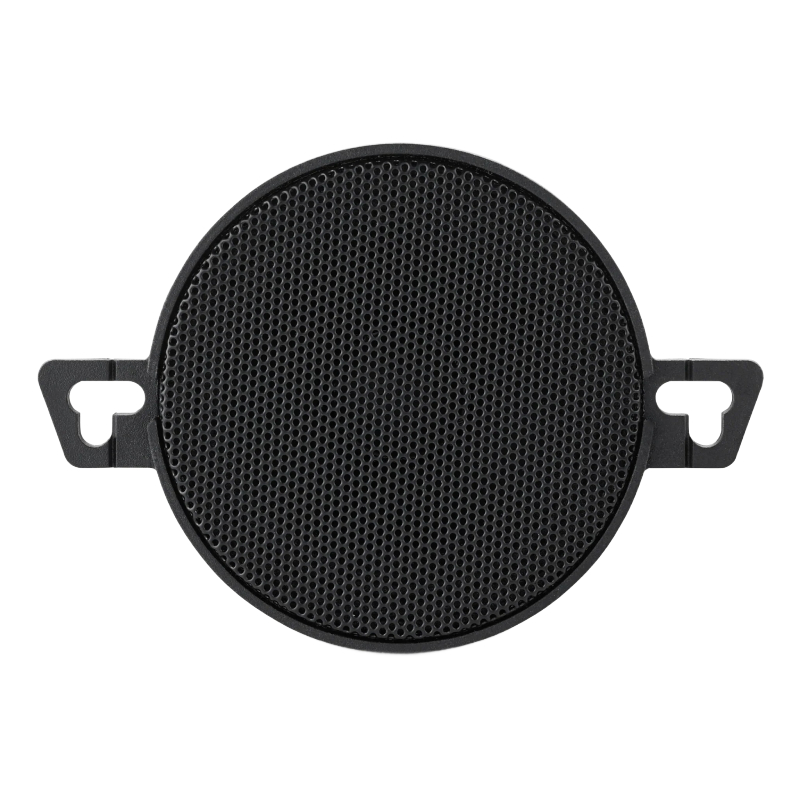

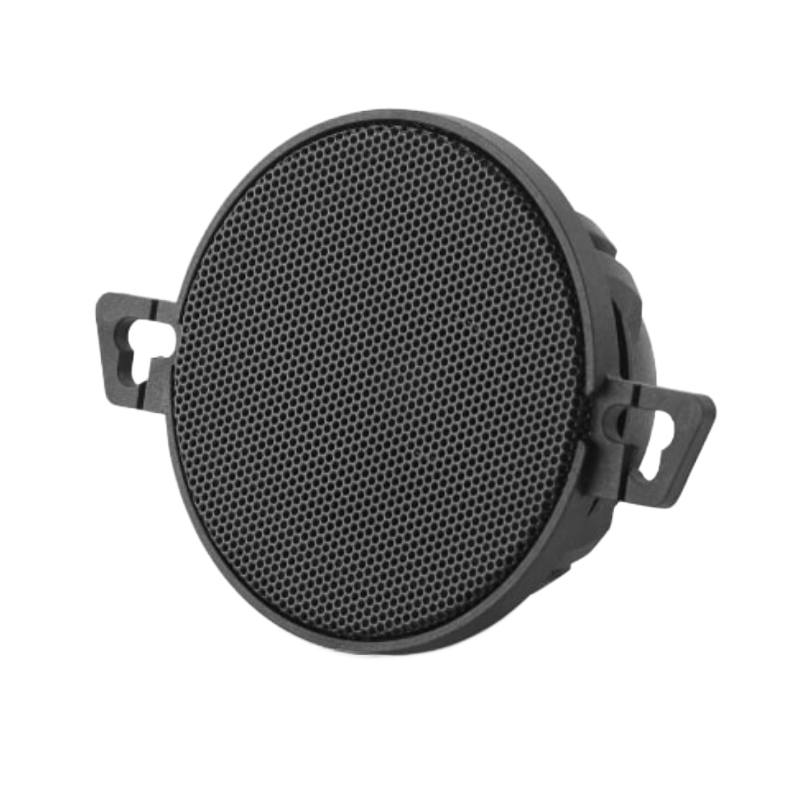

- Durable Frame: Glass-filled, high-temperature polymer frame with insert-molded terminals and a low-profile perforated metal grille for protection and compatibility.
- UV Protection: Grille offers excellent UV protection, ideal for exposed dashboard locations.
- Passive and Active Applications: Includes in-line second order high-pass filters for passive use, or can be used actively as midrange or mid-tweeter drivers for two-way or three-way systems.
- Recommended DSP: Ideal for use with high-quality digital signal processors like the JL Audio TwK® DSP or a VXi amplifier with built-in DSP.
- Design Bandwidth: 400 Hz-20 kHz with 24 dB/octave filters, 500 Hz-20 kHz with 12 dB/octave filters.
- Factory-Fit Sound: Delivers next-level sound quality from OEM locations.
- Package Includes: Sold as a pair, with built-in grilles.
Specifications:
- Speaker Size: 3 1/2 inches
- Design: 1-way
- Impedance: 4 Ohms
- Sensitivity (1W at 1 meter): 86 dB
- Frequency Response: 450 - 20k Hz
- Minimum RMS Wattage: 10 W
- Maximum RMS Wattage: 35 W
- Peak Power Handling: 50 W
- Top-mount Depth: 1 5/8 inches (1.625 inches)
- Bottom-mount Depth: 1 7/8 inches (1.875 inches)
- Cutout Diameter or Length: 3 1/8 inches (3.125 inches)
- Mounting Height: 0.27 inches
- Frame Width: 3.468 inches
- Frame Length: 3.468 inches
- Frame Outer Diameter: 3.46 inches (88 mm)
- Motor Outer Diameter: 1.29 inches (33 mm)
- Frontal Grille Protrusion: 0.26 inches (7 mm)
- Mounting Hole Diameter: 3.12 inches (80 mm)
- Mounting Depth: 1.59 inches (40 mm)
- UPC: 699440990585
- Weight: 2
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
