JL Audio CF-275SMT

Name: JL Audio CF-275SMT
Brand: JL Audio
SKU: 97019
Price: 399.99 USD
Availability: InStock

Custom Fit Series 2.75" 70W Peak Power Handling 4 Ohms, 1-Way Car Mid-Tweeters for Select Ram, Toyota, Chevy, and GM Models (Pair)

Item #97019

Condition: Brand New

❮ ❯

Product Highlights


                                    2.75" mid-tweeters pair
40W RMS car tweeters
4 ohm mid-tweeters
custom fit OEM models
Ram Toyota Chevy GM



Free 2-Years Warranty Included!

60 DAYS Returns Accepted.

FREE Lifetime Tech Support.

FREE Shipping.

60 DAYS Price change protection.

$399.99

Reg. Price $499.99 Save $100.00

In Stock

Limited Stocks left!

Getting Delivery Estimate...

Free 2-Years Warranty Included!

60 DAYS Returns Accepted.

FREE Lifetime Tech Support.

FREE Shipping.

60 DAYS Price change protection.

Alert me on price change

Fit Guide. Check if it will fit your car.

We Price Match! Call Us! 310-526-8635

OVERVIEW

JL Audio CF-275SMT Custom Fit Series 2.75" 40W RMS (70W Peak Power Handling) 4 Ohms, 1-Way Car Mid-Tweeters for Select Ram, Toyota, Chevy, and GM Models (Pair))

We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

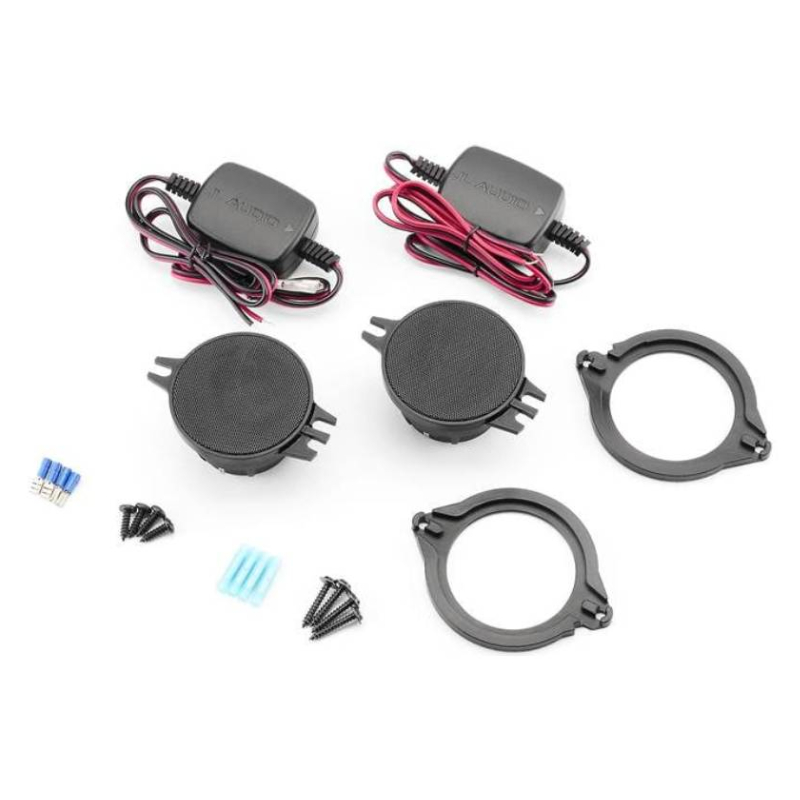

What's Inside?

• (2) 2.75" Custom Fit Series 1-Way Car Mid-Tweeters
• (2) sealed back mid-tweeters
• (2) OEM adapter rings
• (4) 1" mounting screws
• (4) 5/8” mounting screws
• (2) 0.187” female crimpable connectors
• (2) 0.110" female crimpable connectors
• (4) splice connectors
• Owner's Manual

Why Choose JL Audio CF-275SMT Car Tweeters?

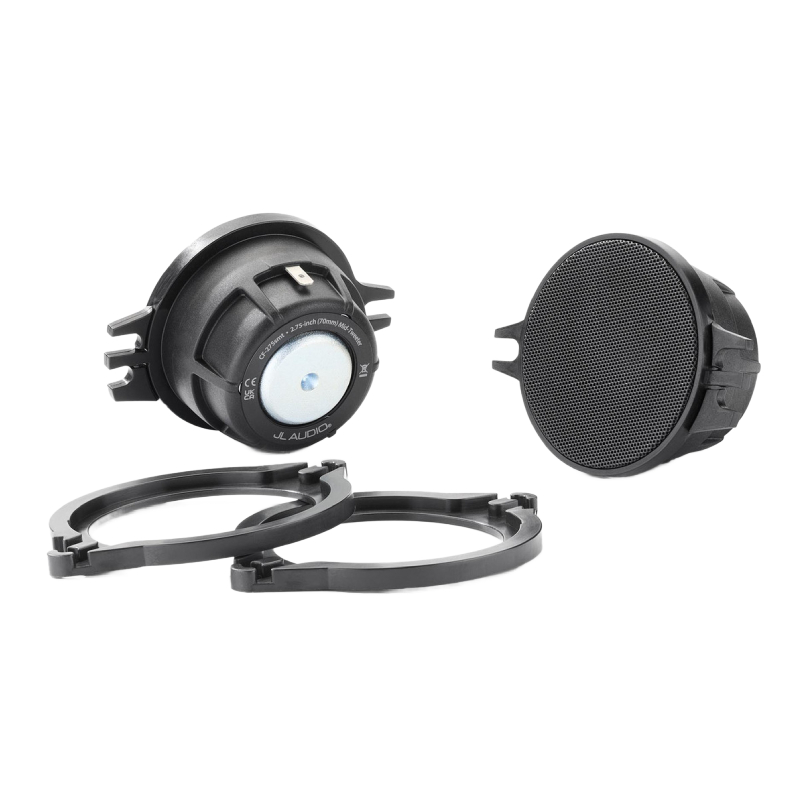

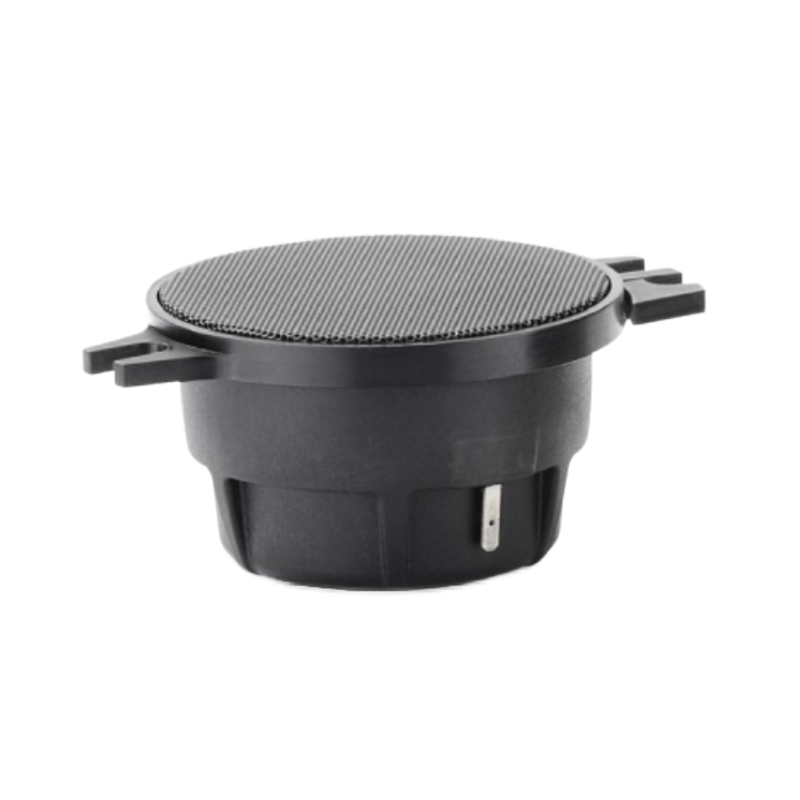

JL Audio CF-275smt 2.75-inch Mid-tweeter Three-Quarter Angled Side View

CF Series High-Performance Speakers

The CF Series speakers are built for performance, delivering efficient power and crystal-clear high-frequency response. Designed with advanced cone and surround materials, they ensure accurate, detailed sound in every note. Versatile enough for flexible active system designs, these speakers give you the freedom to customize your car audio to perfection.

CF Series Precision Midtweeters

The CF Series DMA-optimized speakers are engineered for precision, delivering exceptional clarity, low distortion, and true high-fidelity sound. With a robust motor and flat spider design, they handle power with ease while maintaining flawless performance. Built on durable glass-filled polymer frames with easy drop-in installation, these midtweeters combine advanced technology with convenience for the ultimate upgrade.

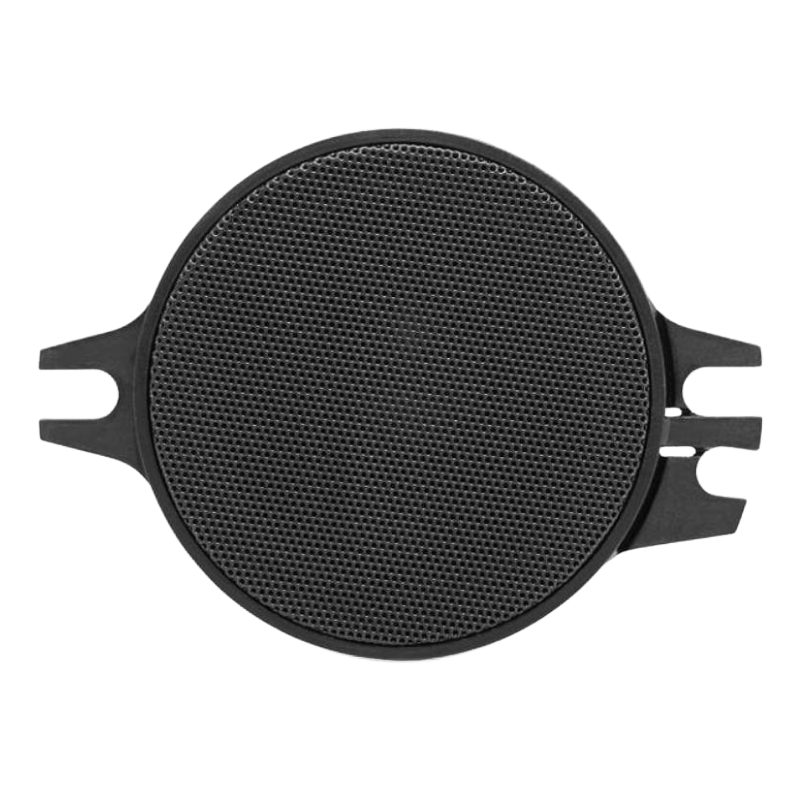

JL Audio CF-275smt 2.75-inch Mid-tweeter Front View with Grille

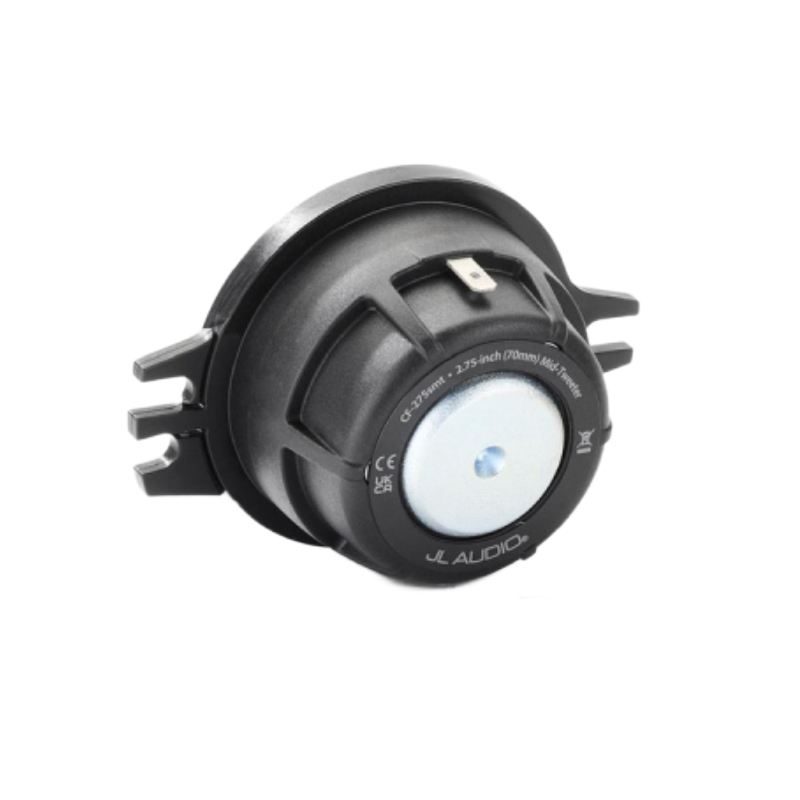

JL Audio CF-275smt 2.75-inch Mid-tweeter Angled Bottom View Showing Magnet Structure

CF Series Versatile OEM Fit Speakers

The CF Series speakers are designed to adapt seamlessly, delivering powerful and detailed sound when paired with an amplifier. Engineered for versatility, they enhance a wide range of car audio applications with clarity and precision. With a 2.75-inch midtweeter made for direct OEM fit, installation is simple and hassle-free for a perfect upgrade.

Frequently Asked Questions (FAQ)

• Why did my CF-275smt mid-tweeters suddenly blow or start crackling after installation?
This happens if you bypass the included passive crossover or fail to set a proper high-pass filter. These 2.75-inch drivers cannot handle low bass frequencies. If running them actively without the passive boxes, you must set an active electronic high-pass filter at a minimum of 550 Hz with at least a 12 dB/octave slope to prevent permanent thermal or mechanical damage.
• The speakers fit into my factory dash opening, but the factory wiring plug doesn't match the speaker. How do I hook them up?
While the speaker frame is a direct physical drop-in fit for select Ram, Toyota, and GM vehicles, the electrical terminals use standard aftermarket spade connections. You will need to crimp the included female quick-slide terminals onto your cut factory wires, or buy a vehicle-specific plug-and-play wiring adapter harness (like Metcalfe or Crutchfield styles) separately.
• Why does the high-frequency response sound overly bright, harsh, or too loud in my truck's dashboard?
Dash-mounted speakers reflect sound directly off the windshield, which can exaggerate high frequencies. The included passive crossovers feature a built-in 4-step level adjustment toggle. Open the crossover housing and switch the jumper setting down (e.g., to -2 dB or -4 dB) to tame the harshness and balance the sound stage.
• Can I power the CF-275smt directly off my factory radio head unit, or do I absolutely need an aftermarket amplifier?
You can run them directly off a factory head unit because they are efficient. However, with an 86.5 dB sensitivity rating, they wake up significantly when paired with clean power. For optimum clarity and output without distortion, they perform best when supplied with 25 to 75 watts RMS from a quality aftermarket amplifier.
• Why am I getting little to no mid-bass punch or body from these dashboard speakers?
These are specialized 2.75-inch mid-tweeters designed strictly to cover upper-midrange and high frequencies (410 Hz to 20 kHz). They lack the cone surface area and excursion capacity to produce true mid-bass or lower-midrange frequencies. They are engineered to be paired with door-mounted woofers (such as a 6x9 or 6.5-inch driver) in a multi-way split component system.
• Why won't my factory dashboard speaker screws line up with the holes on the CF-275smt frame?
Different vehicle brands use slightly variant screw tabs for their factory 2.75-inch locations. JL Audio includes custom OEM adapter rings in the box to bridge this gap. Attach the correct adapter ring to the speaker frame first, and then secure the assembly into your specific vehicle's factory mounting points.

FEATURES & SPECIFICATIONS

SPECIFICATIONS

Diameter : 2.75 Inch
Sensitivity : 86.5 dB
Frequency Response : 410-20000 Hz
Peak Power Handling : 75 Watts
Vehicle Make : Ram,GM
Vehicle Make : Toyota
Vehicle Make : Chevy
RMS Power Handling : 40 Watts

FEATURES

Features:

Engineered for Performance: Unique cone and surround combination for efficiency and extended high-frequency response.
DMA-Optimized: Proprietary motor and suspension modeling reduces distortion and improves fidelity.
Advanced Frame Design: Glass-filled, high-temperature polymer frame with insert-molded terminals for drop-in installation.
Drop-In Fit: Designed for factory locations in Ram, Toyota, and GM vehicles; includes installation hardware and grilles.
Flexible Integration: Inline high-pass and built-in low-pass filters simplify factory or active setups.
Powerfully Adaptable: Handles 25–75 W RMS with 4-ohm impedance for controlled performance at volume.

Specifications:

Speaker Size: 2.75"
Driver Design: 1-way
Tweeter Type: Midrange driver, 2.75"
Impedance: 4 Ω
Frequency Response: 410 Hz – 20 kHz
Power Handling: 40 W RMS, 75 W Peak
Sensitivity: 86.5 dB
Top-Mount Depth: 1.45"

UPC: 699440990660
Weight: 3
Authorized Internet Dealer

WARRANTY

Warranty: 2 Year(s) Warranty.

This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
