Orion XTR10SWD4 Shallow Series 10" 400W RMS (1600W Peak Power Handling), 4 Ohm, Dual Voice Coil Component Car Subwoofer
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" 1600W Peak Power Handling, 4 Ohm, Dual Voice Coil Component Car Subwoofer
- • Owner's Manual
Powerful Dual Voice Coil Precision
Built for flexibility and endurance, the dual 4-ohm voice coils with 2.5" copper winding deliver superior power handling and heat resistance, while the UV-coated paper/fiber cone ensures rigid, responsive movement for clean, precise, and hard-hitting bass every time.
Durable Construction with Vibration-Free Performance
Designed for strength and precision, the NBR rubber surround allows extended cone movement for deep, distortion-free bass, while the heavy-gauge stamped steel basket reinforces stability and eliminates unwanted vibrations for crystal-clear sound quality.
Compact Design with Reliable Connectivity
Built for convenience and performance, the nickel-plated push terminals ensure strong, corrosion-resistant connections for uninterrupted power flow, while the shallow mount design fits effortlessly into tight spaces without sacrificing deep, powerful sound quality.
Frequently Asked Questions (FAQ)
- • Why Did My XTR10SWD4 Stop Working After Only a Short Time?
One customer reported that the subwoofer burned out in less than 10 minutes while being driven by a 3,000-watt amplifier. That experience highlights the importance of matching amplifier output, gain settings, and the subwoofer's 400W RMS rating rather than relying on its 1,600W peak figure.
- • Does the XTR10SWD4 Really Need a Break-In Period?
A customer review specifically recommended breaking the subwoofer in properly before pushing it hard. Gradually increasing output during initial use can help avoid immediately subjecting a new suspension and voice coil to extreme operating conditions.
- • Why Is My XTR10SWD4 Not Producing as Much Bass as a Full-Size Subwoofer?
The XTR10SWD4 is specifically designed as a shallow subwoofer, with only 87 mm of mounting depth. Users discussing shallow installations point out that enclosure selection and available installation space can strongly affect the amount of bass produced.
- • What Box Should I Use When Installing the XTR10SWD4?
Choosing the enclosure has been a common concern among users considering this model. One Reddit user specifically asked for help selecting a box for an XTR10SWD4 because they were unsure about enclosure type and specifications.
- • Why Does My XTR10SWD4 Sound Different After Changing Enclosures?
A shallow woofer's response can change noticeably with enclosure volume, construction, and tuning. Users discussing the XTR10SWD4 have considered both sealed and ported enclosure options, making the box an important part of the final sound.
- • Can the XTR10SWD4 Be Used in a Pickup's Limited Space?
Yes, its shallow design is intended for installations where conventional subwoofers are too deep. Orion lists the mounting depth at approximately 3.43 inches, and users have specifically discussed the XTR10SWD4 for pickup-truck installations where space is limited.
- • Why Does My XTR10SWD4 Need Careful Dual-Voice-Coil Wiring?
The XTR10SWD4 uses dual 4-ohm voice coils, so the way the coils are connected changes the final impedance presented to the amplifier. Incorrect wiring can result in an amplifier seeing a load it was not designed to handle, making coil configuration an important installation step.
- • Is the XTR10SWD4 Loud Enough for Everyday Listening?
One owner described the bass as loud and solid across the low end without distortion, while another user reported good performance in a Jeep Cherokee powered by an NVX five-channel amplifier. These are individual experiences rather than a guarantee of output in every vehicle.
- • Why Did My XTR10SWD4 Sound Good but Still Feel Less Aggressive Than Expected?
A user who reviewed the subwoofer said it delivered a broad range of bass but was not the loudest or hardest-hitting subwoofer they had owned. This illustrates how expectations can differ depending on enclosure design, amplifier setup, vehicle acoustics, and desired SPL level.
- • Can I Use the XTR10SWD4 When Trunk Space Is Extremely Limited?
The shallow construction is specifically useful when installation depth is the main limitation. Its 3.43-inch mounting depth allows it to be considered for compact enclosures, although the complete box dimensions and available airspace still need to be checked before installation.
- Diameter : 10 Inch
- Sensitivity : 83 dB
- Impedance : 4 Ohm
- Frequency Response : 35-300 Hz
- Peak Power Handling : 1600 Watts
- Shallow Mount : Yes Inch
- Number of Voice Coils : Dual
- Mounting Depth : 3.43 Inches
- RMS Power Handling : 400 Watts
Features:
- Dual 4-Ohm Voice Coils: Offers versatile wiring options with durable 2.5" copper-wound coils designed for long-lasting performance and improved heat resistance.

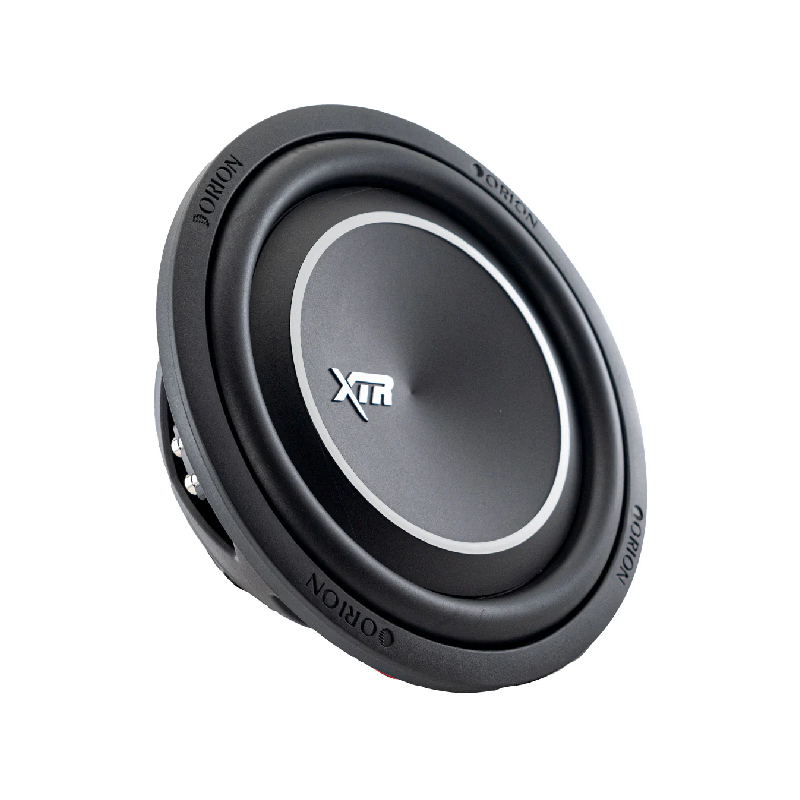

- UV-Coated Paper/Fiber Cone: Provides exceptional rigidity and responsiveness for clear, accurate bass reproduction.
- NBR Rubber Surround: Ensures superior durability and allows wide cone excursion for deep, distortion-free bass output.

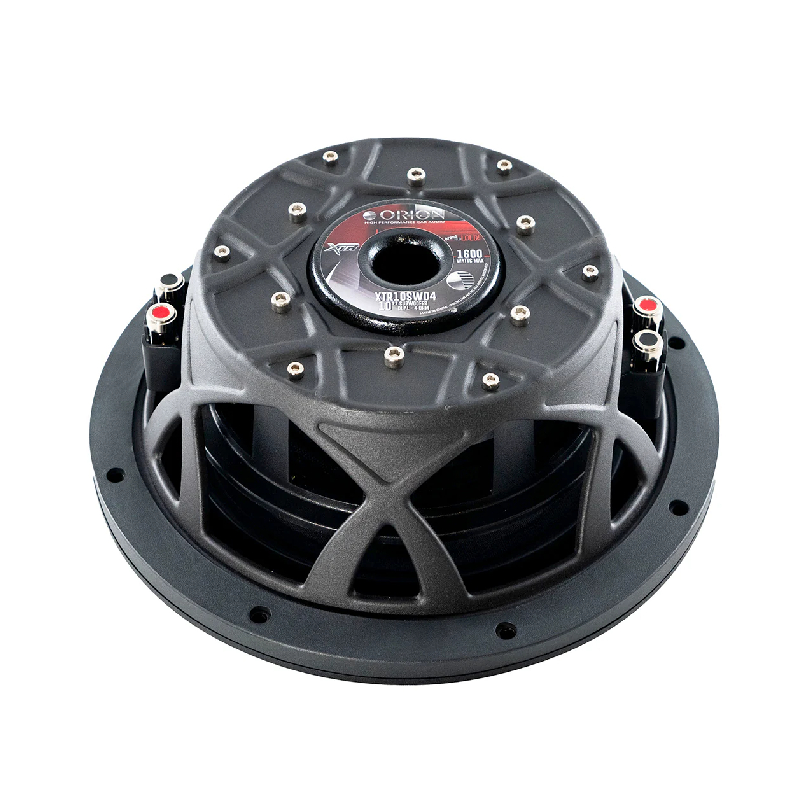

- Exclusive Heavy-Gauge Stamped Steel Basket: Enhances structural integrity and minimizes unwanted vibrations for cleaner sound.

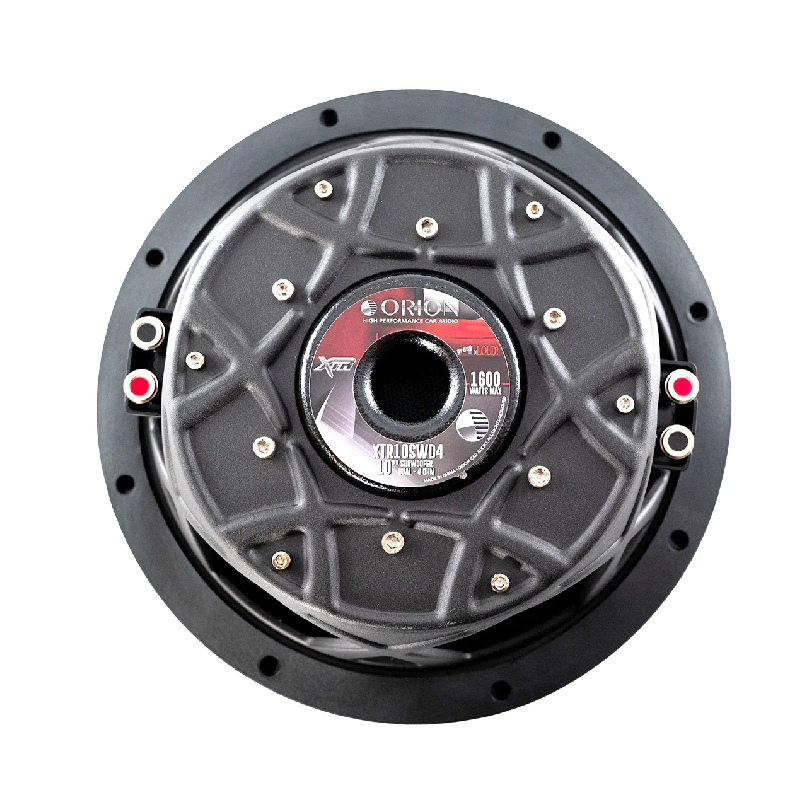

- Nickel-Plated Push Terminals: Provides secure, corrosion-resistant connections for consistent and reliable power delivery.

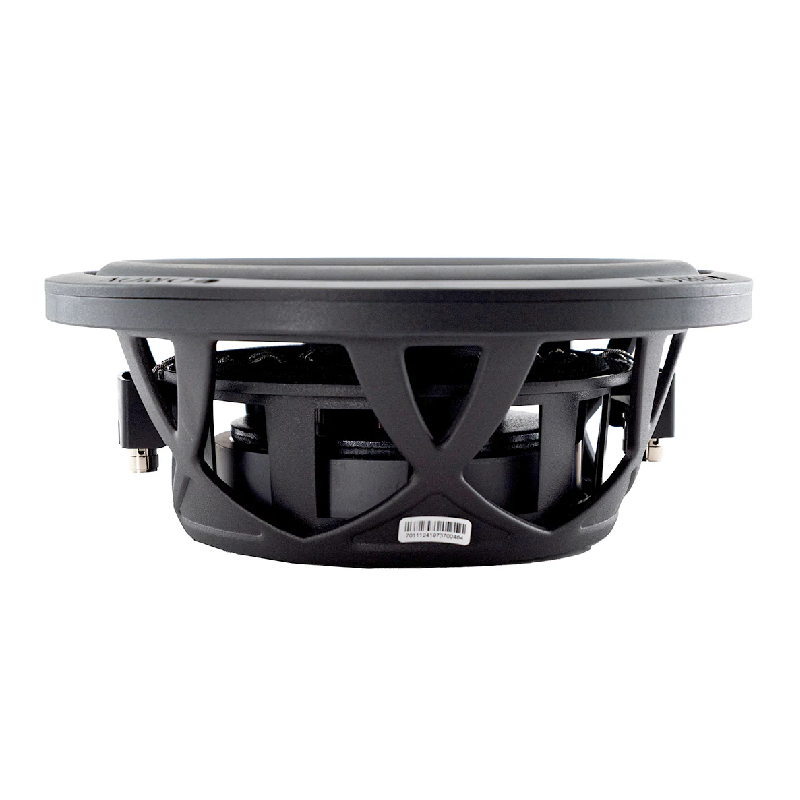

- Shallow Mount Design: Ideal for compact installations, delivering powerful sound even in tight spaces without performance loss.
Specification:
- Subwoofer Size: 10 (Inches)
- Voice Coil Configuration: Dual 4-ohm
- Power Handling (Peak): 1600 Watts
- Power Handling (RMS): 400 Watts
- Sensitivity: 83 dB
- Frequency Response: 35 Hz - 300 Hz
- Dustcap Material: Polypropylene
- Cone Material: UV Coated Paper / Fiber Blend Cone
- Surround Material: NBR
- Magnet Information: Ceramic
- Dimensions (L x W x H): 12.01" x 11.89" x 5.47" (305.15 x 301.91 x 138.94mm)
- Mounting Depth: 87mm / 3.43 (Inches)
- Cutout Diameter: 231mm / 9.09 (Inches)
- Overall Diameter: 275mm / 10.83 (Inches)
- UPC: 818550019744
- Weight: 9
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
