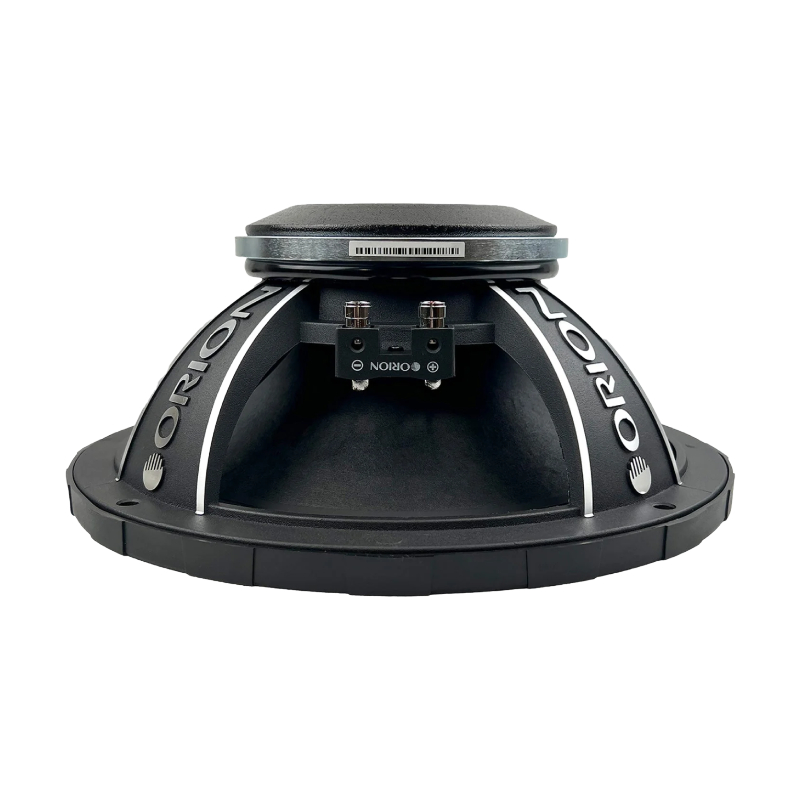

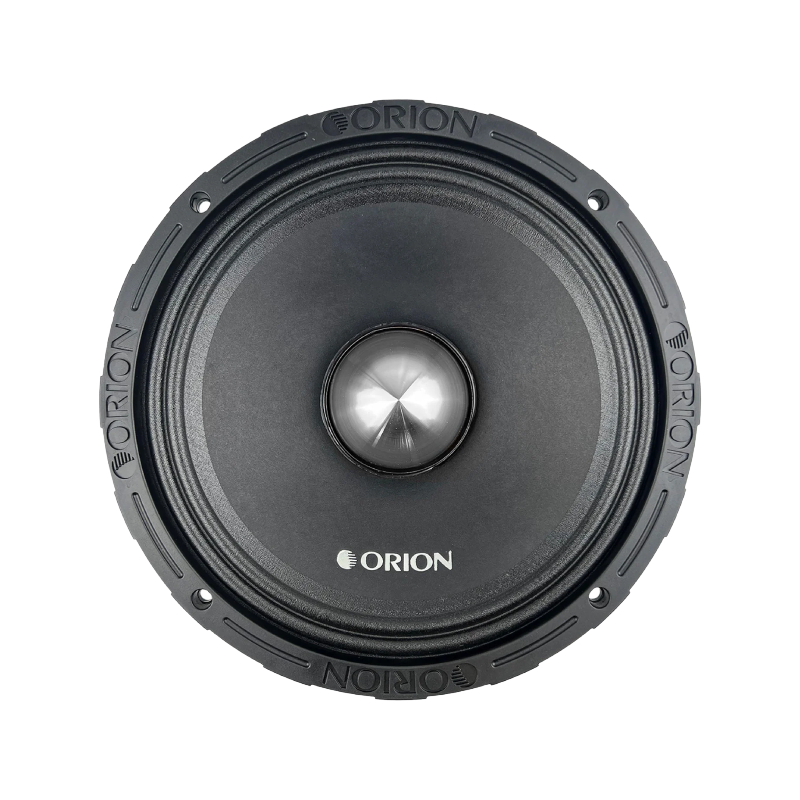

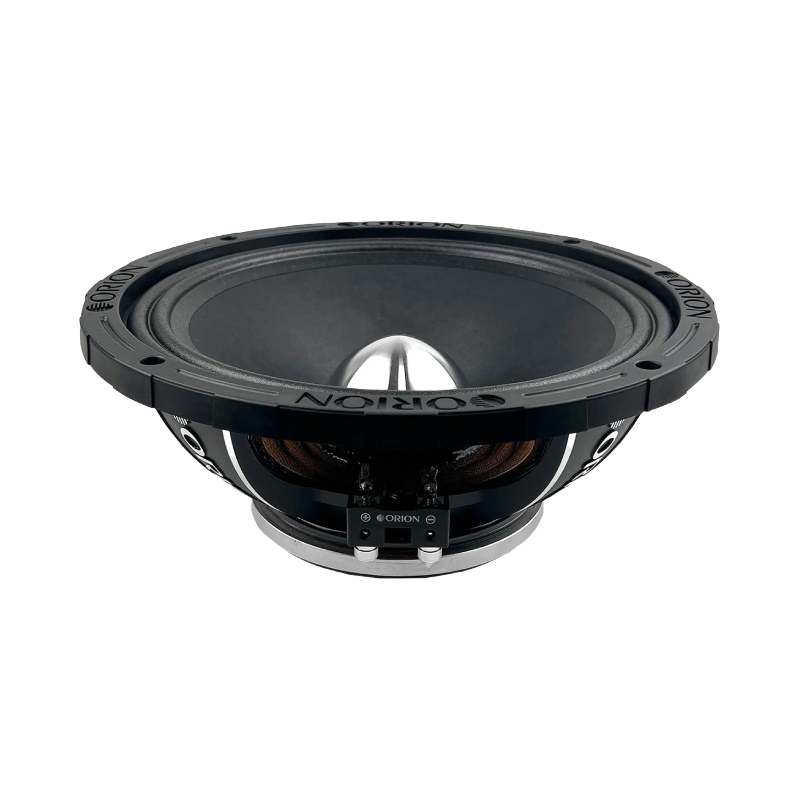

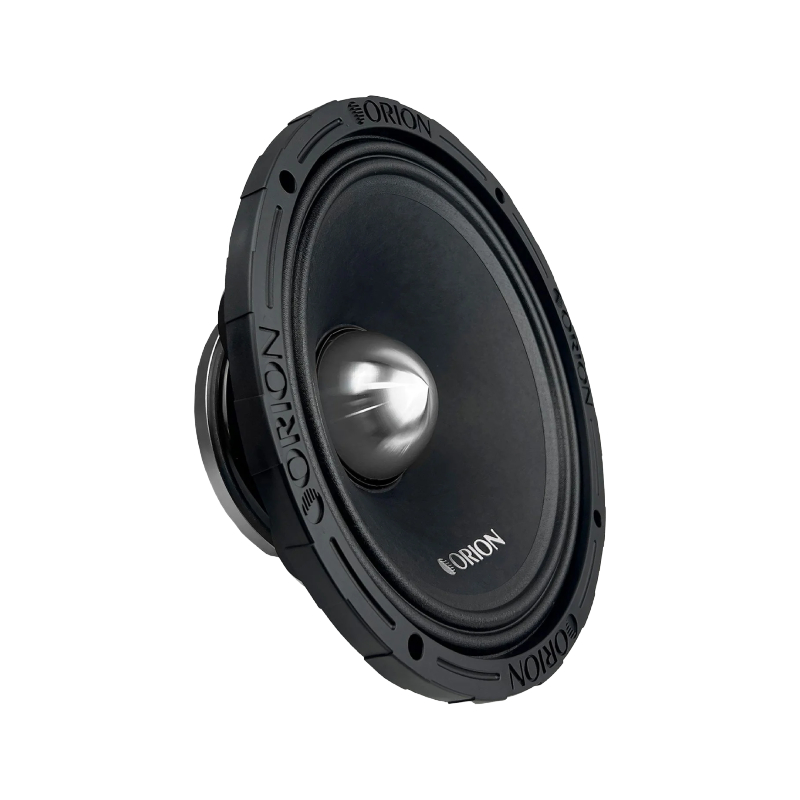

Orion HCCA1052NHP HCCA Pro Series 10" 700W RMS (2800W Peak Power Handling) 2 Ohm, Midrange Car Speaker (Single)
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
High-Efficiency Neodymium Speakers for Superior Audio
Experience crystal-clear, powerful sound across a wide frequency range with these high-efficiency speakers. Equipped with a lightweight neodymium magnet, they offer enhanced output and efficiency without sacrificing compact design, perfect for high-performance audio setups.
Precision Cast Aluminum Speakers with Enhanced Midrange
Built for stability and minimal distortion, these speakers feature a cast aluminum basket that endures high vibrations. The bullet phase plug improves sound dispersion and clarity, delivering accurate and detailed midrange audio for an immersive listening experience.
Audiophile-Grade High-Efficiency Speakers
Experience immersive, high-efficiency sound with detailed highs, rich mids, and clean output. Designed for enthusiasts, these speakers deliver uncompromising performance and long-lasting reliability for the ultimate in-car audio experience.
Frequently Asked Questions (FAQ)
- • Why Does My HCCA1052NHP Overpower the Other Speakers in My System?
Could its 103.9 dB sensitivity make the HCCA1052NHP noticeably louder than lower-sensitivity speakers on the same amplifier?
- • What Amplifier Settings Work Best With the HCCA1052NHP?
Could an improperly adjusted gain or input level make this high-power midrange sound weaker, harsher, or less controlled than expected?
- • Why Does My HCCA1052NHP Have Strong Vocals but Almost No Sub-Bass?
Is the speaker's 116 Hz lower frequency limit the reason deep bass needs to be handled by a separate subwoofer?
- • Could the HCCA1052NHP Be Too Large for My Existing Speaker Opening?
Will the approximately 9.21-inch cutout and 10.43-inch overall diameter fit my custom baffle without interfering with nearby trim?
- • Why Does My HCCA1052NHP Sound Different When I Change the Enclosure?
Could moving the speaker between an open baffle, sealed enclosure, or different mounting chamber alter its midrange response and output?
- • What Could Make the HCCA1052NHP Sound Rough at High Output Levels?
Could amplifier clipping, excessive equalization, or sending frequencies outside the speaker's intended range cause audible harshness?
- • How Can I Prevent the HCCA1052NHP From Overheating During Long Music Sessions?
Could continuously driving the speaker near its 700W RMS capability create excessive heat if the amplifier and installation are not properly matched?
- • Why Does My HCCA1052NHP Produce Less Output Than Another Speaker With a Similar Power Rating?
Could sensitivity, amplifier voltage, crossover settings, or signal processing explain the difference even when the listed wattage appears similar?
- • What Should I Check If the HCCA1052NHP Starts Making Mechanical Noise?
Could loose mounting hardware, panel vibration, or damage around the cone and suspension be responsible for buzzing, rattling, or rubbing sounds?
- • Can the HCCA1052NHP Be Used in a Factory Door Without Modifications?
Will the speaker's approximately 3.86-inch mounting depth and large 9.21-inch cutout create clearance issues with the window mechanism, door card, or factory mounting structure?
- Diameter : 10 Inch
- Sensitivity : 103.9 dB
- Impedance : 2 Ohm
- Frequency Response : 116-5500 Hz
- Peak Power Handling : 2800 Watts
- RMS Power Handling : 700 Watts
Features:
- High-Efficiency Performance: Delivers crystal-clear, powerful sound across a wide frequency range for precise audio reproduction.
- Neodymium Magnet: Superior power-to-weight ratio provides higher output and efficiency while keeping the speaker compact.
- Durable Construction: Cast aluminum basket ensures stability, minimizes distortion, and withstands intense vibrations.
- Bullet Phase Plug: Enhances sound clarity and improves dispersion, ensuring accurate midrange reproduction.
- Immersive Sound: Optimized for high-efficiency audio with detailed highs, mids, and clean output.
- Audiophile-Grade Experience: Perfect for enthusiasts seeking uncompromising performance and long-lasting reliability.
Specifications:
- Speaker Size: 10"
- Voice Coil Configuration: 2 ohm
- Power Handling: 2800W Peak / 700W RMS
- Sensitivity: 103.9 dB
- Frequency Response: 116 Hz – 5.5 kHz
- Voice Coil Diameter: 3"
- Speaker Quantity: 1 Speaker
- Material: Cast Basket
- Cone Material: Non-Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Information: Neodymium
- Mounting Depth: 98mm / 3.86"
- Overall Depth: 112mm / 4.41"
- Cutout Diameter: 234mm / 9.21"
- Overall Diameter: 265mm / 10.43"
- Grill Included: No
- UPC: ORI-HCCA1052NHP
- Weight: 11
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
