Orion HCCA84NDC HCCA Pro Series 8" 500W RMS (2000W Peak Power Handling) 4 Ohm, Dust Cap Midrange Car Speakers (Pair)
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?

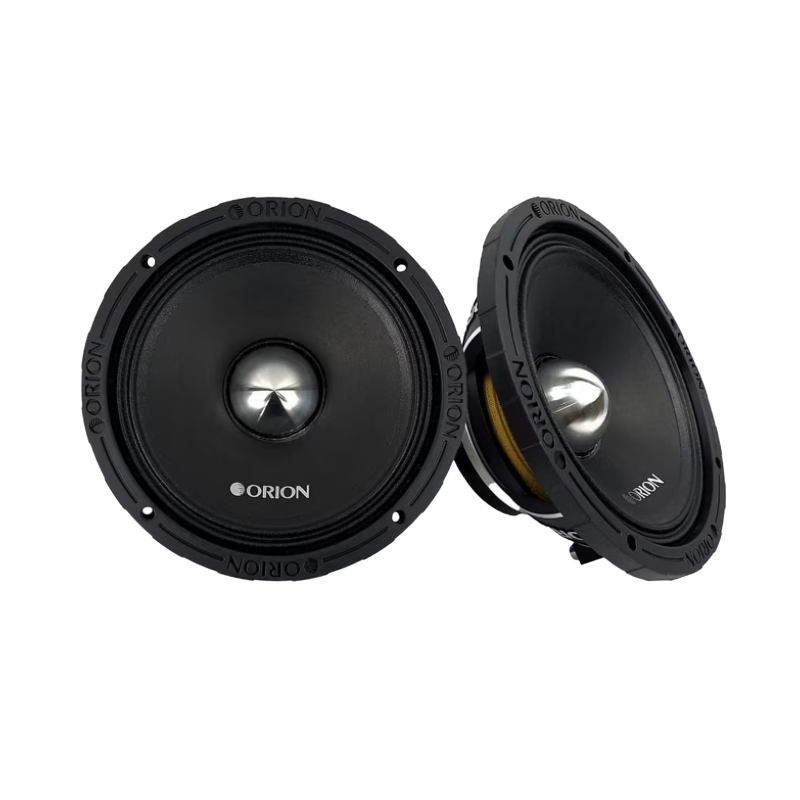

- • (2) 8" HCCA Pro Series Dust Cap Midrange Car Speakers
- • Owner's Manual
High-Power Midrange Speakers with Neodymium Magnet
Experience massive, crystal-clear midrange sound with up to 2000W Peak / 500W RMS output. Featuring a lightweight yet powerful neodymium magnet, these speakers provide high efficiency, stronger output, and reduced distortion. The dust cap design enhances midrange clarity while protecting internal components for long-lasting performance.
High-Sensitivity Midrange Speakers with Wide Frequency Response
Enjoy loud, detailed sound with minimal power consumption thanks to high sensitivity design. Covering a wide frequency range of 110 Hz – 12 kHz, these speakers deliver balanced, dynamic mids with rich tonal accuracy. Built with a durable cast aluminum basket, they provide superior stability and vibration control for consistent, high-quality performance.
Premium Audiophile-Grade Midrange Speakers
Experience precise sound reproduction with premium components, including a non-pressed paper cone and billet aluminum phase plug. With a compact 81mm mounting depth, these speakers offer easy installation across various car audio setups. Designed for audiophiles, they deliver power, precision, and clarity in every note.
Frequently Asked Questions (FAQ)
- • Why Does My HCCA84NDC Sound Much Louder Than My Factory Speakers?
Could the HCCA84NDC’s high 99.9 dB sensitivity cause a major difference in volume when replacing conventional factory drivers?
- • What Happens If I Connect the HCCA84NDC to an Amplifier With the Wrong Load?
Could using the 4-ohm HCCA84NDC with an amplifier that is not designed for the resulting speaker impedance cause protection or reduced output?
- • Why Does My HCCA84NDC Deliver Strong Mids but Little Deep Bass?
Could its 110 Hz lower frequency limit explain why vocals and upper bass are powerful while the lowest frequencies remain weak?
- • Could the HCCA84NDC Be Too Large for My Existing 8-Inch Opening?
Will the 7.17-inch cutout and 8.23-inch overall diameter fit my mounting location without requiring a new baffle or adapter?
- • Why Does My HCCA84NDC Sound Different After I Change the Speaker Location?
Could moving the driver from a door to a custom panel, rear deck, or dedicated enclosure alter its tonal balance and perceived output?
- • What Could Cause the HCCA84NDC to Become Harsh During Heavy Playback?
Could amplifier clipping, excessive equalizer boost, or an improperly selected crossover make the high-output midrange sound aggressive?
- • How Do I Know If My Amplifier Is Supplying Enough Clean Power to the HCCA84NDC?
Could an amplifier with insufficient continuous output prevent the 500W RMS speaker from delivering the dynamics expected from a high-power HCCA setup?
- • Why Does My HCCA84NDC Vibrate the Panel When I Increase the Volume?
Could the speaker's high output expose weaknesses in the mounting surface, loose hardware, or insufficient structural support?
- • Can the HCCA84NDC Fit Behind a Factory Door Panel Without Hitting Anything?
Will its 3.19-inch mounting depth leave adequate clearance for the window mechanism, wiring, trim panel, and other components behind the speaker?
- • Why Does My HCCA84NDC Sound Unbalanced When Paired With Other Speakers?
Could differences in sensitivity, crossover points, amplifier channels, or speaker polarity cause the HCCA84NDC to dominate the rest of the system?
- Diameter : 8 Inch
- Sensitivity : 99.9 dB
- Impedance : 4 Ohm
- Frequency Response : 110-12000 Hz
- Peak Power Handling : 2000 Watts
- RMS Power Handling : 500 Watts
Features:
- Massive Power Output: Delivers up to 2000W Peak / 500W RMS, providing intense, crystal-clear midrange sound.
- Neodymium Magnet: Lightweight yet powerful for higher efficiency, stronger output, and reduced distortion.
- Dust Cap Design: Enhances clarity in midrange frequencies while protecting the internal components for long-lasting performance.
- High Sensitivity: Ensures loud, detailed sound with less power consumption.
- Wide Frequency Response: (110 Hz – 12 kHz) Produces balanced, dynamic mids with rich tonal accuracy.
- Durable Construction: Built with a cast aluminum basket for superior stability and vibration control.
- Premium Components: Features a non-pressed paper cone and billet aluminum phase plug for precise sound reproduction.
- Easy Installation: Compact 81mm mounting depth fits a variety of car audio setups.
- Audiophile-Grade Performance: Perfect for enthusiasts seeking power, precision, and clarity in every note.
Specifications:
- Speaker Size: 8 Inches
- Voice Coil Configuration: 4 Ohm
- Power Handling (Peak): 2000 Watts
- Power Handling (RMS): 500 Watts
- Sensitivity: 99.9 dB
- Frequency Response: 110 Hz – 12 kHz
- Voice Coil Diameter: 2.5 Inches
- Speaker Quantity: 2 Speakers
- Material: Cast Basket
- Cone Material: Non-Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Type: Neodymium
- Grilles Included: No
- Mounting Depth: 81mm / 3.19 Inches
- Overall Depth: 90mm / 3.54 Inches
- Cutout Diameter: 182mm / 7.17 Inches
- Overall Diameter: 209mm / 8.23 Inches
- Design: With Dust Cap
- UPC:
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
