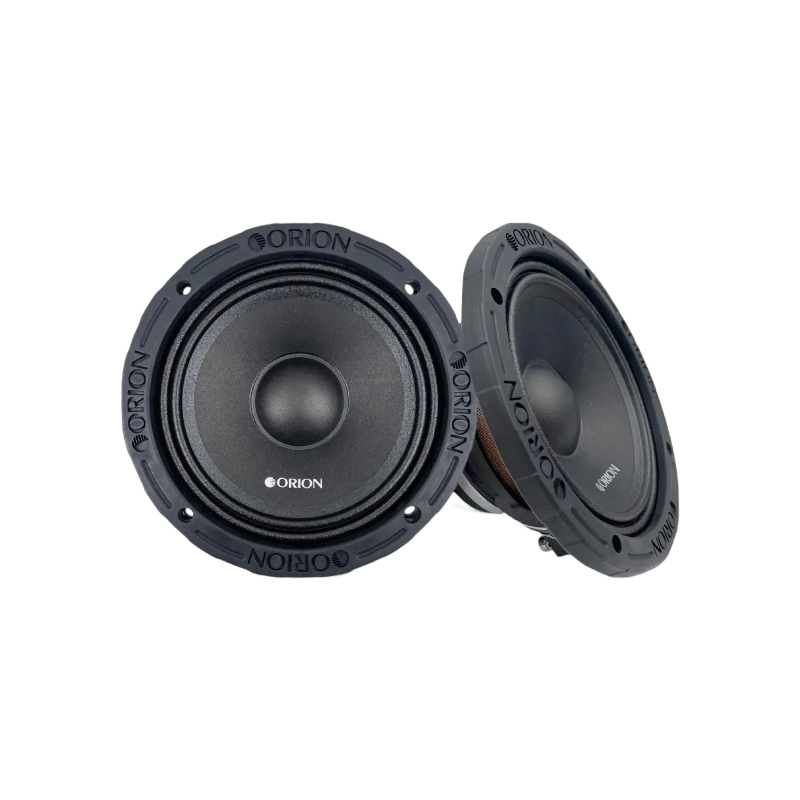

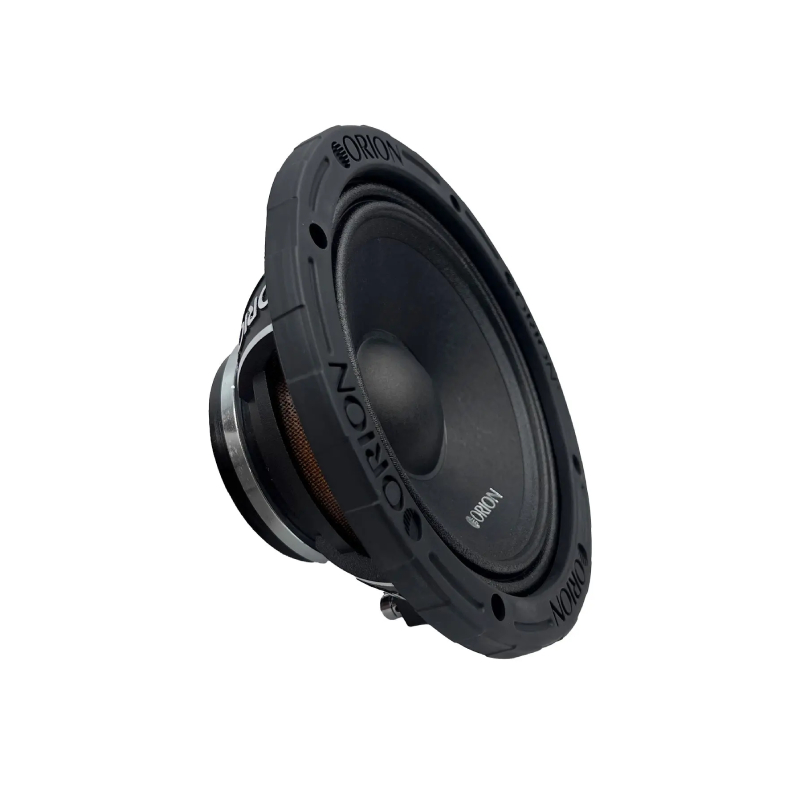

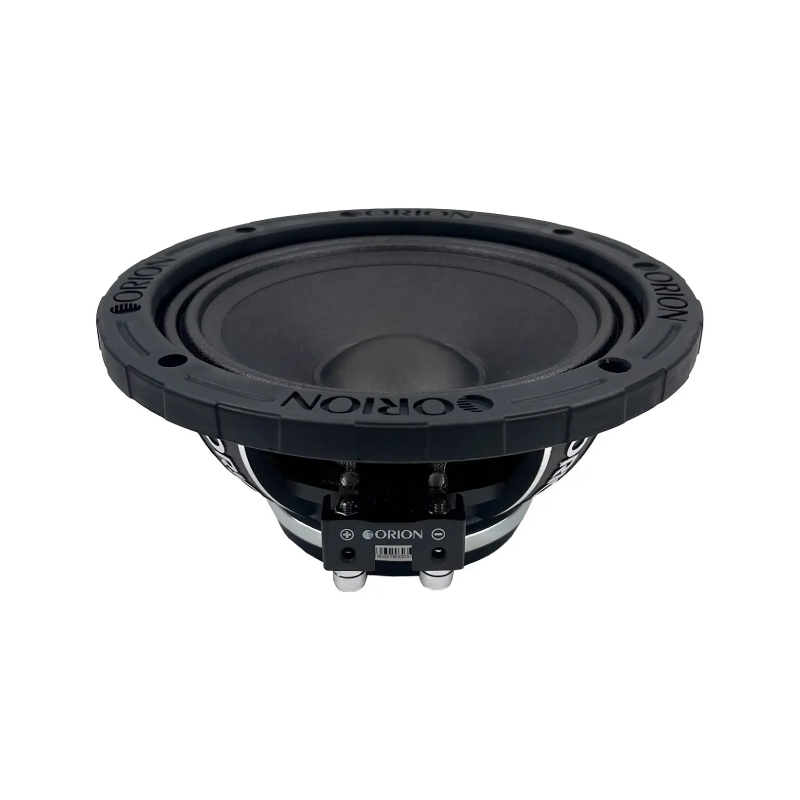

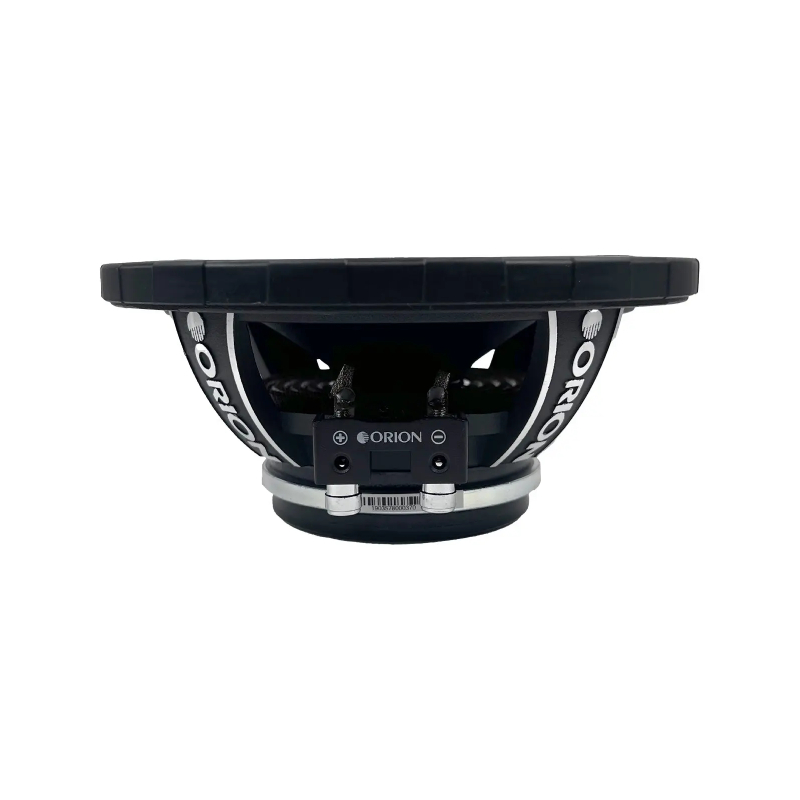

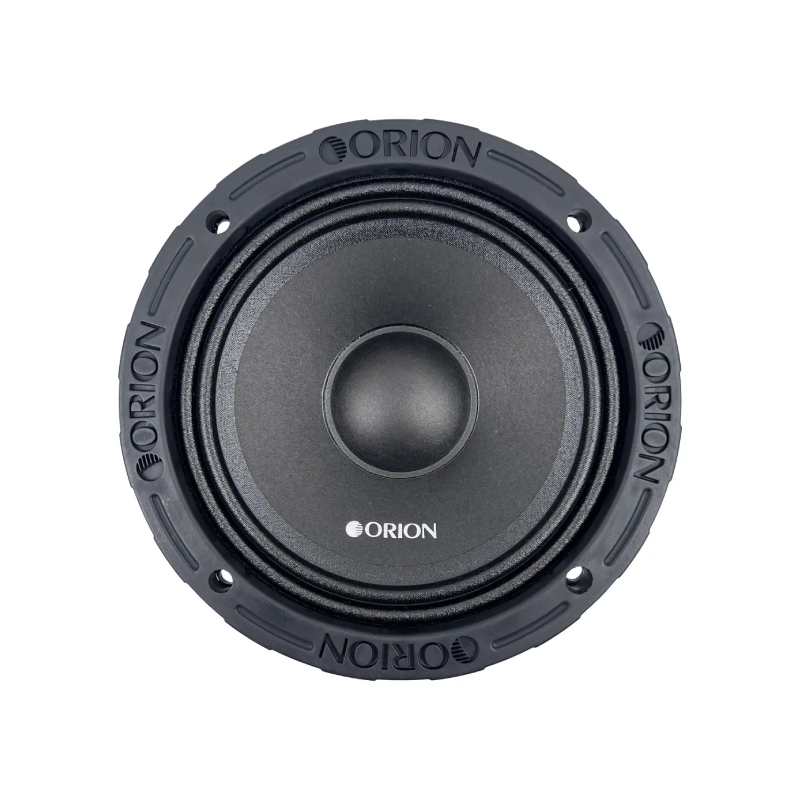

Orion HCCA82NDC HCCA Pro Series 8" 500W RMS (2200W Peak Power Handling) 2 Ohm, Dust Cap Midrange Car Speakers
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
High-Power Midrange Speakers for Clear, Dynamic Sound
Experience massive 2000W peak power and crystal-clear midrange performance with a wide 110Hz–12kHz frequency range. Perfect for delivering detailed vocals, instruments, and rich, dynamic audio in any setup.
High-Efficiency Power You Can Hear
Experience exceptional clarity and volume with an impressive 99.9dB sensitivity, delivering powerful, dynamic sound even with moderate amplifier power—perfect for achieving high-performance audio without compromise.
Reliable Power with a Compact Design
BuiltBuilt for performance and longevity, this speaker features a 2.5” CCAW voice coil that offers exceptional heat resistance and consistent reliability even during high-powered sessions. Its optimized 3.19” mounting depth ensures easy installation in a wide range of vehicles without compromising sound quality. Engineered for precision and durability, it maintains strong, distortion-free performance even at high volumes. Perfect for car audio enthusiasts who demand both efficiency and dependability in every drive.
Frequently Asked Questions (FAQ)
- • Why does my HCCA82NDC sound thin when I expect more low-end?
The HCCA82NDC is a midrange speaker with a response beginning around 110Hz, so it is not designed to reproduce the deepest sub-bass frequencies.
- • What could make the HCCA82NDC sound too aggressive in the upper range?
Because the driver extends to approximately 12kHz and has 99.9dB sensitivity, excessive treble boost or an unsuitable crossover can make the upper midrange sound overly prominent.
- • Why does my amplifier run hotter after adding these speakers?
The HCCA82NDC has a 2-ohm impedance, so connecting multiple speakers can create a lower overall amplifier load and increase the current demand.
- • Why does one HCCA82NDC seem louder than the other?
Uneven channel gain, reversed polarity, loose speaker connections, or differences in installation can cause the two drivers to produce different output levels.
- • Why can't I use the factory 8-inch speaker opening without modifications?
The HCCA82NDC requires approximately a 7.17-inch cutout, has an 8.23-inch overall diameter, and requires about 3.19 inches of mounting depth, so the factory mounting area should be measured before installation.
- • Why does the speaker distort when I push the volume near maximum?
Although the HCCA82NDC is rated for 500W RMS, clipping from the amplifier, excessive equalization, or sending frequencies outside the appropriate operating range can produce audible distortion.
- • Can I connect the HCCA82NDC to an amplifier designed for 4-ohm speakers?
The HCCA82NDC is the 2-ohm version, so the amplifier should specifically be capable of operating safely at the resulting impedance before it is connected.
- • Why does the speaker still get very loud with less amplifier power than expected?
Its 99.9dB sensitivity allows the HCCA82NDC to produce substantial acoustic output without requiring the same amplifier power as a less-efficient speaker.
- • What should I check if the HCCA82NDC starts buzzing or vibrating?
Inspect the mounting screws, speaker frame, baffle, terminals, and surrounding panels because a loose mounting surface can create mechanical noise that sounds like speaker damage.
- • Why doesn't the HCCA82NDC cover the entire sound range by itself?
Its 110Hz–12kHz operating range makes it a dedicated midrange driver, so a complete system may require separate low-frequency and high-frequency drivers to fill the portions of the spectrum outside that range.
- Diameter : 8 Inch
- Sensitivity : 99.9 dB
- Impedance : 2 Ohm
- Frequency Response : 110-12000 Hz
- Peak Power Handling : 2000 Watts
- RMS Power Handling : 500 Watts
Features:
- Massive Power Handling: Delivers up to 2000W peak / 500W RMS for loud, dynamic midrange performance.
- Wide Frequency Range: Covers 110Hz – 12kHz for clear, detailed mids and upper frequencies.
- High Efficiency: 99.9dB sensitivity ensures powerful output even with moderate amplifier power.
- Durable Voice Coil: Features a 2.5” CCAW voice coil for excellent heat resistance and reliability.
- Optimized Mounting: Compact 3.19” depth fits easily while maintaining strong performance.
Specifications:
- Speaker Size: 8"
- Power Handling (RMS): 500 Watts
- Power Handling (Peak): 2000 Watts
- Frequency Response: 110Hz – 12kHz
- Sensitivity: 99.9dB
- Voice Coil Diameter: 2.5" (CCAW)
- Impedance: Available in 2Ω or 4Ω
- Mounting Depth: 81mm / 3.19"
- Cutout Diameter: 182mm / 7.17"
- Overall Diameter: 209mm / 8.23"
- Design: PRO Midrange Speaker with Dust Cap
- UPC:
- Weight: 8
