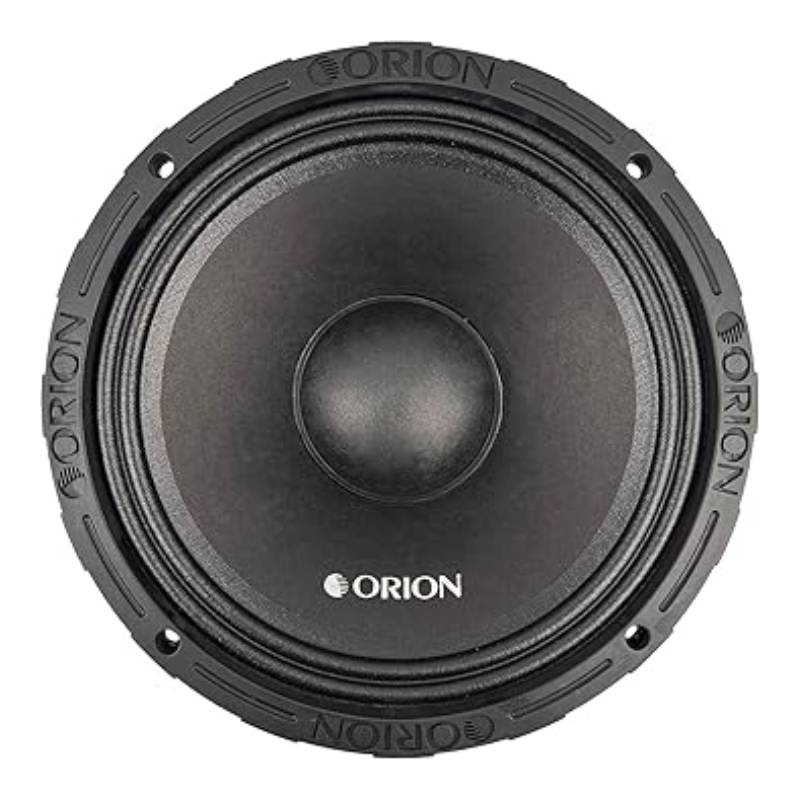

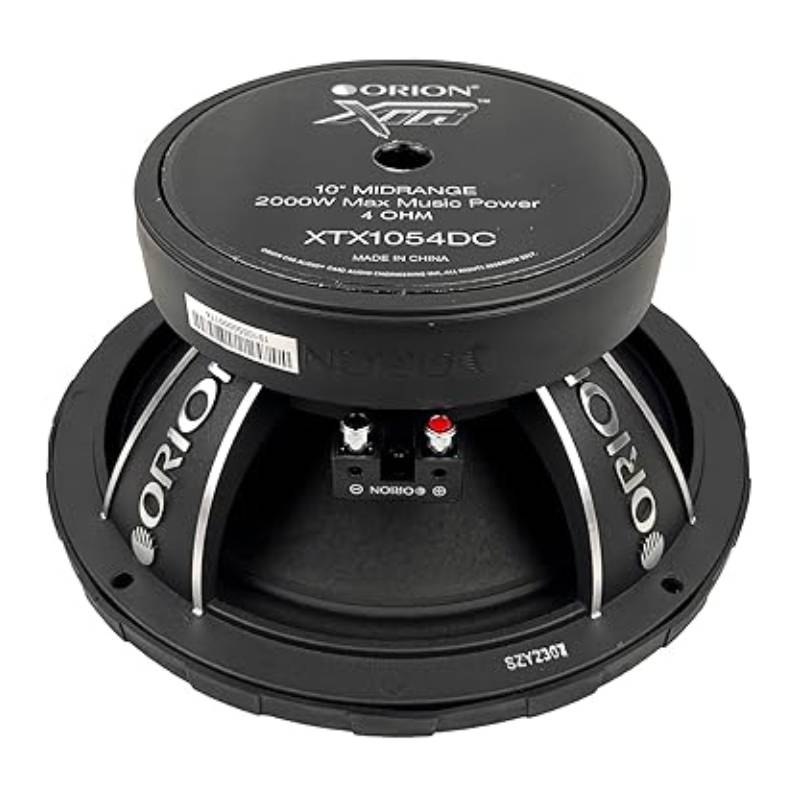

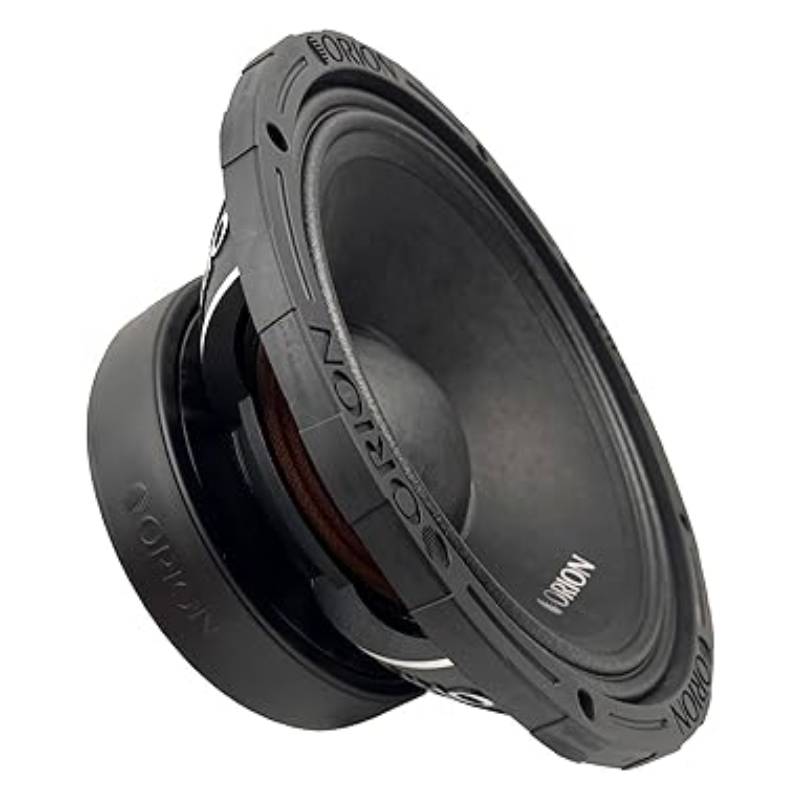

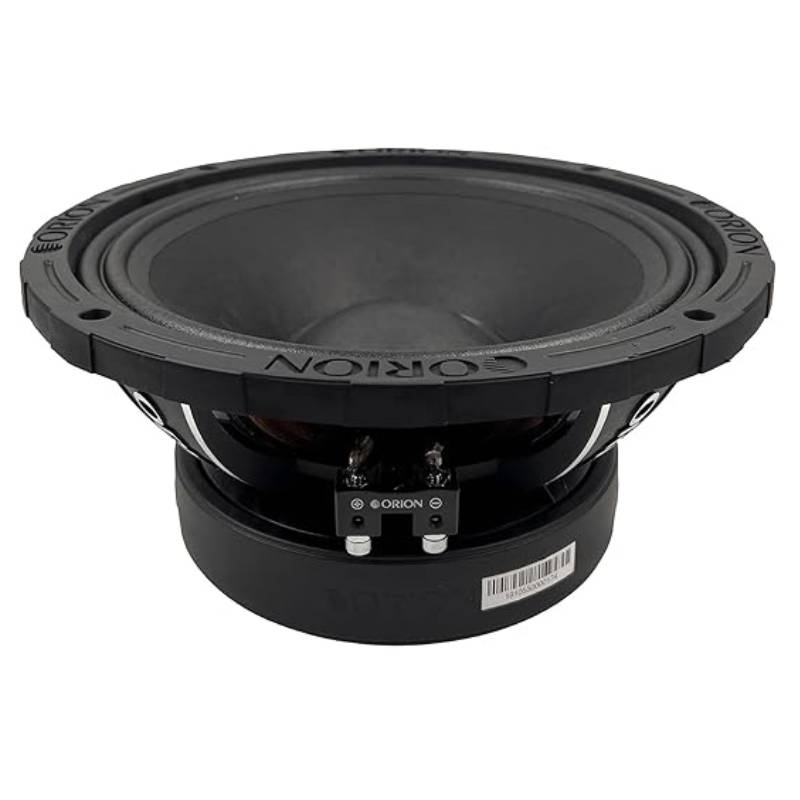

Orion XTX1054DC XTR Series 10" 2000W Peak Power Handling at 4-Ohms, Dust Cap Midrange Speaker (Single)
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" Dust Cap Midrange Speaker
- • Owner's Manual
Crystal-Clear Midrange Power
Experience crystal-clear midrange tones with precision and power, perfectly engineered for 4-ohm audio systems. Enjoy distortion-free sound even at high volumes, thanks to the rigid dust cap that enhances clarity and cone stability. Built with a durable cast basket, these speakers deliver lasting strength, reduced resonance, and reliable performance every time you play.
Power Meets Precision
Experience thunderous, high-impact sound with 500W RMS and 2000W peak power for ultimate audio performance. Enjoy long-lasting, reliable connections with nickel-plated push-down terminals that resist corrosion and ensure steady signal flow. Built for power and precision, these speakers deliver unmatched clarity and consistency every time you hit play.
Crystal-Clear Midrange Precision
Experience exceptional sound accuracy with a durable non-pressed paper cone that delivers smooth, detailed mids. The treated cloth accordion surround enhances strength and precision, ensuring consistent performance even at high volumes. Capture every note with a wide frequency range that brings your music to life with clarity and depth.
Frequently Asked Questions (FAQ)
- • Why does my XTX1054DC not deliver the deep bass I expected from a 10-inch speaker?
The XTX1054DC is a midrange driver with a 100 Hz–6 kHz response, so it is designed to handle vocals and midrange frequencies rather than deep sub-bass.
- • Why does my XTX1054DC sound too bright compared with my other speakers?
Its 99.9 dB sensitivity makes it highly efficient, so excessive amplifier gain or aggressive EQ can make the midrange appear much more prominent than lower-efficiency drivers.
- • What should I check if my 10-inch mounting hole is too small for the XTX1054DC?
The speaker requires a 9.02-inch cutout and has a 10.24-inch overall diameter, so the mounting opening should be measured before cutting or modifying the installation surface.
- • Why is the XTX1054DC hitting the panel behind my installation?
The driver has a 4.21-inch mounting depth, so window mechanisms, brackets, enclosure walls, and other components behind the mounting surface need sufficient clearance.
- • Why doesn't my amplifier seem to make the speaker as loud as the 2000-watt specification suggests?
The 2000-watt figure is maximum power handling, while the XTX1054DC is rated at 500 watts RMS; amplifier output should be matched using the RMS specification rather than the peak number.
- • Why does the speaker become distorted when I increase the volume?
Clipping, excessive gain, incorrect crossover settings, or sending frequencies outside the driver's intended range can cause distortion even though the XTX1054DC is designed for high-power operation.
- • Why does my XTX1054DC sound different when installed in a door versus an enclosure?
The mounting surface, air space, and surrounding structure can change resonance and acoustic output, so installation conditions can alter how the midrange driver sounds.
- • What could cause unwanted buzzing around the XTX1054DC at high volume?
Loose mounting hardware or panel resonance can create noises that sound like speaker damage, so the cast basket and mounting surface should be checked for secure attachment.
- • Why does my speaker seem louder than another 10-inch midrange using similar amplifier power?
The XTX1054DC's 99.9 dB sensitivity allows it to produce substantial acoustic output from a given amount of amplifier power, which can make it noticeably louder than less-efficient drivers.
- • Why am I not getting enough high-frequency detail from the XTX1054DC alone?
Its specified response ends around 6 kHz, so a separate tweeter or compression driver may be needed when the system requires higher-frequency reproduction beyond the XTX1054DC's range.
- Diameter : 10 Inch
- Sensitivity : 99.9 dB
- Impedance : 4 Ohm
- Frequency Response : 100-6000 Hz
- Peak Power Handling : 2000 Watts
- Top Mount Depth : 4.21 Inches
- RMS Power Handling : 500 Watts
Features:
- 4-Ohm Midrange Speaker: Designed for accurate sound and seamless integration into a variety of audio systems.
- Dust Cap: Enhances sound clarity by reducing unwanted vibrations, stiffening the cone for improved rigidity, and protecting internal components, ensuring distortion-free audio even at high volumes.
- Cast Basket: Provides structural integrity, reduces resonance, and ensures long-lasting durability for consistent performance.
- Nickel-Plated Push Down Terminals: Ensures secure and corrosion-resistant connections for enhanced reliability.
- High Power Handling: 500 Watts RMS and 2000 Watts peak power for dynamic, powerful sound performance.
- Durable Construction: Built with a non-pressed paper cone and a treated cloth accordion surround for enhanced durability and accurate sound reproduction.
- Wide Frequency Range: From 100 Hz to 6 kHz, capturing detailed midrange frequencies for a rich audio experience.
Specifications:
- Speaker Size: 10 (Inches)
- Voice Coil Configuration: 4 ohm
- Power Handling (Peak): 2000 Watts
- Power Handling (RMS): 500 Watts
- Sensitivity: 99.9 dB
- Frequency Response: 100 Hz - 6 kHz
- Voice Coil Diameter: 3" (Inches)
- Speaker Quantity 1 Speaker
- Material: Cast Basket
- Cone Material: Non Pressed Paper
- Magnet Information: 120 Oz. Ferrite
- Grilles Included: No
- Mounting Depth: 107mm / 4.21 (Inches)
- Overall Depth: 120mm / 4.72 (Inches)
- Cutout Diameter: 229mm / 9.02 (Inches)
- Overall Diameter: 260mm / 10.24 (Inches)
- UPC: 818550014657
- Weight: 20
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
