Orion HCCA100NE HCCA Pro Series 3" 100W RMS (400W Peak Power Handling) 4 Ohm, Neodymium Super Shallow Tweeters (Pair)
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 3" HCCA Pro Series Neodymium Super Shallow Tweeters
- • Owner's Manual
Powerful Sound in a Compact Design
Featuring a compact 3” super shallow design for easy installation in tight spaces, a high-strength neodymium magnet for precise, high-fidelity audio, and robust power handling of 100 Watts RMS (400 Watts peak) for consistent, dynamic performance.
Exceptional Clarity, Built to Last
Experience crisp, clear highs that stay sharp even at high volumes, enjoy durable construction designed for extreme conditions and long-term use, and benefit from precise sound reproduction that delivers detailed, accurate high-frequency audio.
Effortless Setup, Stylish Design
Enjoy easy installation with a flexible design and included mounting hardware, paired with a sleek, modern appearance that enhances your car interior while delivering premium sound quality.
Frequently Asked Questions (FAQ)
- • Why Are My HCCA100NE Tweeters Much Louder Than My Other Speakers?
Could the 105 dB sensitivity of these tweeters make their output overpower the midrange speakers if the amplifier levels are not balanced?
- • What Could Cause the HCCA100NE to Sound Too Sharp on Vocals?
Could excessive treble boost, an incorrect crossover point, or too much amplifier gain make the aluminum diaphragm sound overly bright?
- • Did I Install the Correct Capacitor With My HCCA100NE?
Could using the wrong capacitor value or skipping the recommended 3.3 µF protection capacitor allow unwanted low frequencies to reach the tweeter?
- • Why Does My HCCA100NE Stop Playing When I Turn the System Up?
Could an amplifier entering protection, a loose connection, or excessive power demand cause the tweeter to cut out during loud playback?
- • Could the HCCA100NE Still Need a Larger Mounting Opening?
Will the 2.05-inch cutout and 2.95-inch overall diameter fit my existing tweeter location without modifying the panel?
- • Why Does My HCCA100NE Sound Different After I Reposition It?
Could changing the tweeter's angle or mounting location alter the perceived brightness, stereo image, and direction of the high frequencies?
- • Can the HCCA100NE Be Installed Behind a Very Thin Door or Panel?
Does the 1.15-inch mounting depth provide enough rear clearance for the basket, terminals, wiring, and surrounding trim?
- • Why Is One HCCA100NE Louder Than the Other?
Could reversed polarity, different amplifier-channel levels, unequal wiring resistance, or one tweeter being aimed differently create an uneven stereo image?
- • What Could Make the HCCA100NE Distort Even Though It Is Rated for 100 Watts RMS?
Could clipping, excessive equalizer boost, an unsuitable crossover, or sending too much low-frequency energy to the tweeter cause audible distortion?
- • Why Do My HCCA100NE Tweeters Add More Highs but Make the System Sound Unbalanced?
Could pairing these highly sensitive tweeters with less-efficient midrange speakers require separate gain or crossover adjustments to achieve a smoother overall sound?
- Diameter : 3 Inch
- Sensitivity : 105 dB
- Frequency Response : 1500-20000 Hz
- Peak Power Handling : 400 Watts
- RMS Power Handling : 100 Watts
Features:
- Compact 3” Super Shallow Design: Allows easy installation in tight spaces without compromising performance
- Neodymium Magnet: High strength-to-weight ratio for precise, high-fidelity sound
- Power Handling: 100 Watts RMS, 400 Watts peak for consistent, dynamic audio
- Crisp, Clear Highs: Maintains clarity even at high volumes
- Durable Construction: Reliable performance in extreme temperatures and long-term use
- Precise Sound Reproduction: Renders high frequencies accurately for detailed listening
- Easy Installation: Flexible design with included mounting hardware for hassle-free setup
- Sleek, Modern Appearance: Complements car interiors while delivering top-tier sound
Specifications:
- Speaker Size: 3"
- Voice Coil Configuration: 4 Ohm
- Power Handling (Peak): 400 Watts
- Power Handling (RMS): 100 Watts
- Sensitivity: 105 dB
- Frequency Response: 1.5 kHz – 20 kHz
- Voice Coil Diameter: 1"
- Tweeter: 2 Tweeters
- Material: Aluminum Die-Cast
- Diaphragm Material: Aluminum
- Phase Plug Material: Aluminum Neodymium Tweeter
- Magnet Type: Neodymium

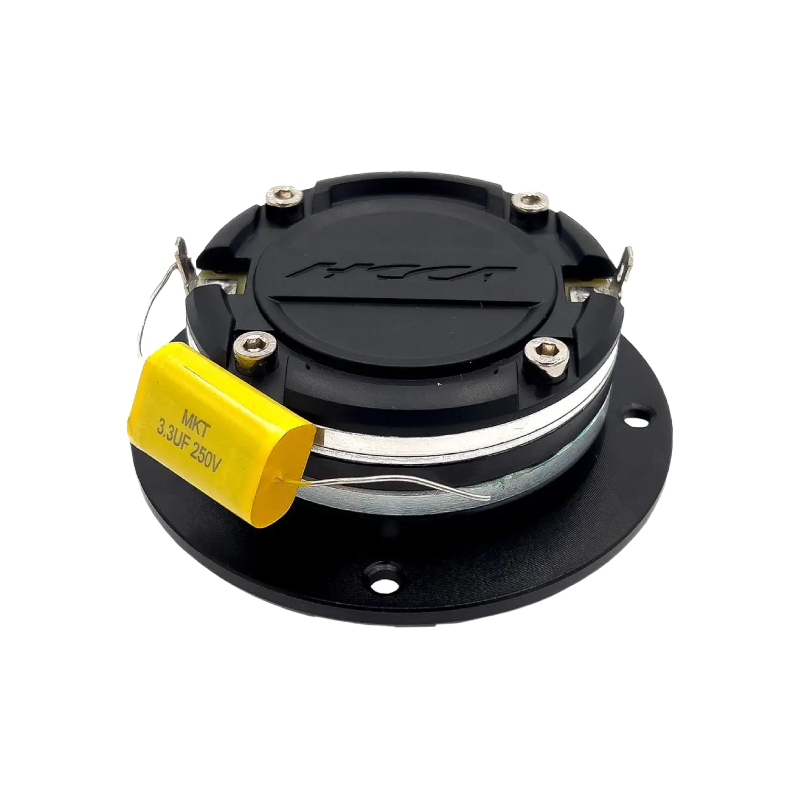

- Recommended Capacitor: 3.3uF 250V
- Mounting Depth: 29.1 mm / 1.15"
- Overall Depth: 43.9 mm / 1.73"
- Cutout Diameter: 52 mm / 2.05"
- Overall Diameter: 75 mm / 2.95"
- UPC: 818550019775
- Weight: 1.44
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
