Orion XTR802NEO XTR Series 8" 1400W Peak Power Handling at 2-Ohms, Shallow Neodymium Midrange Speakers (Pair)
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?

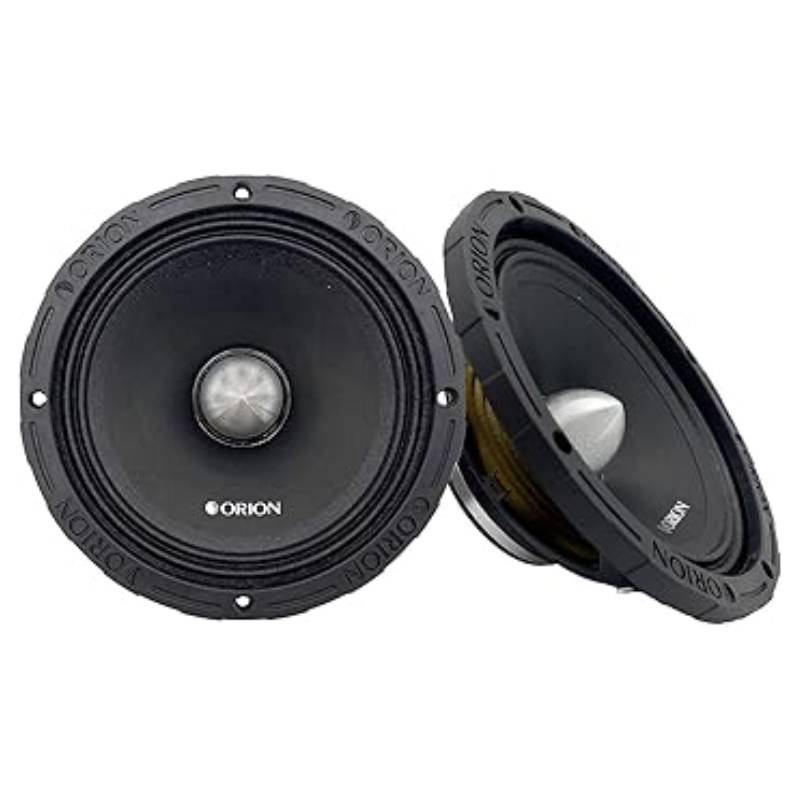

- • (2) 8" Shallow Neodymium Midrange Speaker
- • Owner's Manual
Power Meets Precision
Experience crystal-clear sound precision with this powerful 2-Ohm midrange speaker, engineered for seamless performance in any audio setup. The bullet phase plug enhances clarity and cooling, delivering distortion-free sound even at high volumes. Built with a heavy-gauged stamped steel frame, it ensures lasting durability and superior sound stability for an uncompromising listening experience.
Heat-Defying Precision Sound
Experience reliable, high-performance sound even during intense playback with superior heat resistance that keeps your speakers cool and consistent. Enjoy crystal-clear, distortion-free audio powered by a high-efficiency neodymium magnet that delivers unmatched precision. Built for power, clarity, and endurance — these speakers redefine how great sound should feel.
Powerful Precision Midrange Sound
Experience explosive, room-filling sound with 350W RMS and 1400W peak power that brings every note to life. Built tough with a non-pressed paper cone and treated cloth surround for long-lasting precision and durability. Enjoy a wide frequency range that delivers rich, detailed midrange tones for a truly immersive listening experience.
Frequently Asked Questions (FAQ)
- • Why do the XTR802NEO speakers sound thin when I expect more bass?
The XTR802NEO is a midrange driver with a published response beginning at 128Hz, so it is not intended to reproduce deep subwoofer frequencies.
- • Could the 2-ohm load cause problems with my amplifier?
Each XTR802NEO is rated at 2 ohms, so the amplifier must be capable of safely driving that impedance before the speakers are connected.
- • Why do the speakers become distorted when I increase the volume?
Excessive amplifier gain, clipping, or driving the speakers beyond their 350W RMS capability can cause audible distortion even though the pair is advertised with 1400W peak handling.
- • What if the XTR802NEO does not fit my shallow speaker location?
Despite its shallow design, the speaker still requires approximately 2.66 inches of mounting depth and a 7.26-inch cutout.
- • Why are the vocals not as bright as I expected?
The XTR802NEO reaches up to 10kHz, so a dedicated tweeter or super-tweeter may be needed when a system requires stronger upper-treble extension.
- • Can running these speakers below their recommended range damage them?
Sending excessive low-frequency energy into a midrange driver can increase cone excursion and thermal stress, so appropriate high-pass filtering is important for demanding systems.
- • Why does one XTR802NEO seem louder than the other?
Differences in amplifier-channel gain, wiring, polarity, mounting position, or acoustic surroundings can create an apparent output imbalance between the two speakers.
- • What causes the XTR802NEO to sound different after changing the installation location?
The shallow speaker's acoustic response can change with enclosure volume, mounting surface, and surrounding panels, even when the same amplifier settings are retained.
- • Why does the speaker seem quieter than the 1400W rating suggests?
The 1400W figure is peak handling, while the continuous RMS rating is 350W, so the peak number should not be interpreted as the amount of continuous amplifier power the speaker produces.
- • Could an incorrect voice-coil or speaker connection affect system performance?
Because the XTR802NEO uses a 2-ohm configuration, incorrect wiring or an amplifier that is unsuitable for the resulting load can change output and potentially create protection or reliability problems.
- Diameter : 8 Inch
- Sensitivity : 92.5 dB
- Impedance : 2 Ohm
- Frequency Response : 128-10000 Hz
- Peak Power Handling : 1400 Watts
- Top Mount Depth : 2.66 Inches
- Shallow Mount : Yes Inch
- RMS Power Handling : 350 Watts
Features:
- 2-Ohm Midrange Speaker: Designed for accurate sound and seamless integration into a variety of audio systems.
- Bullet Phase Plug: Improves sound clarity and cooling, ensuring distortion-free audio even at high volumes.
- Heavy-Gauged Stamped Steel Frame: Provides exceptional strength and rigidity, reducing unwanted vibrations and resonance for improved sound clarity and long-lasting durability, even in high-performance applications.
- High-Temperature Coating: Enhances heat resistance, protecting the speaker components during extended use at high power levels, ensuring consistent performance and longevity in demanding environments.
- Neodymium Magnet: Delivers a powerful magnetic field in a compact size, enhancing sensitivity and efficiency for crisp, clear sound with reduced distortion, while maintaining a lightweight design for easier installation.
- High Power Handling: 350 Watts RMS and 1400 Watts peak power for dynamic, powerful sound performance.
- Durable Construction: Built with a non-pressed paper cone and a treated cloth accordion surround for enhanced durability and accurate sound reproduction.
- Wide Frequency Range: From 128 Hz to 10 kHz, capturing detailed midrange frequencies for a rich audio experience.
Specifications:
- Speaker Size: 8 (Inches)
- Voice Coil Configuration: 2 ohm
- Power Handling (Peak): 1400 Watts
- Power Handling (RMS): 350 Watts
- Sensitivity: 92.5 dB
- Frequency Response: 128 Hz - 10 kHz
- Voice Coil Diameter: 1.5" (Inches)
- Speaker Quantity 2 Speakers
- Material: Heavy Gauge Stamped Steel
- Cone Material: Non Pressed Paper
- Phase Plug Material: Billet Aluminum
- Magnet Information: Neodymium
- Grilles Included: No
- Mounting Depth: 67.5mm / 2.66 (Inches)
- Overall Depth: 67.5mm / 2.66 (Inches)
- Cutout Diameter: 184.5mm / 7.26 (Inches)
- Overall Diameter: 209.4mm / 8.24 (Inches)
- UPC: 818550019362
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
